Front Seat

REMOVAL
1. Move the seat fully forward.

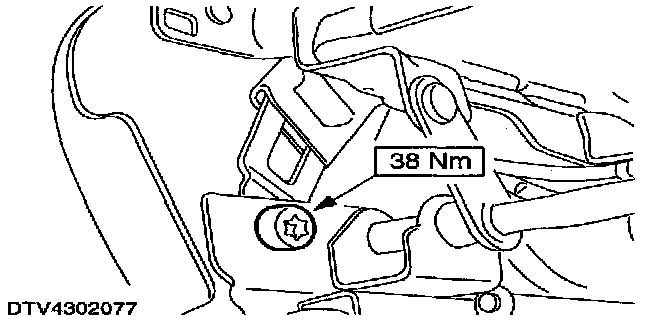

2. Remove the Torx(r) retaining bolt.
3. Detach the safety belt from the front seat.
4. Remove the B-pillar trim.

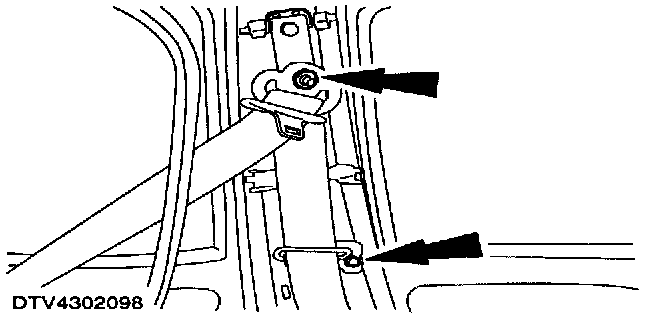

5. Detach the safety belt from the B-pillar.

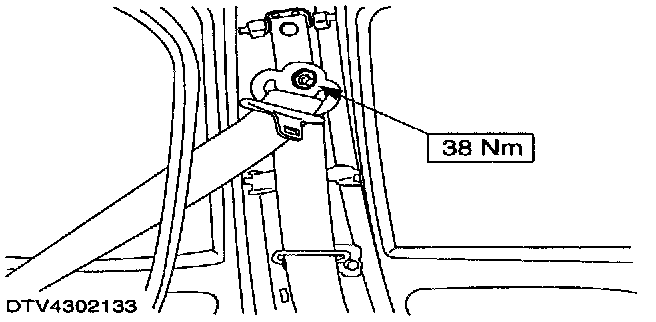

- Detach the upper safety belt anchor.
- Detach the waist loop guide.

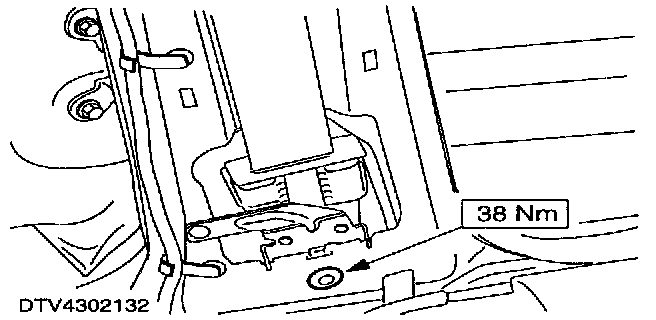

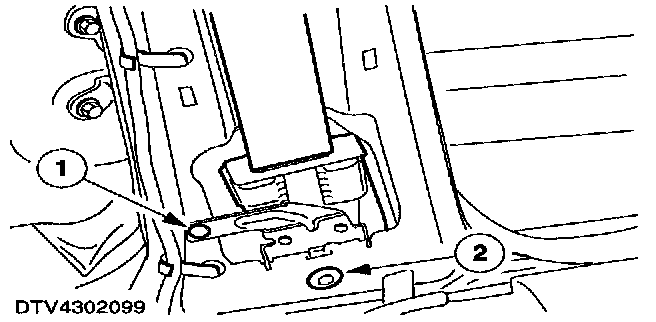

6. Remove the retractor.
1 Remove the retaining screw.
2 Remove the Torx(r) bolt.

INSTALLATION













1. To install, reverse the removal procedure.
