Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> H: LFC 16/DTC B1888 - Pass. Air Bag Circuit Shorted to Ground

H: LFC 16/DTC B1888 - Pass. Air Bag Circuit Shorted to Ground

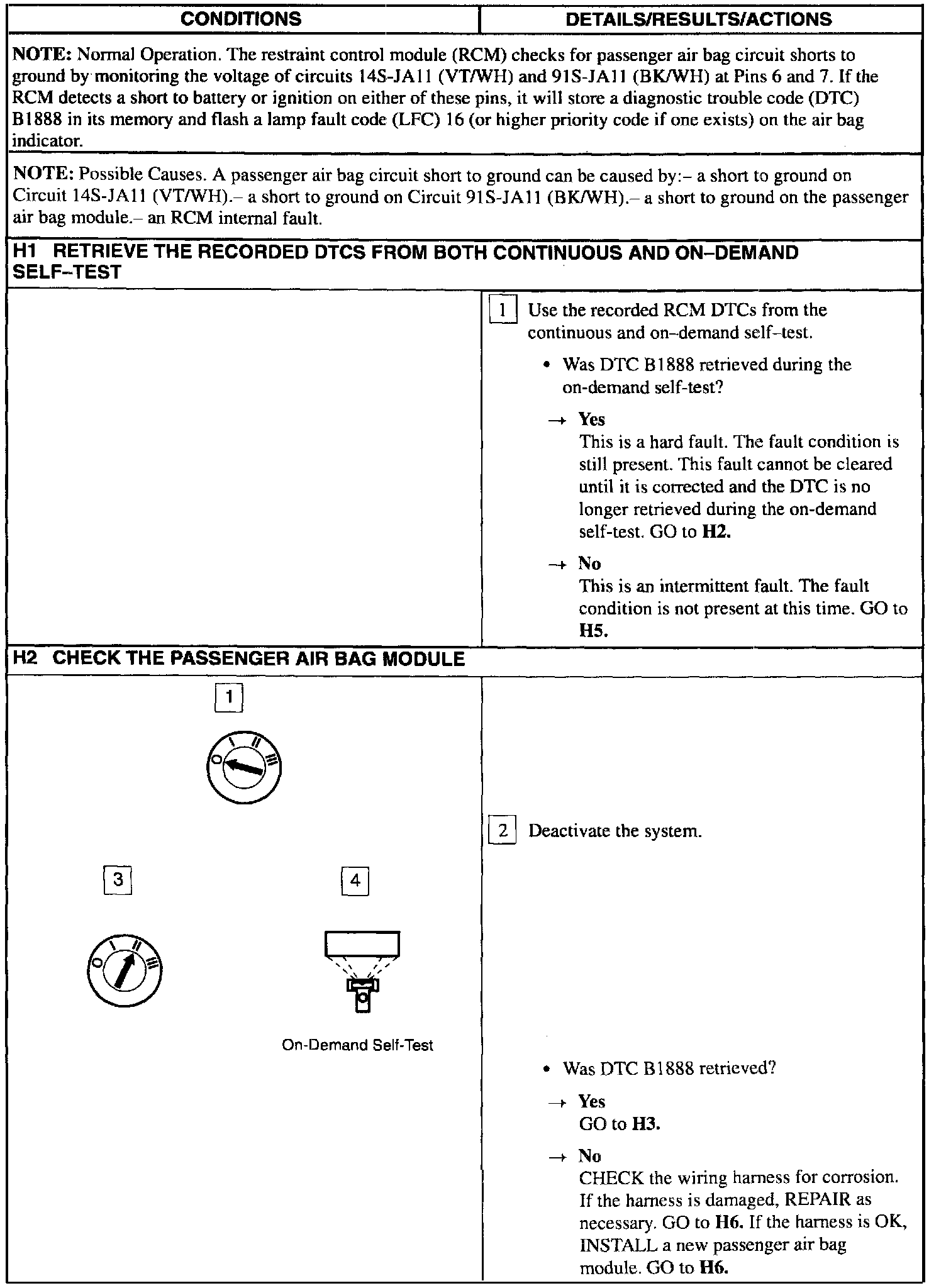

H1 - H2:

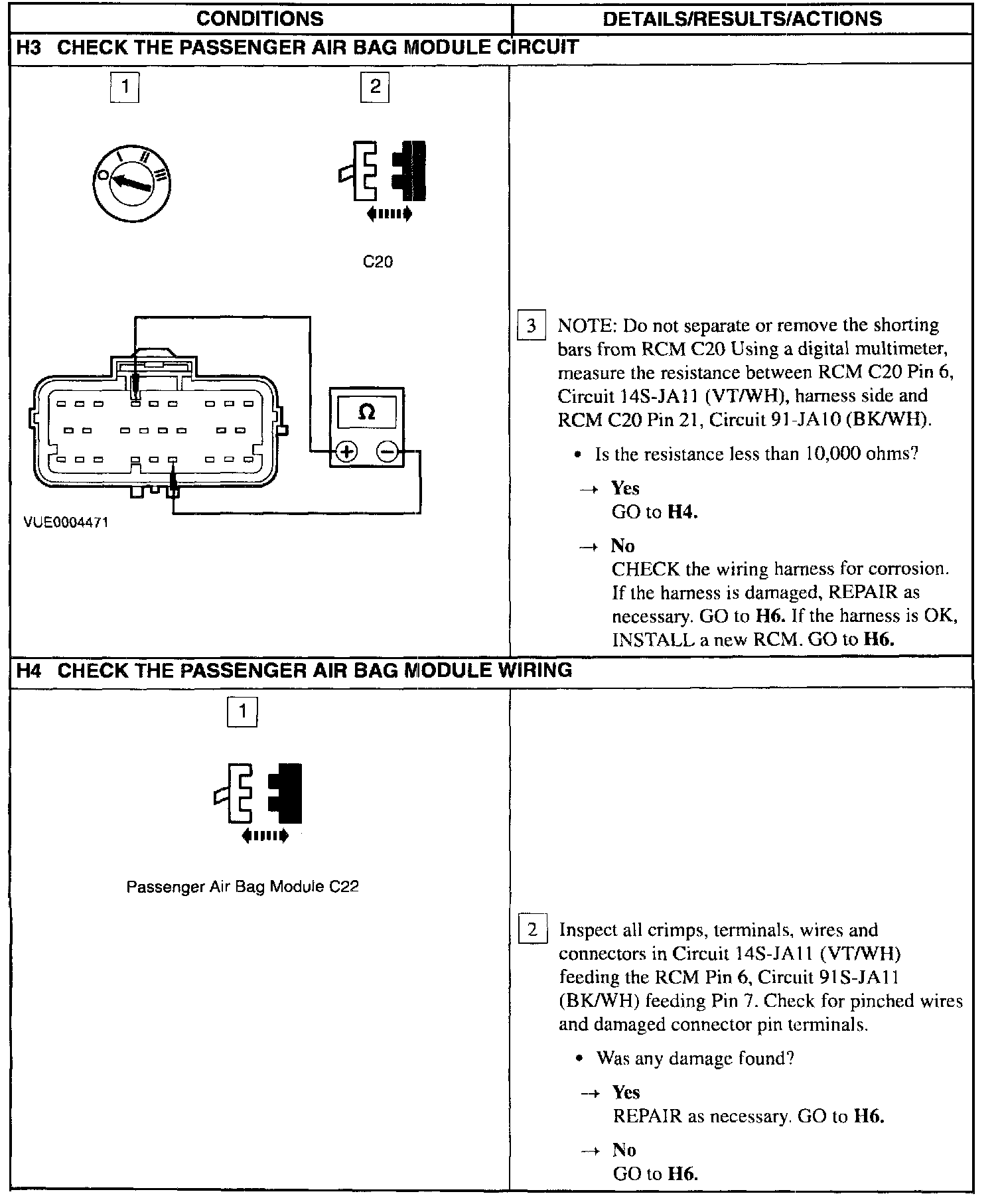

H3 - H4:

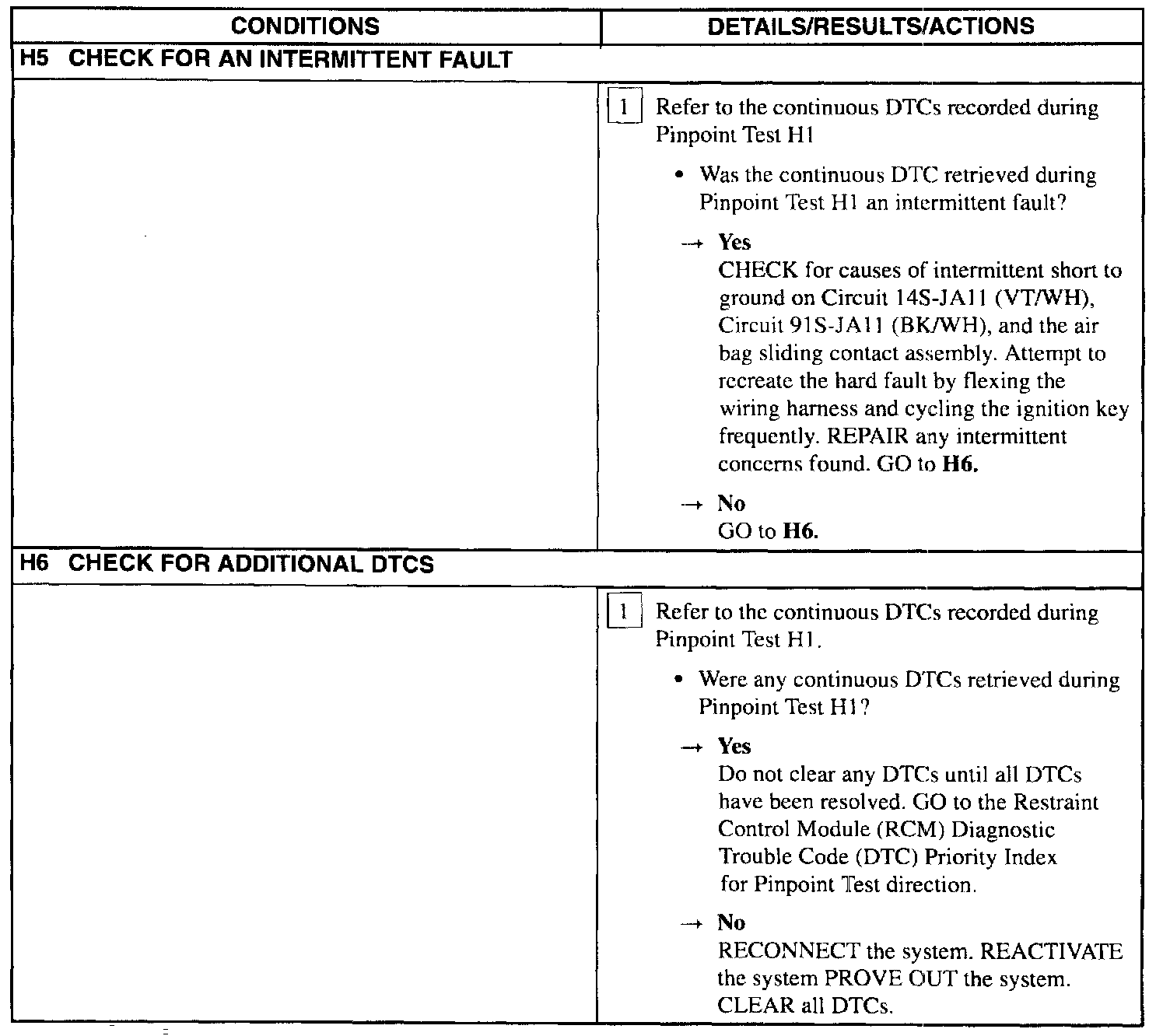

H5 - H6:
