G: LFC 15/DTC B1916 - Driver Air Bag Circuit Short to Batt/Ign
G: LFC 15/DTC B1916 - Driver Air Bag Circuit Short to Batt/Ign

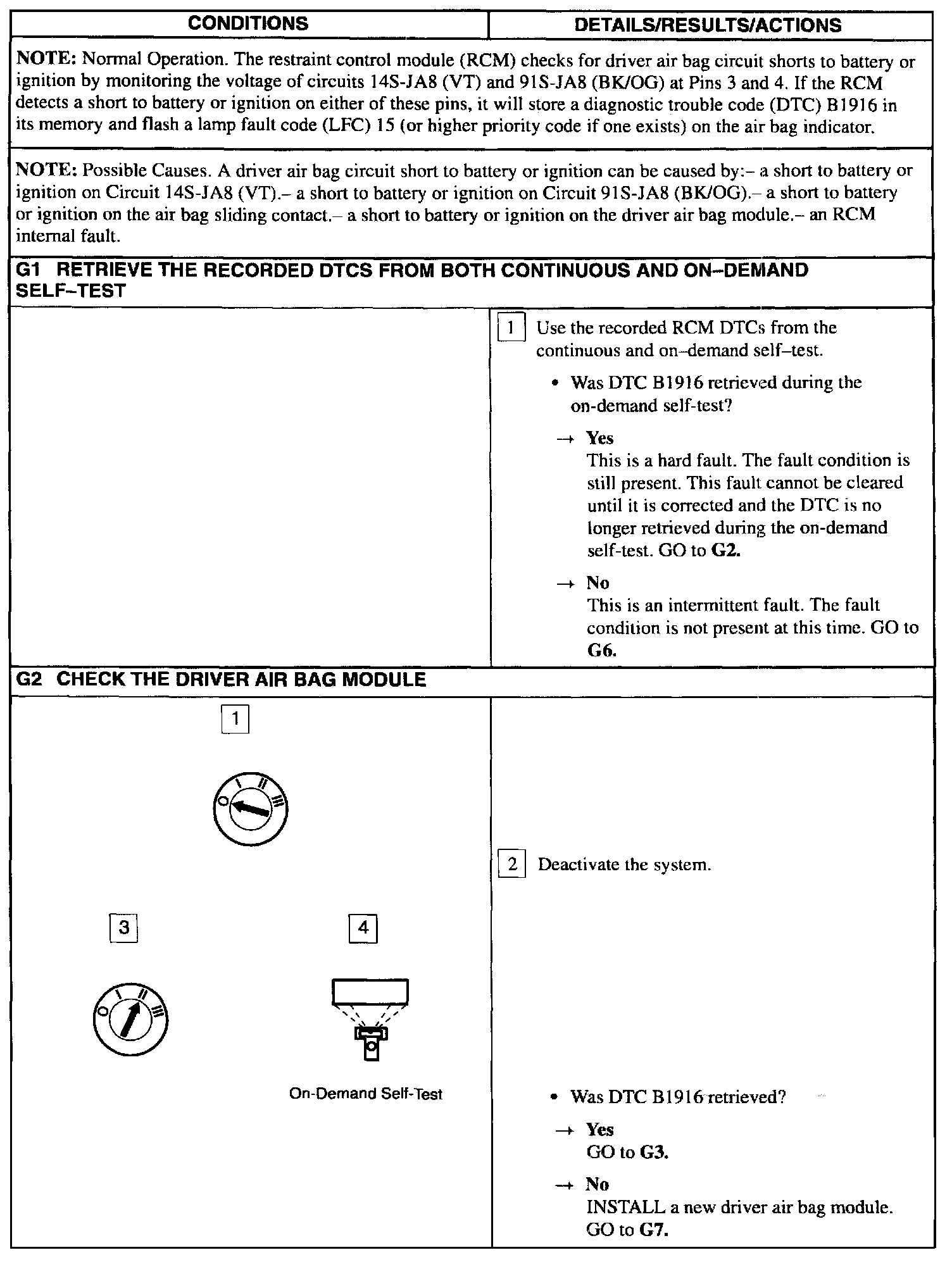

G1 - G2:

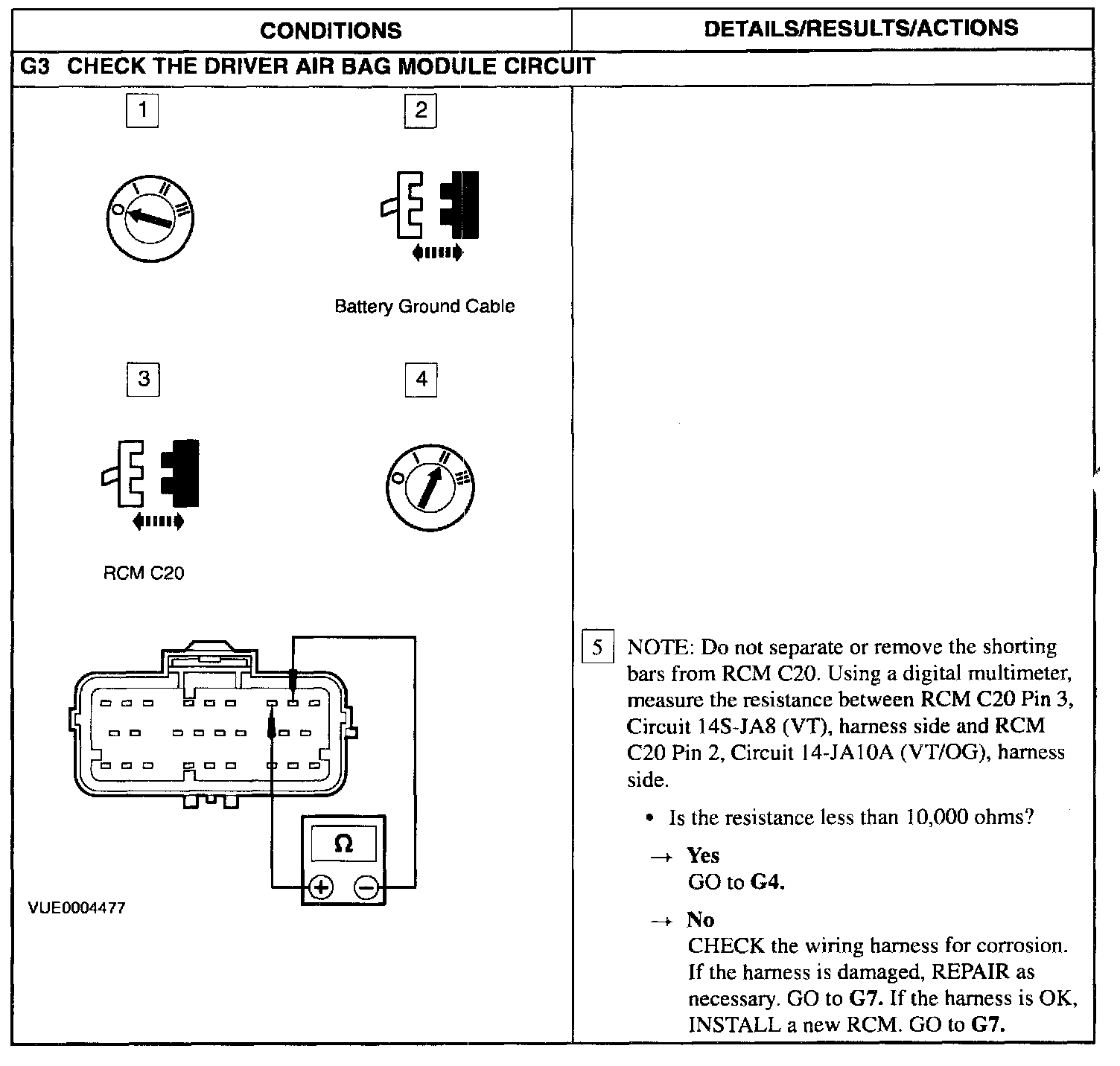

G3:

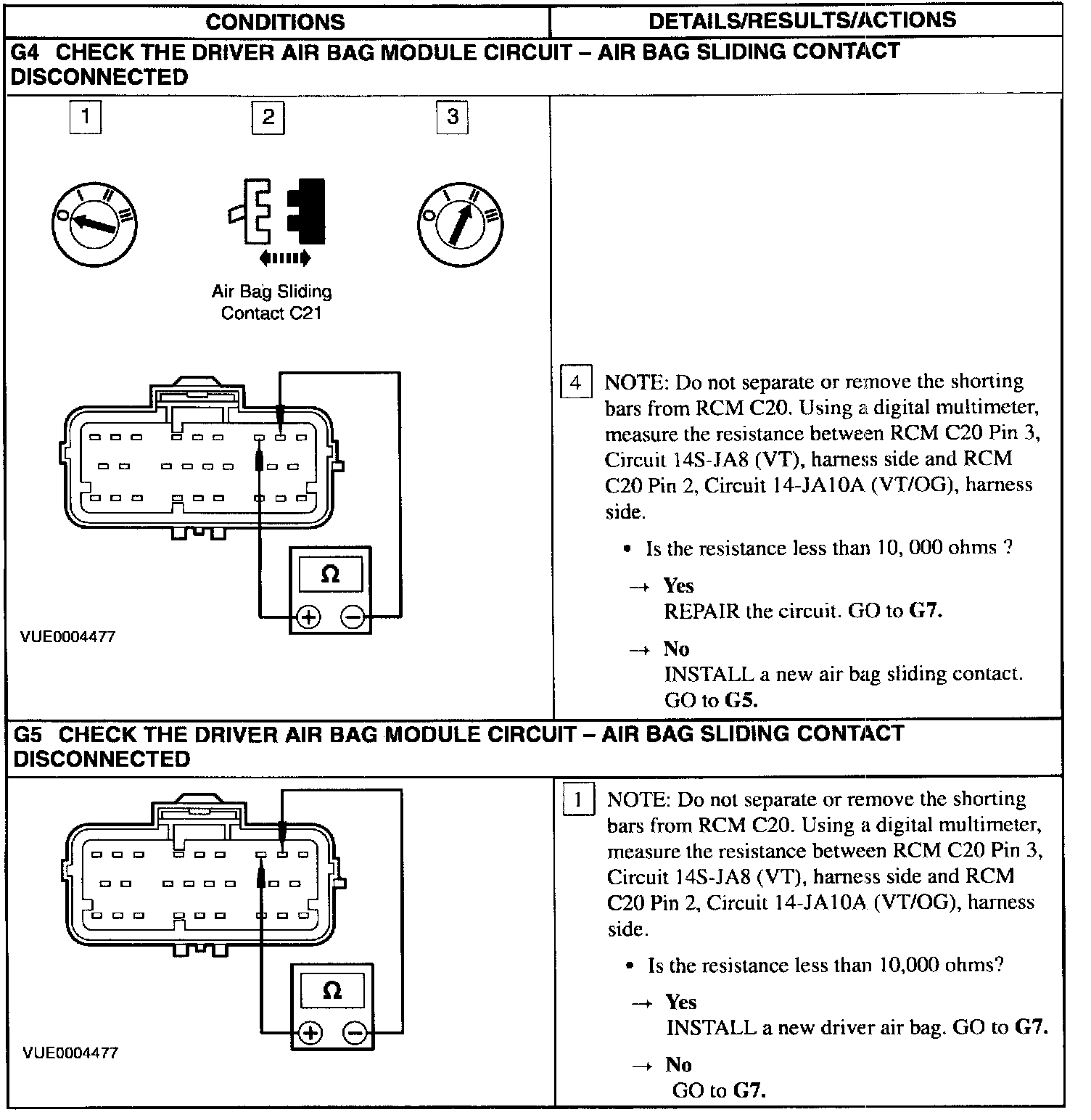

G4 - G5:

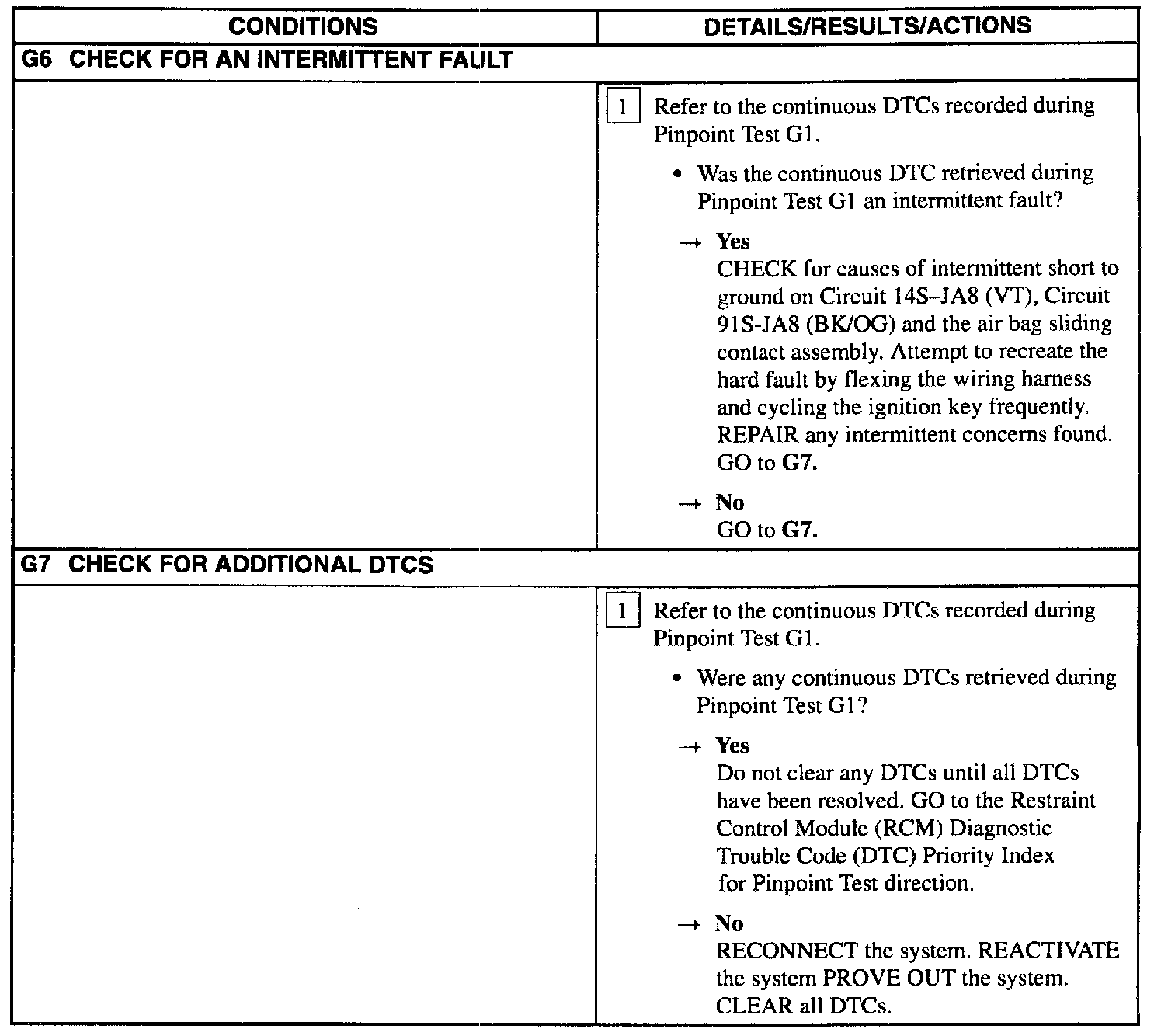

G6 - G7:
