F: LFC 15/DTC B1887- Driver Air Bag Circuit Shorted to Ground
F: LFC 15/DTC B1887- Driver Air Bag Circuit Shorted to Ground

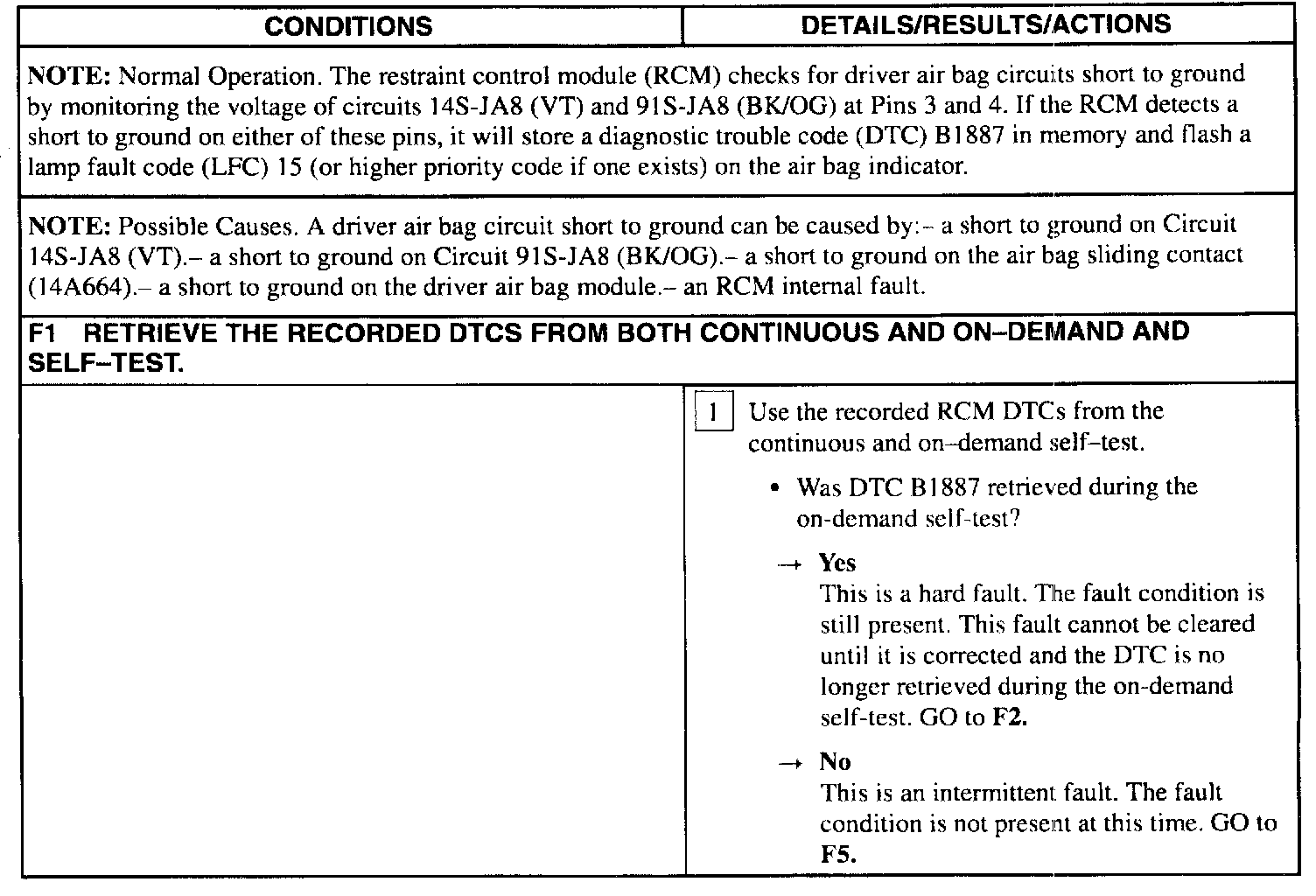

F1:

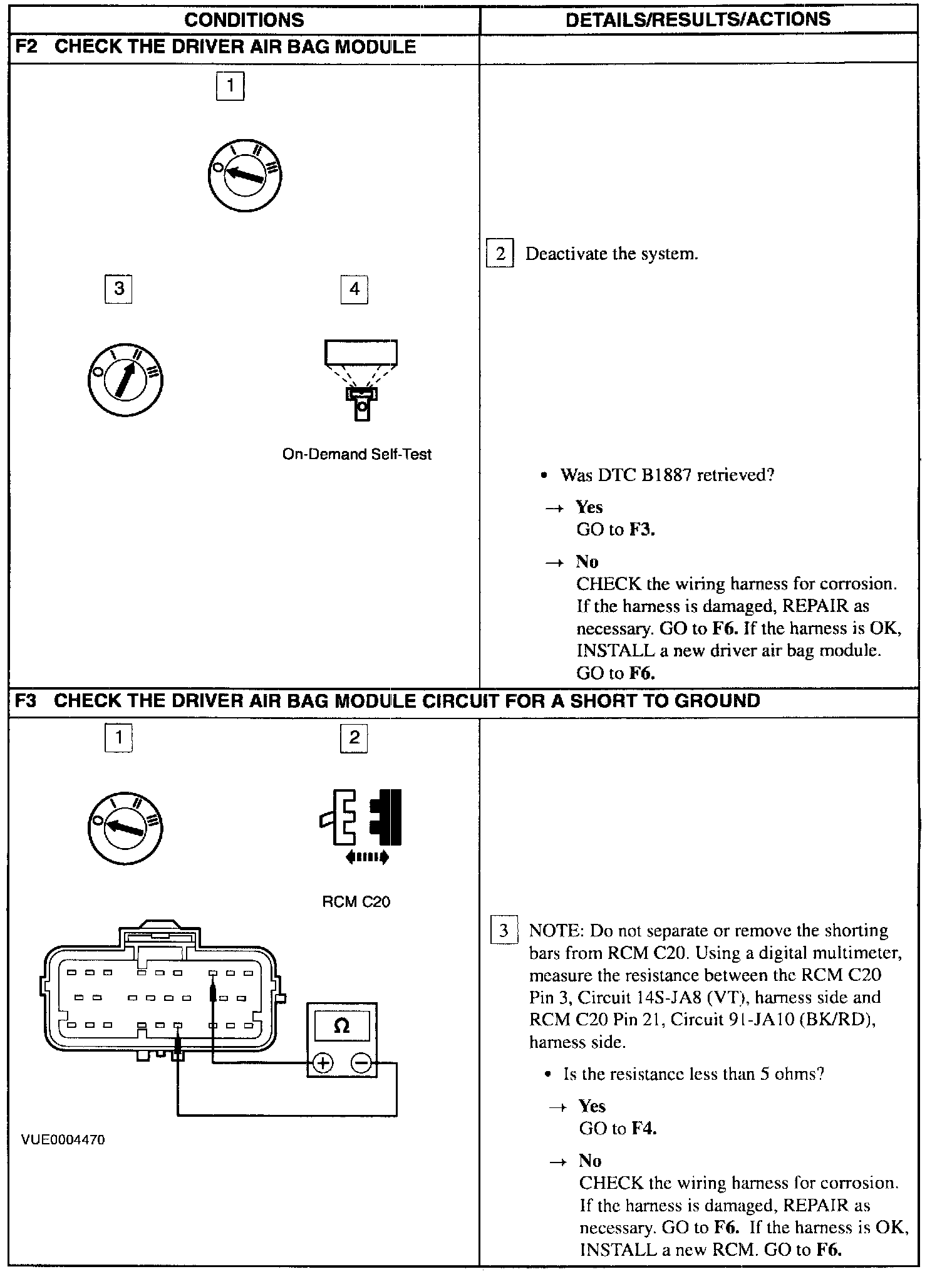

F2 - F3:

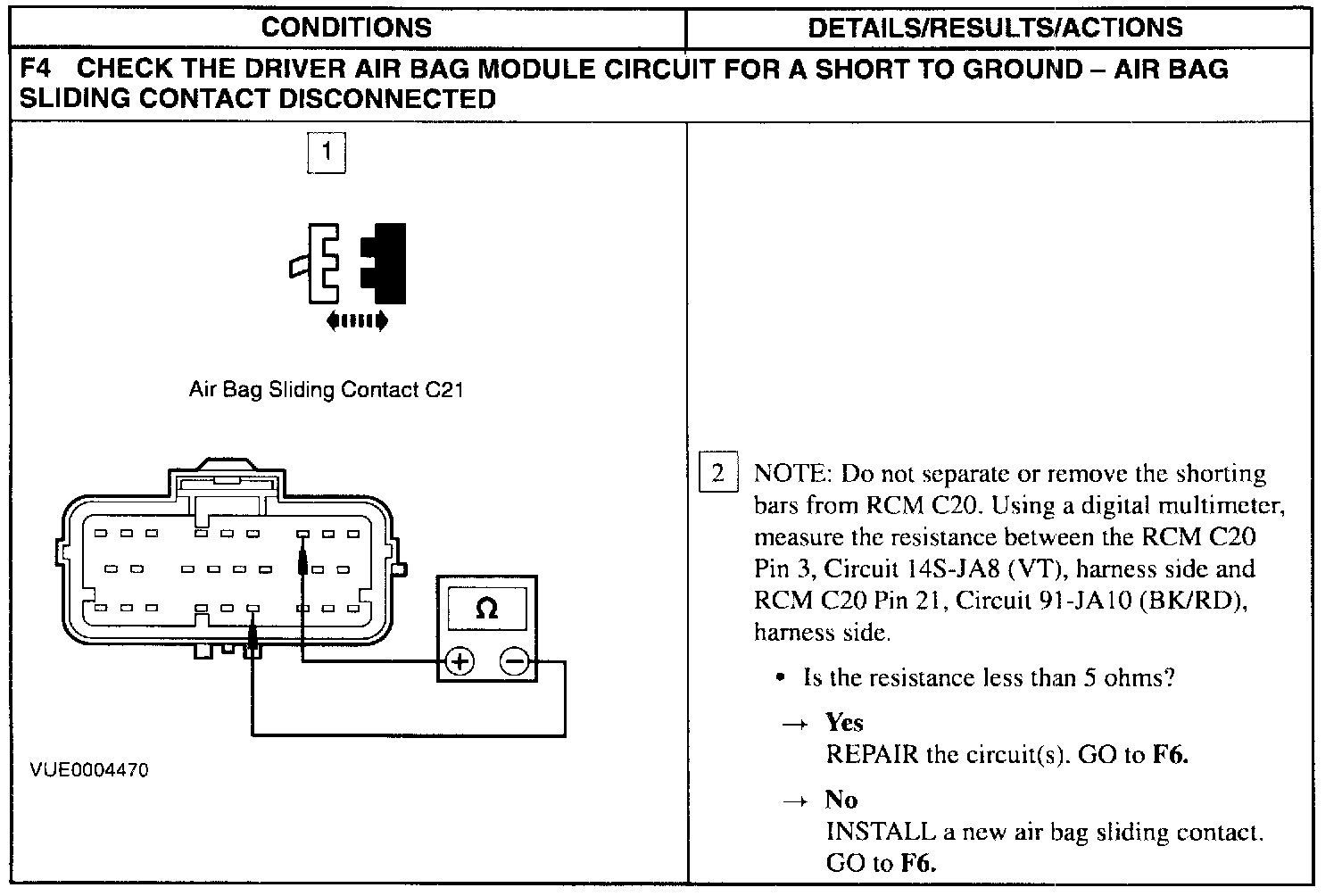

F4:

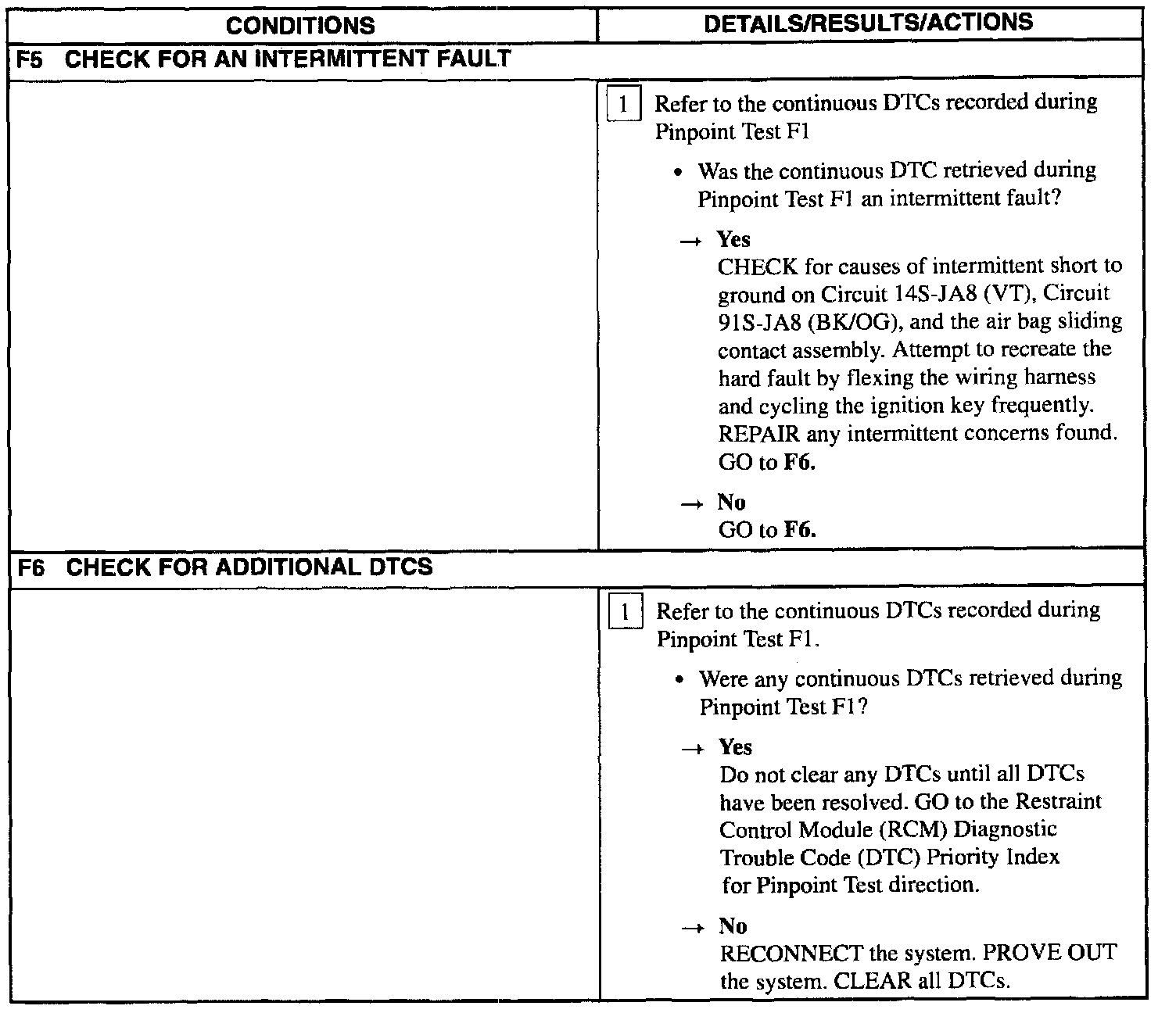

F5 - F6:
