FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
C: Torque Converter Clutch (TCC) Solenoid
C: Torque Converter Clutch (TCC) Solenoid

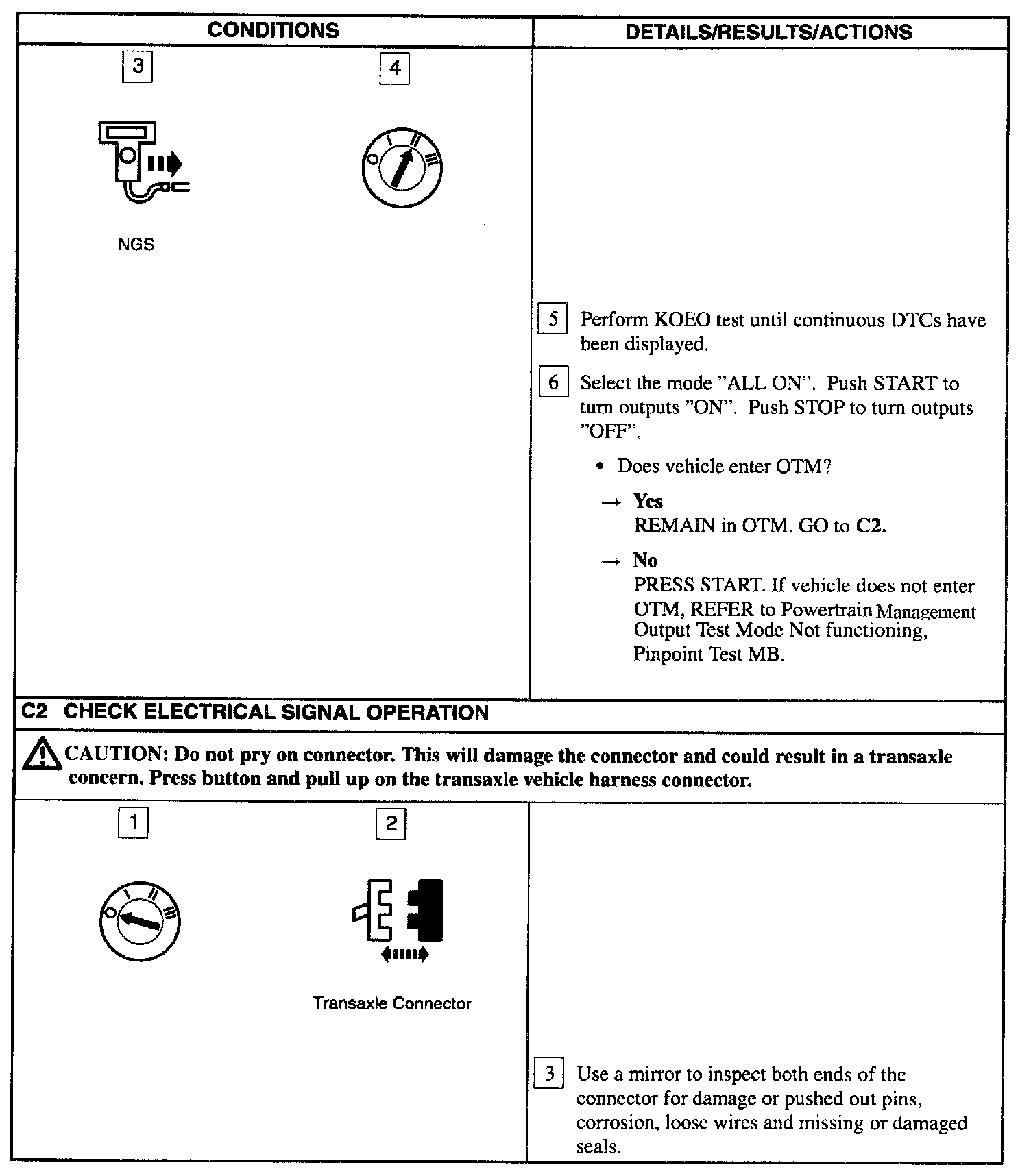

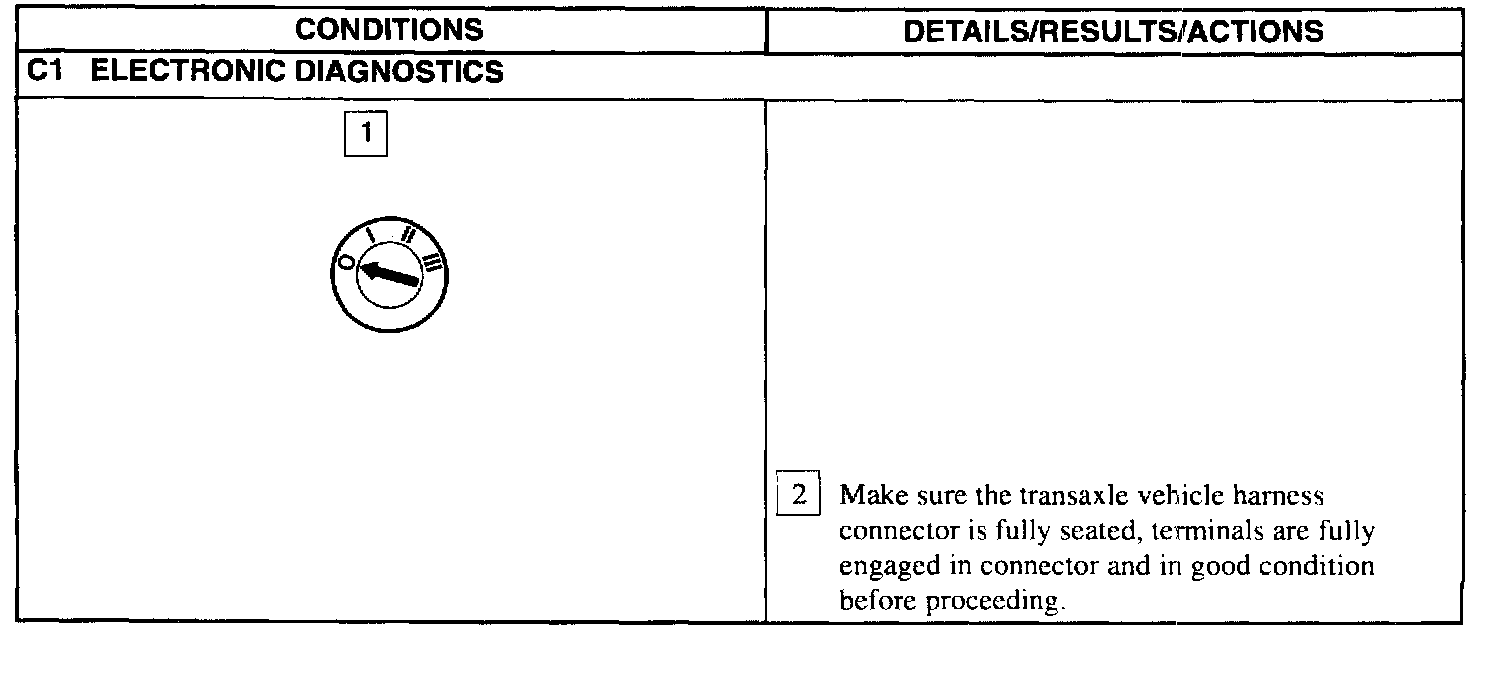

C1:

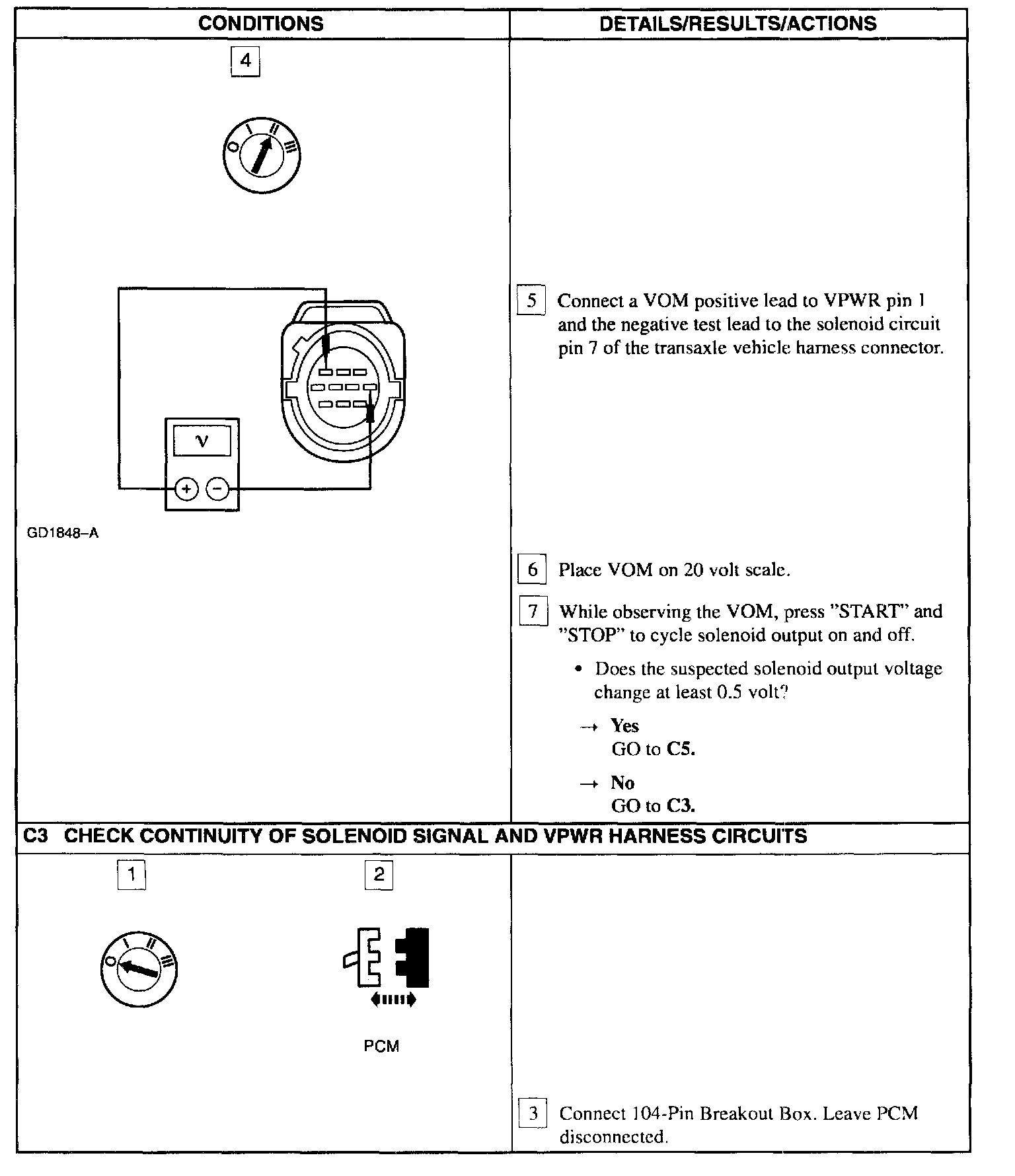

C1-C2:

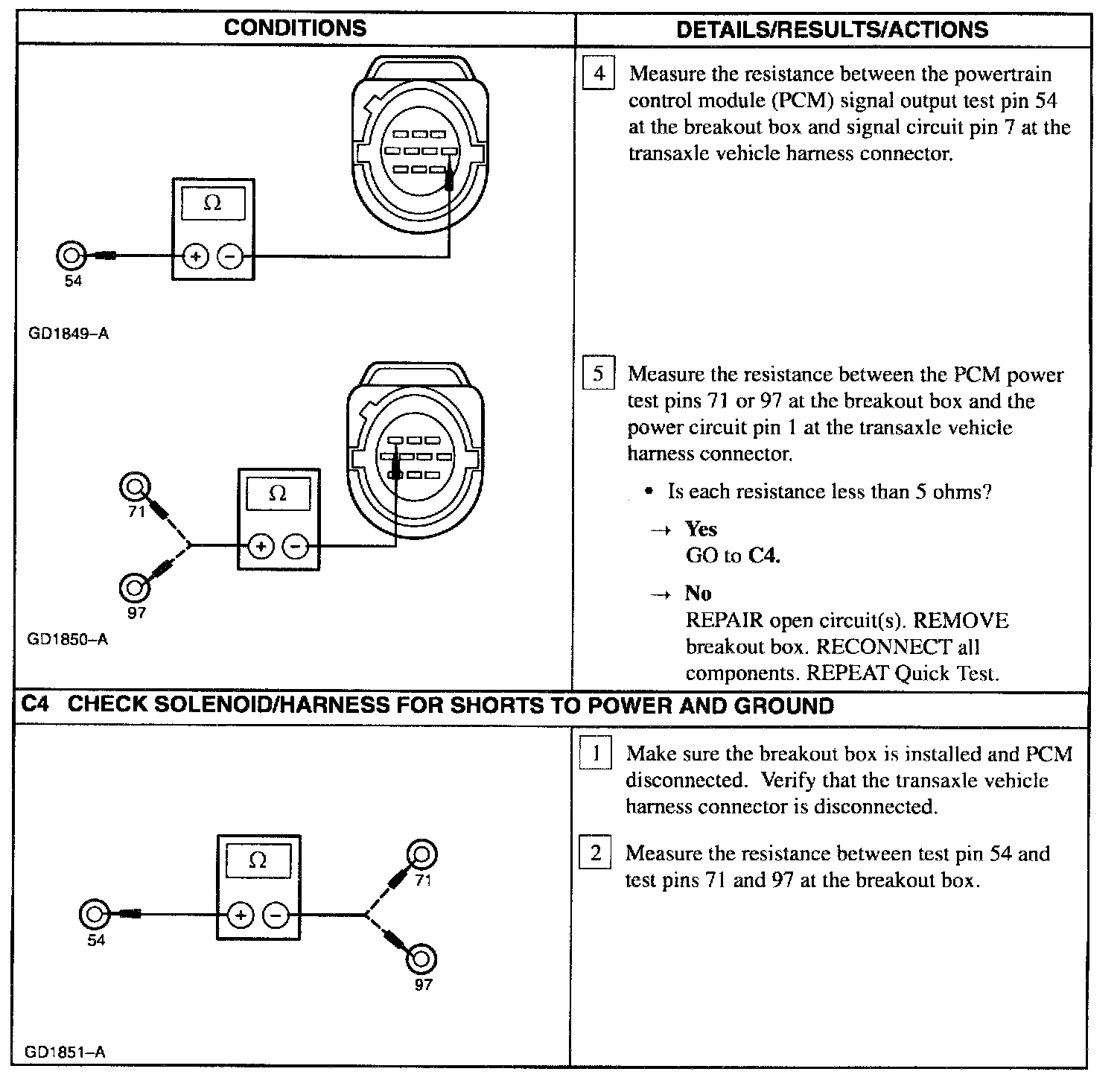

C2-C3:
C3-C4:

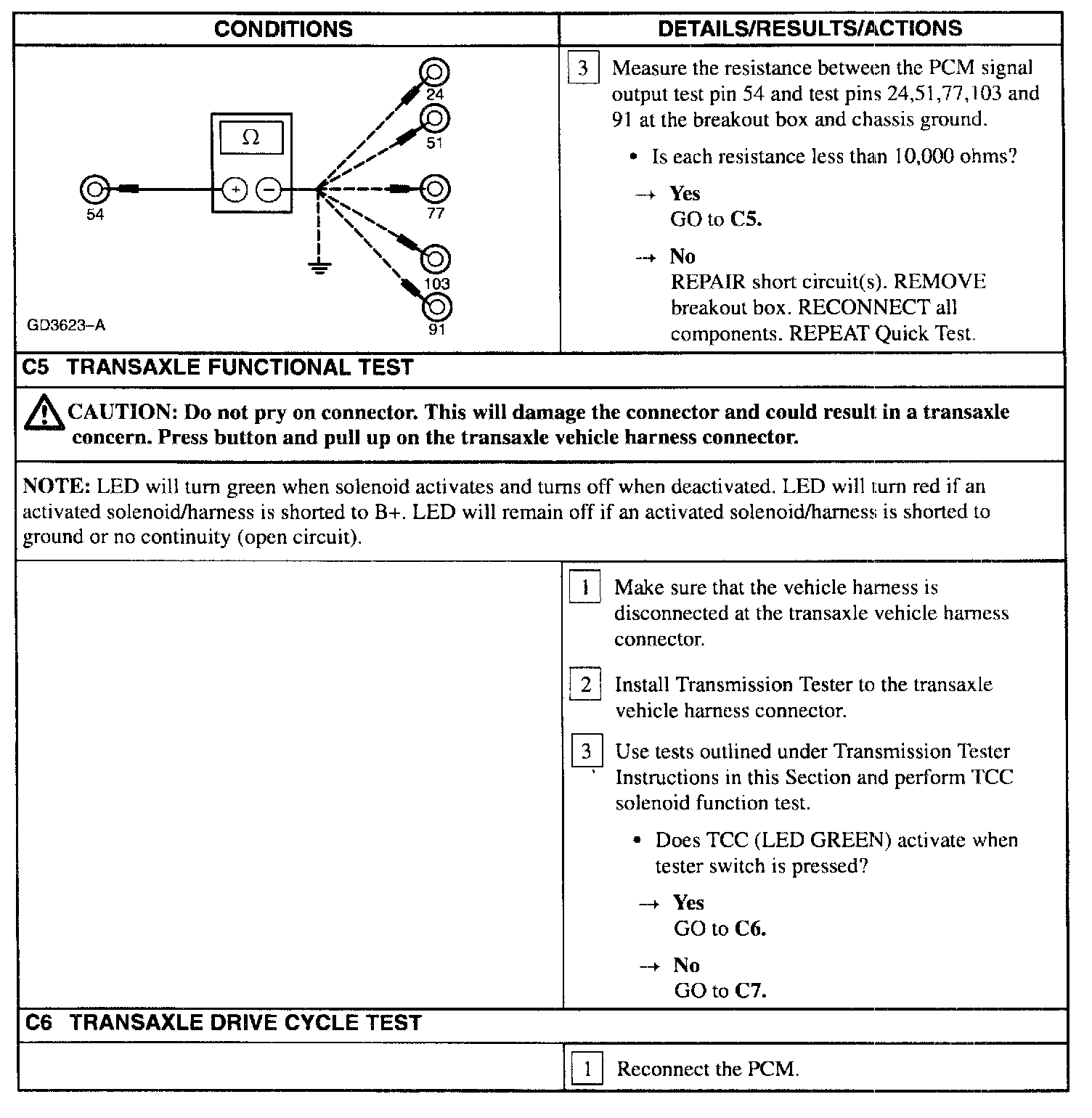

C4-C6:

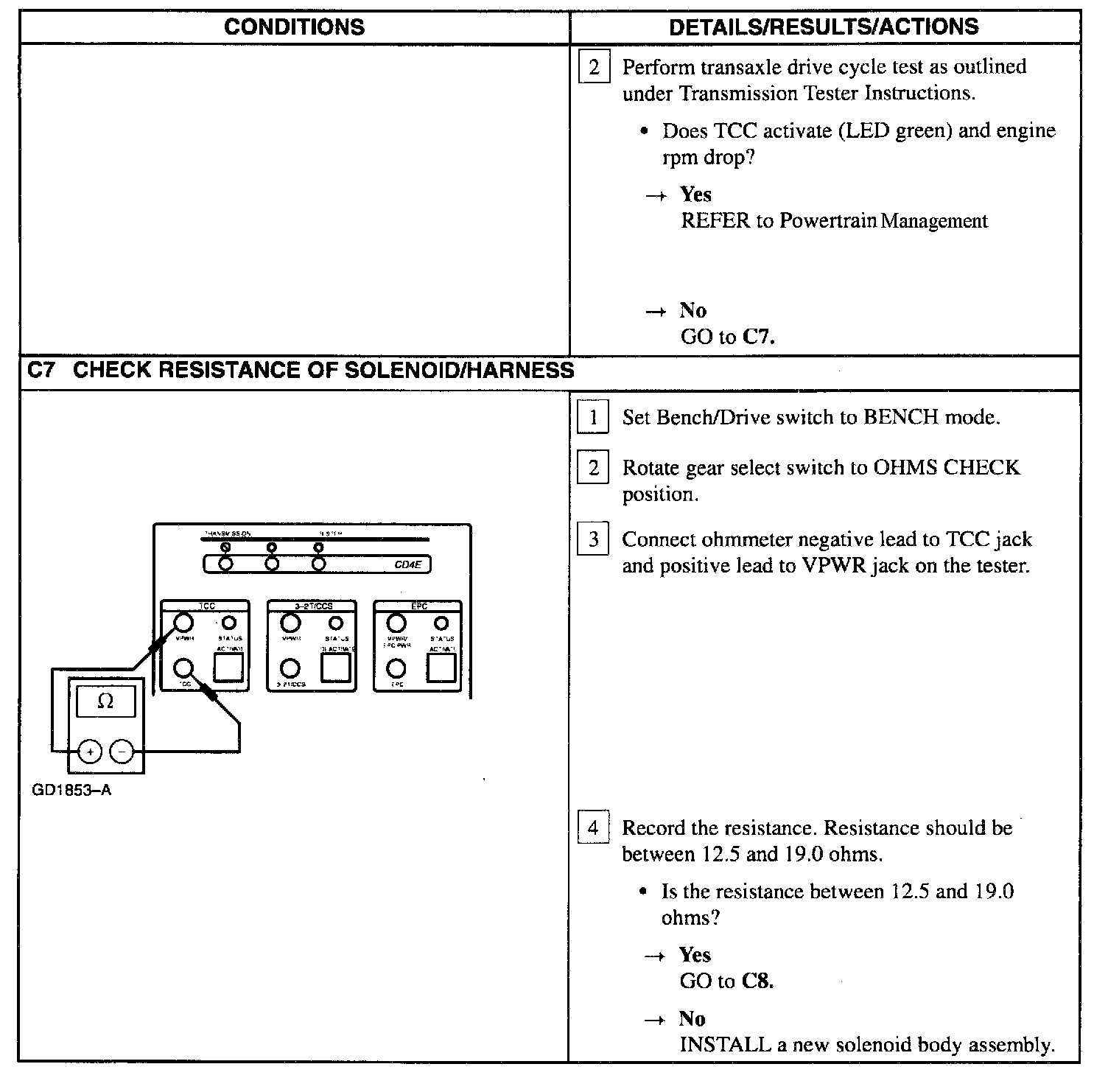

C6-C7:

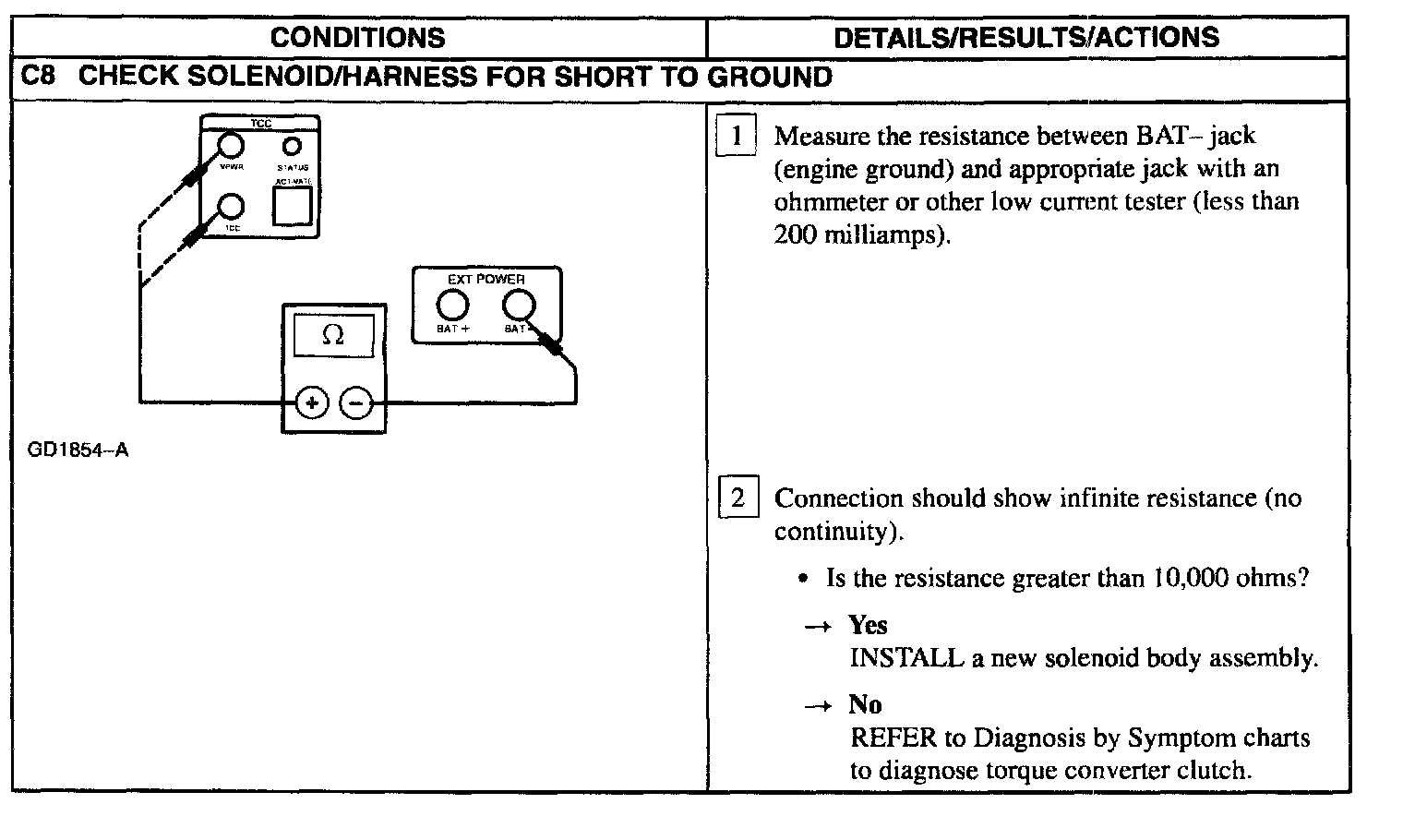

C8:
Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid
