EGR Valve: Service and Repair

REMOVAL
1. Remove the Idle Air Control (IAC) valve.

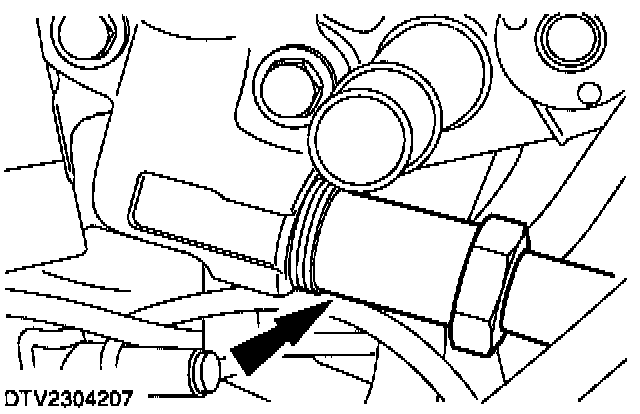

2. Disconnect the tube from the Exhaust Gas Recirculation (EGR) valve.

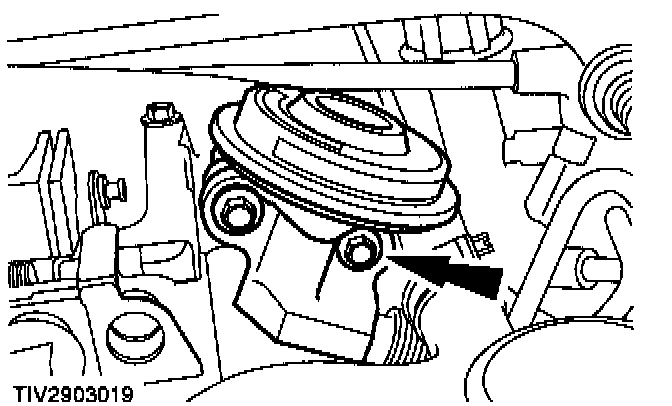

3. Remove the EGR valve.
^ Disconnect the vacuum hose.

INSTALLATION

1. Clean the gasket faces of the intake manifold and EGR valve.

CAUTION: When cleaning the gasket faces, do not allow debris to enter the intake manifold or exhaust gas recirculation valve.







2. Install a new EGR valve gasket.

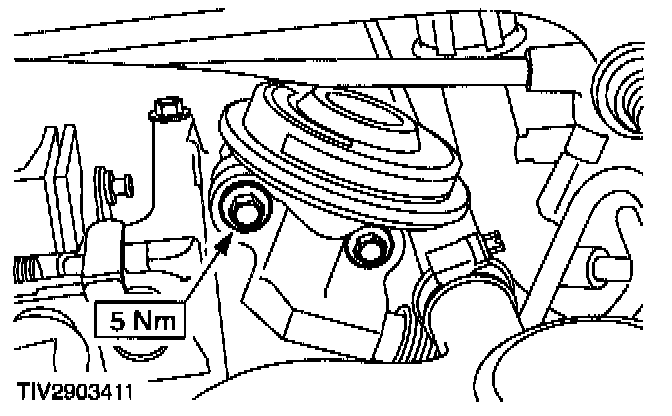

3. Position the EGR valve and install the bolts.
^ Install the vacuum hose.

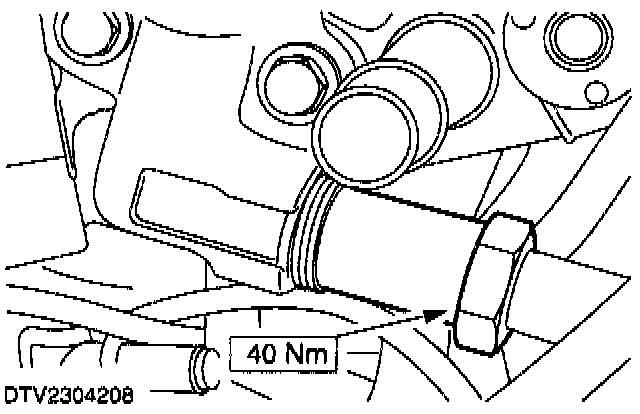

4. Connect the EGR tube.
5. Install the IAC valve.
