EGR Tube: Service and Repair

REMOVAL
1. Remove the Idle Air Control (IAC) valve.

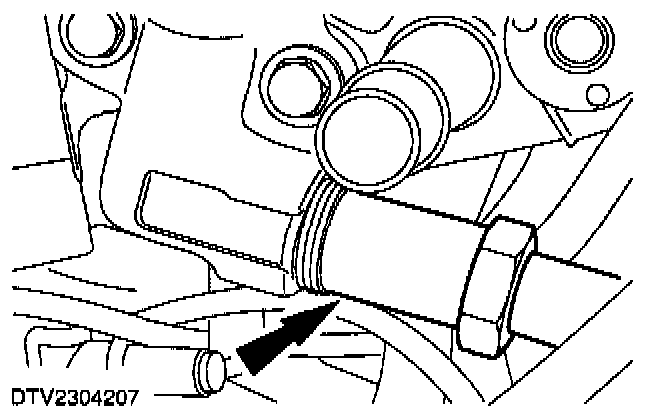

2. Disconnect the tube from the Exhaust Gas Recirculation (EGR) valve.
3. Disconnect the differential pressure feedback EGR sensor hoses from the EGR tube.
4. Raise and support the vehicle.
5. Remove the engine splash shield.

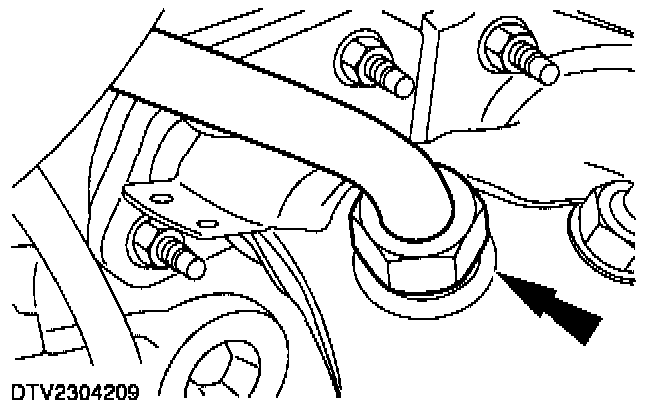

6. Disconnect the EGR valve tube and remove it.

INSTALLATION

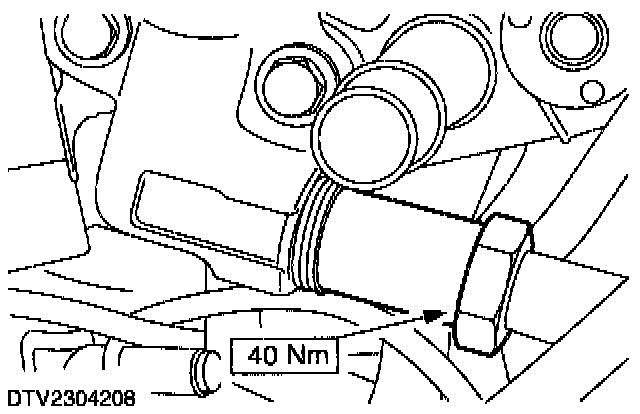

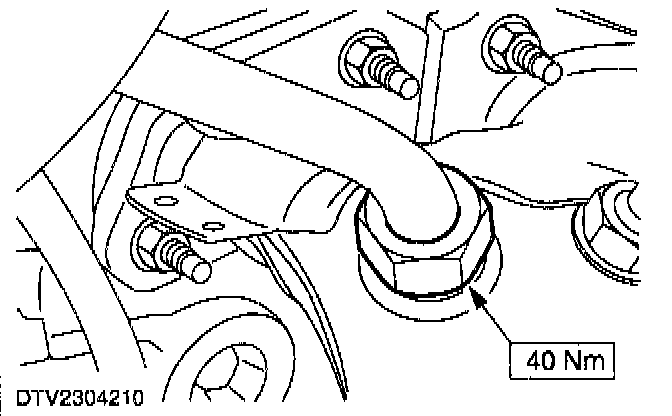

1. To install, reverse the removal procedure.
