Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>

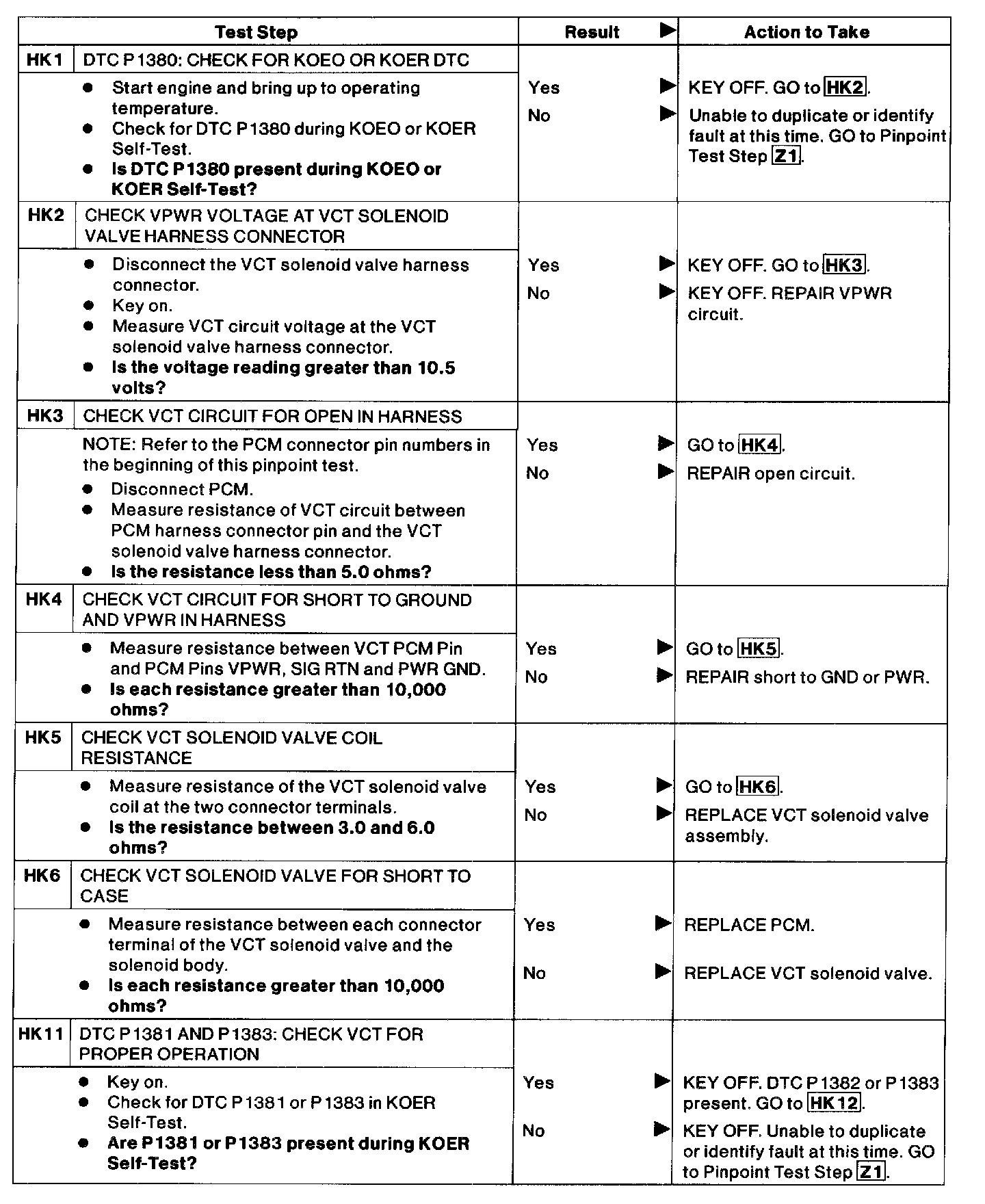

HK - Variable Cam Timing (VCT)
>>
HK1 - HK11
HK1 - HK11
This pinpoint test does not apply to SOHC, confirm DOHC engine selection in the year/make/model screen before continuing.:
