Pinpoint Test Schematics and Connectors

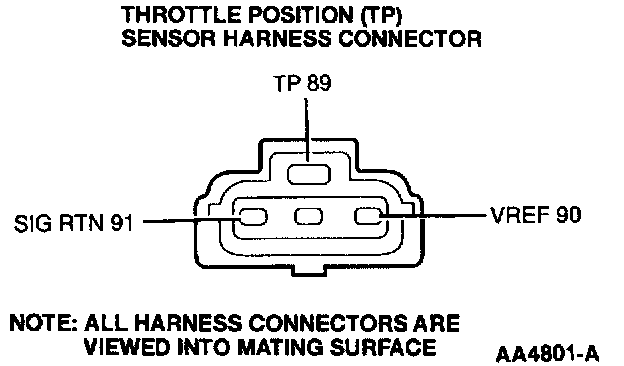

TPS Harness Connector W/O Returnless Fuel System

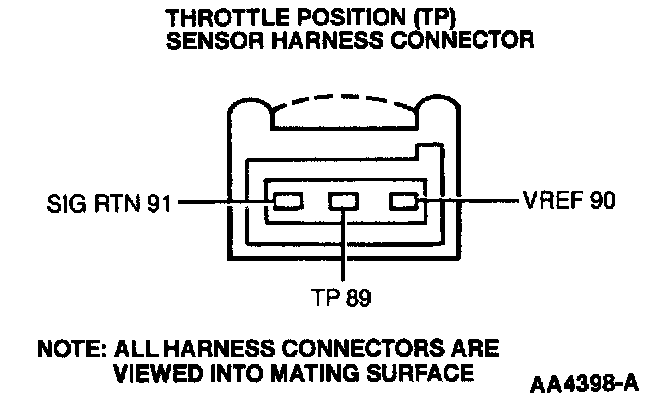

TPS Harness Connector With Returnless Fuel System





IAT Sensor Harness Connector

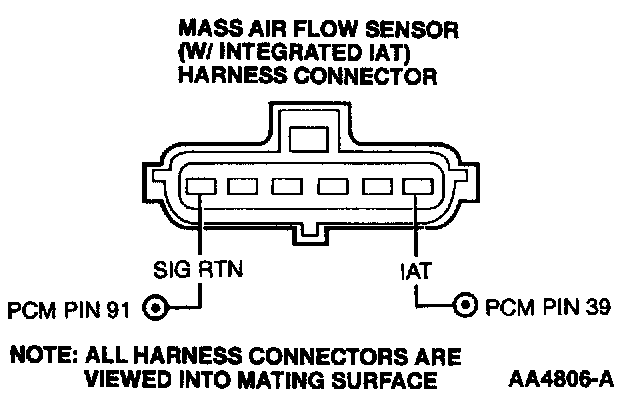

Integrated IAT/MAF Connector With Returnless Fuel System
