Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> D

D



Test D: ABS & Airbag Modules Don't Respond To NGS Tester
Result Code 70 = 00000001

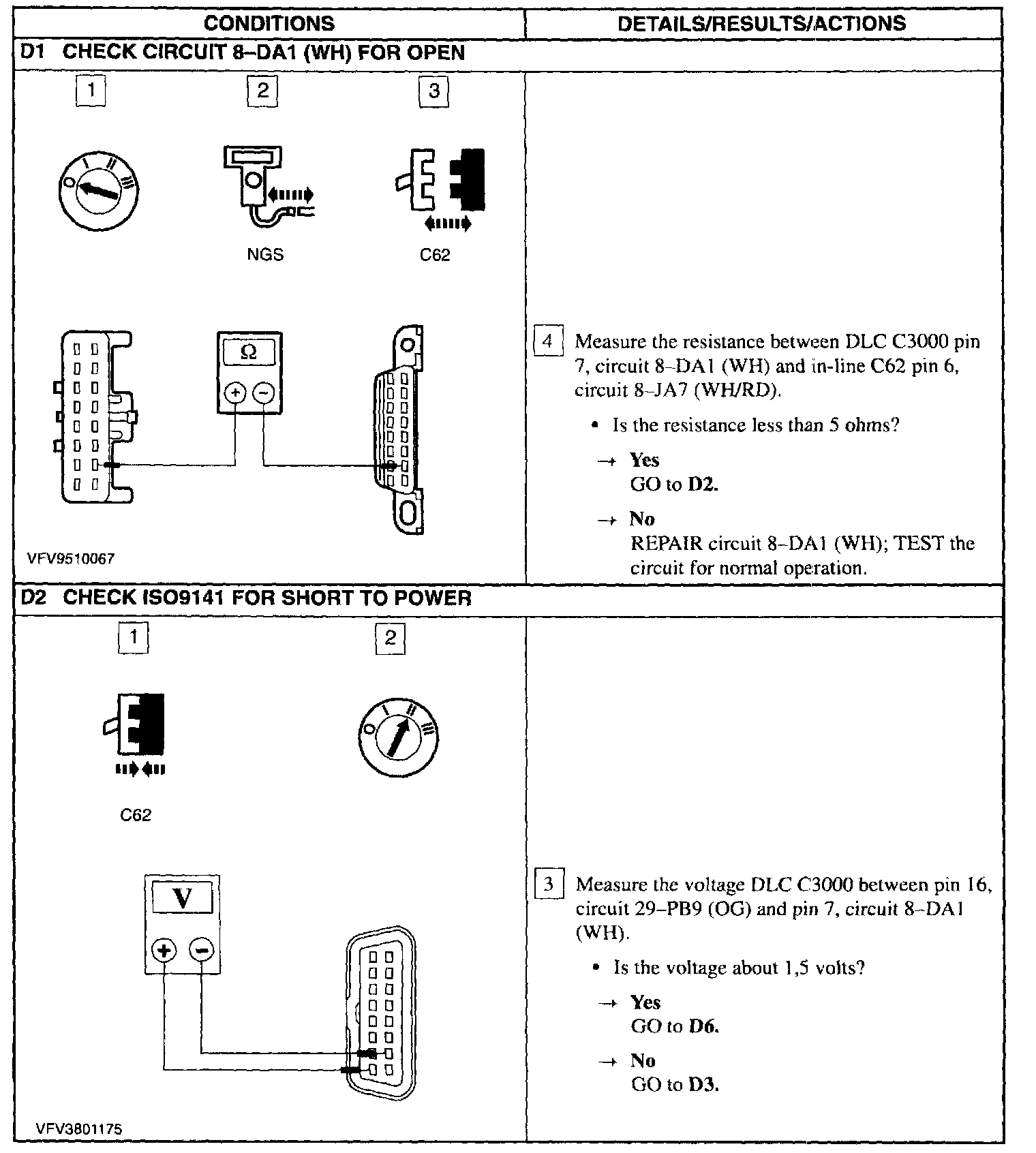

D1 - D2:

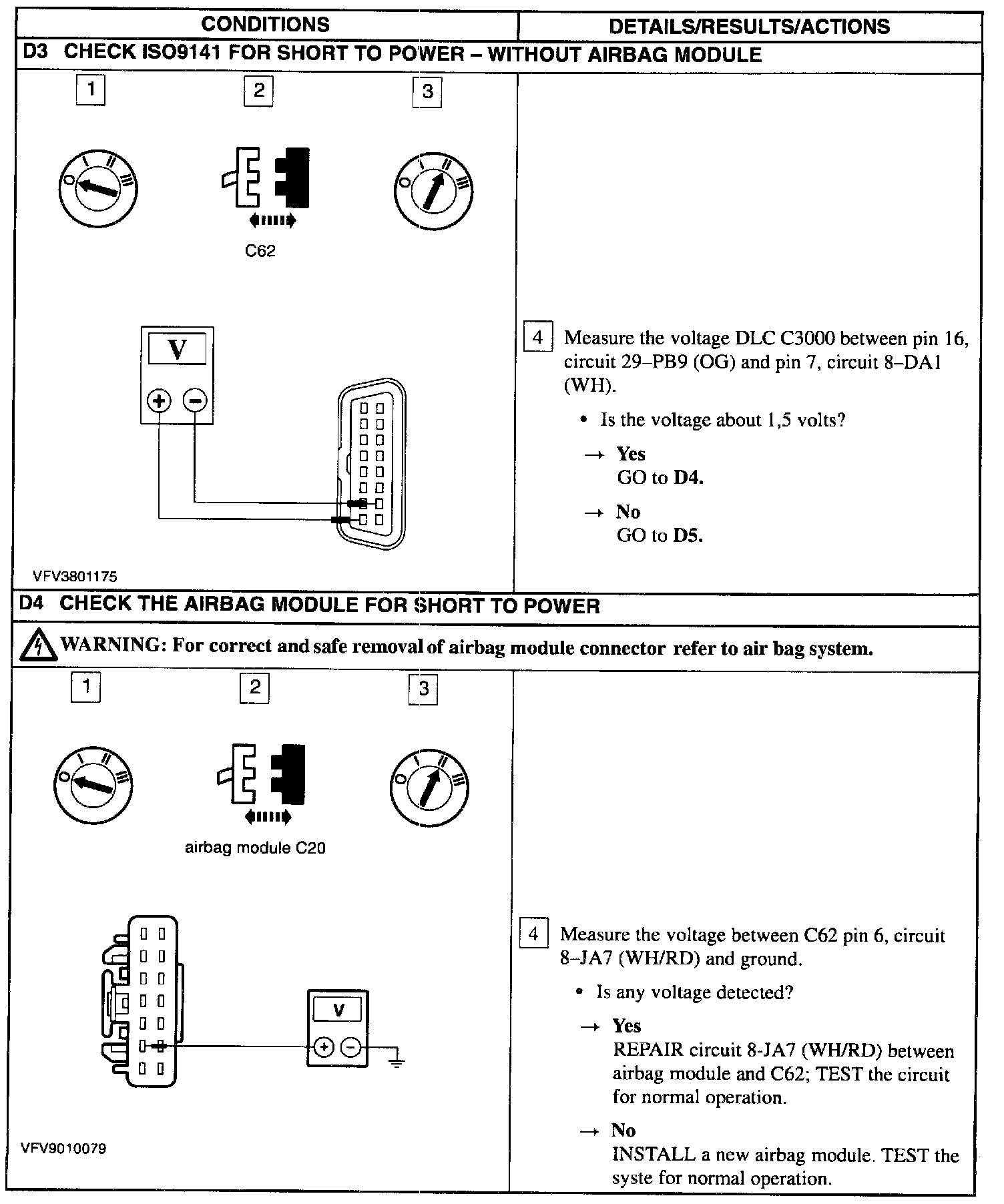

D3 - D4:






D5 - D6:

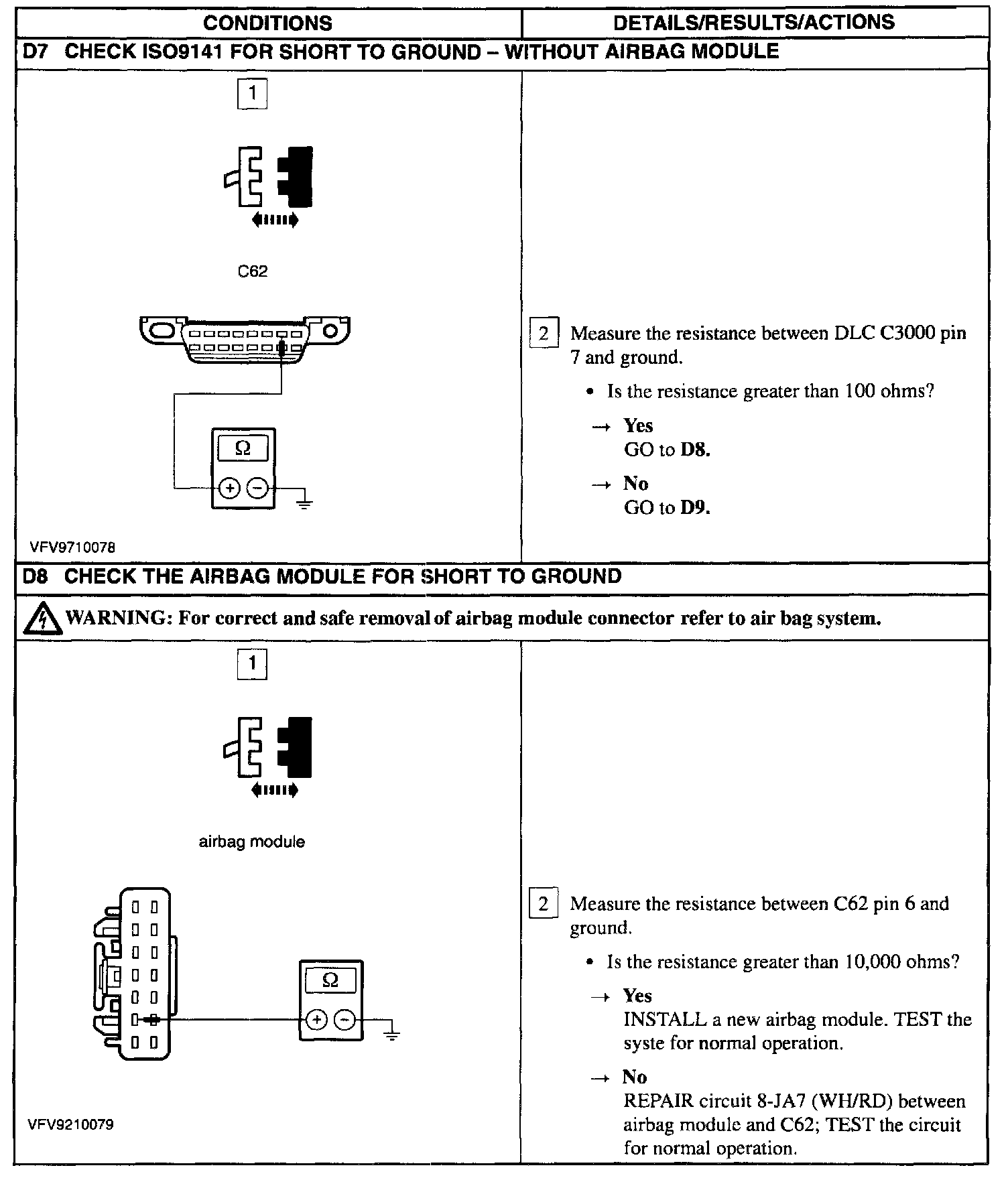

D7 - D8:

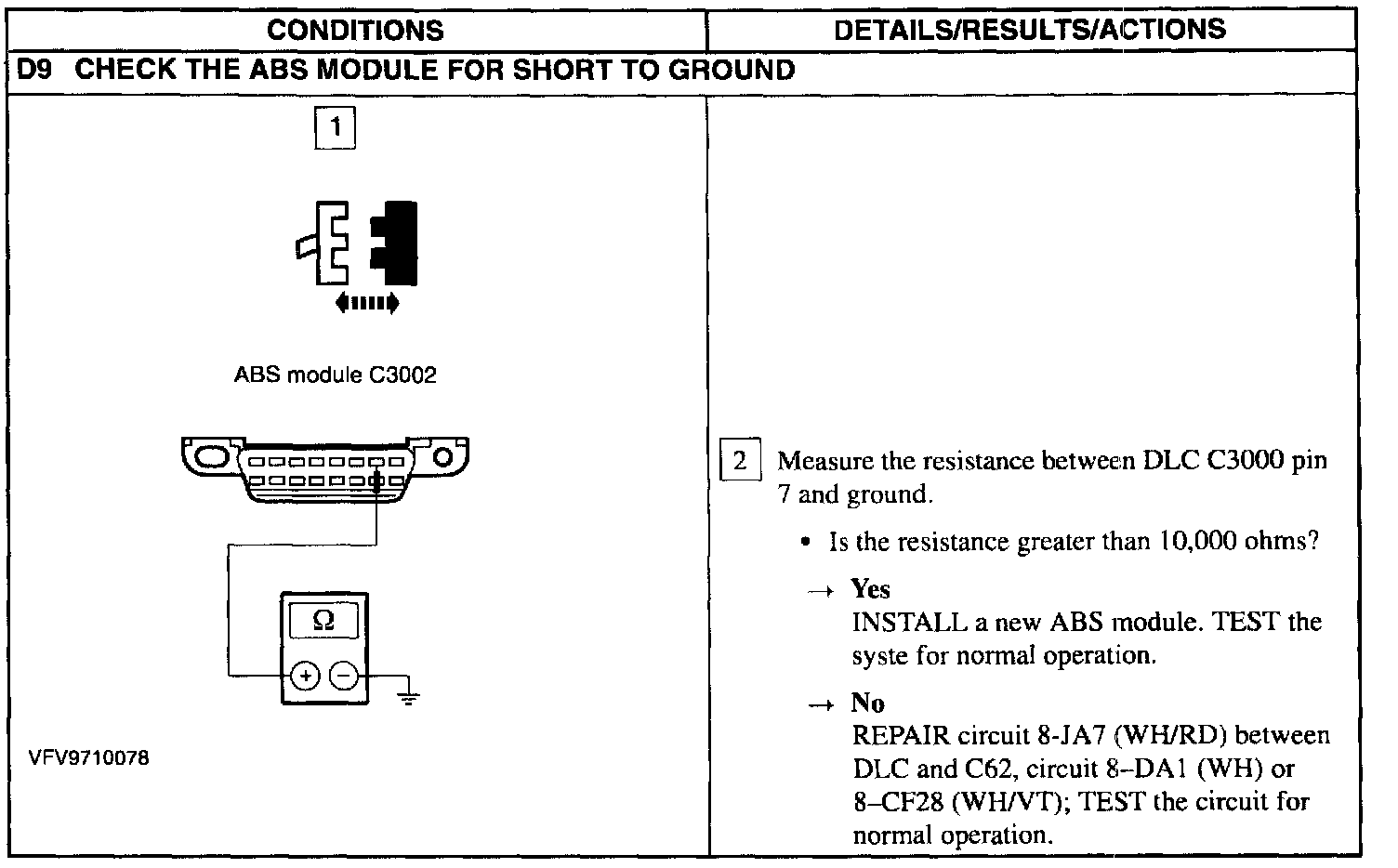

D9:
