Data Link Connector: Locations

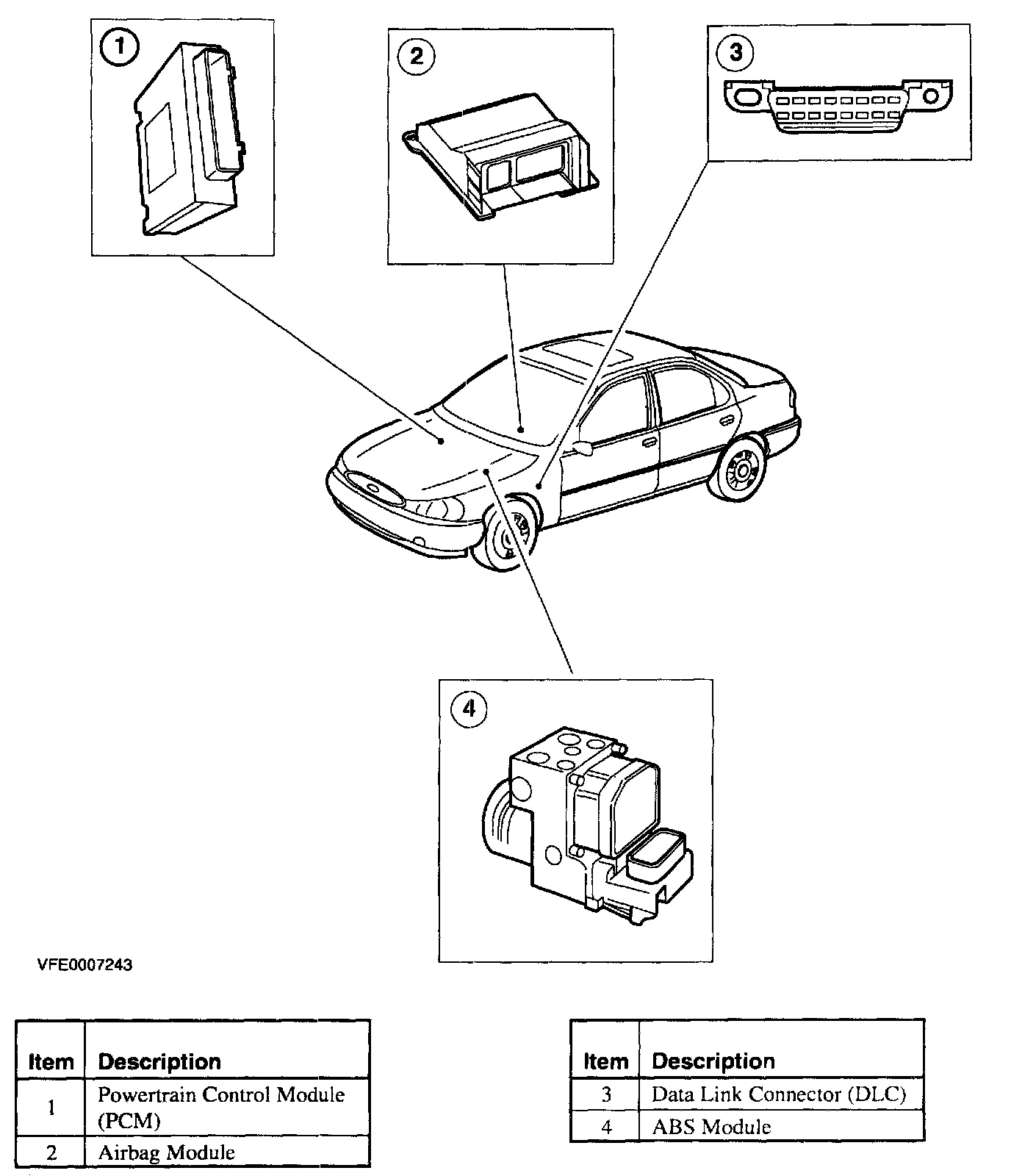

Ford does not provide a specific picture showing the Data Link Connector (DLC).

The DLC (C3000) is a 16 pin connector under the Dash Panel, LH side.
