Mercury
>>
1999
>>
Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Locations
>>
Fuses and Relays
Fuses and Relays

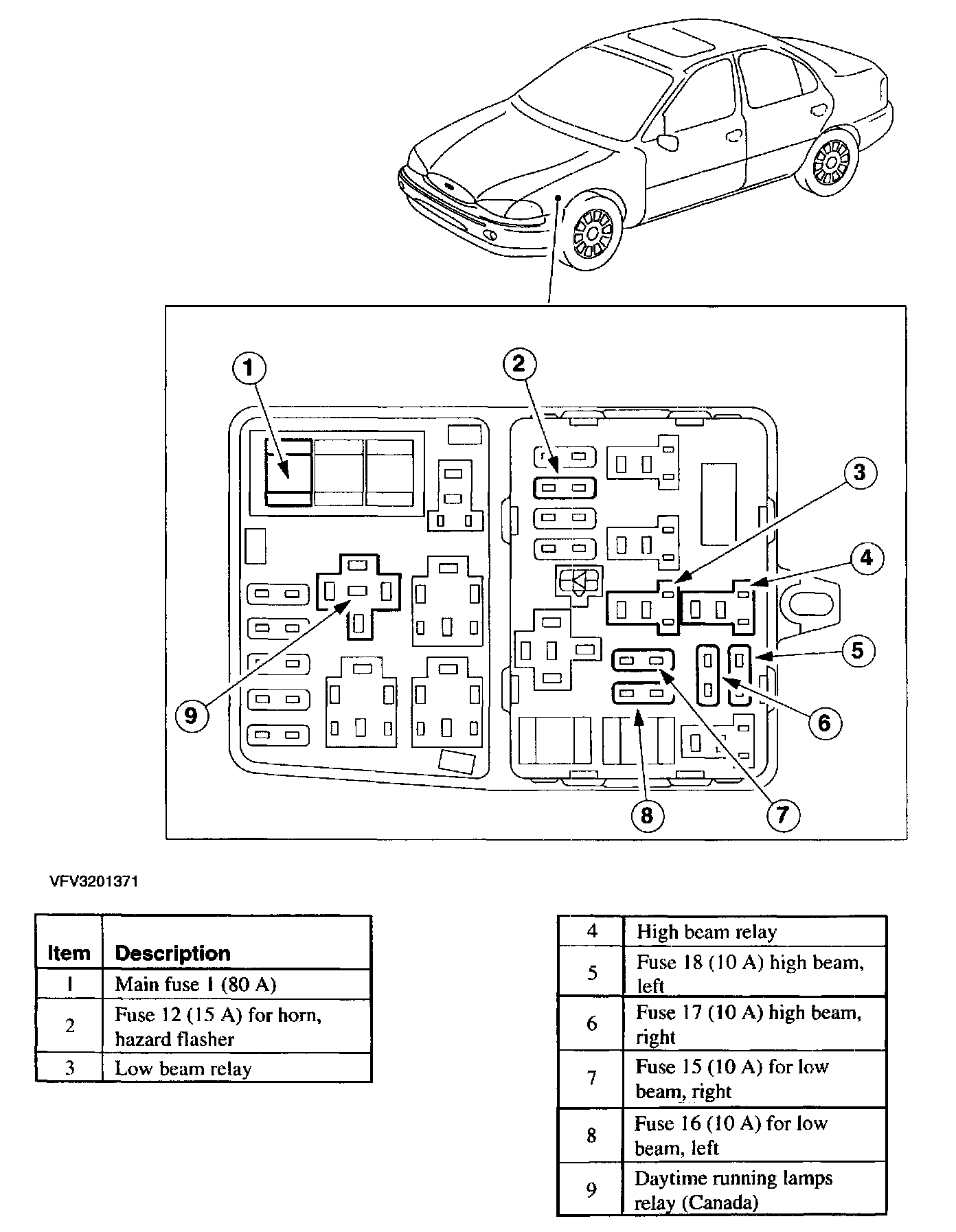

Battery Junction Box:

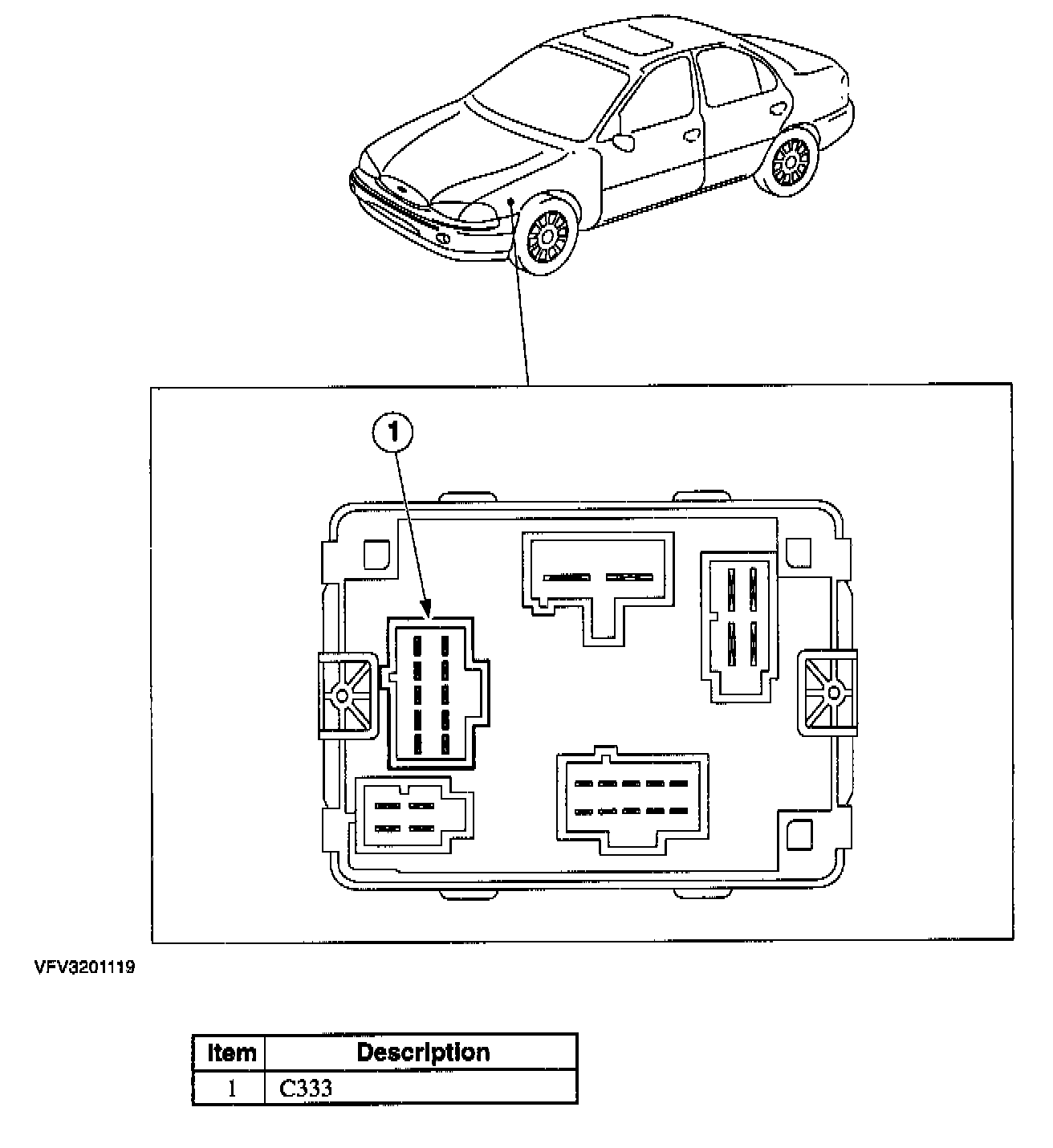

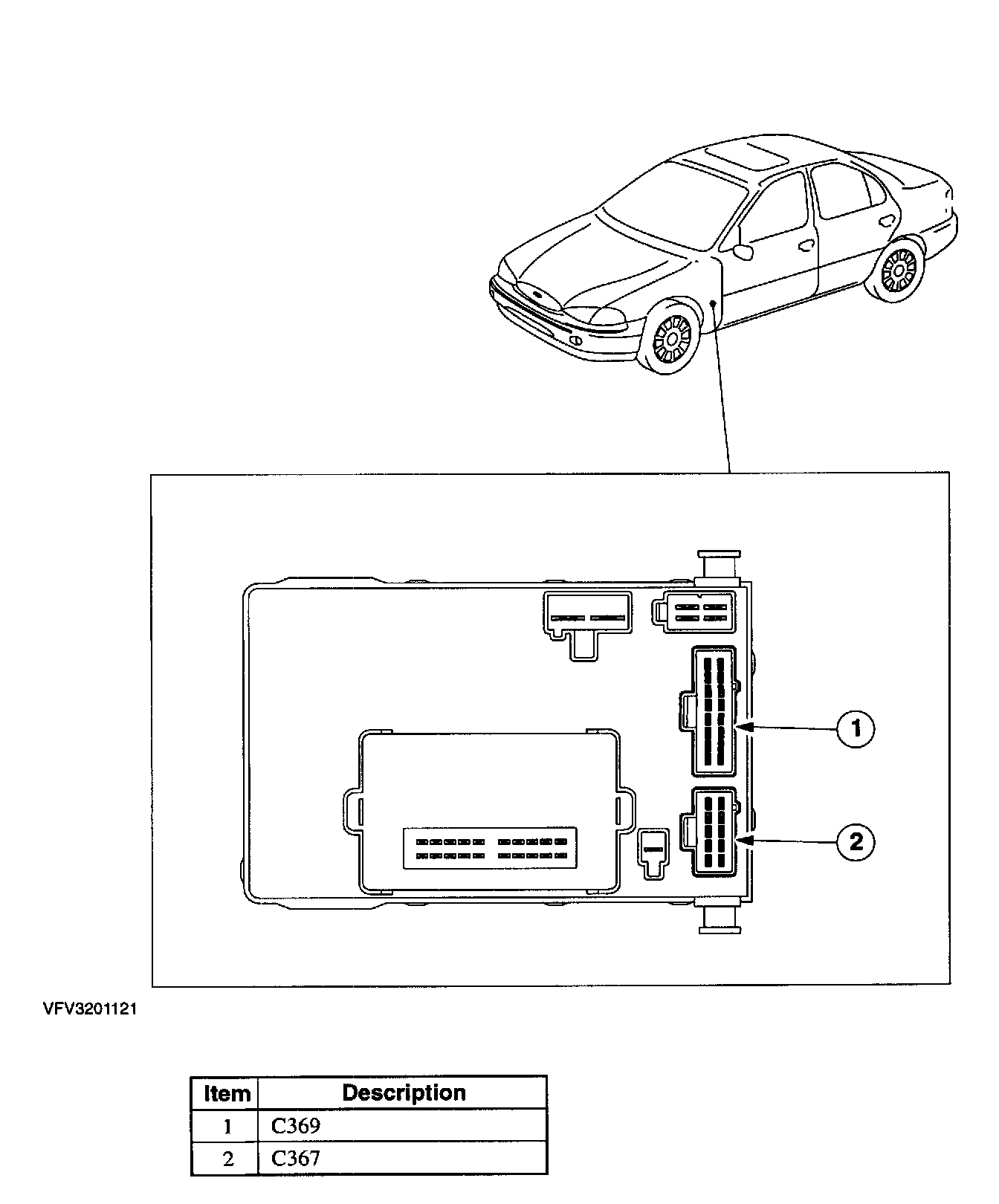

Central Junction Box:
