Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Pinpoint Tests >> Test B : Horn System Inoperative

Test B : Horn System Inoperative

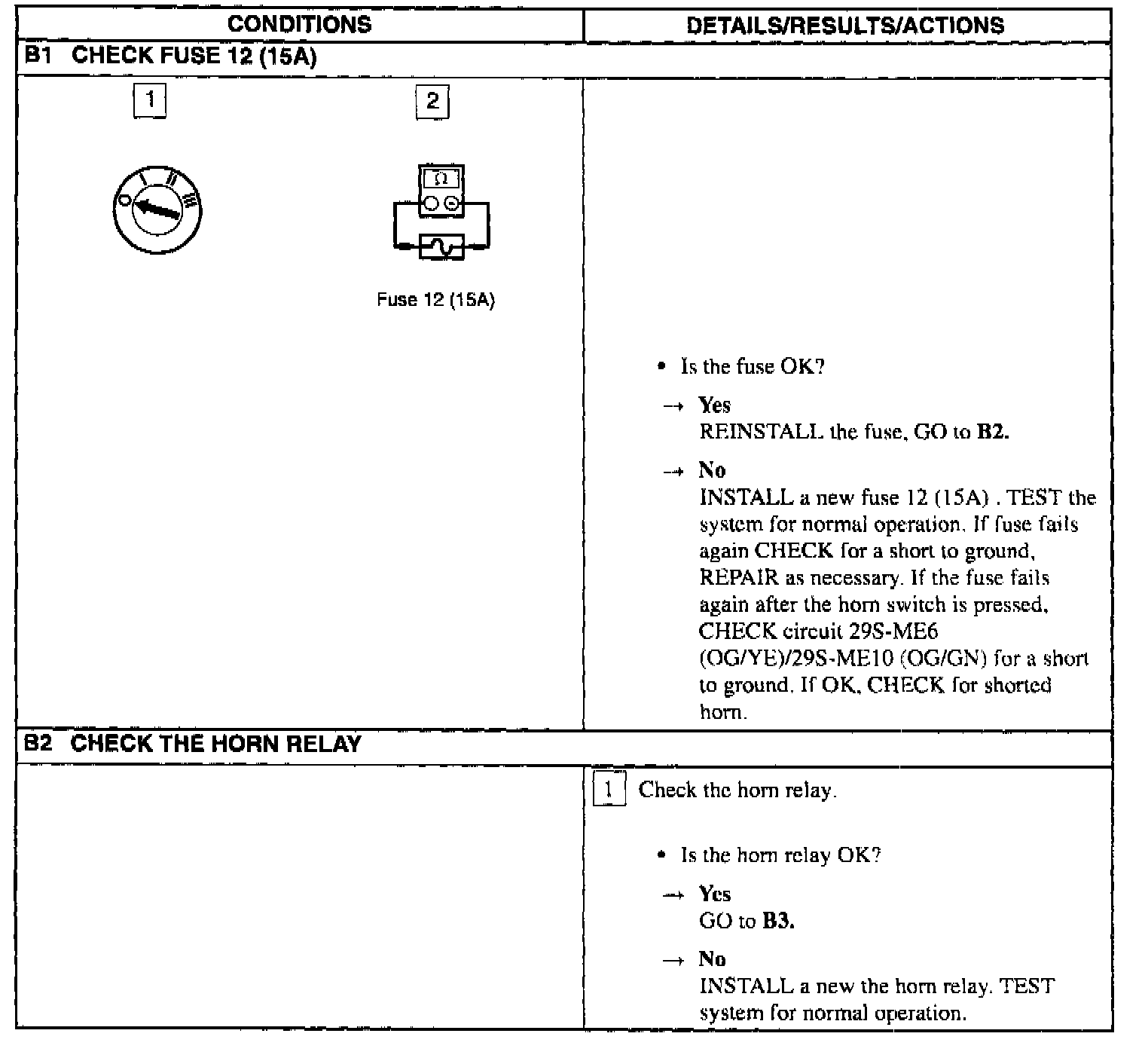

B1 - B2:

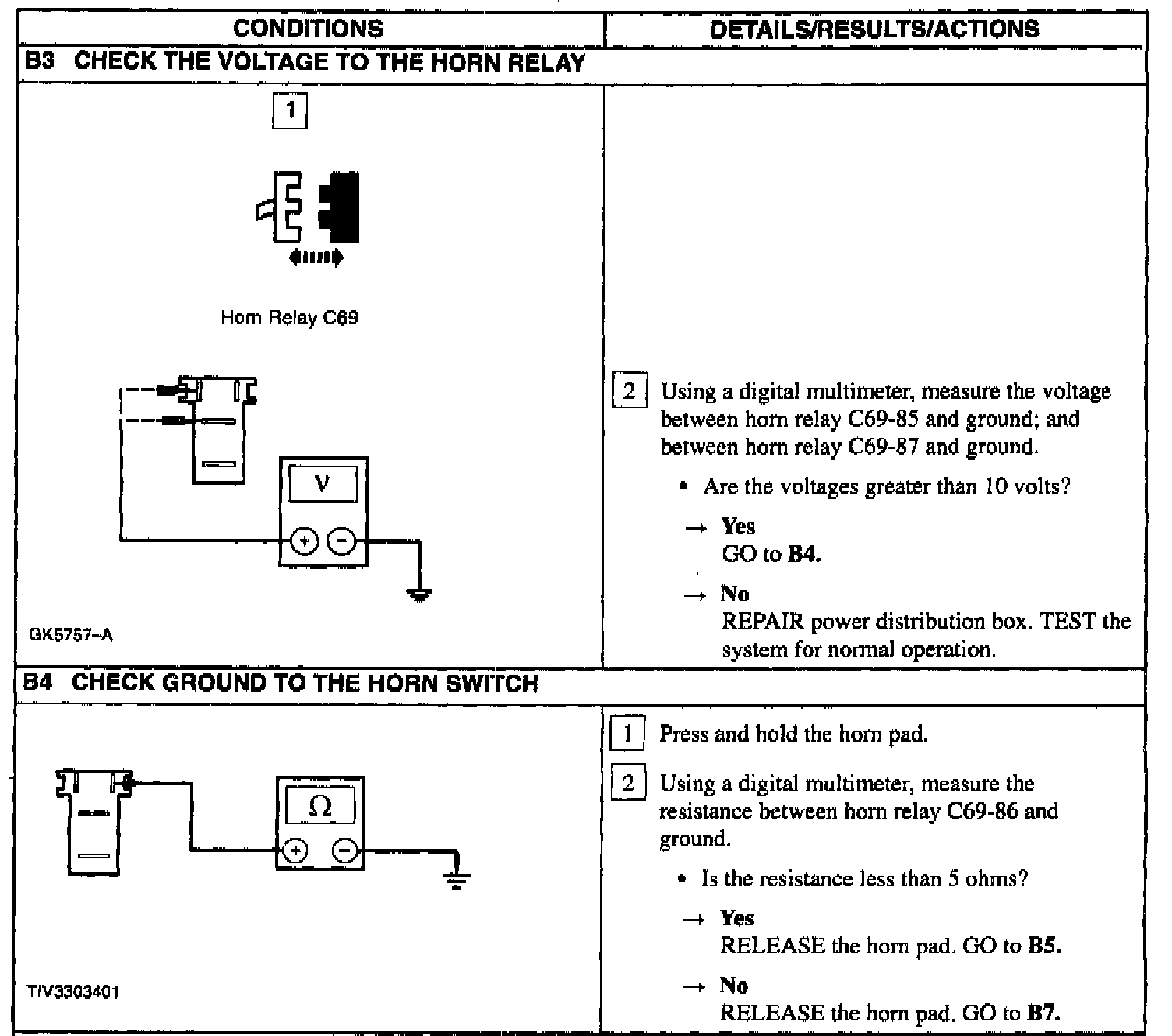

B3 - B4:

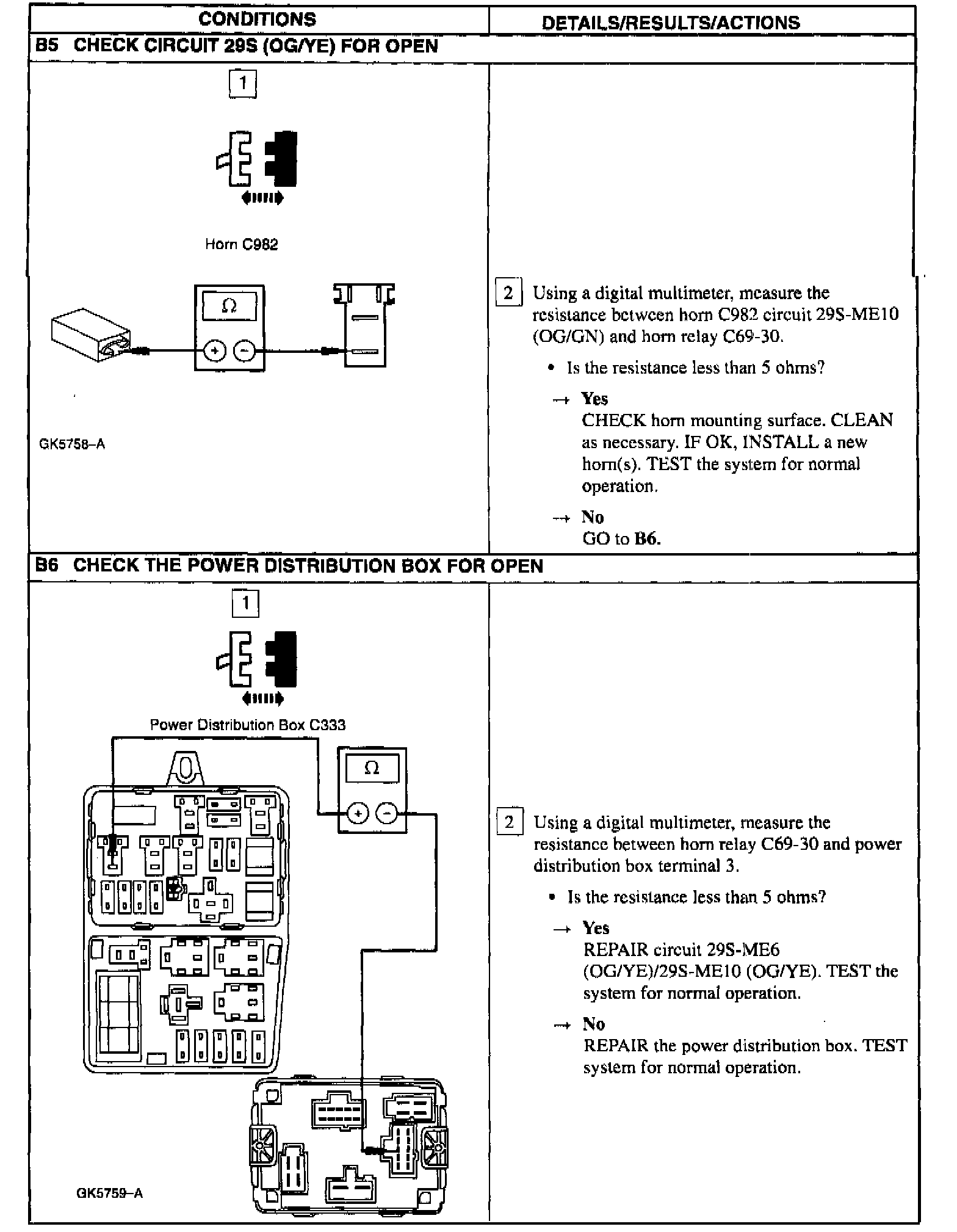

B5 - B6:

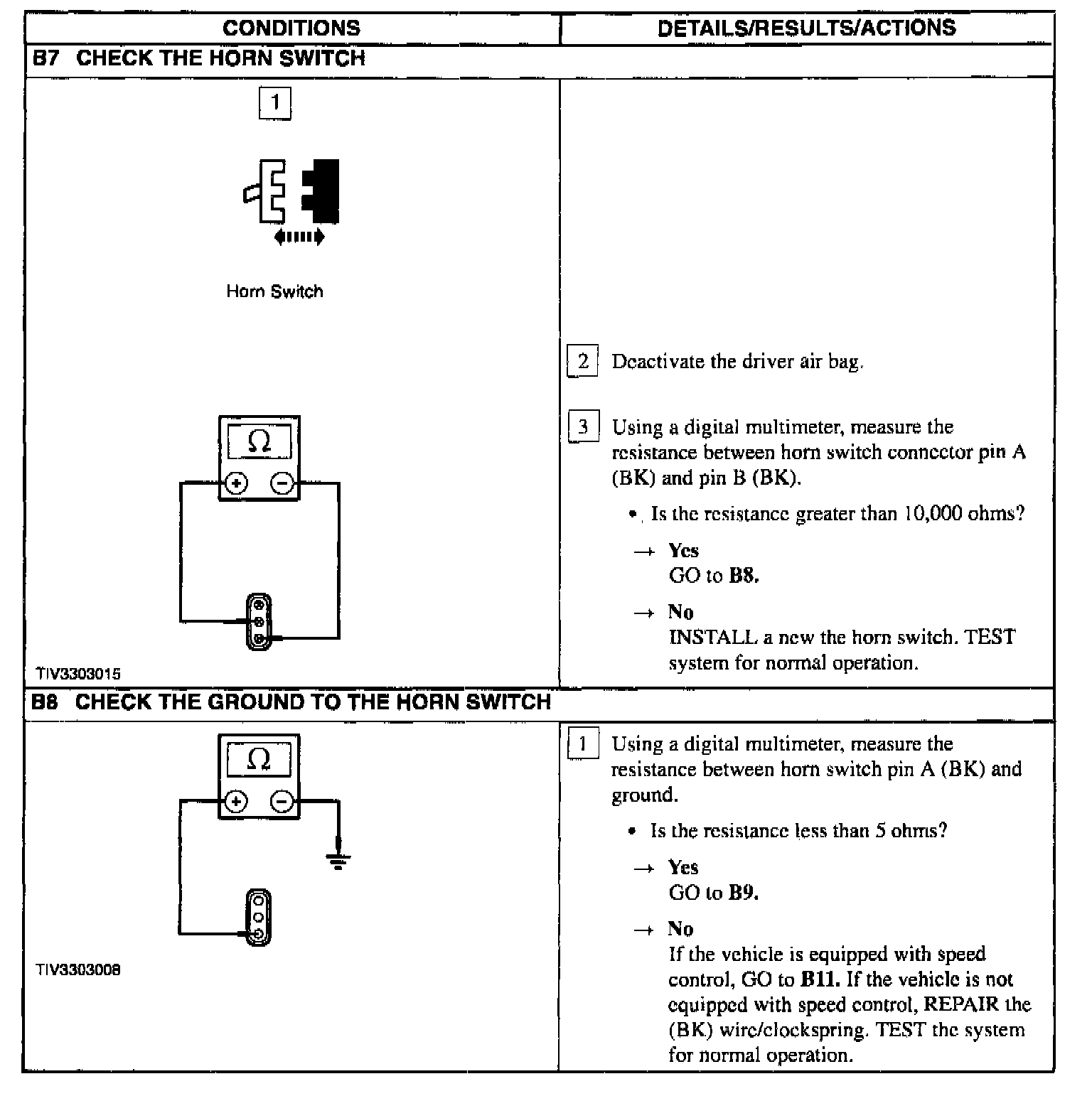

B7 - B8:

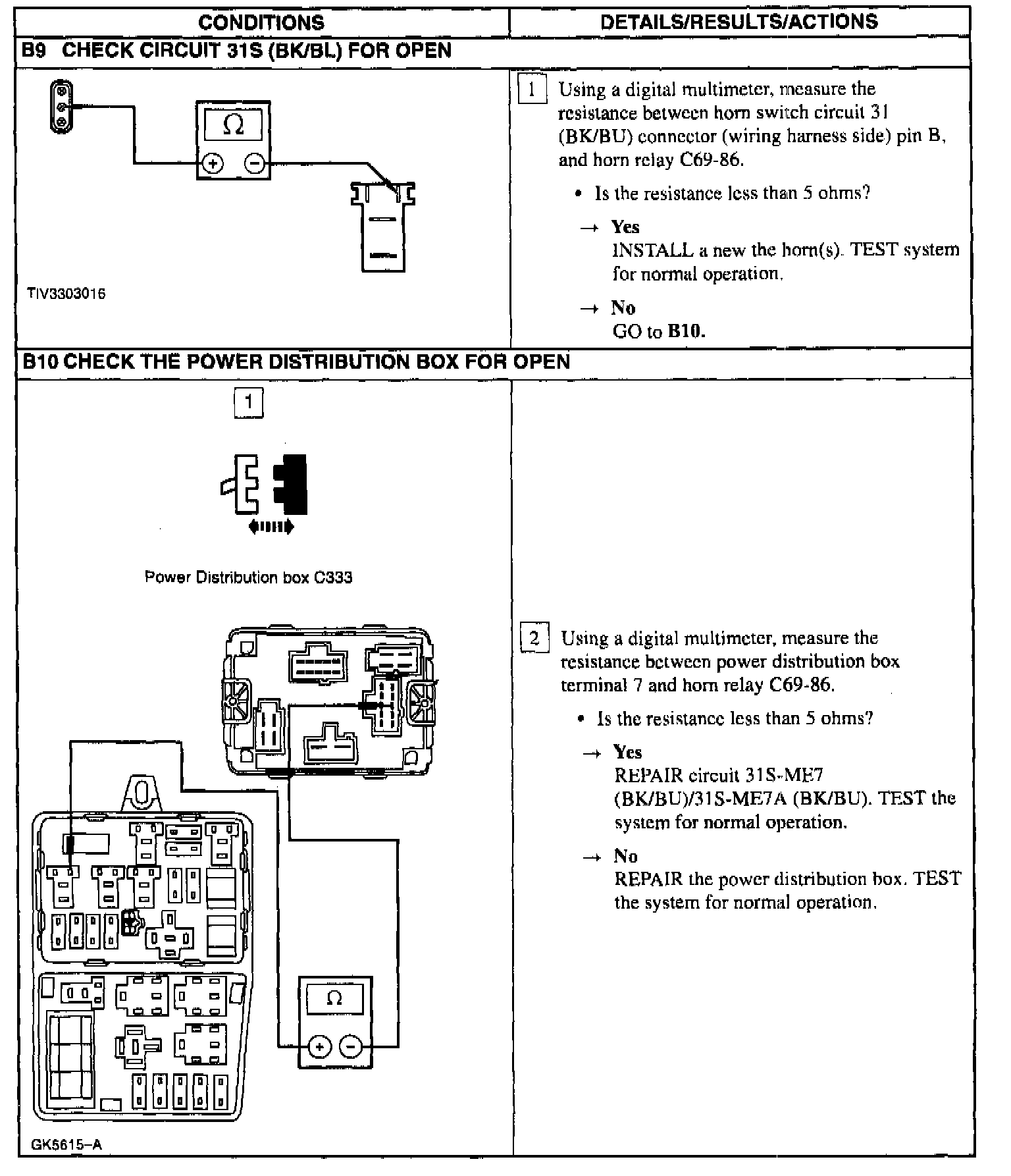

B9 - B10:

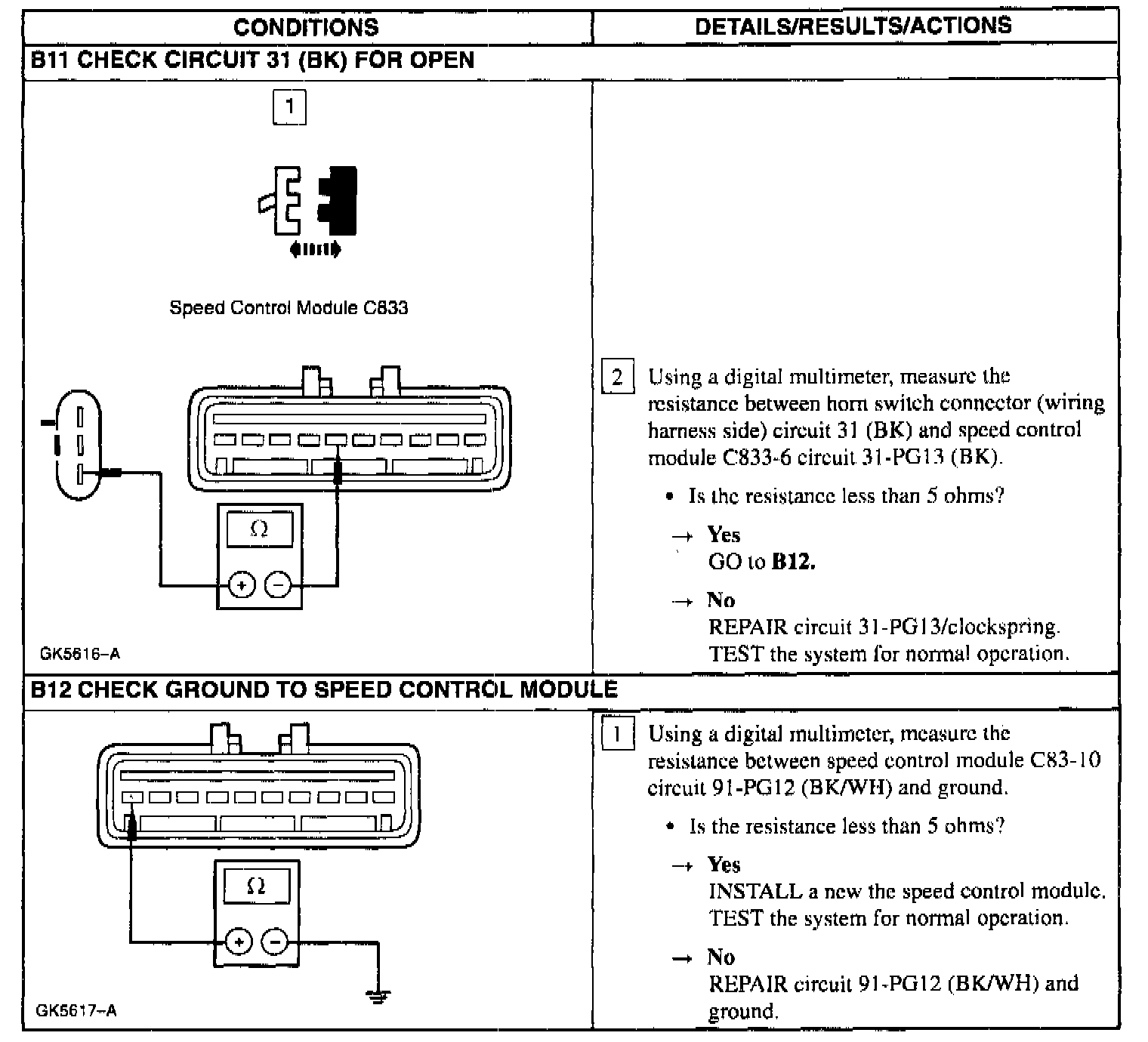

B11 - B12:
