Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Component Tests and General Diagnostics >> Pinpoint Tests >> E One High Beam H/Lamp Inoperative

E One High Beam H/Lamp Inoperative

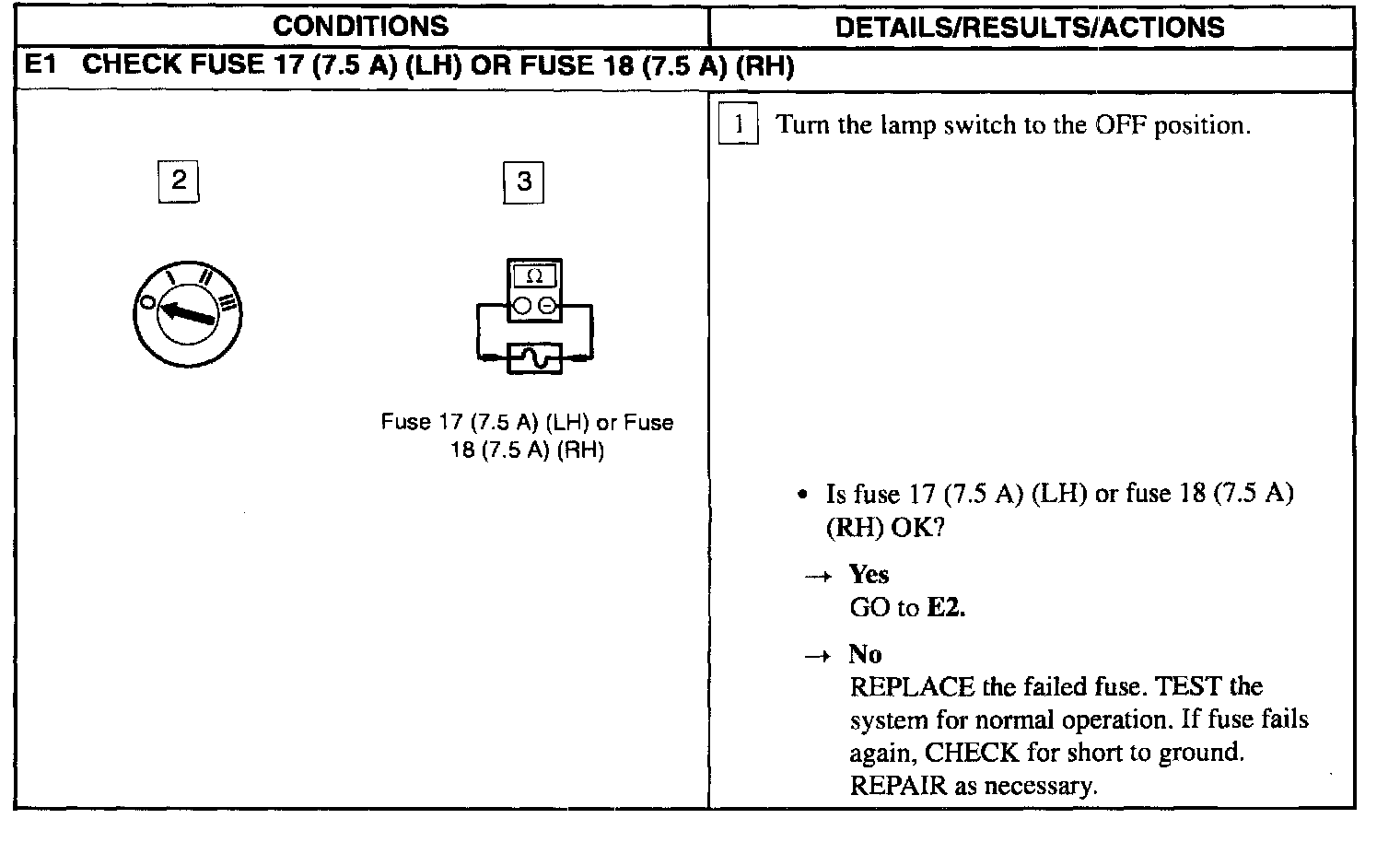

E1:

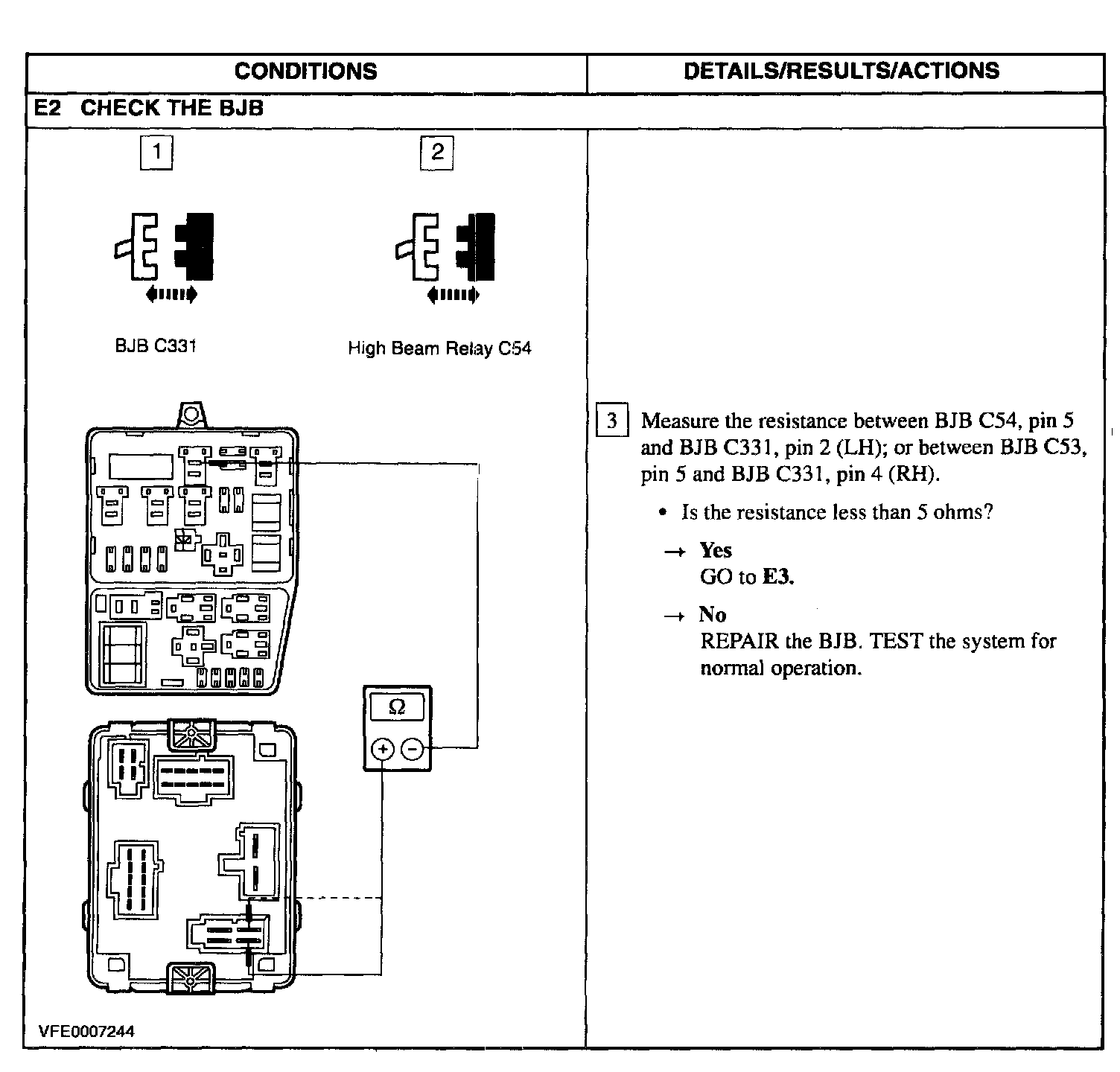

E2:

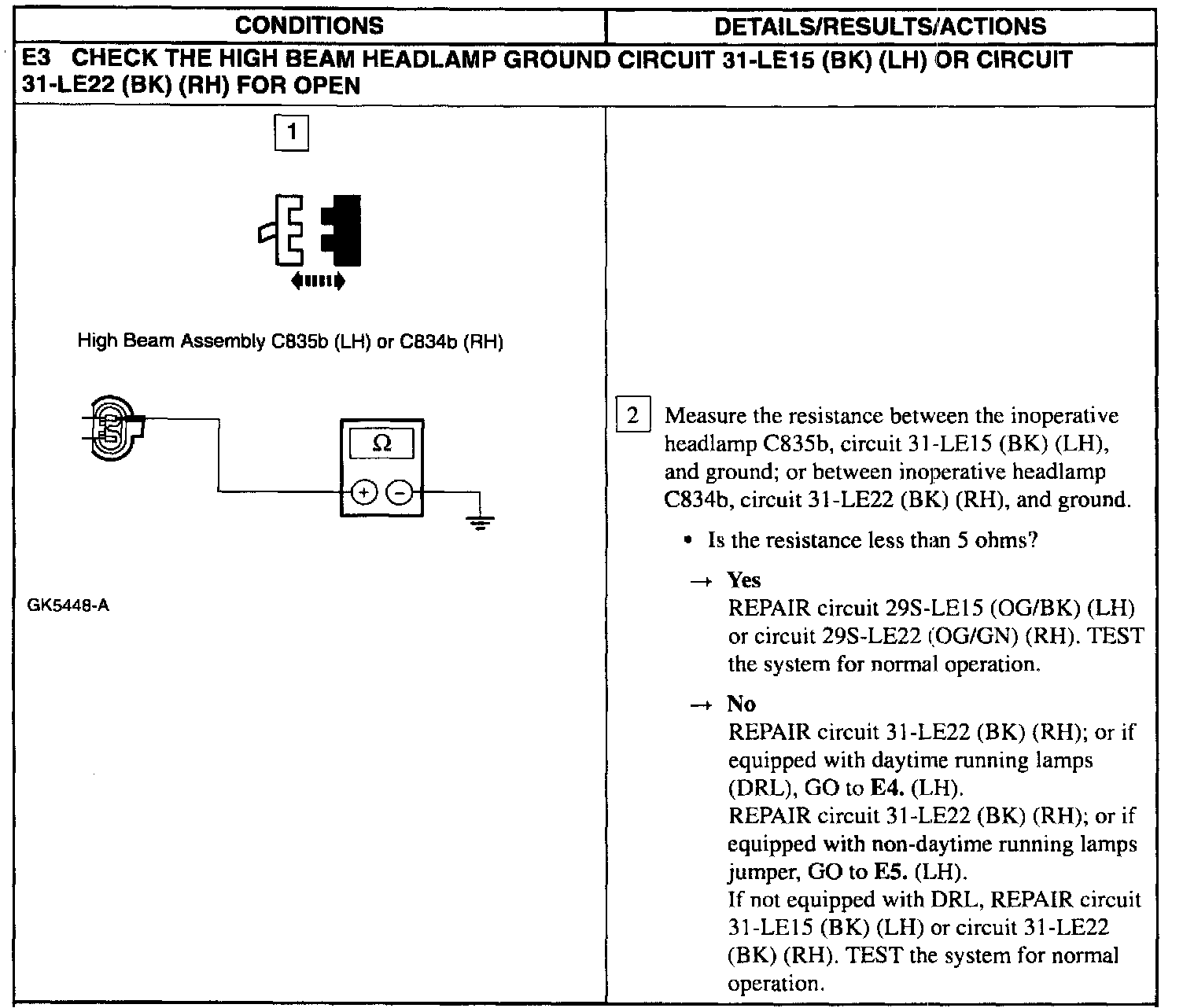

E3:

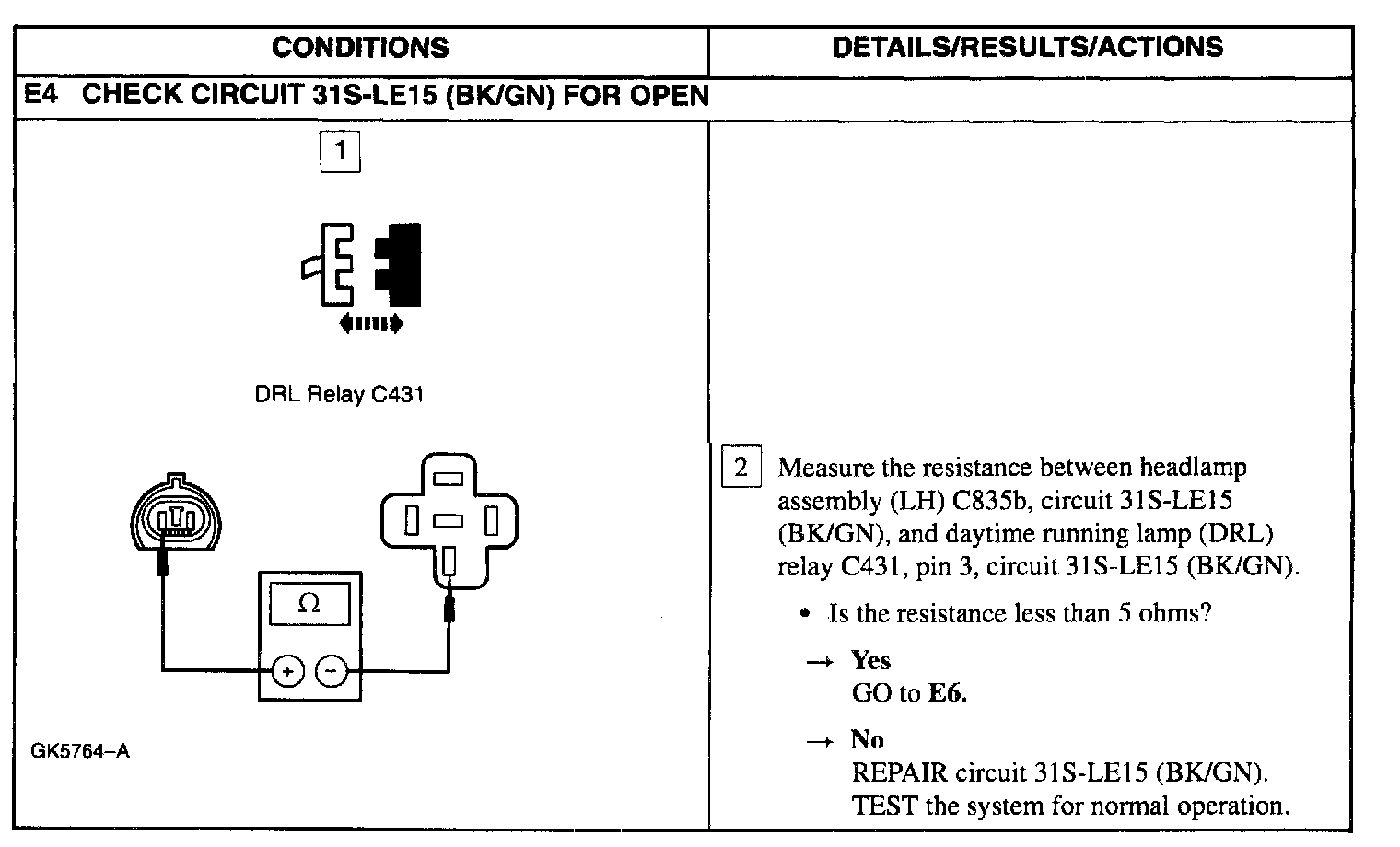

E4:

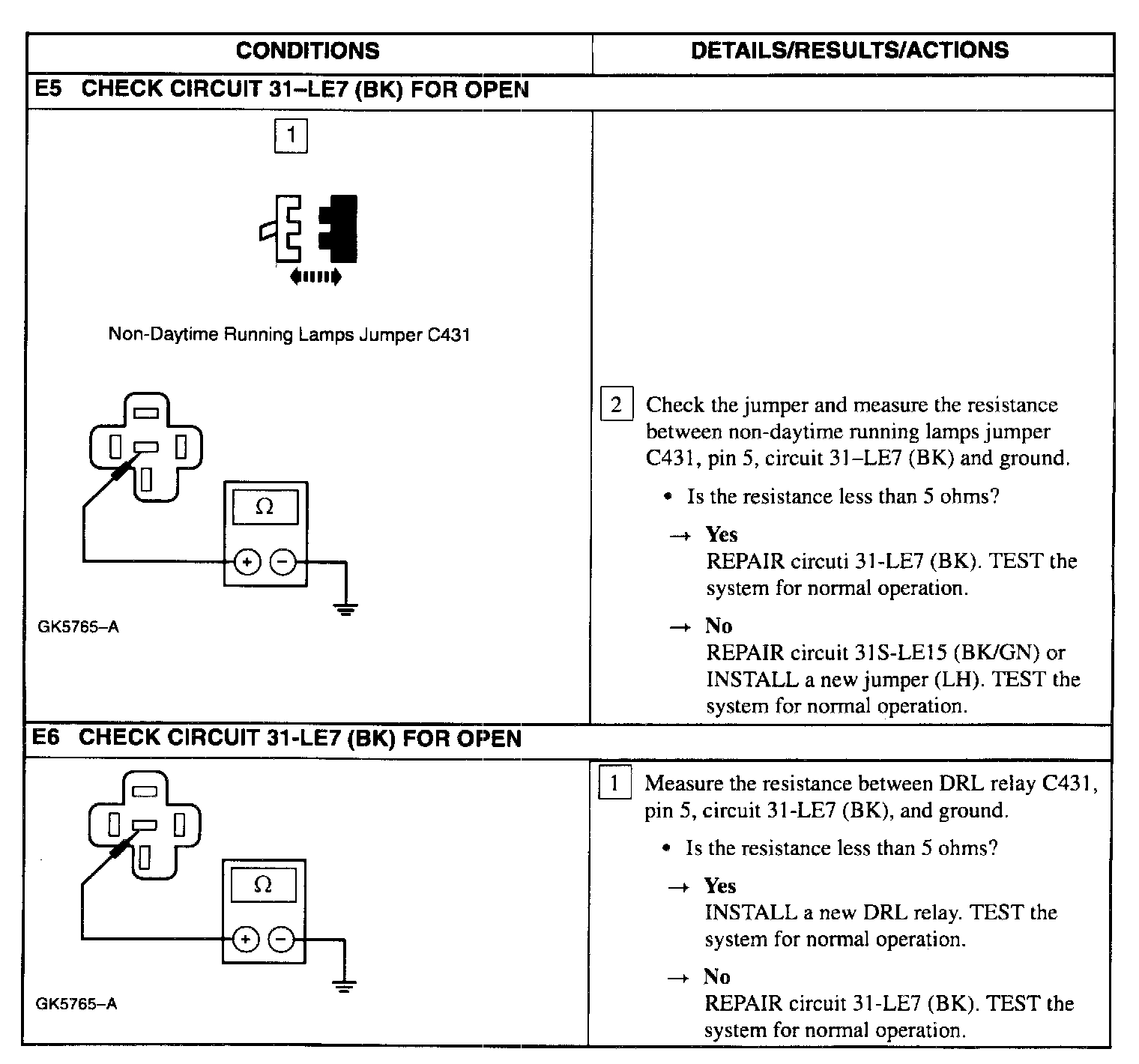

E5 - E6:
