Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster >> Test T: The Charge System Warning Indicator Is Never On

Test T: The Charge System Warning Indicator Is Never On

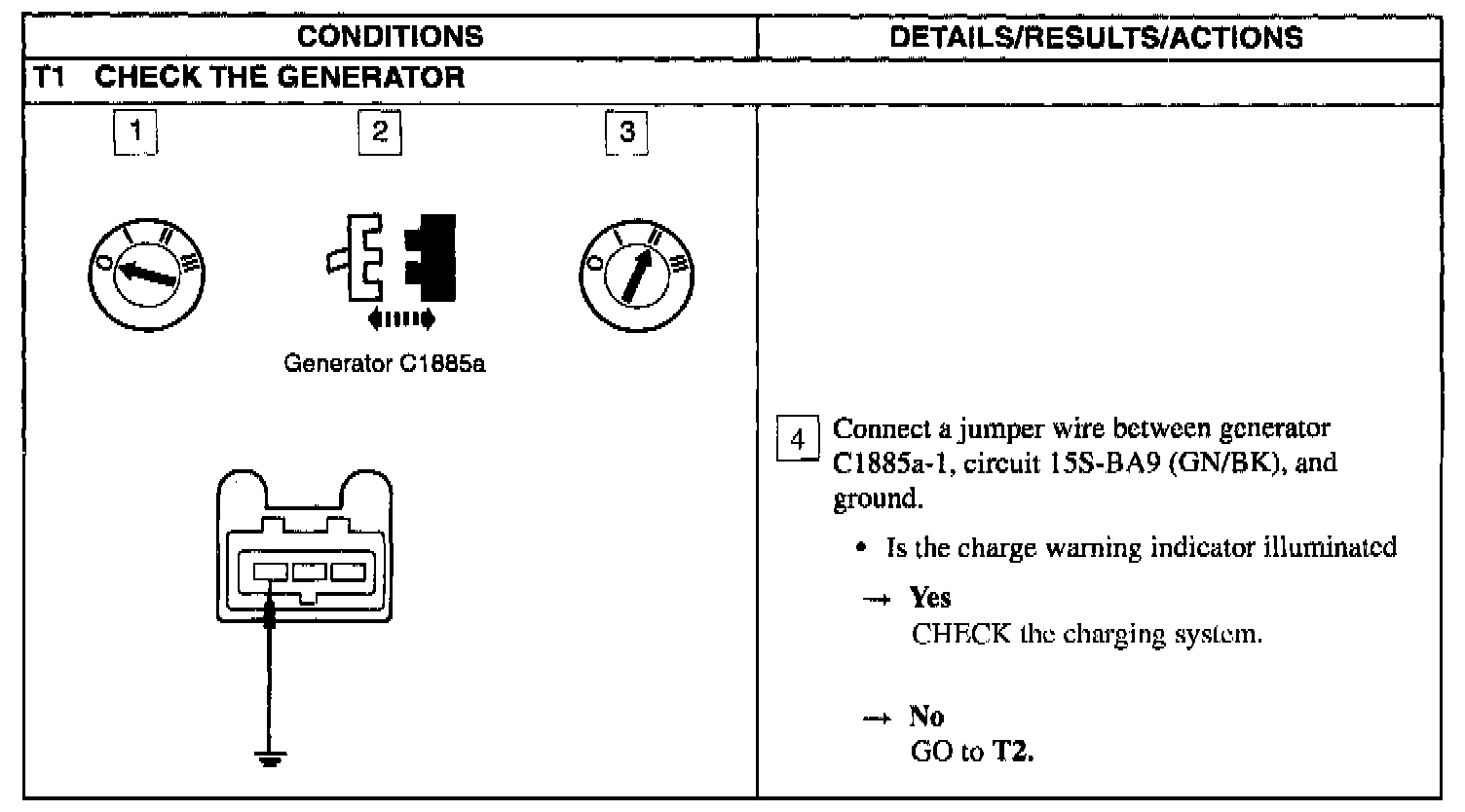

T1:

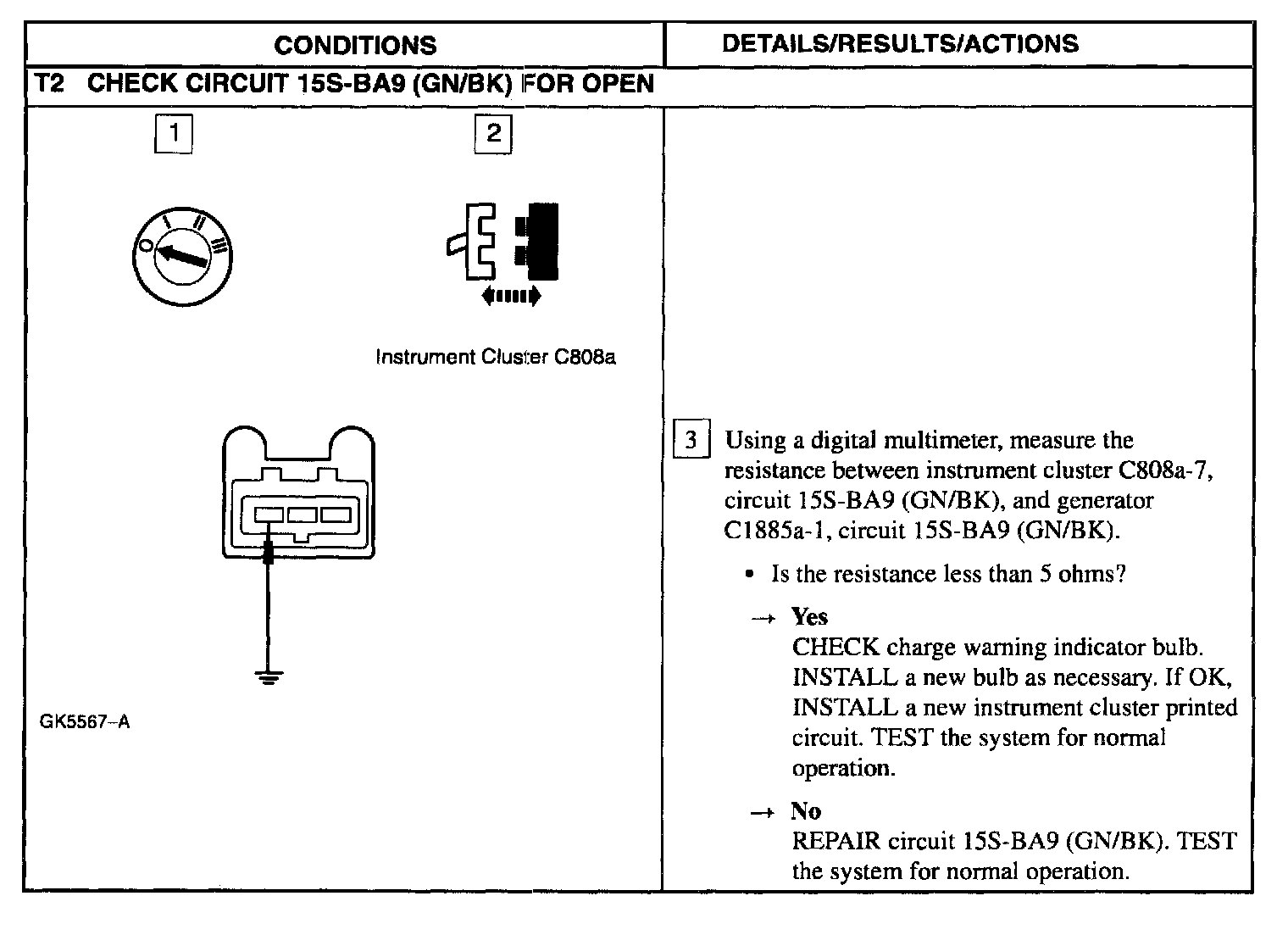

T2:
