E: Single Illumination Source Inoperative

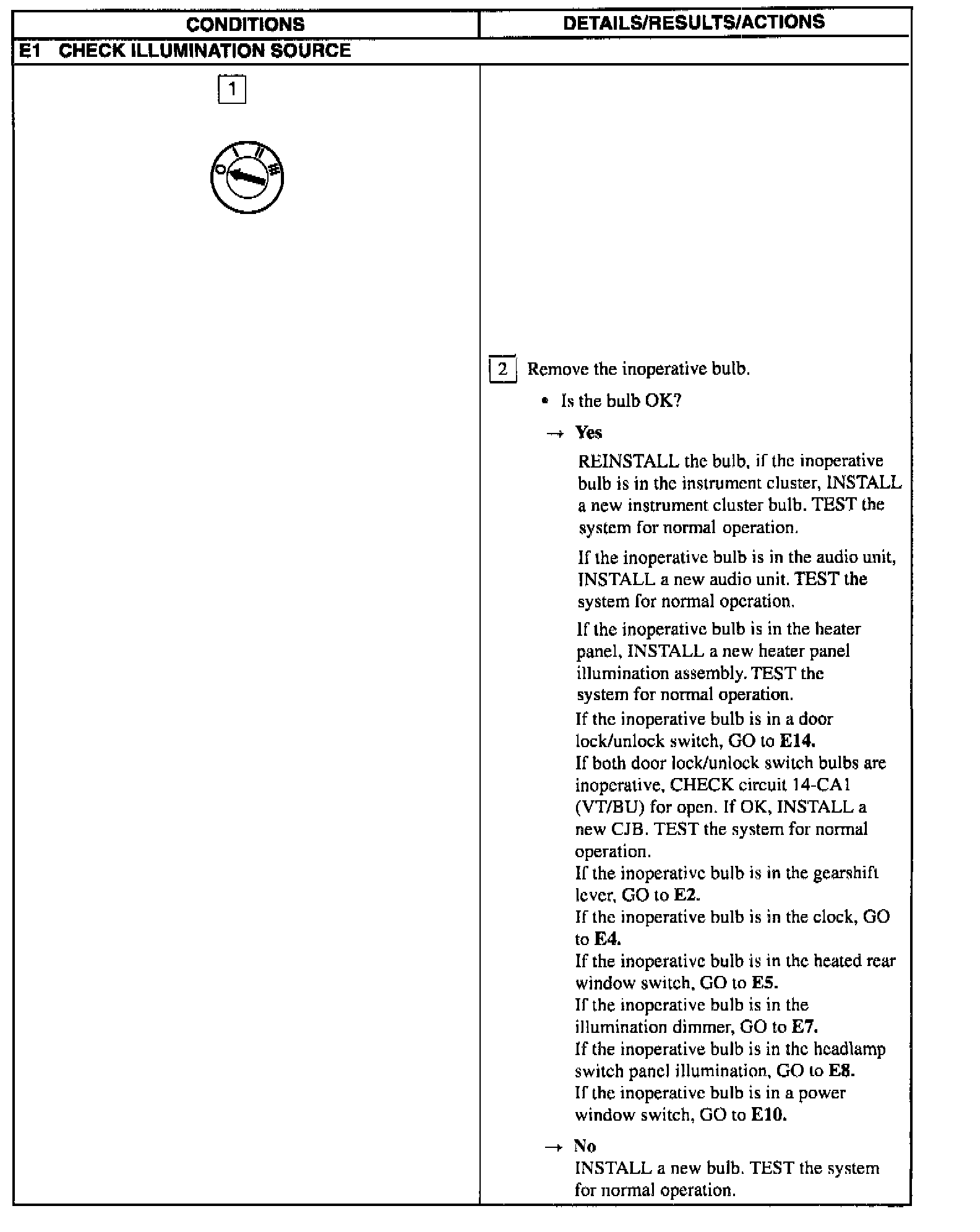

E1:

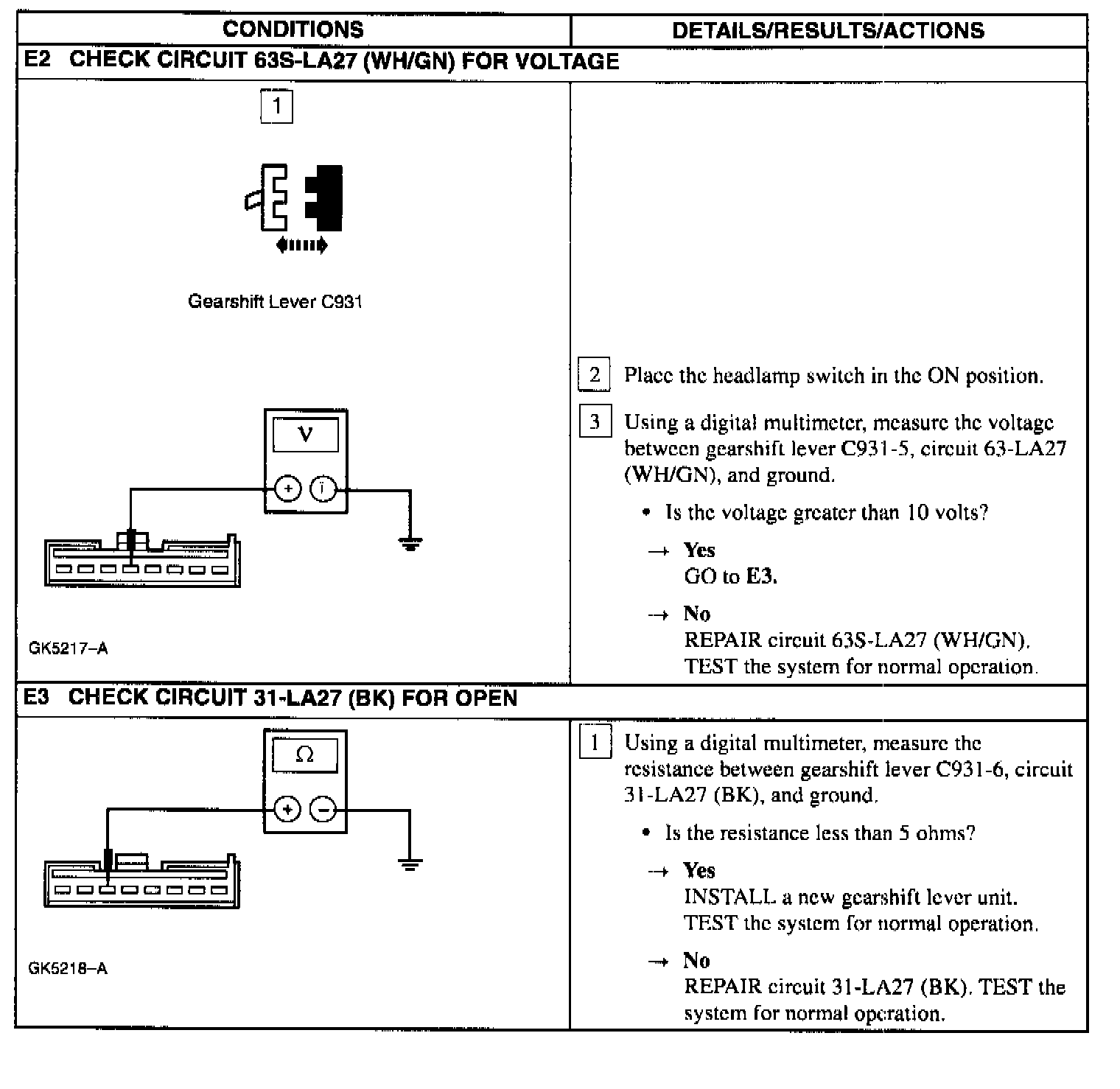

E2 - E3:

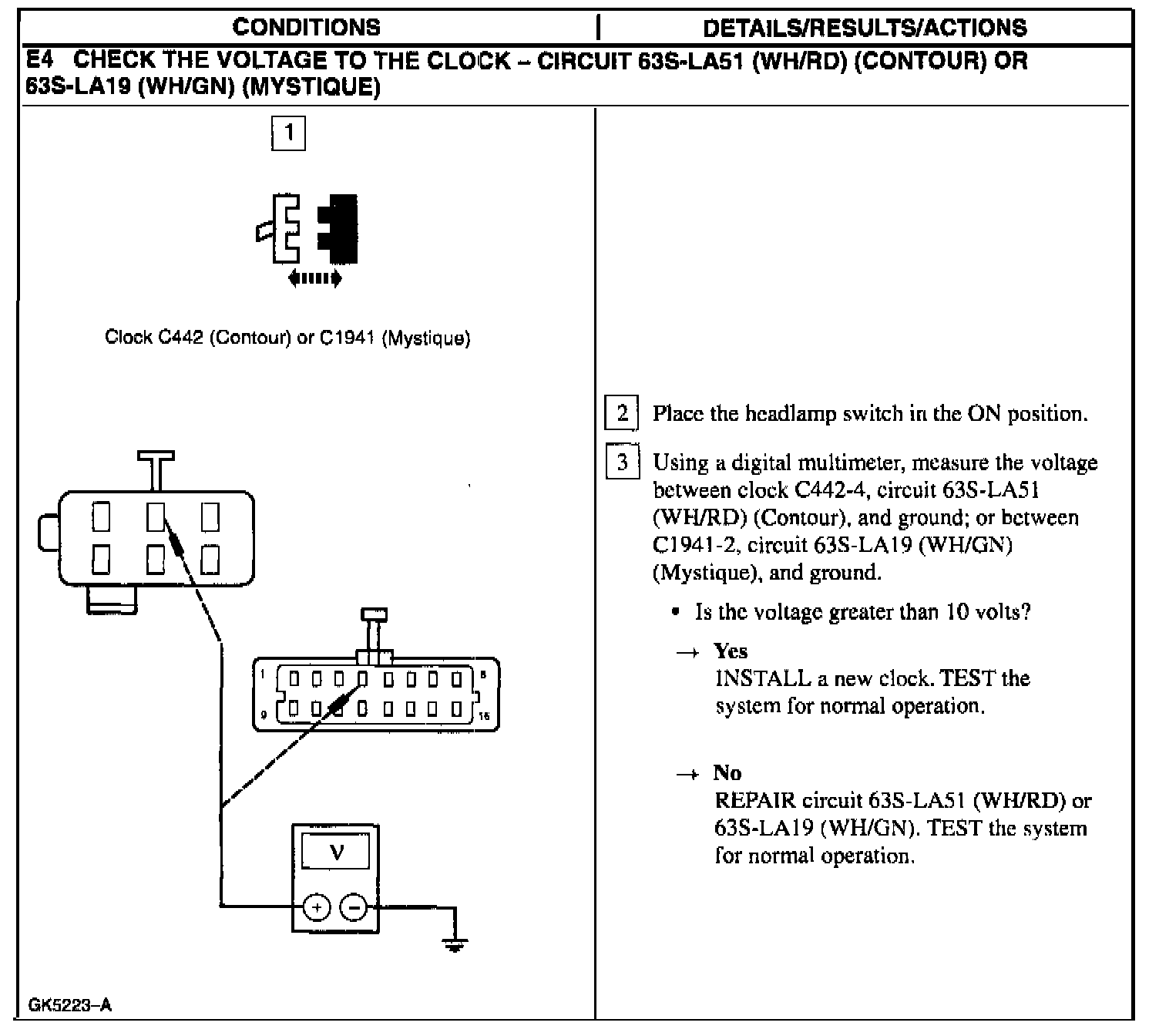

E4:

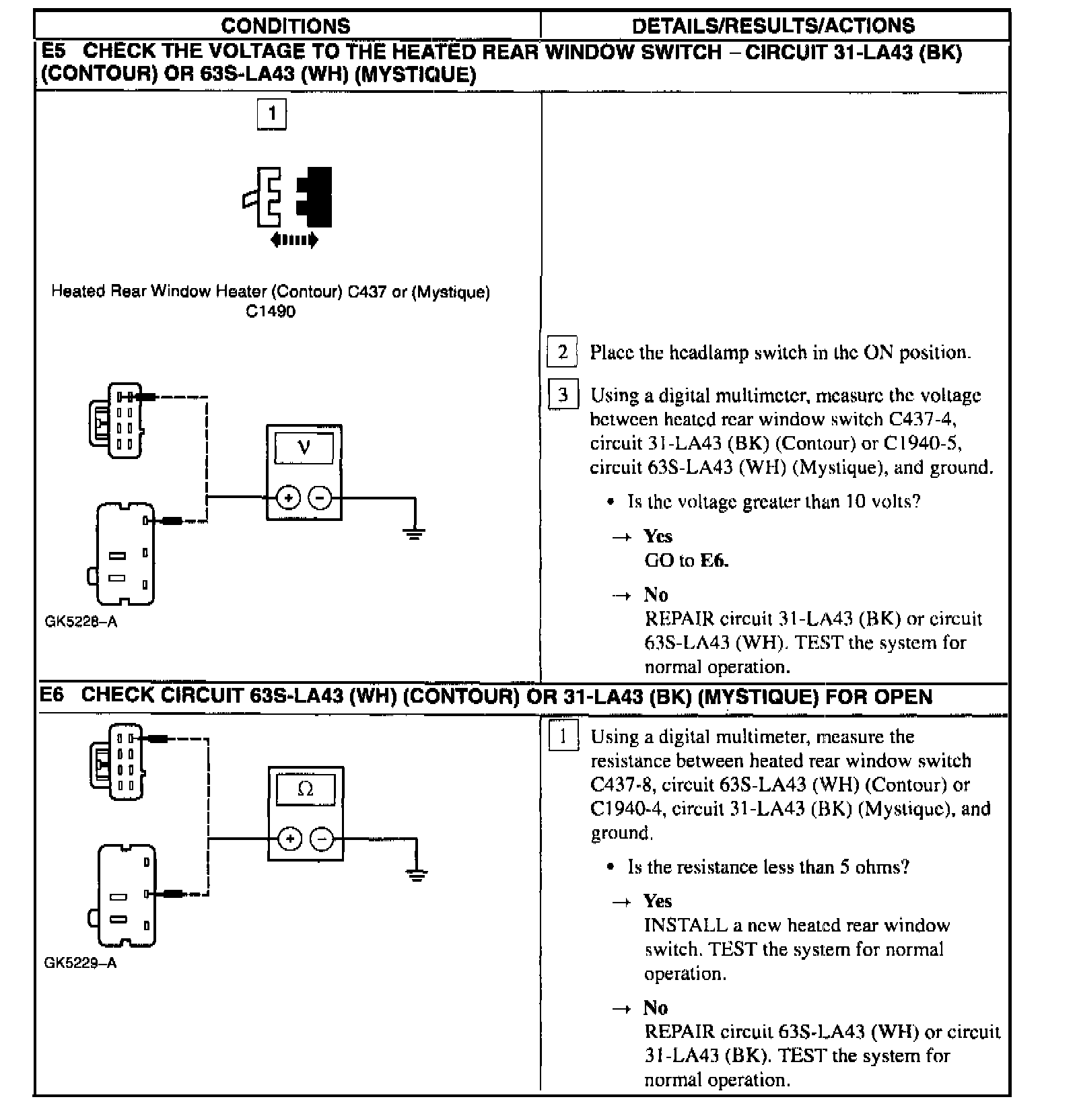

E5 - E6:

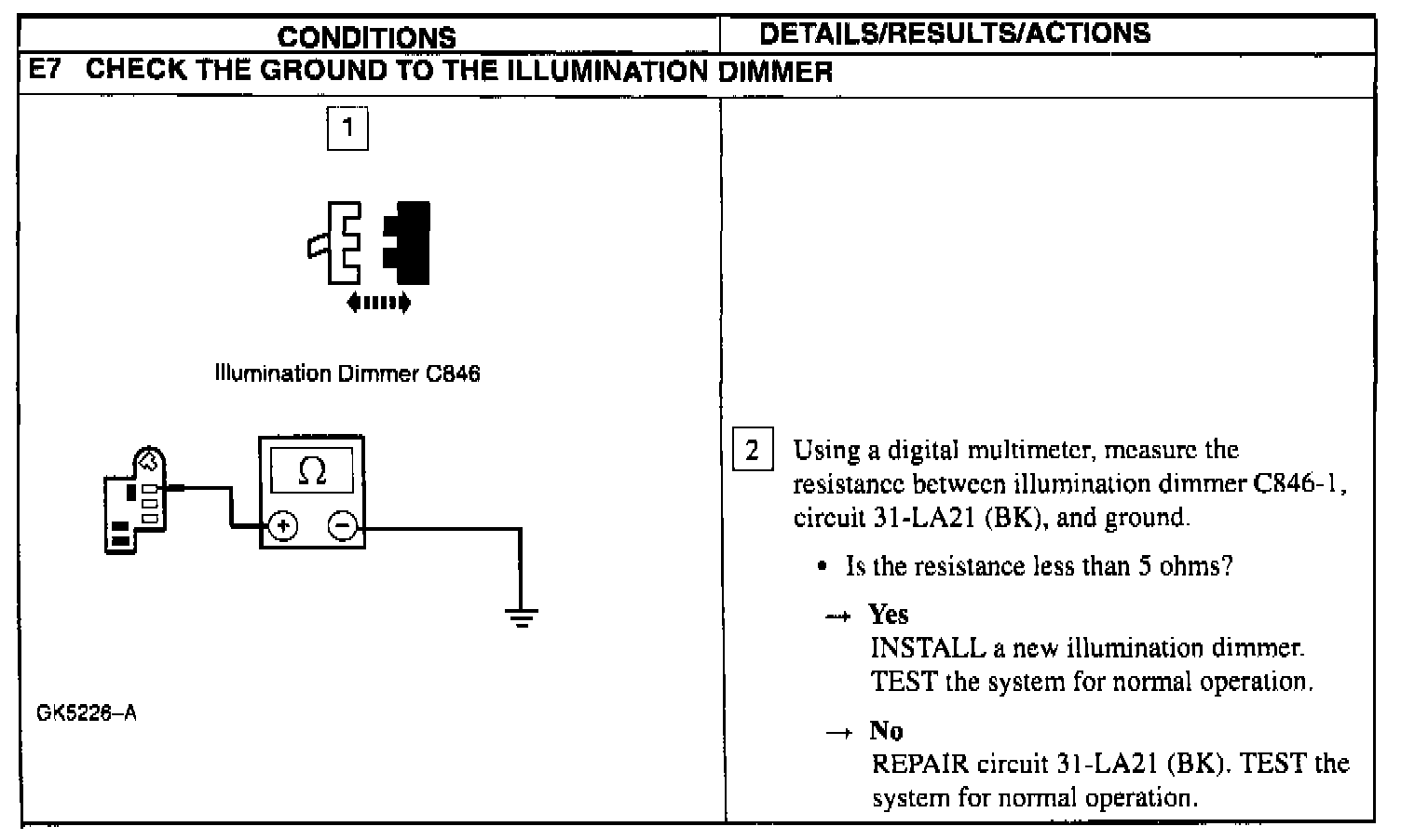

E7:

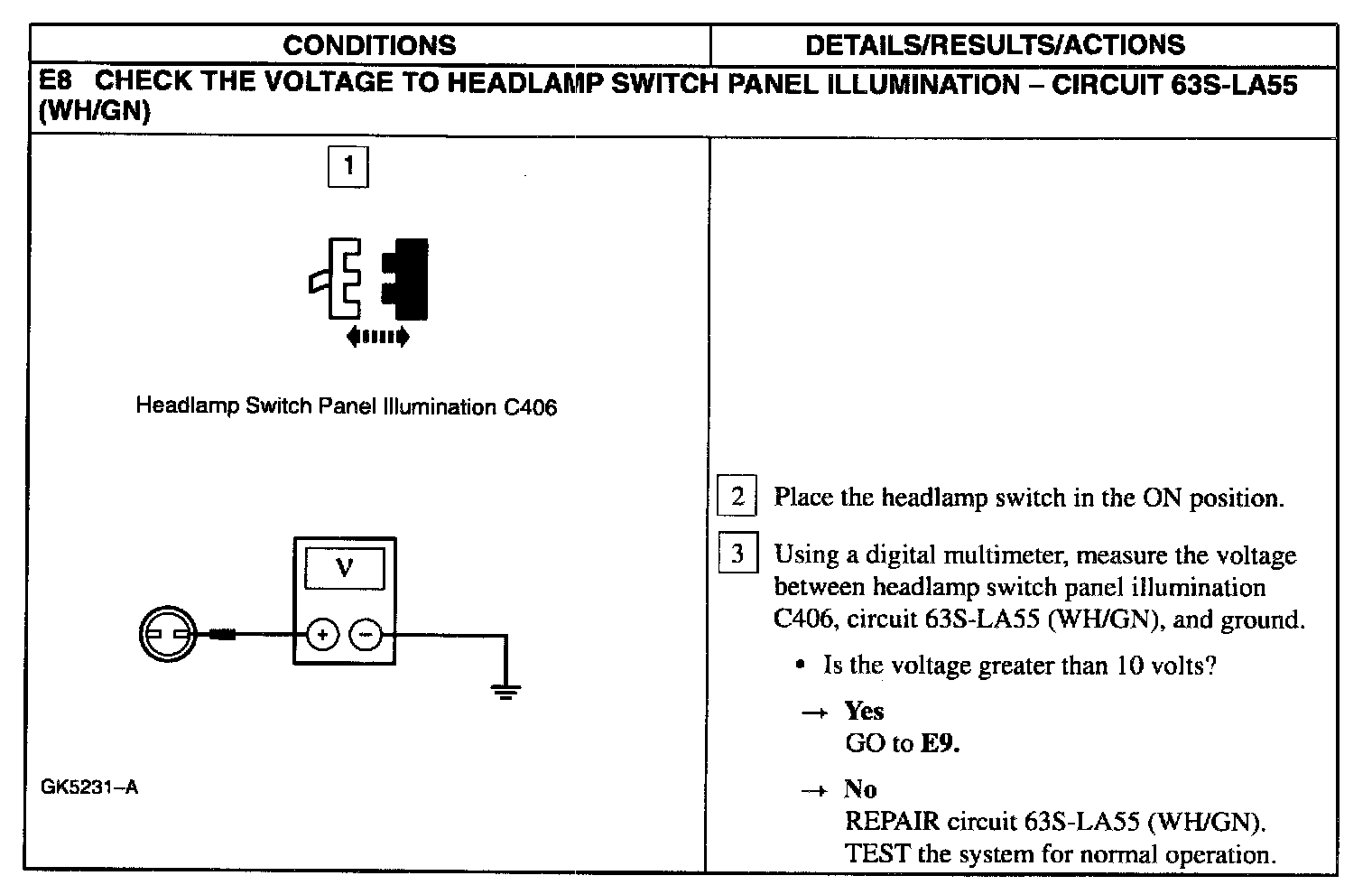

E8:

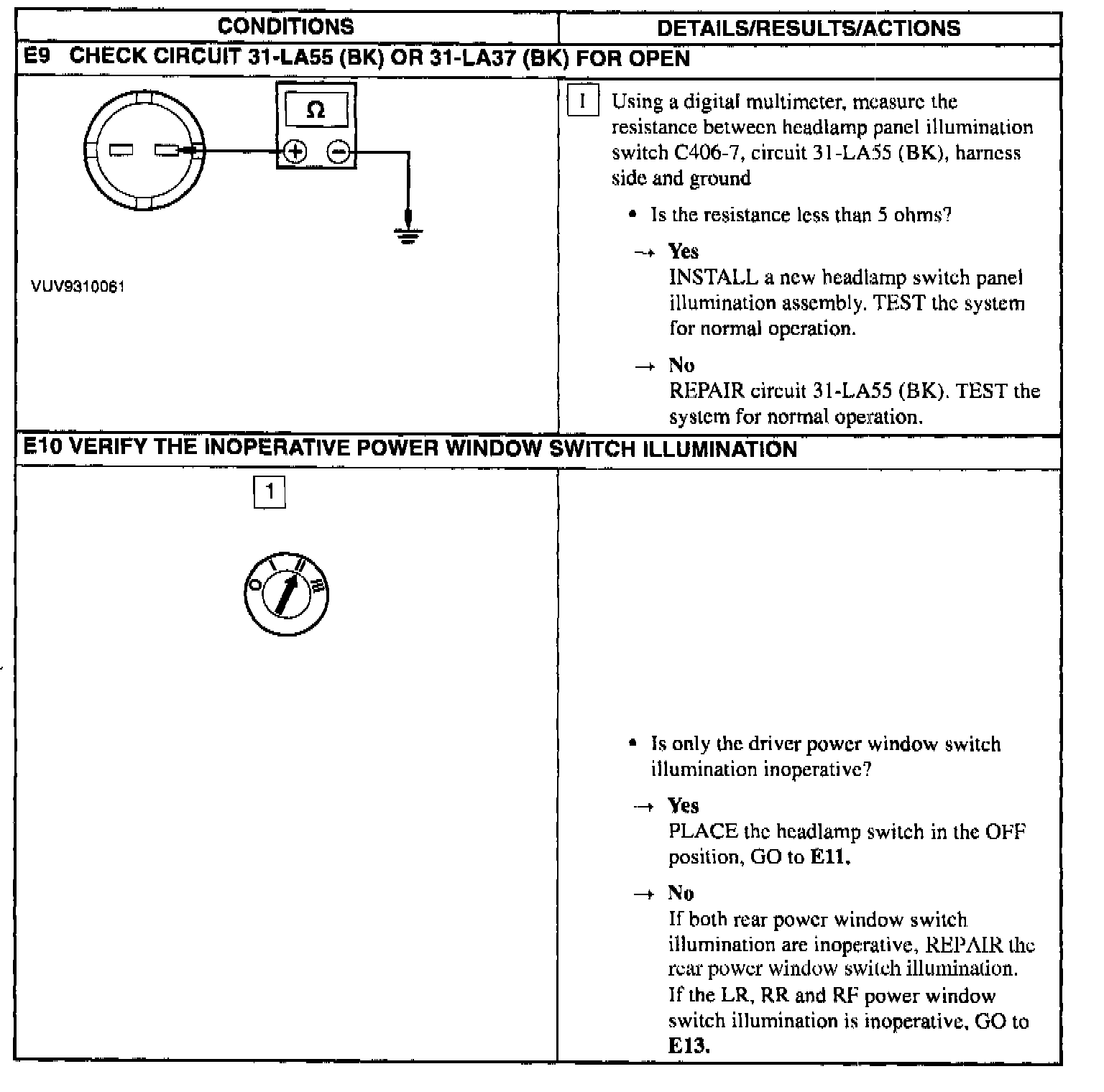

E9 - E10:

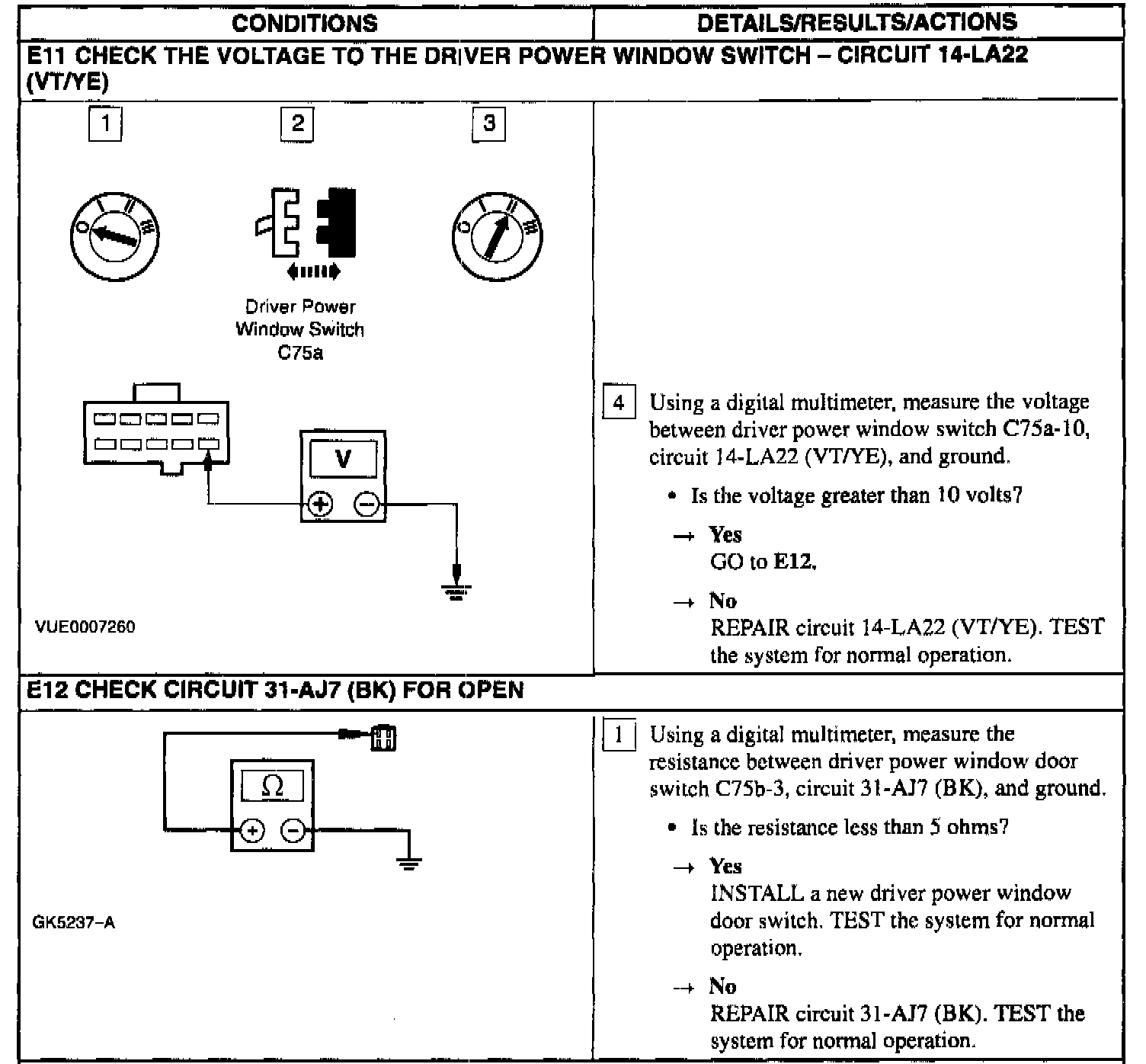

E11 - E12:

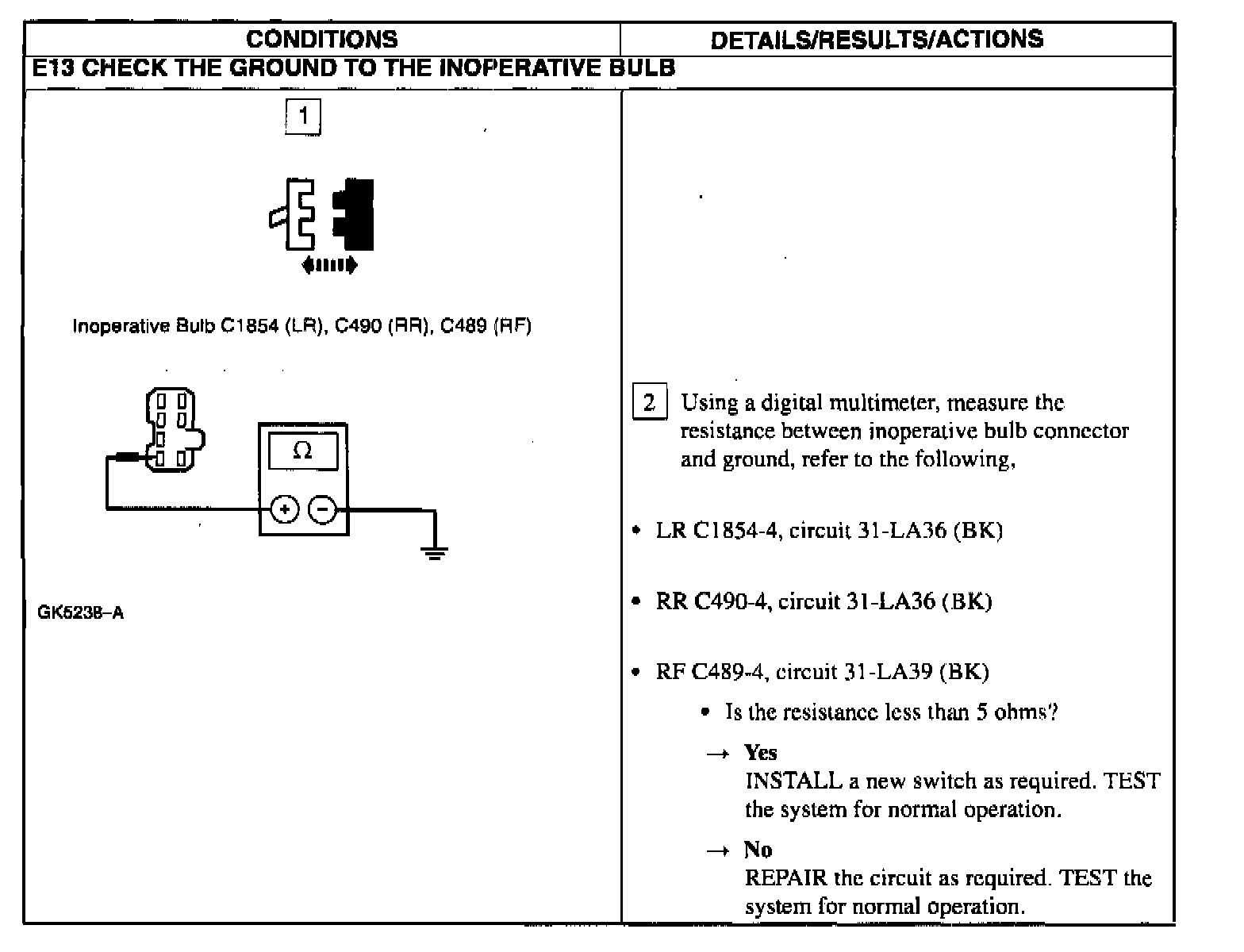

E13:

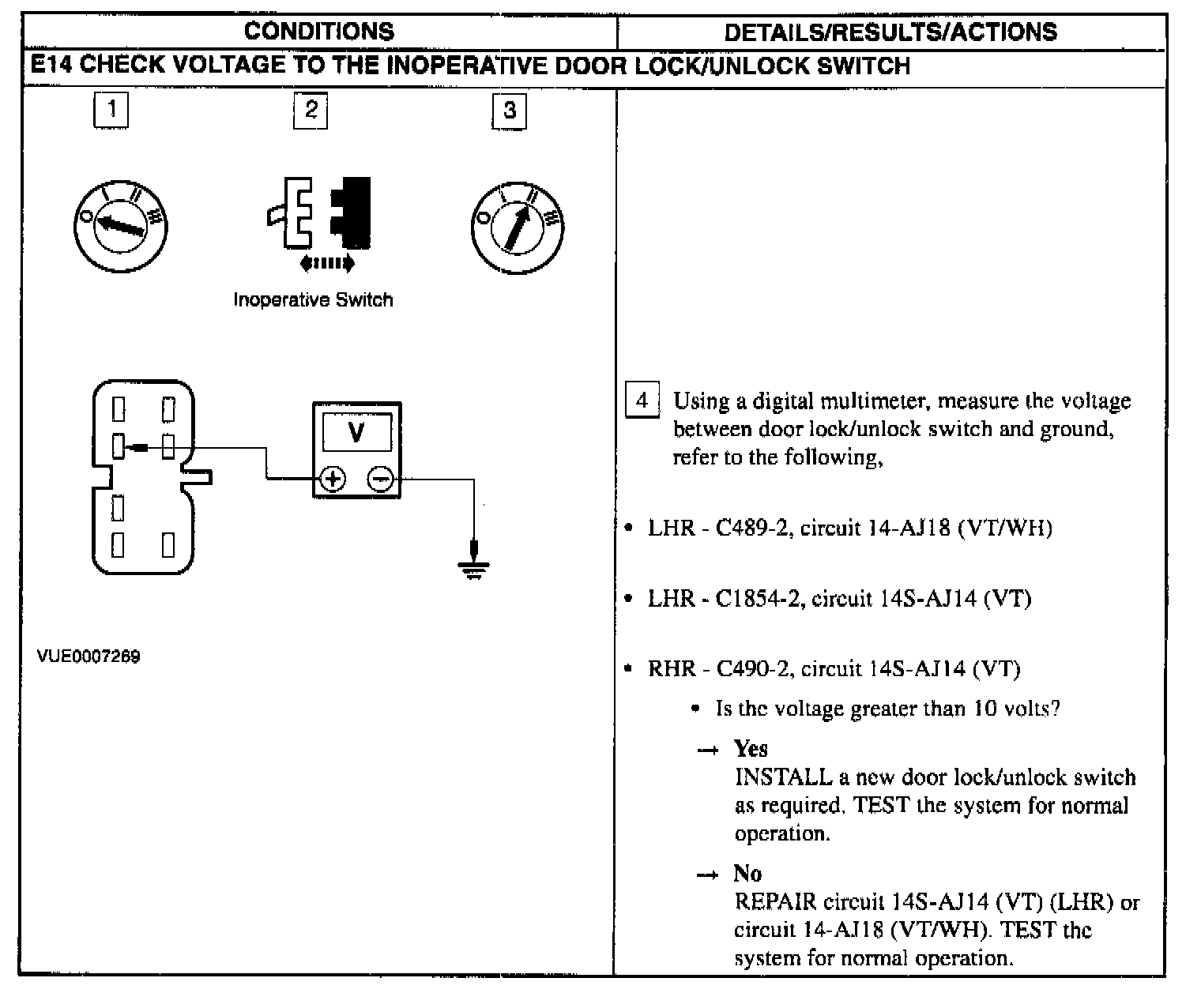

E14:
