Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster and Panel Lights >> C: Climate Control Illumination Inoperative

C: Climate Control Illumination Inoperative

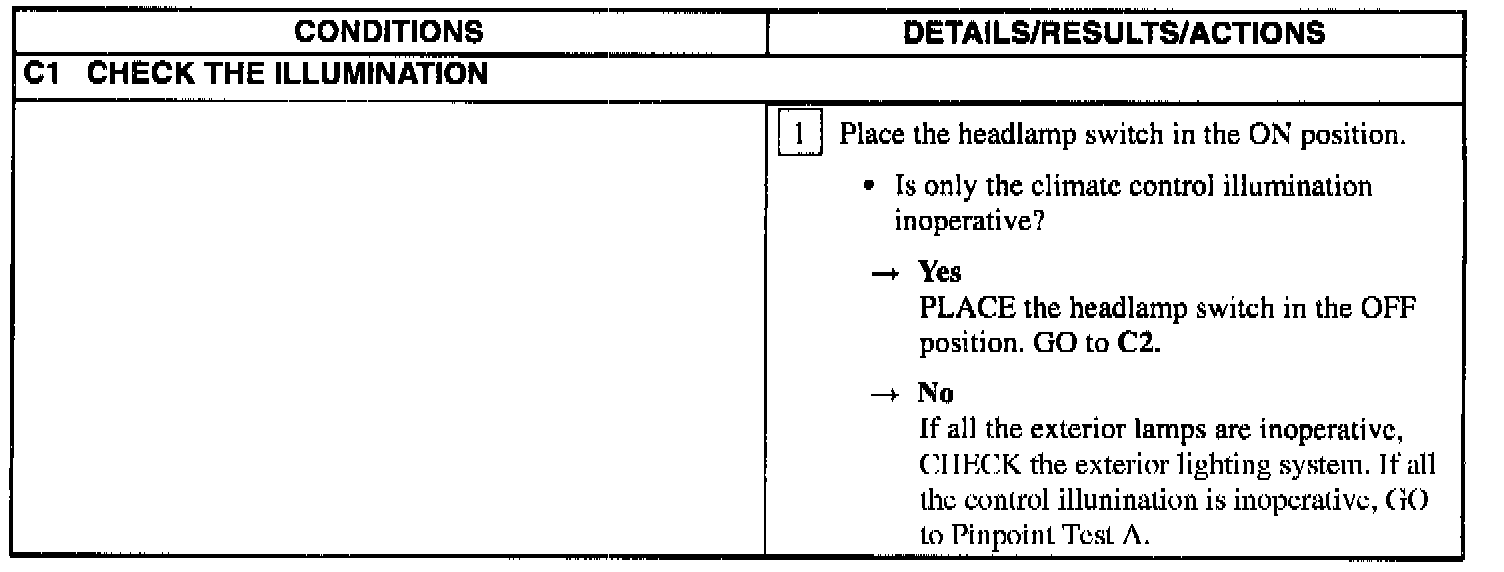

C1:

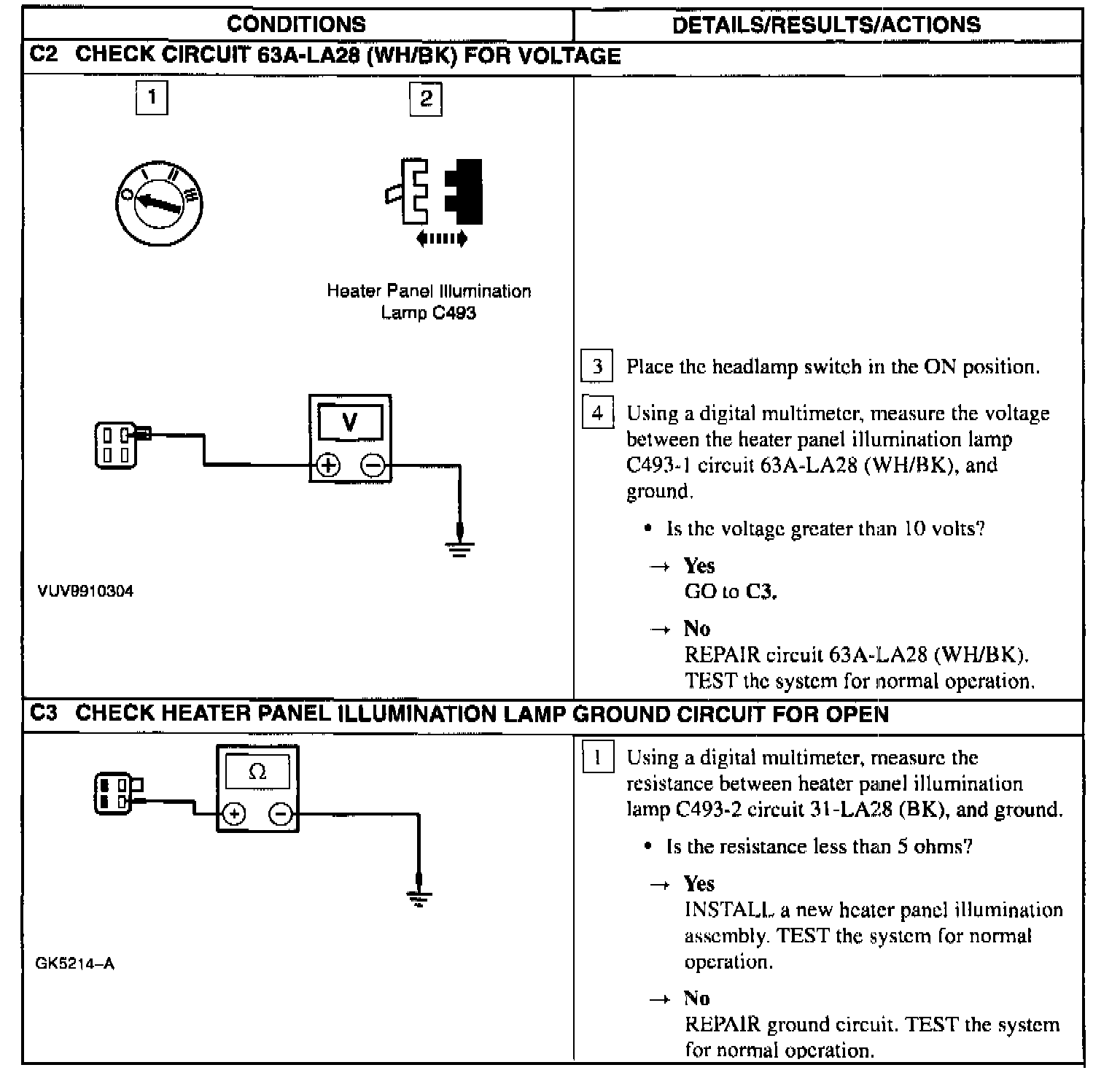

C2 - C3:
