Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster and Panel Lights >> A: Control Illumination Inoperative

A: Control Illumination Inoperative

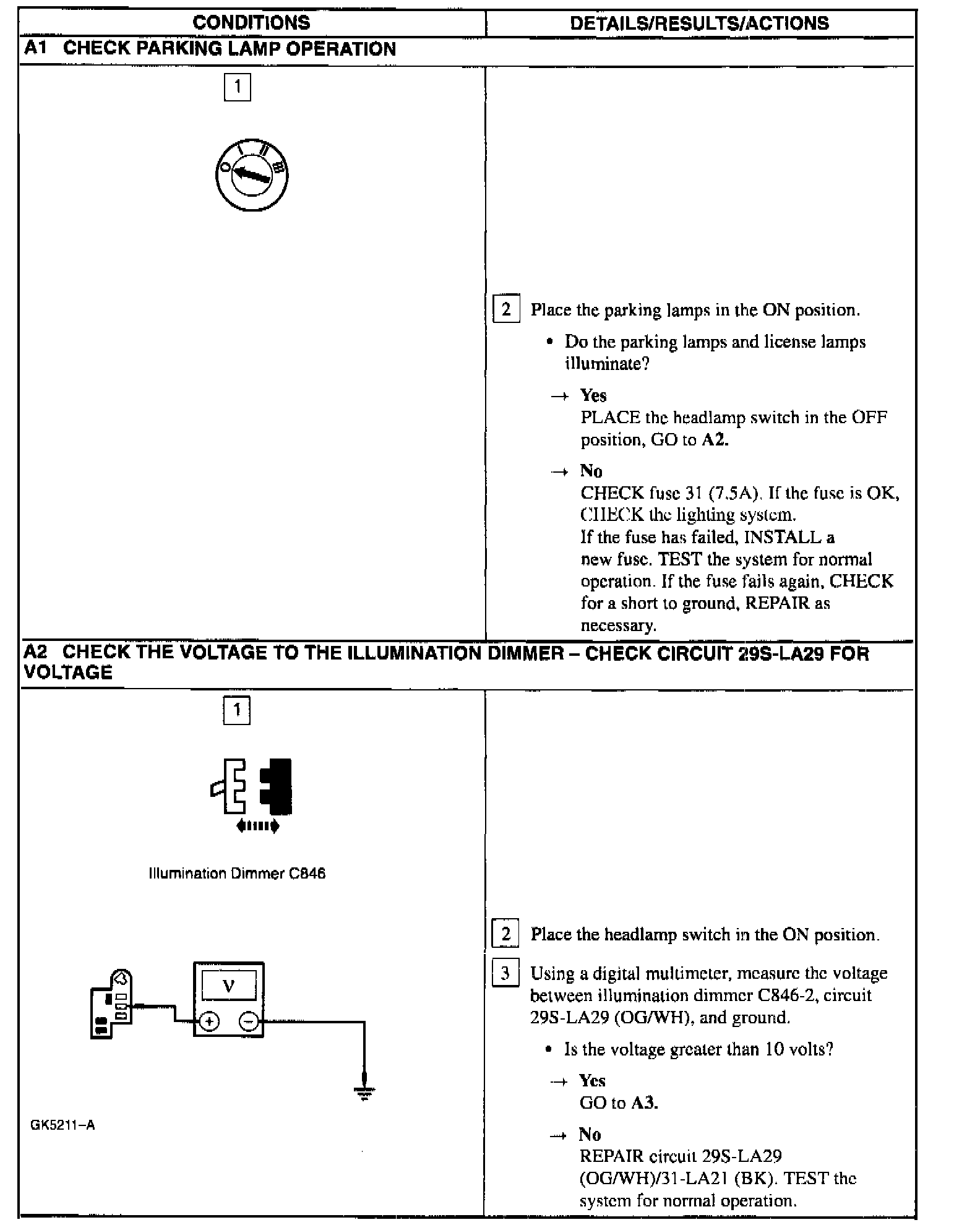

A1 - A2:

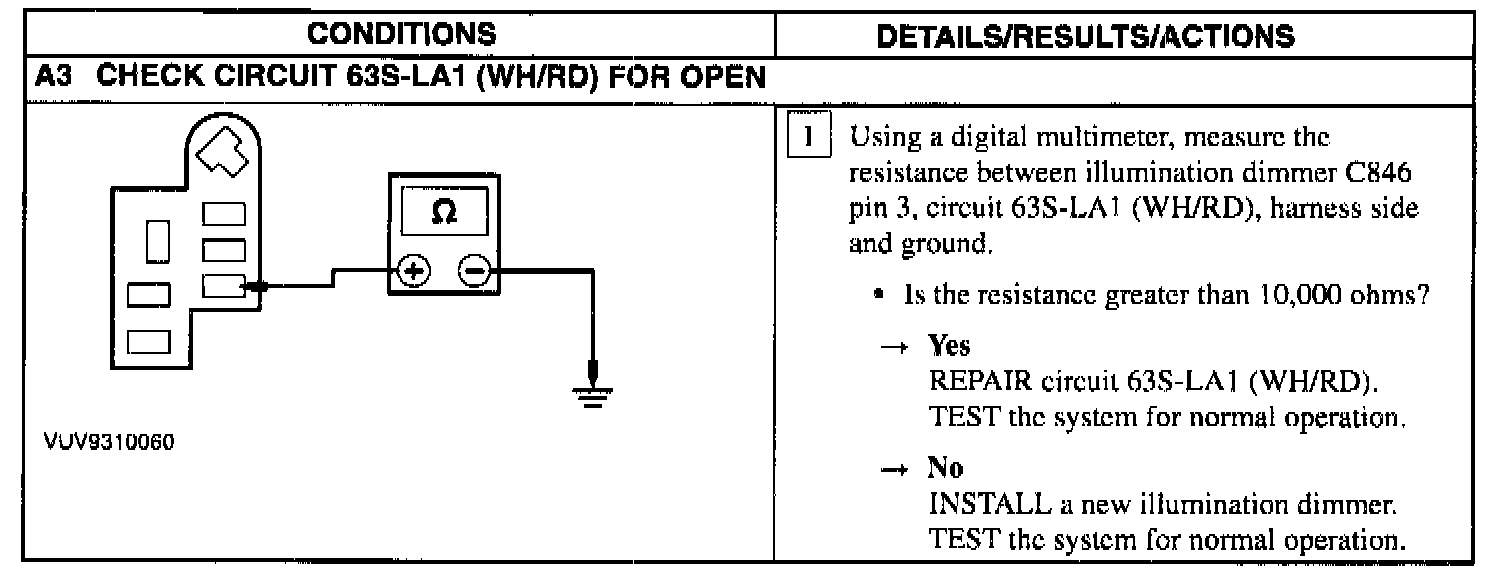

A3:
