Mystique

REMOVAL
1. Disconnect the battery ground cable.







2. Detach the instrument cluster bezel.
1 Remove the retaining screws.
2 Remove the screw covers and the retaining screws.







3. Remove the instrument cluster bezel.
^ Disconnect the electrical connectors.

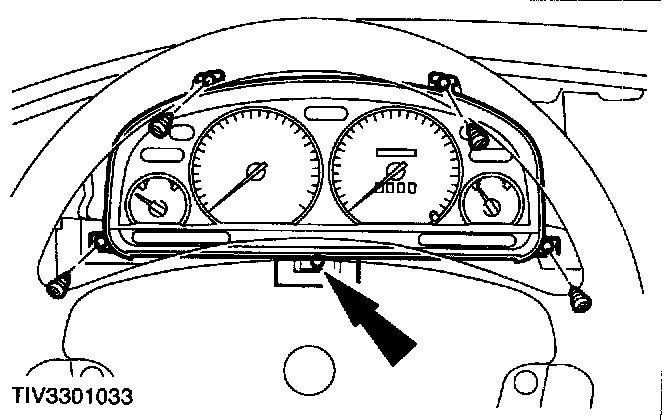

4. Detach the instrument cluster.
^ Remove the screws.







5. Disconnect the electrical connectors (steering wheel removed for clarity).

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more LO relearn the strategy.
