A: A/C Does Not Operate/Does Not Operate Properly
A: A/C Does Not Operate/Does Not Operate Properly

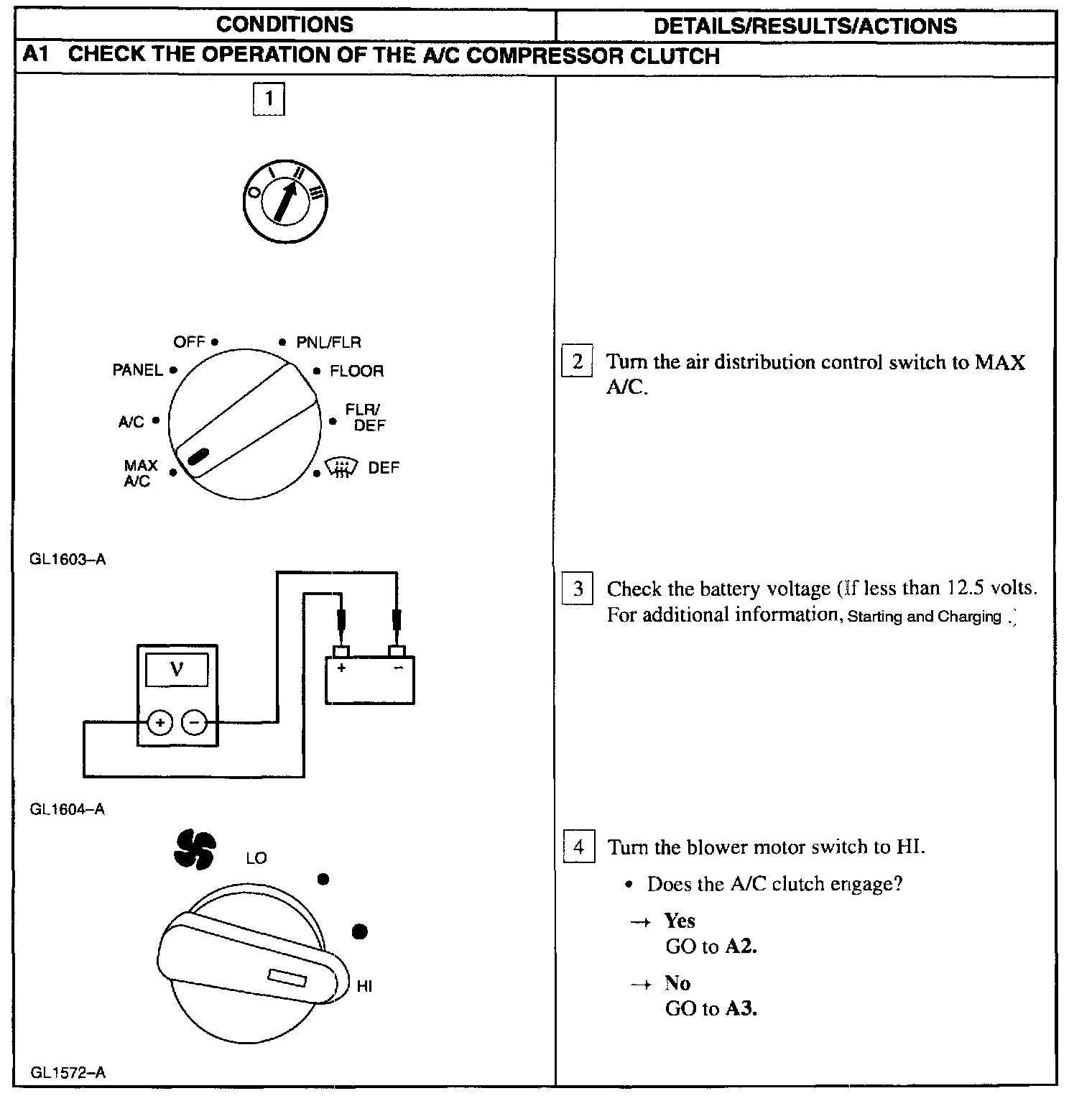

A1:

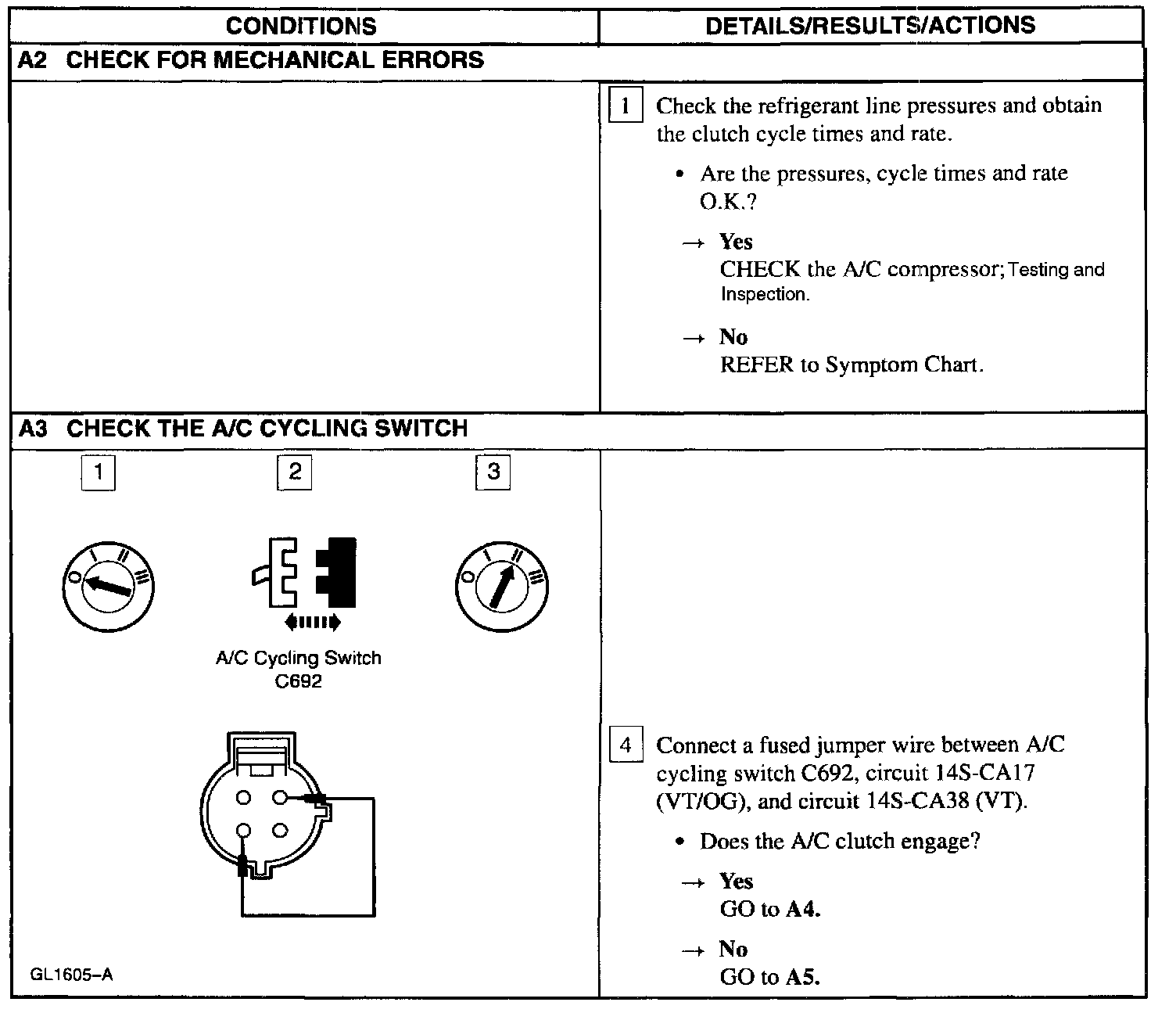

A2 - A3:

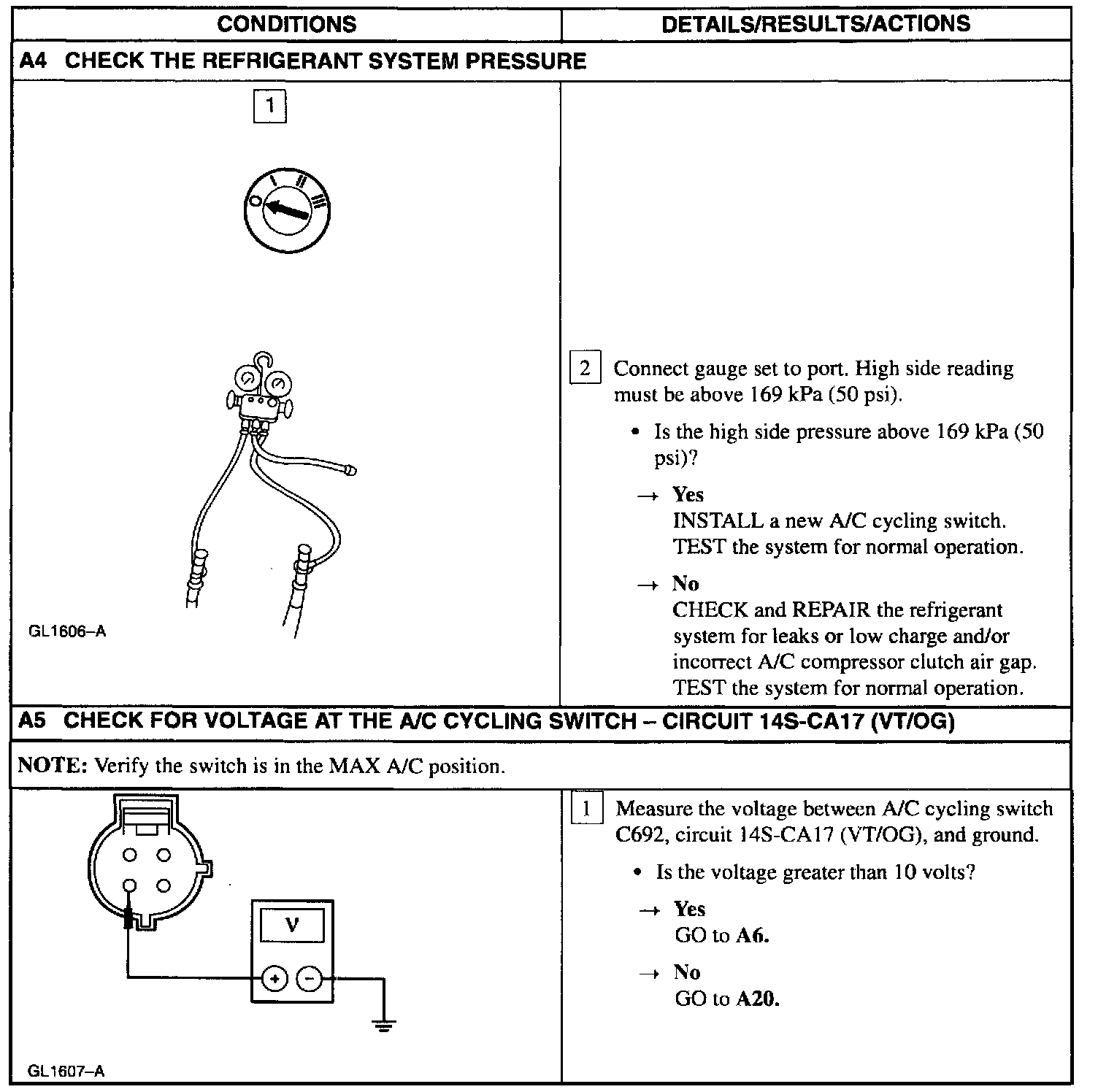

A4 - A5:

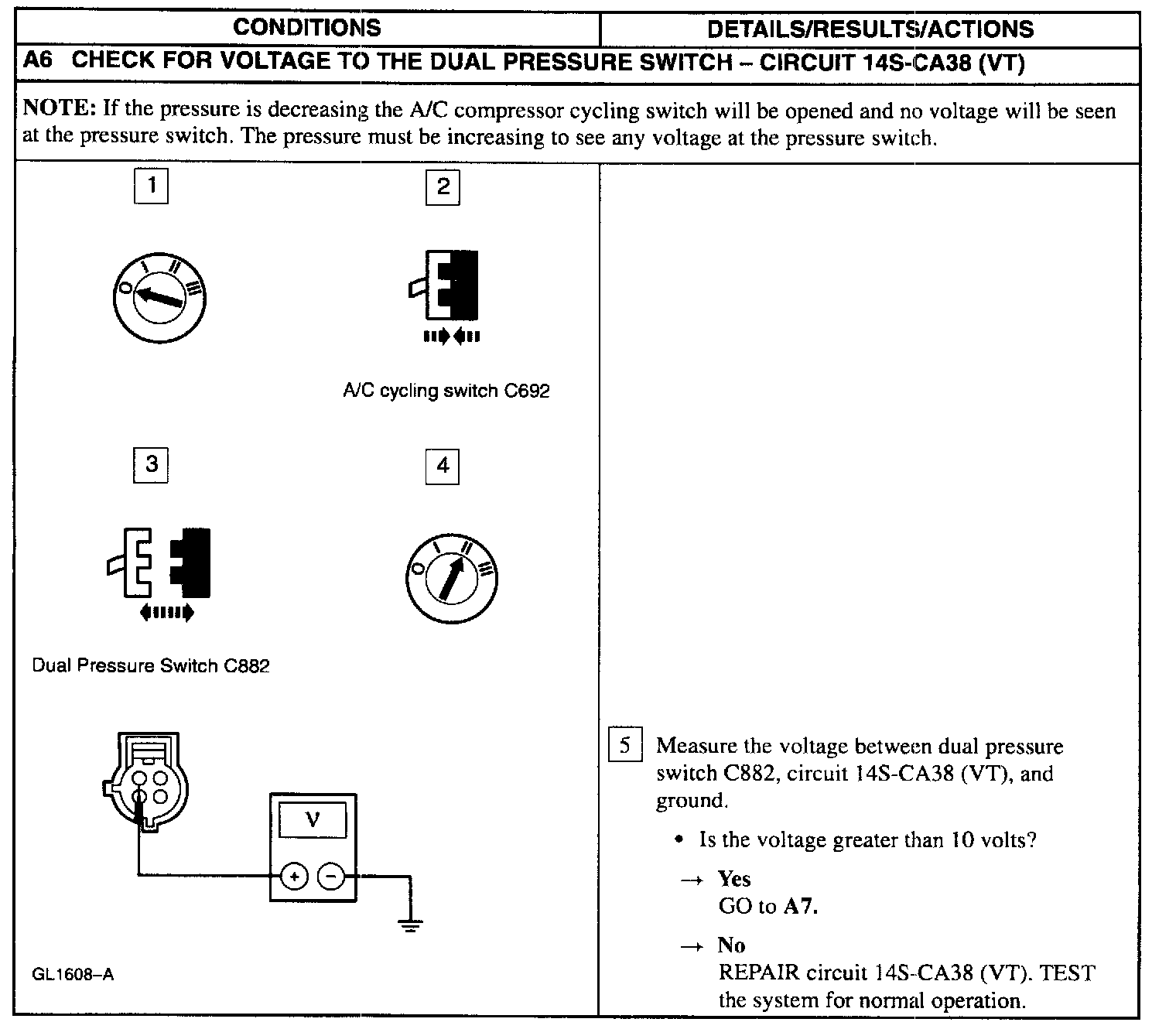

A6:

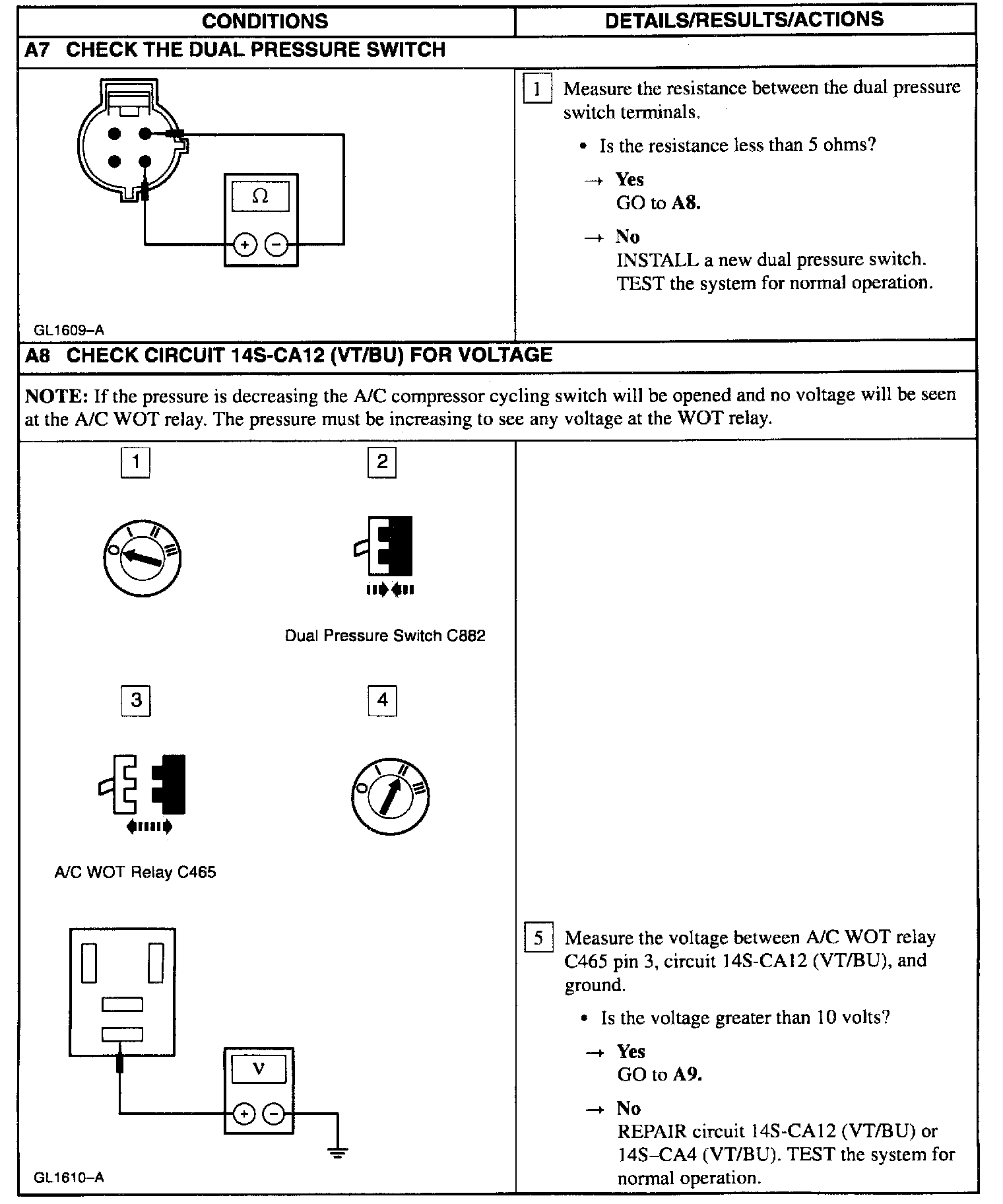

A7 - A8:

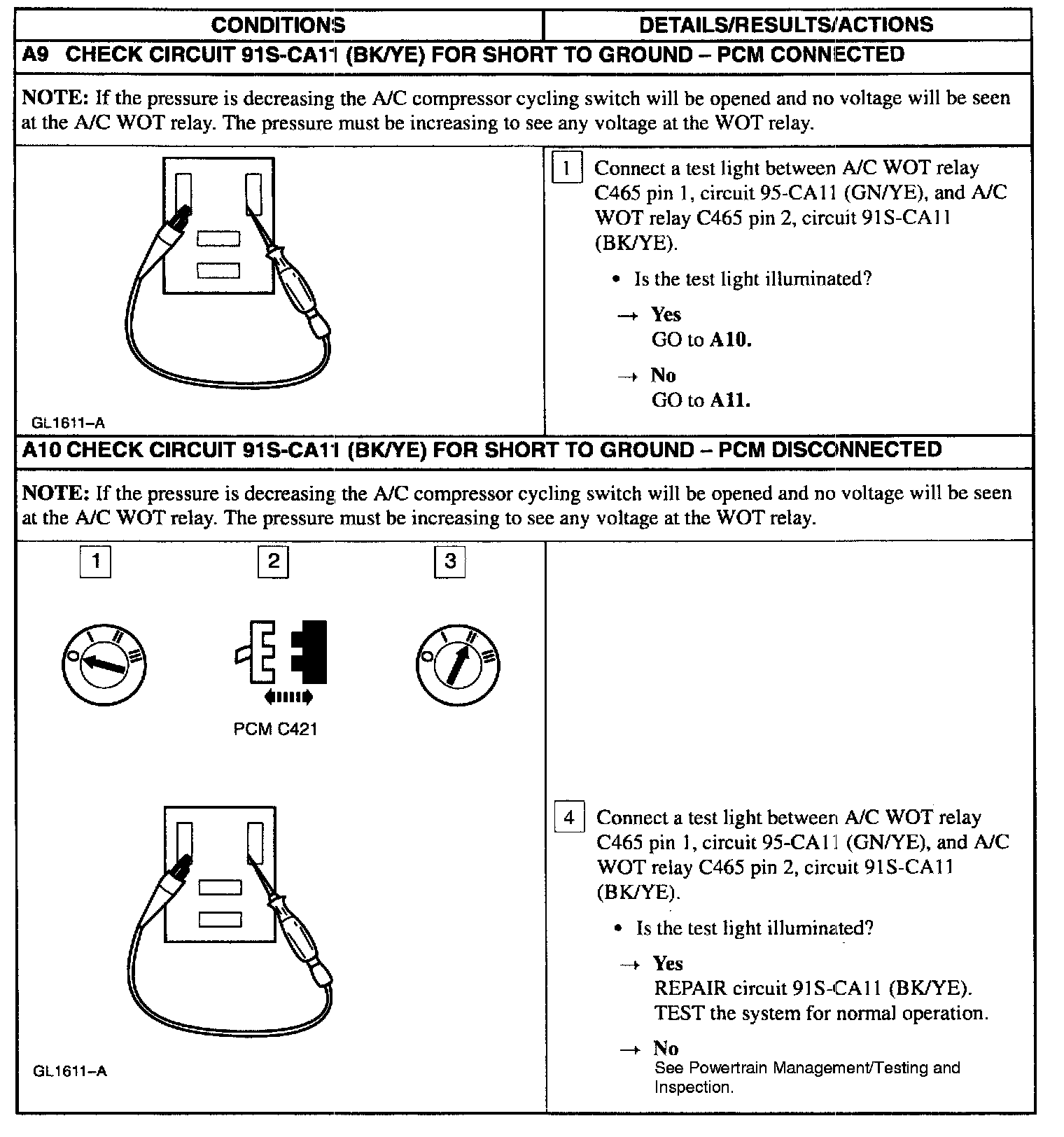

A9 - A10:

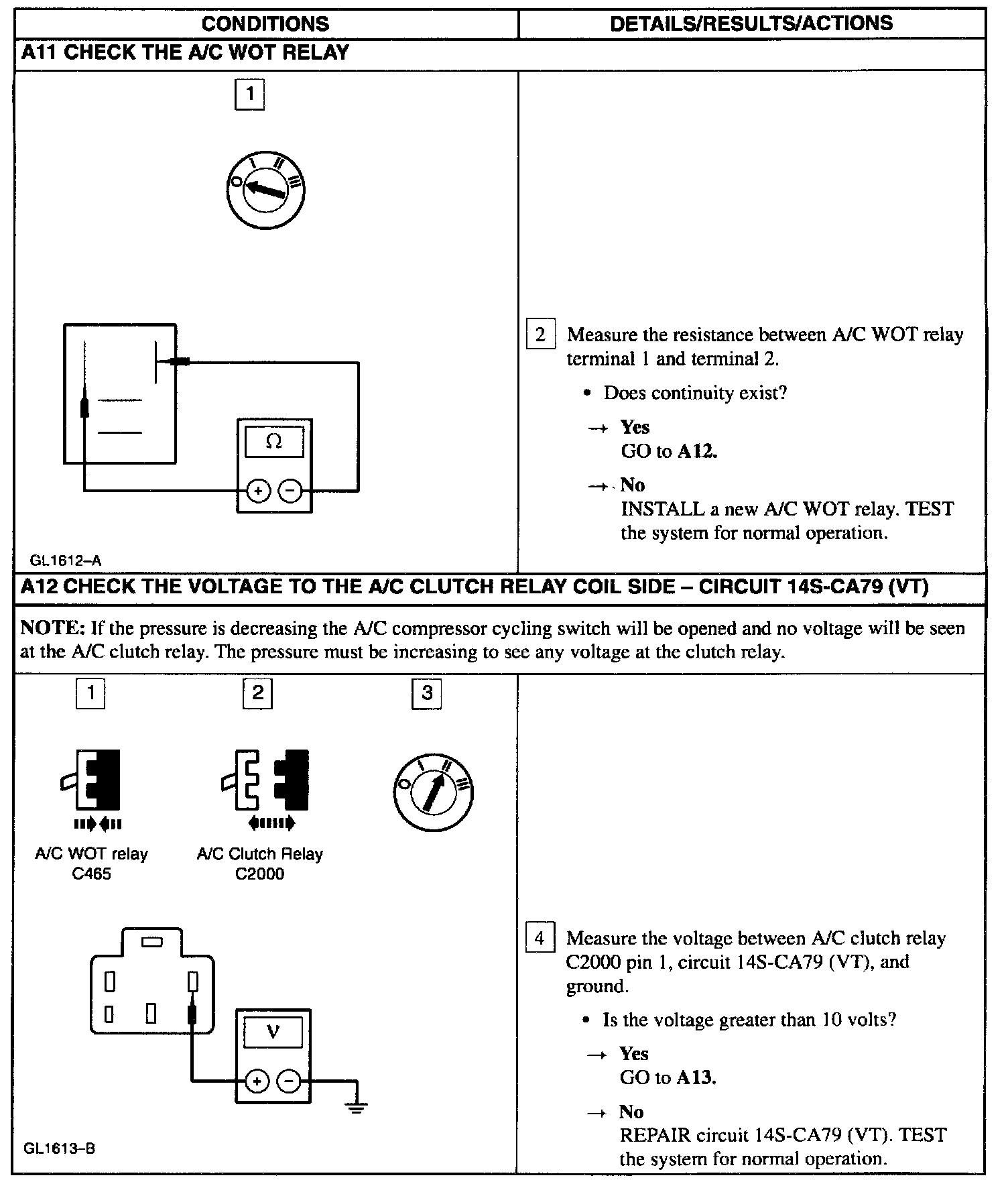

A11 - A12:
A13 - A14:

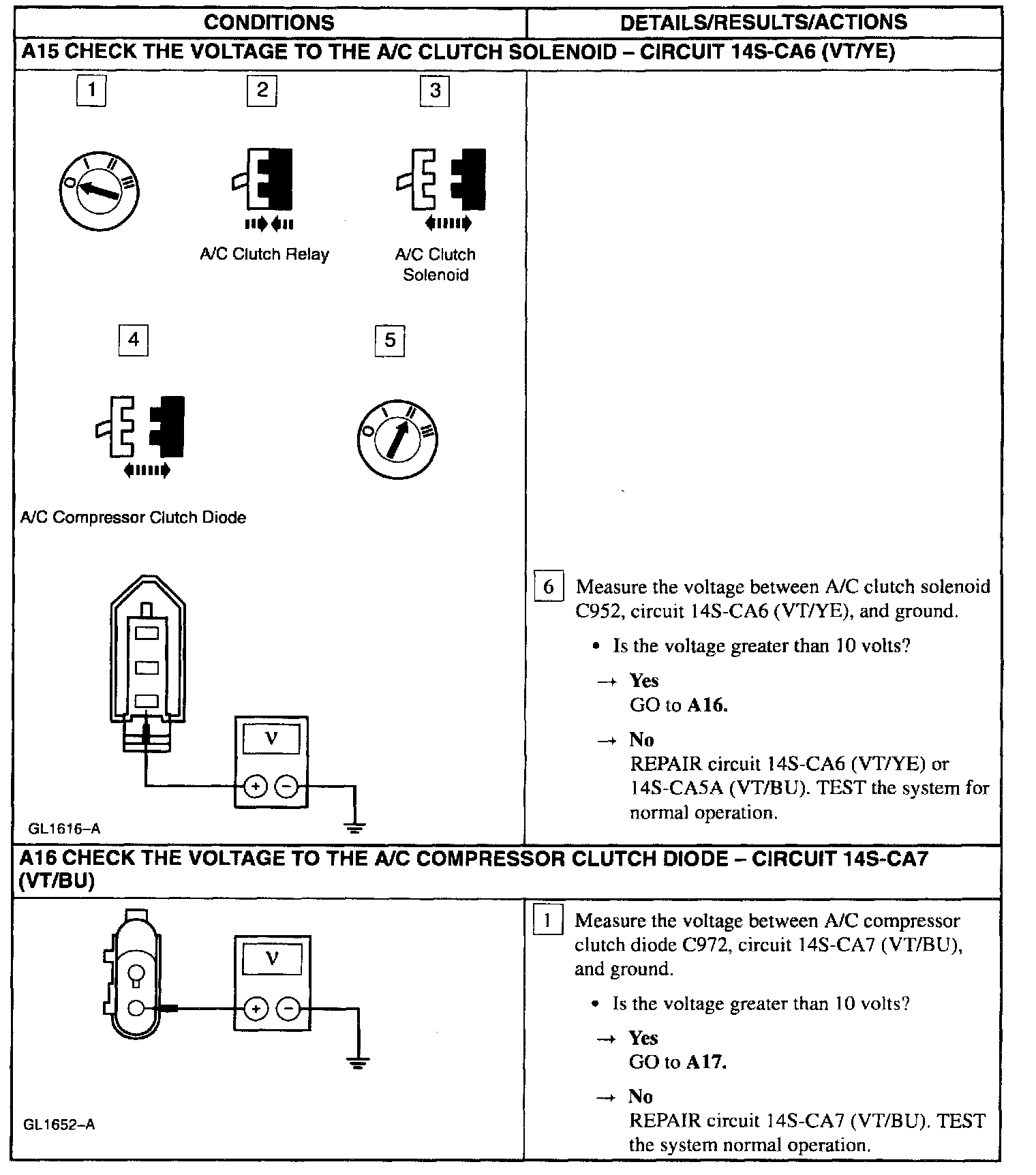

A15 - A16:
A17 - A18:

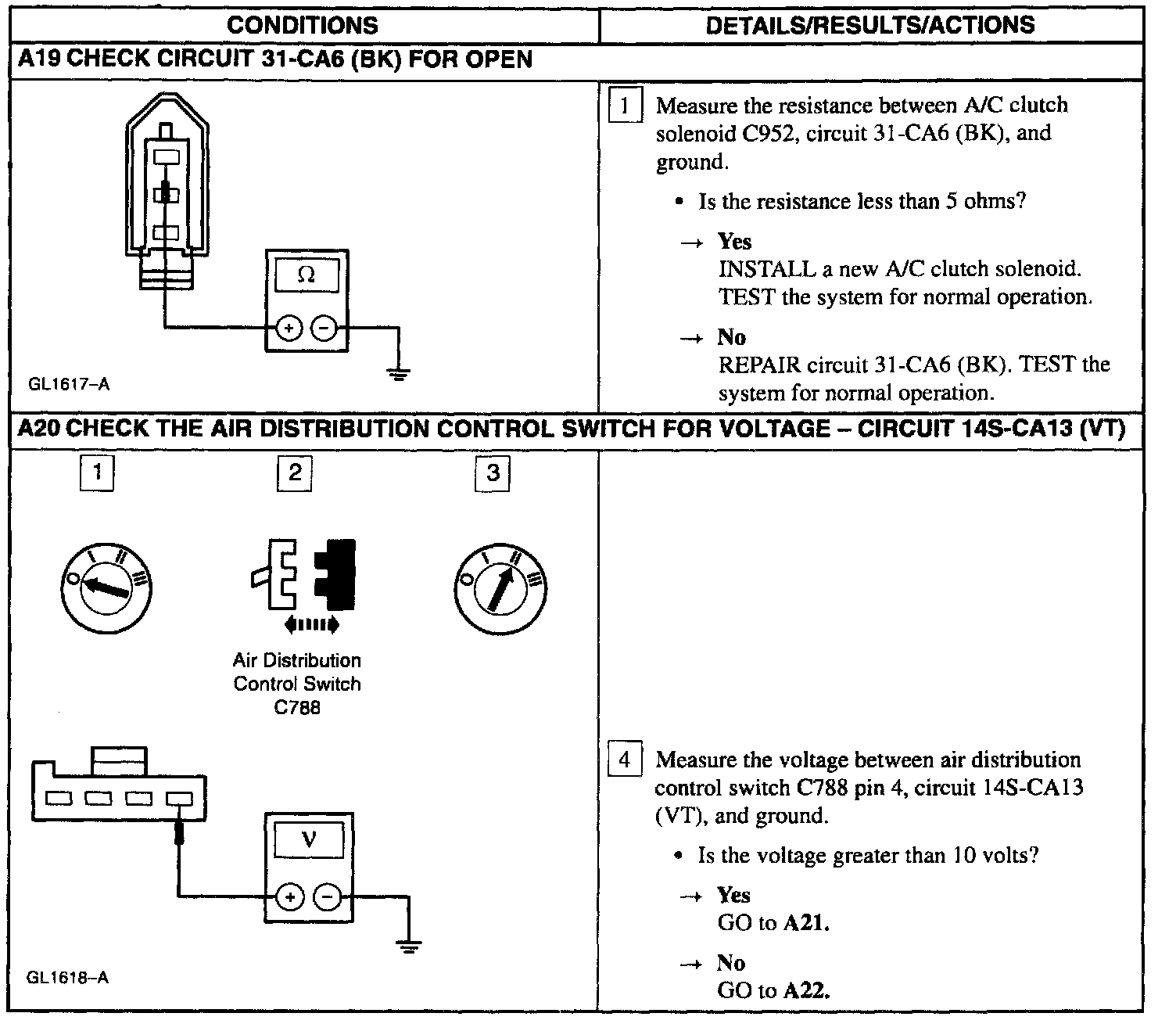

A19 - A20:

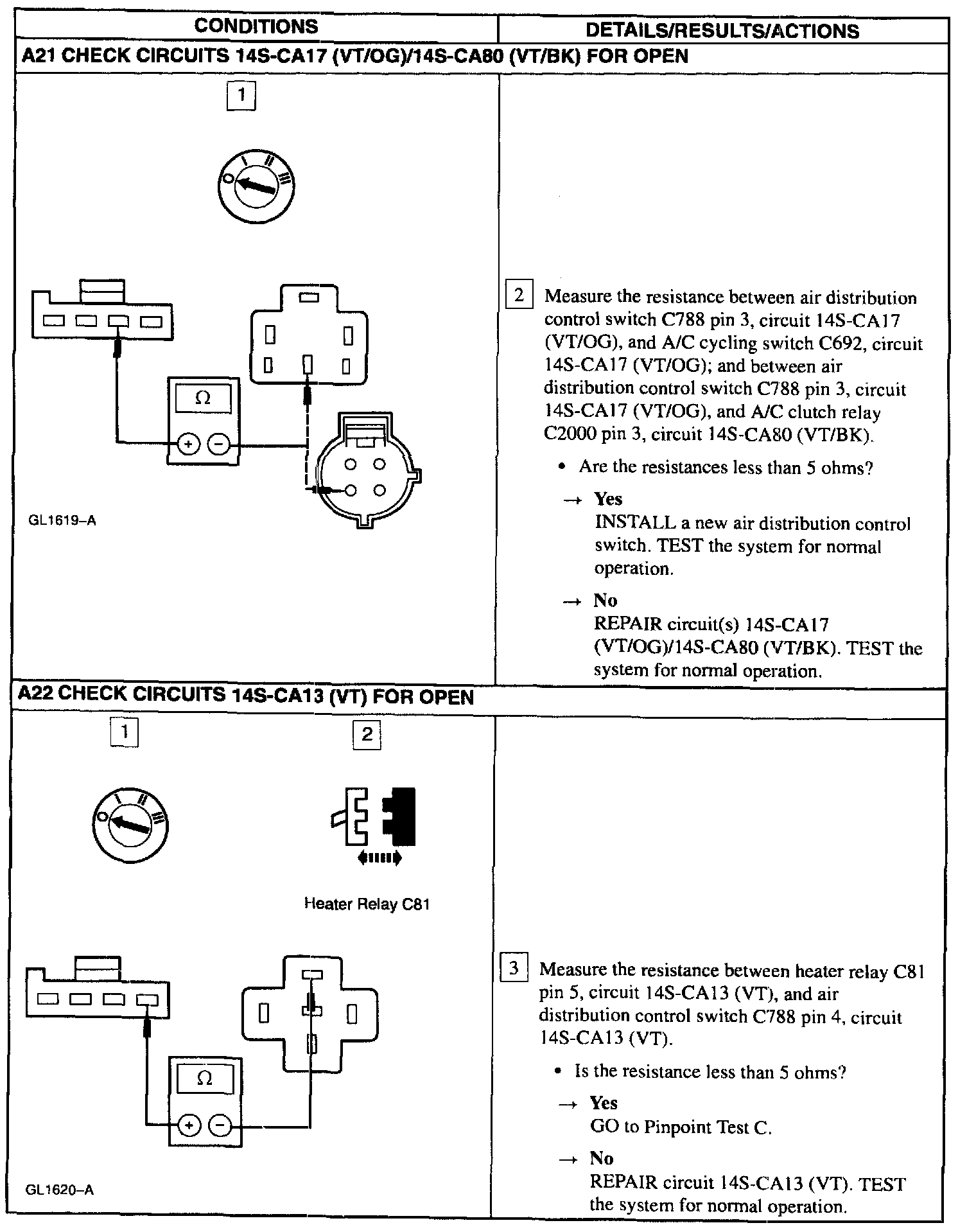

A21 - A22:
