Control Assembly, HVAC

REMOVAL
1. Remove the radio chassis.
2. Remove the floor console.







3. Remove the control opening finish panel.

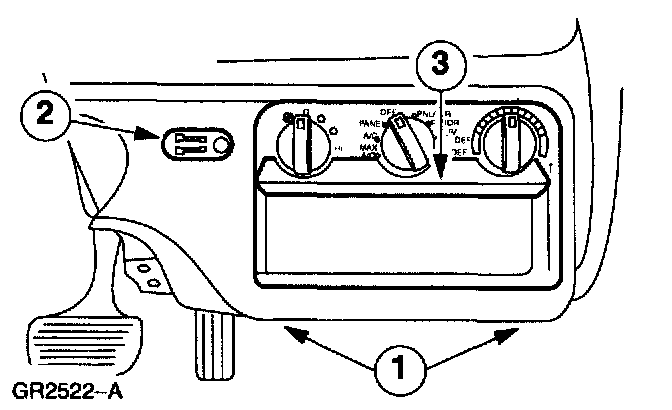

1 Remove the four screws.
2 Disconnect the headlamp dimmer switch electrical connector.
3 Remove the panel.

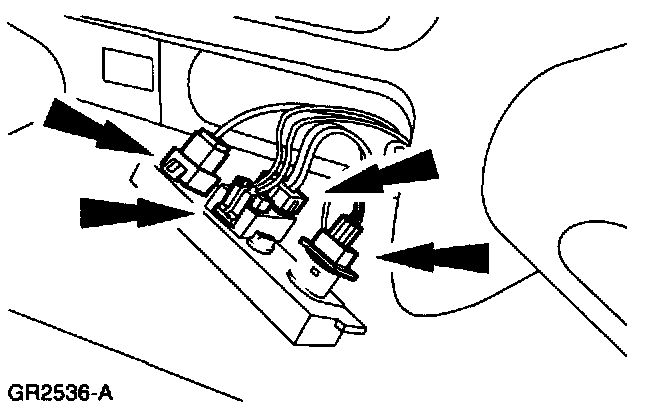

4. Remove the climate control assembly screws.







5. Remove the climate control assembly.
^ Disconnect the electrical connectors.
^ Disconnect the vacuum harness connector.

INSTALLATION
1. To install, reverse the removal procedure.
