Compressor Fitting HVAC: Service and Repair

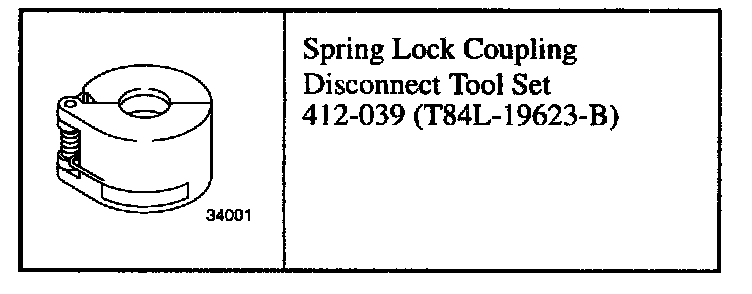

Spring Lock Coupling Disconnect Tool Set:

SPECIAL TOOL(S)

REMOVAL
1. Reclaim the refrigerant.
2. Raise and support the vehicles.

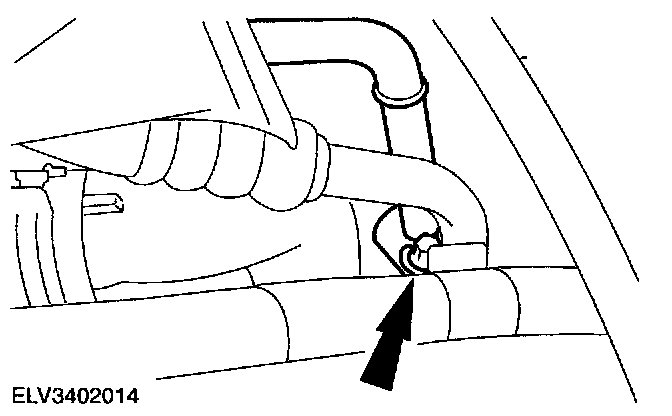

3. Remove the radiator splash shield

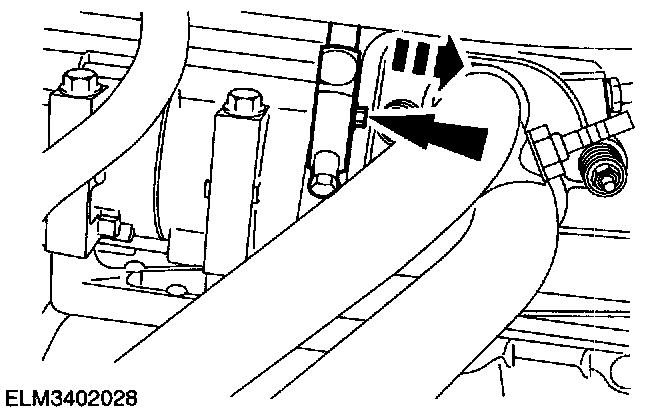

4. Remove the line connection from the compressor.

NOTE: Seal the line and the connection with plugs.

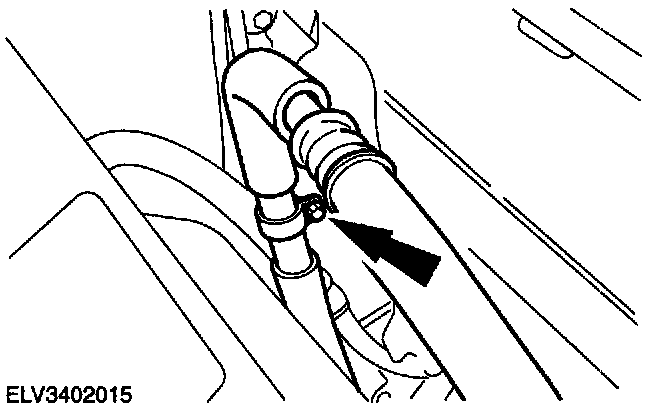

5. Remove the upper line from the air conditioning condenser.

NOTE: Seal the line and the connection with plugs.

6. Lower the vehicle.

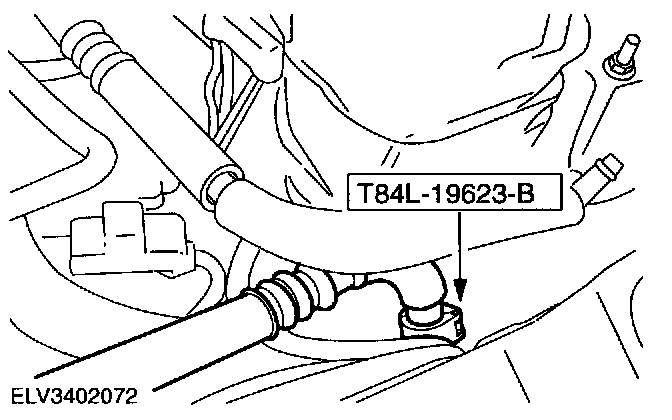

7. Use the special tool, disconnect the A/C line at the suction accumulator.

NOTE: Seal the line and the connection with plugs.







8. Remove the bolt from the bracket and remove the manifold and tube assembly.

INSTALLATION

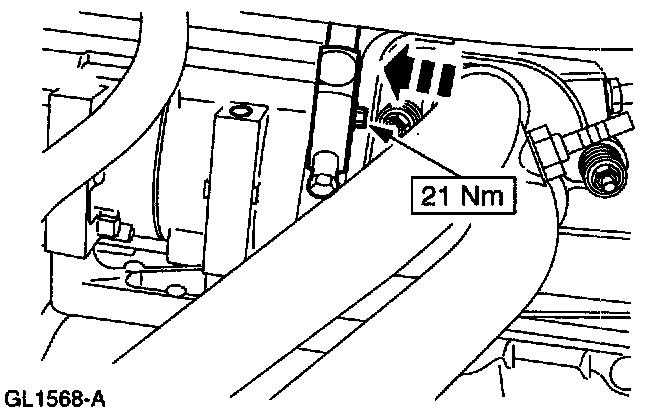

1. To install, reverse the removal procedure.
^ Check A/C system for normal operation.

NOTE: Renew all the O-rings and coat with refrigerant oil.
