Blower Motor Resistor: Service and Repair

REMOVAL

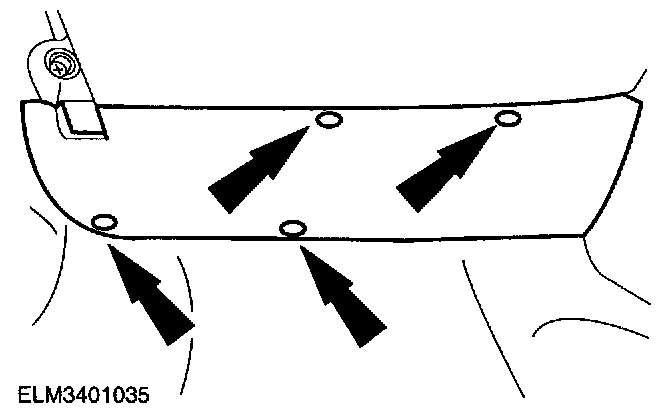

1. Unclip the upper footwell trim panel on the passenger side and remove it.

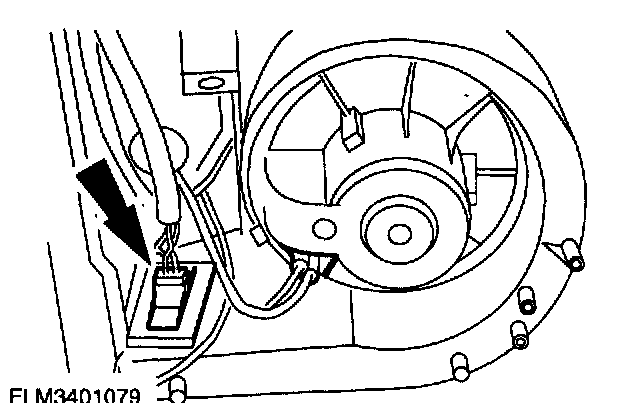

2. Disconnect the blower motor resistor electrical connector.

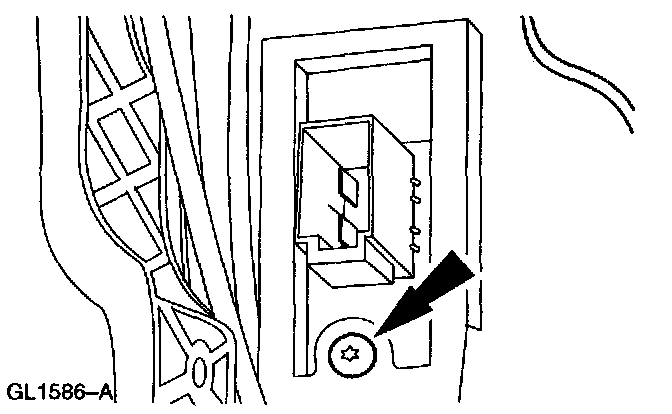

3. Remove the blower motor resistor screw and the resistor.

INSTALLATION
1. To install, reverse the removal procedure.
