Timing Component Alignment Marks: Locations

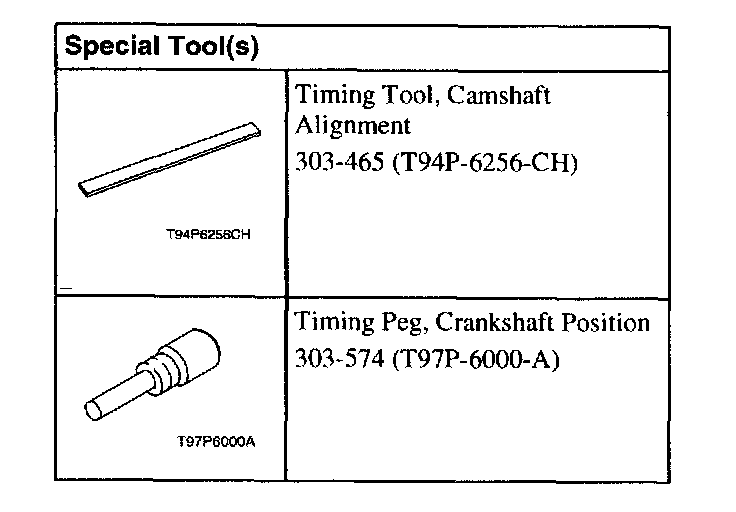

Special Tools:

NOTE: Ford does not provide camshaft gear timing marks, or information to perform timing belt service without the special tools shown.



CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
