Lobe Lift
Lobe Lift
1.

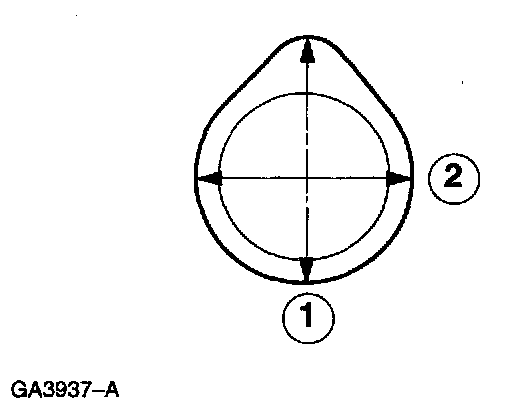

Measure the diameter (1) and diameter (2) with a vernier caliper. The difference in measurements is the lobe lift.
