Cylinder Block/Cylinder Head Distortion

Special Tools:

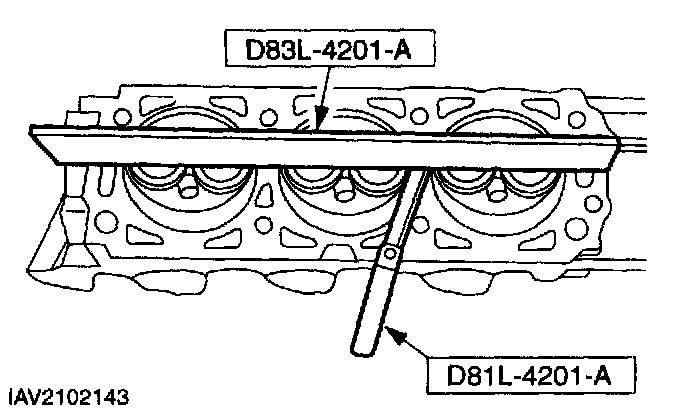

1. Measure the cylinder head distortion.
- Using the special tool, measure the mating face distortion.

CAUTION: The mating face on the 2.5L engines must not be reworked.

- If the value is not to specification rework the mating face.
