Front Crankshaft Seal: Service and Repair

Ford does not provide camshaft gear timing marks, or information to perform timing belt service without the special tools shown in the timing belt service and repair procedure. Timing Belt

Special Tools:

Removal
1. Remove the timing belt.





2. NOTE: FRONT marking.

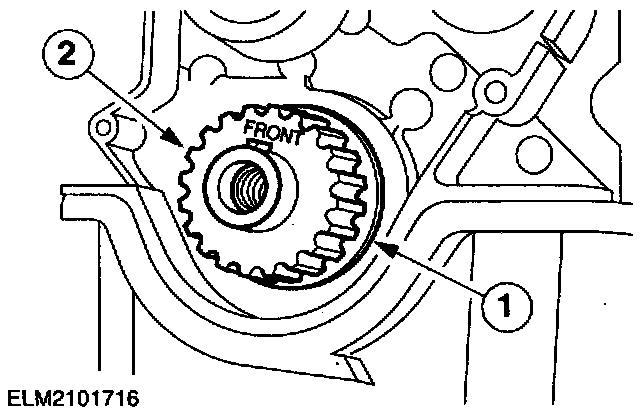

Remove the crankshaft timing pulley.
1 Remove the crankshaft timing pulley.
2 Remove the timing belt thrust washer.

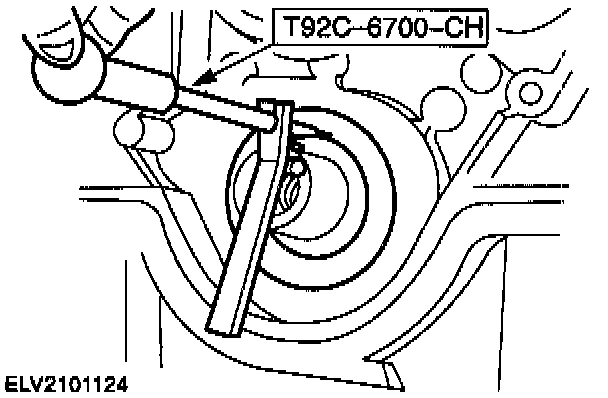

3. Using the special tool, remove the crankshaft front oil seal.

Installation

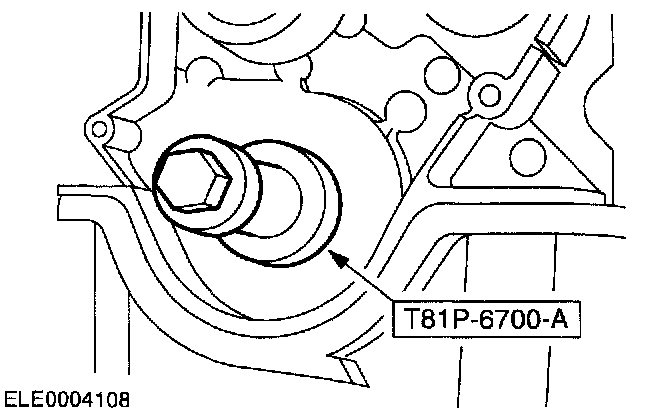

1. Using the special tool, install the crankshaft front oil seal.





2. NOTE: FRONT marking.

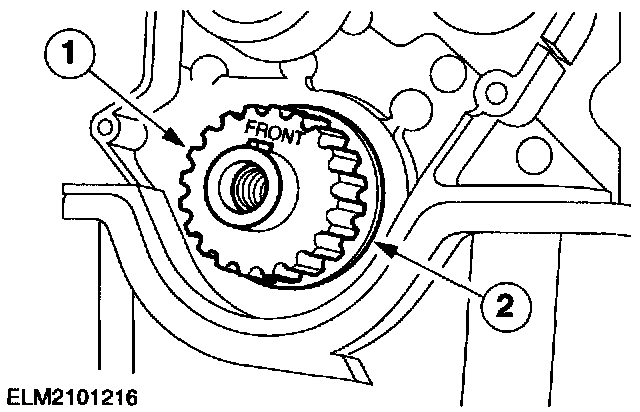

Install the crankshaft timing pulley.
1 Install the timing belt thrust washer.
2 Install the crankshaft timing pulley.

3. Install the timing belt.
