Oil Pump: Service and Repair

Ford does not provide camshaft gear timing marks, or information to perform timing belt service without the special tools shown in the timing belt service and repair procedure. Timing Belt



Removal
1. Remove the timing belt,
2. Remove the oil pump screen cover and tube.

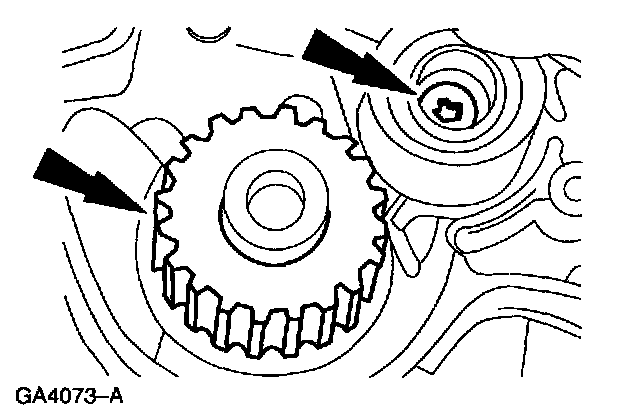

3. Remove the crankshaft timing pulley, idler pulley and spacer.

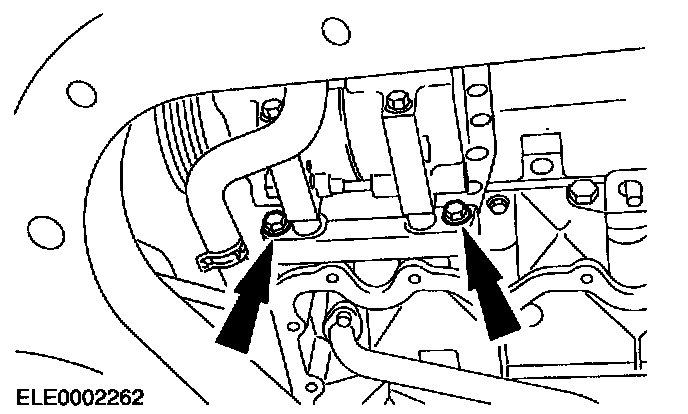

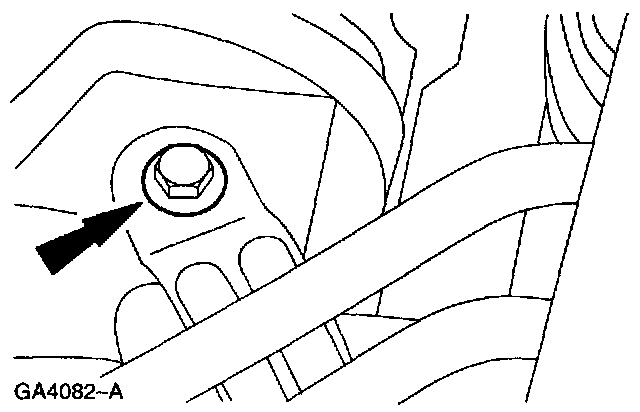

4. Remove the coolant line clamp bolt.

Vehicles With Air Conditioning

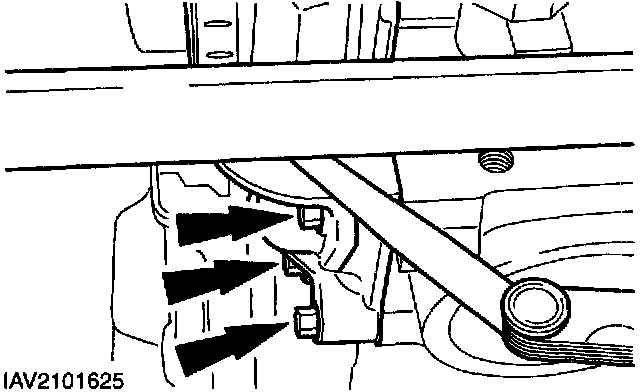

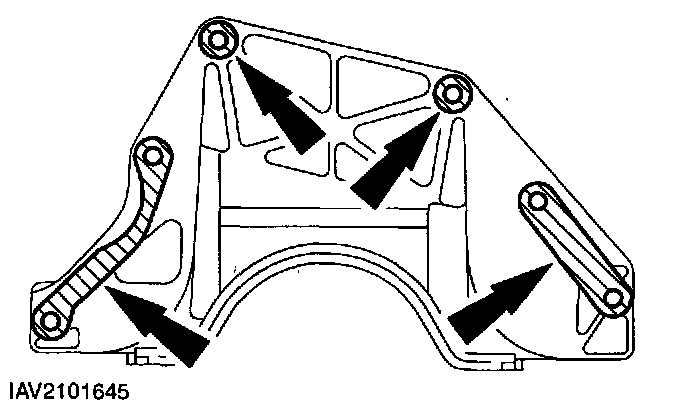

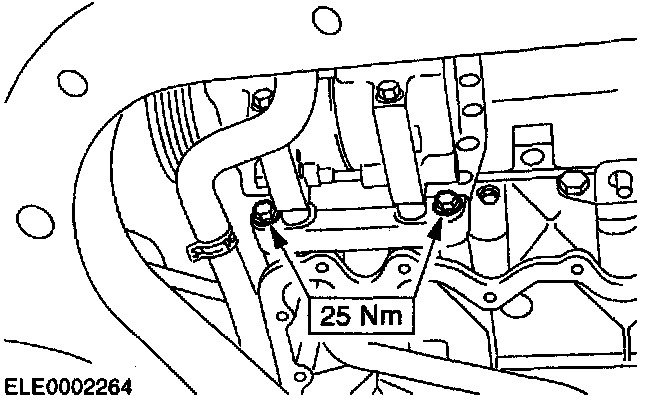

5. Remove the Air Conditioning (A/C) bracket lower bolts.

All Vehicles

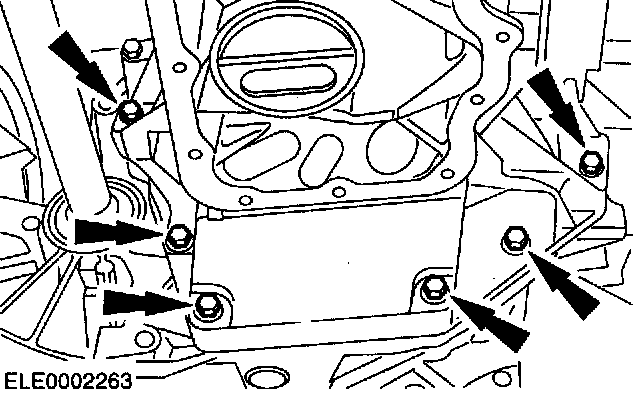

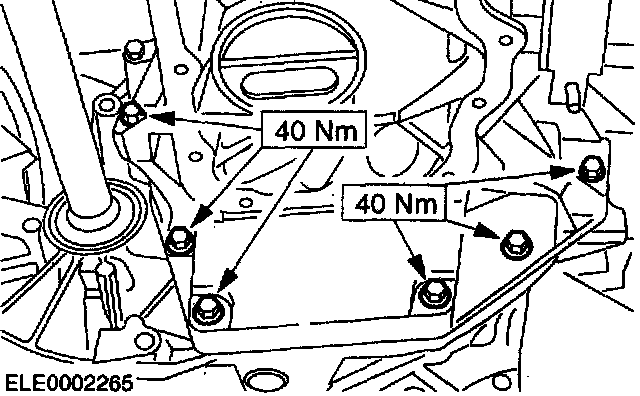

6. Remove the lower crankcase to transmission bolts.

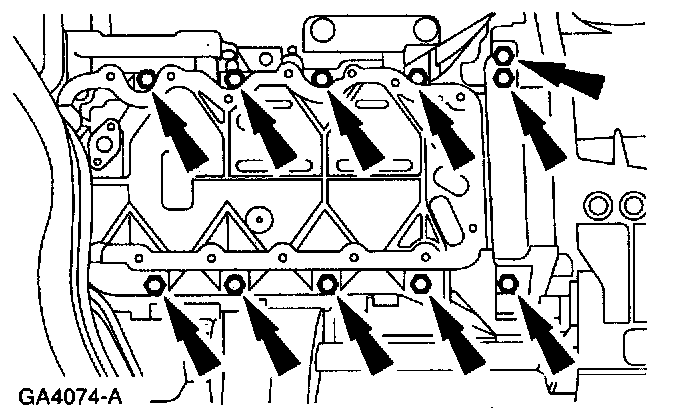

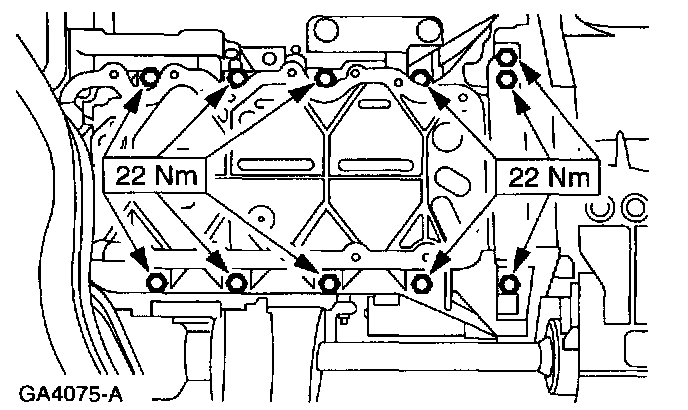

7. Remove the lower crankcase to upper crankcase bolts and remove the lower crankcase.

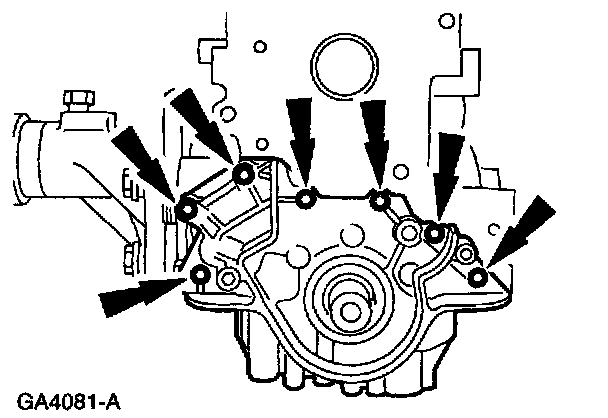

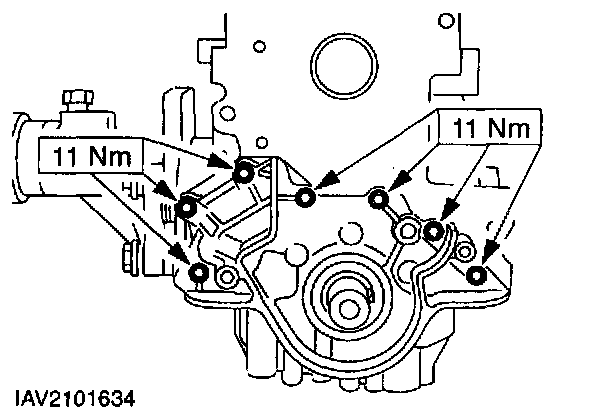

8. Remove the oil pump.

Installation

1. CAUTION: To avoid leakage do not use abrasive grinding discs to remove gasket material; use only manual scrapers. Do not scratch or gouge the aluminum sealing surfaces. Leakage may occur.

Clean and inspect the mounting faces of both the oil pump and the cylinder block. Both surfaces must be flat and clean.

2. NOTE: Install a new gasket on the oil pump prior to oil pump positioning.





Position the oil pump.
- Position the oil pump and install the bolts finger tight.

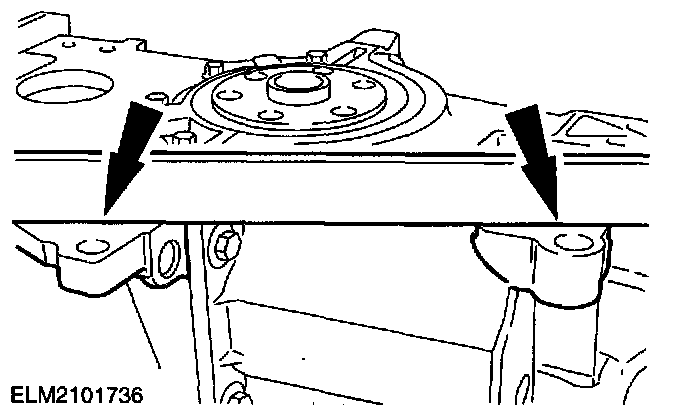

- Using a feeler gauge, align the oil pump on both sides so that the mating face is between 0.3 mm and 0.8 mm below the cylinder block.





3. Secure the oil pump.
- Tighten the bolts and check the alignment using a feeler gauge so that the mating face is between 0.3 mm and 0.8 mm below the cylinder block, correct as necessary.

4. Install a new crankshaft front oil seal.

5. NOTE: Use a new lower crankcase installation gasket.





Align the lower crankcase.
- Coat the joints between the cylinder block and the oil pump with silicone gasket and sealant.
- Position the lower crankcase and gasket and install the bolts finger tight.
- Align the lower crankcase using a straight edge so that the cylinder block and the lower crankcase are flush or do not exceed the following tolerances:
- Manual transaxle: 0.10 mm overlap to 0.25 mm gap.
- Automatic transaxle: 0.00 mm overlap to 0.25 mm gap.





6. Install lower crankcase spacer shims as required.
- 0.26 to 0.50 mm gap, use 0.25 mm (yellow) spacer shims
- 0.51 to 0.75 mm gap, use 0.50 mm (black) spacer shims





7. Install the lower crankcase cylinder block.





8. Install the lower crankcase to transmission bolts.

Vehicles With Air Conditioning





9. Install the A/C bracket lower bolts.

All Vehicles





10. Install the coolant line clamp bolt.





11. Install the crankshaft timing pulley, timing belt idler pulley and spacer.
12. Install the oil pump screen cover and tube.
13. Install the timing belt.
