Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

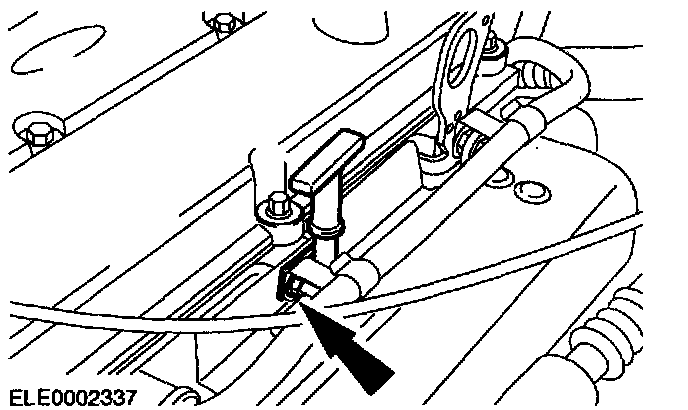

Removal





1. Remove the nut.
2. Remove the oil level indicator tube by pulling the tube upwards.

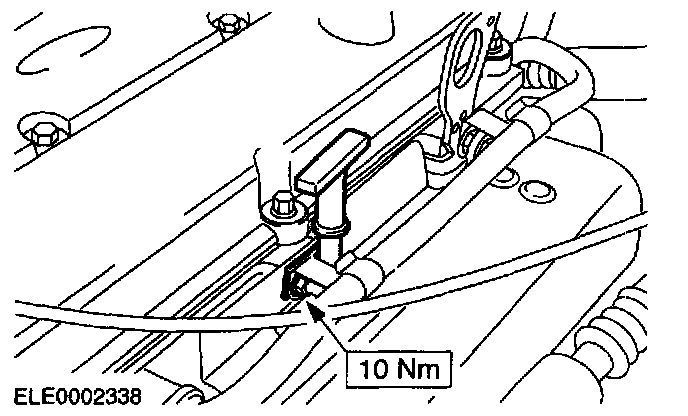

Installation





1. Apply Threadlock 262 or equivalent meeting Ford specification WSK-M2G351-A6 to the end of the oil level indicator tube. Install the nut.
