Crankshaft: Description and Operation

Part 1 Of 2:

Part 2 Of 2:

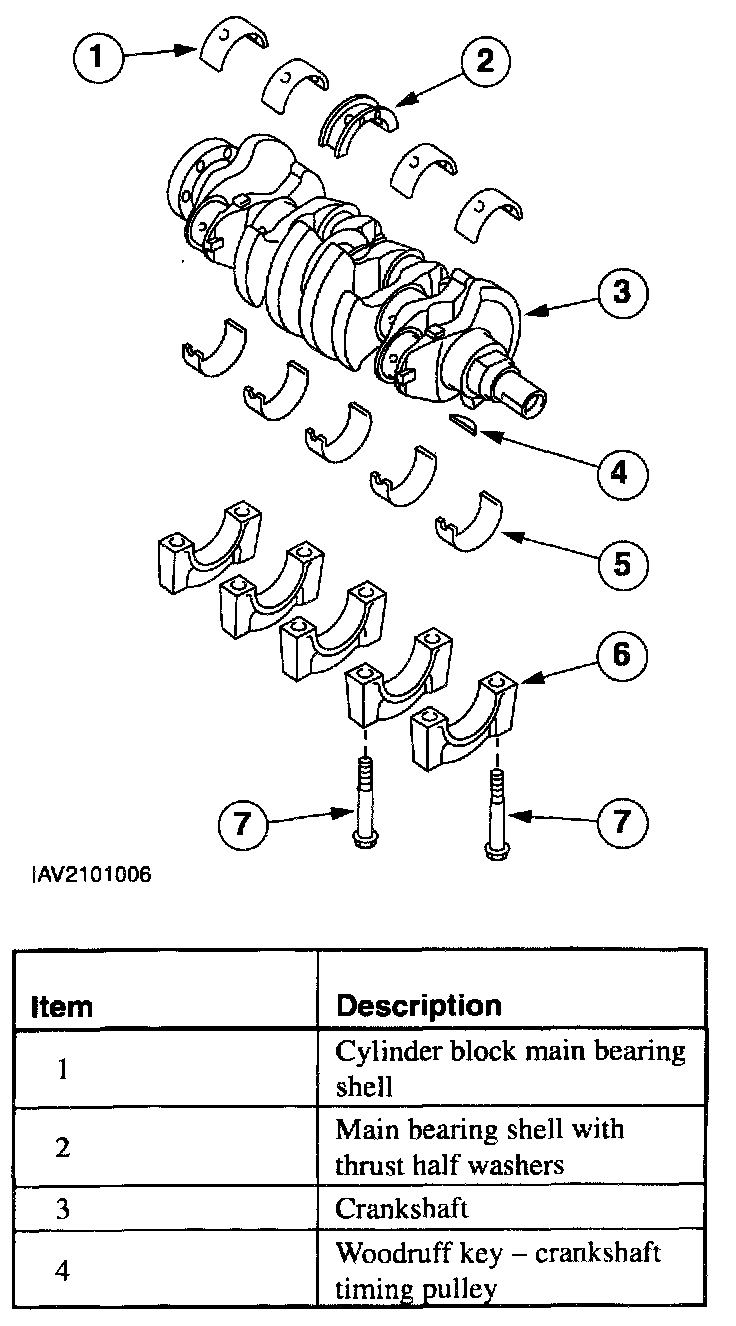

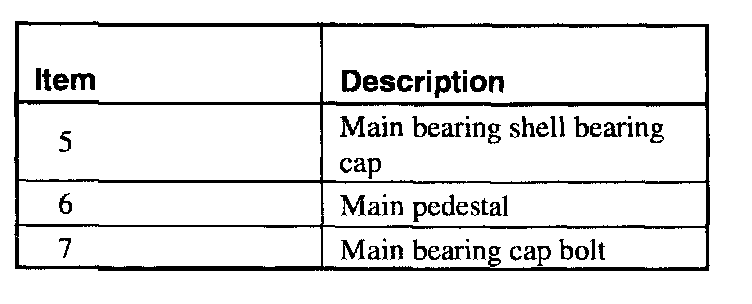

The crankshaft runs on five bearings and has a counterweight for each cylinder. The central main bearing has two bearing half shells which guide the crankshaft along its axis as well as adjusting the end float.
