Thermostat: Service and Repair

Removal
1. Drain the cooling system.

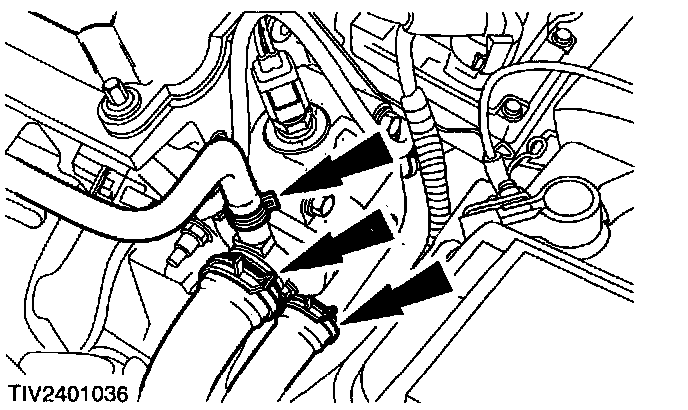

2. Disconnect the thermostat hoses.

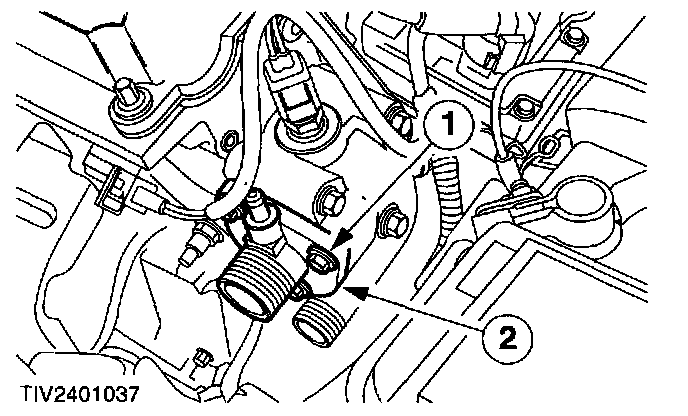

3. Remove the thermostat cover.
1 Remove the three bolts.
2 Remove the cover.

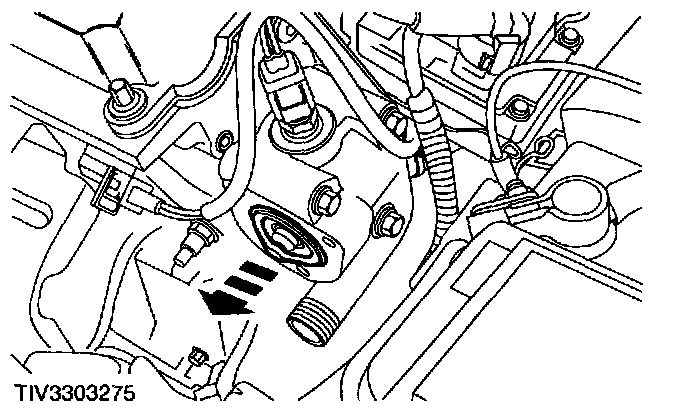

4. Remove the thermostat.

Installation

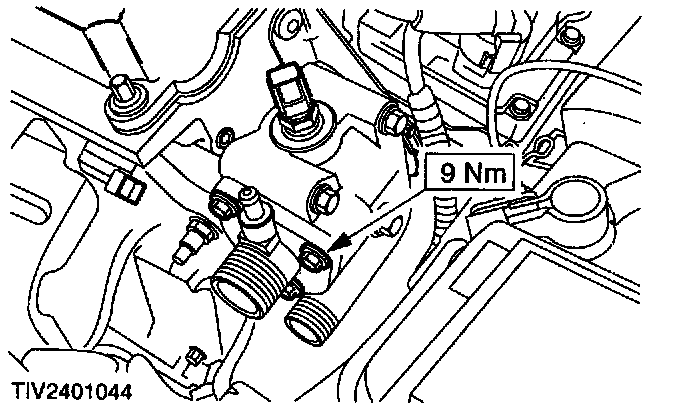

1. To install, reverse the removal procedure.
2. Refill the cooling system.
