System Diagram

DETAILED DIAGRAMS

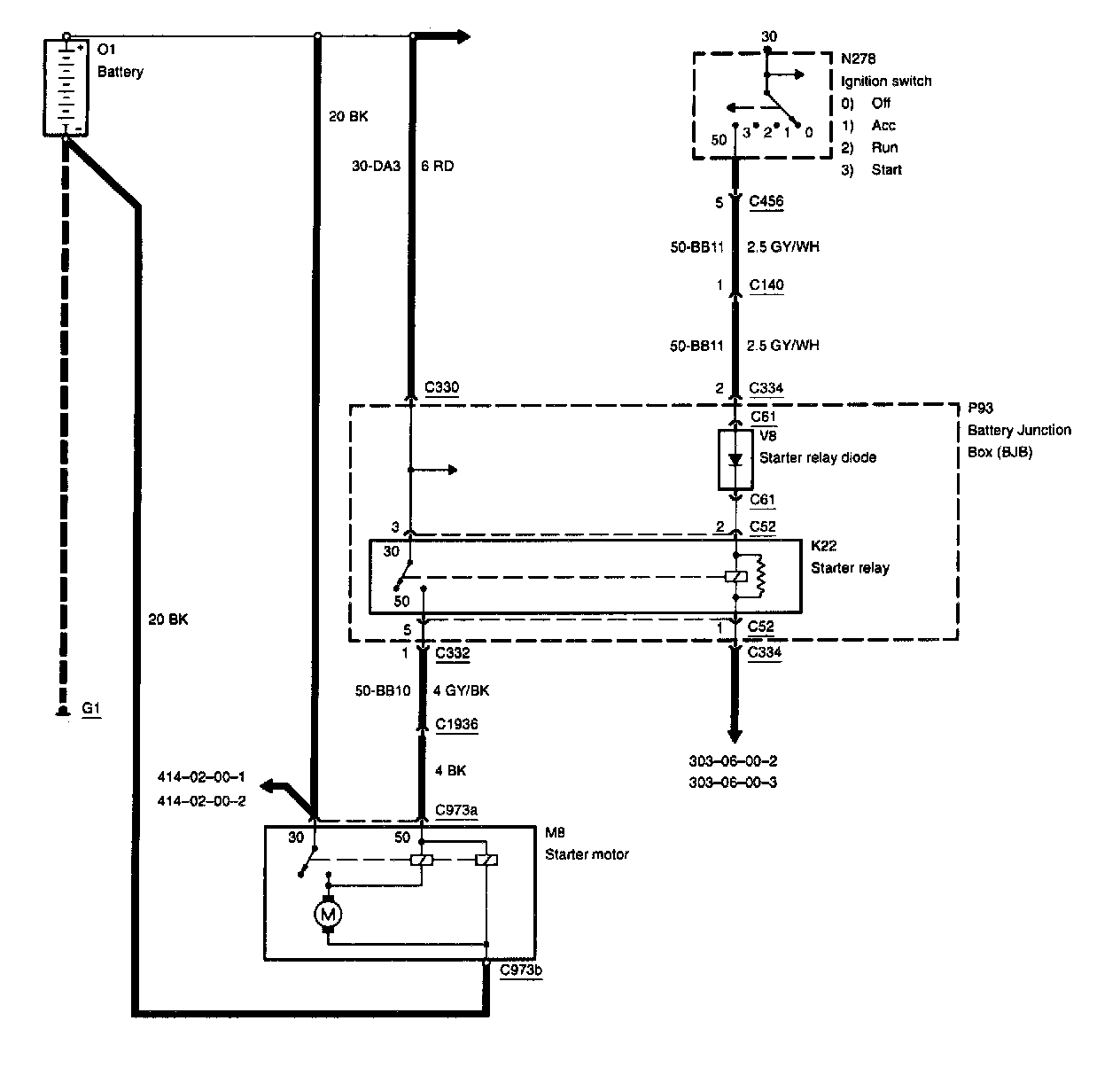

Diagram 303-06-00-1:







Battery
Battery Junction Box
Ignition Switch
Starter Motor
Starter Relay
Starter Relay Diode

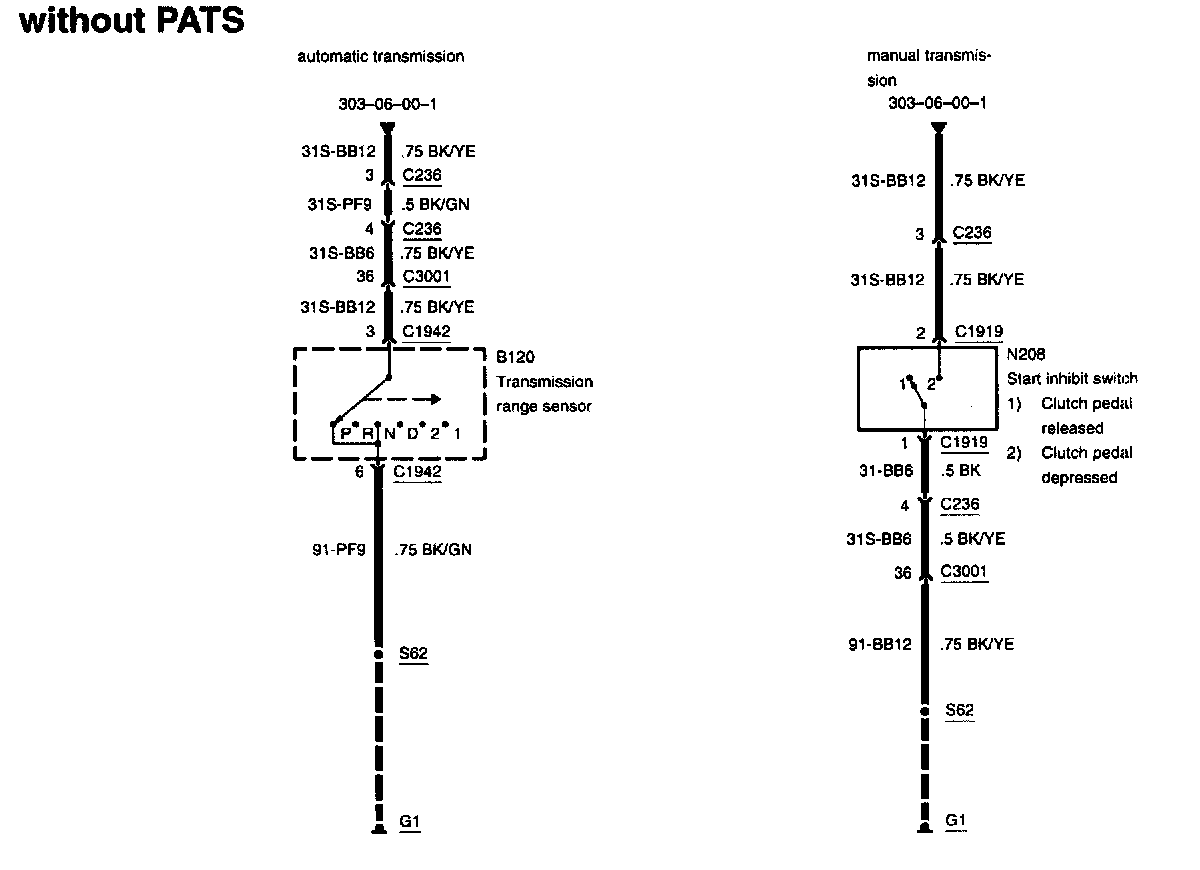

Diagram 303-06-00-2:







Powertrain Control Module
Start Inhibit Switch
Transmission Range Sensor



Diagram 303-06-00-3:







Start Inhibit Switch
Transmission Range Sensor


RELATED DIAGRAMS


Diagram 414-02-00-1:






Diagram 414-02-00-2:
