Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Speakers >> Without Amplifier

Without Amplifier

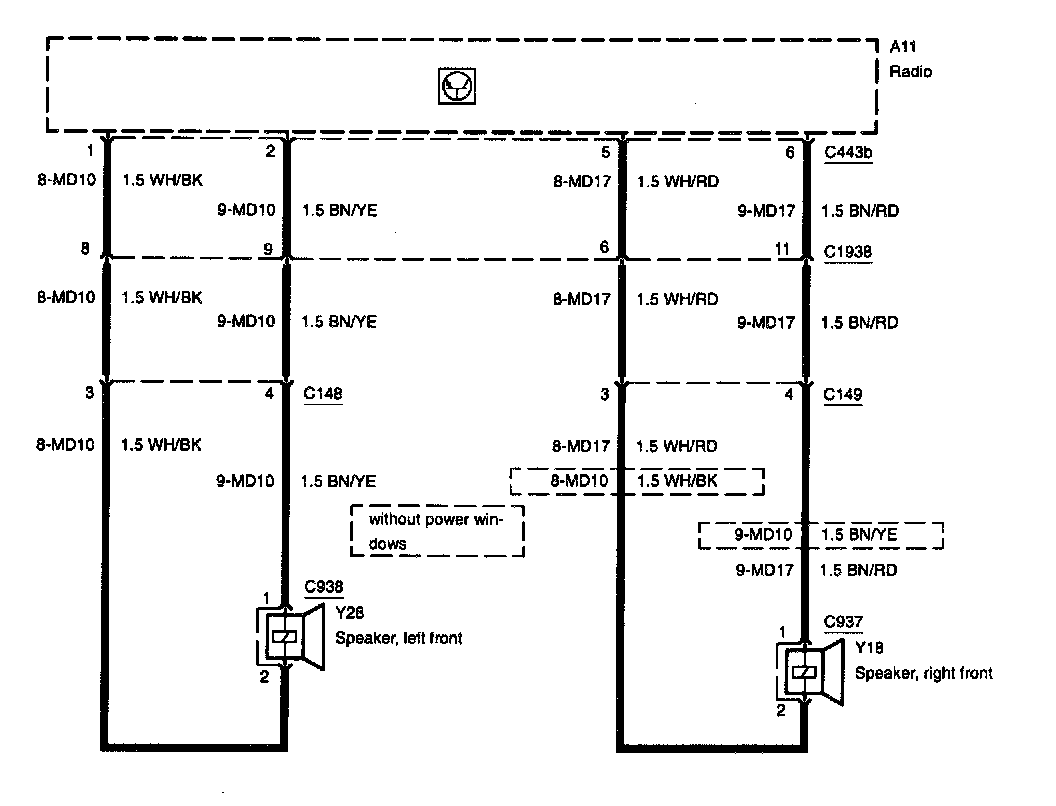

Diagram 415-03-00-1:

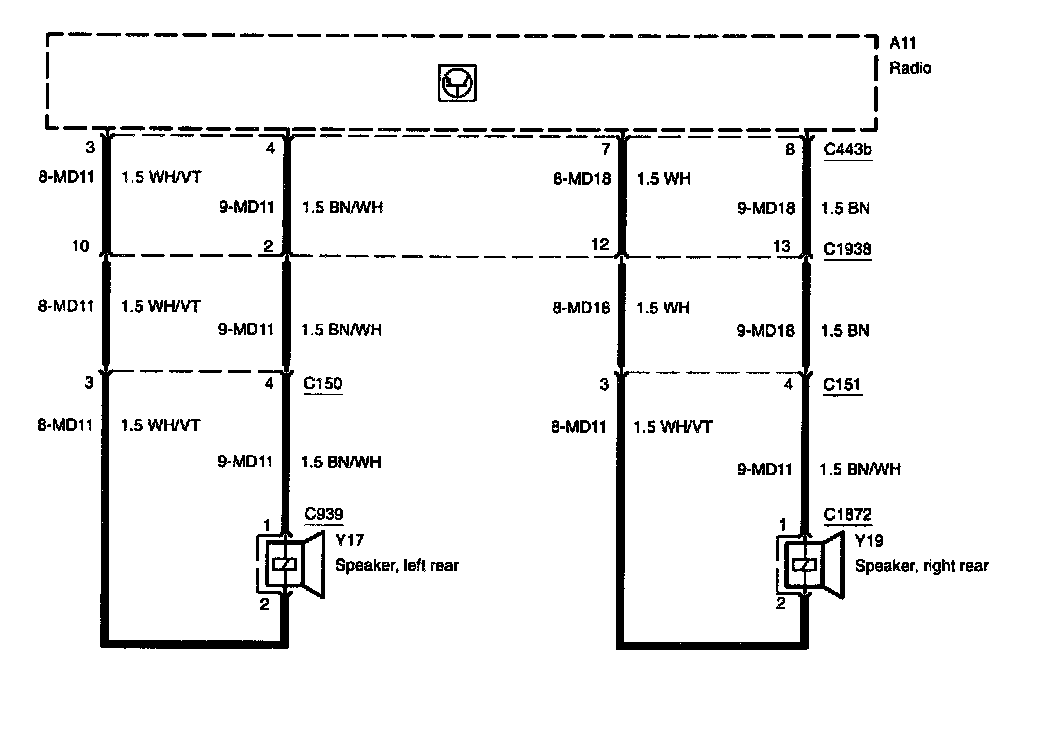

Diagram 415-03-00-2:
