DETAILED DIAGRAMSDiagram 303-14a-00-1:
Battery Junction Box
Camshaft Timing Actuator
Fuse F4
Fuse F9
Fuse F11
Idle Speed Control Valve
Powertrain Control Module
Powertrain Control Module Power Relay

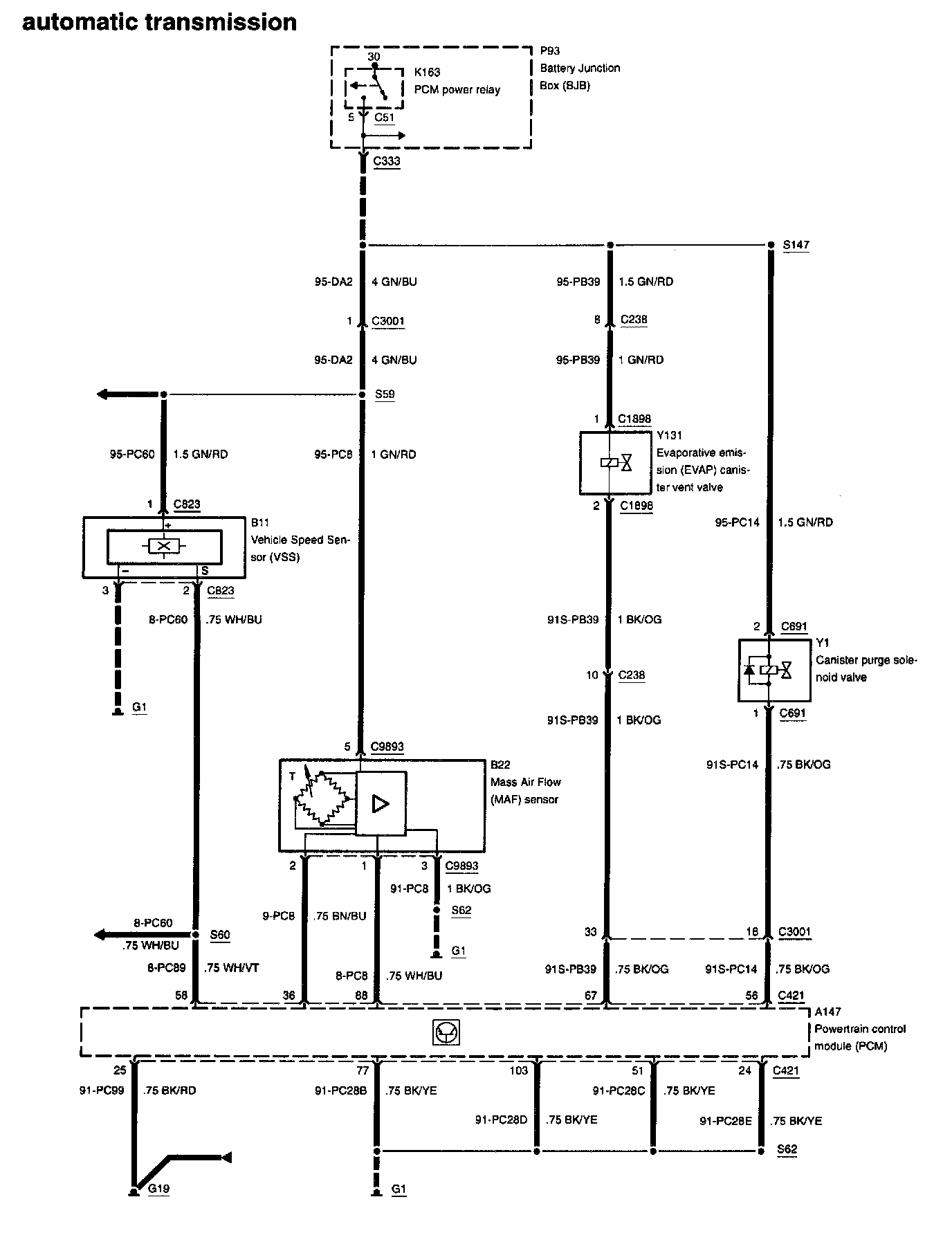

Diagram 303-14a-00-3:
Battery Junction Box
Canister Purge Solenoid Valve
Evaporative Emission Canister Vent Valve
Mass Air Flow Sensor
Powertrain Control Module
Powertrain Control Module Power Relay
Vehicle Speed Sensor
Diagram 303-14a-00-4:
Battery Junction Box
Fuse F13
Heated Oxygen Sensor #11
Heated Oxygen Sensor #12
Knock Sensor #1
Powertrain Control Module
Diagram 303-14a-00-5:
Engine Coolant Temperature Sensor
Powertrain Control Module
Power Steering Pressure Switch
Throttle Position Sensor
Diagram 303-14a-00-6 - Built Before May3, 1999:
Battery Junction Box
Fuel Pump Relay
Fuse F14
Instrument Cluster
Powertrain Control Module
Inertia Fuel Shutoff Switch
[1][2][3]Fuel Pump Module

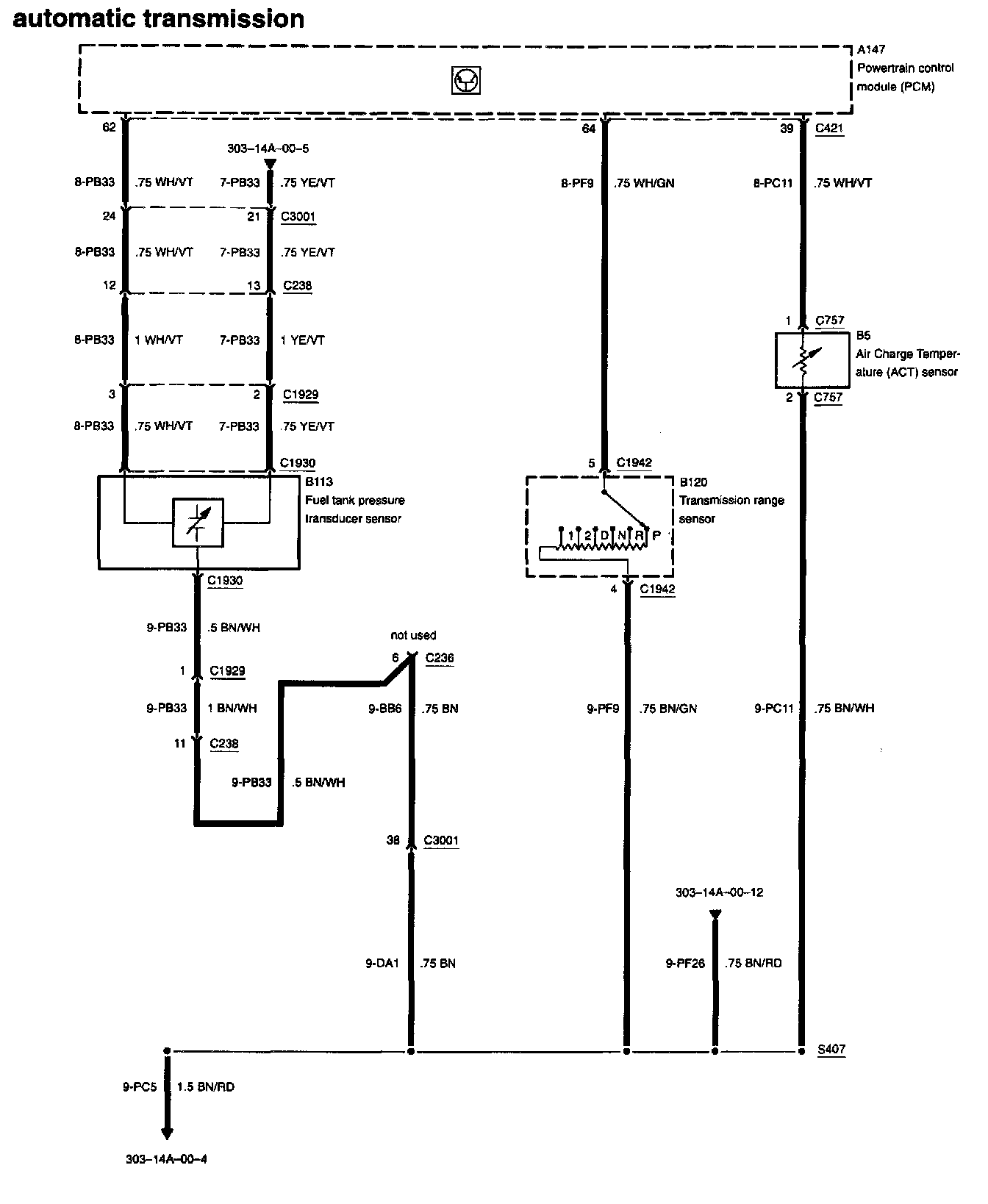

Diagram 303-14a-00-8:
Air Charge Temperature Sensor
Fuel Tank Pressure Transducer Sensor
Powertrain Control Module
Transmission Range Sensor

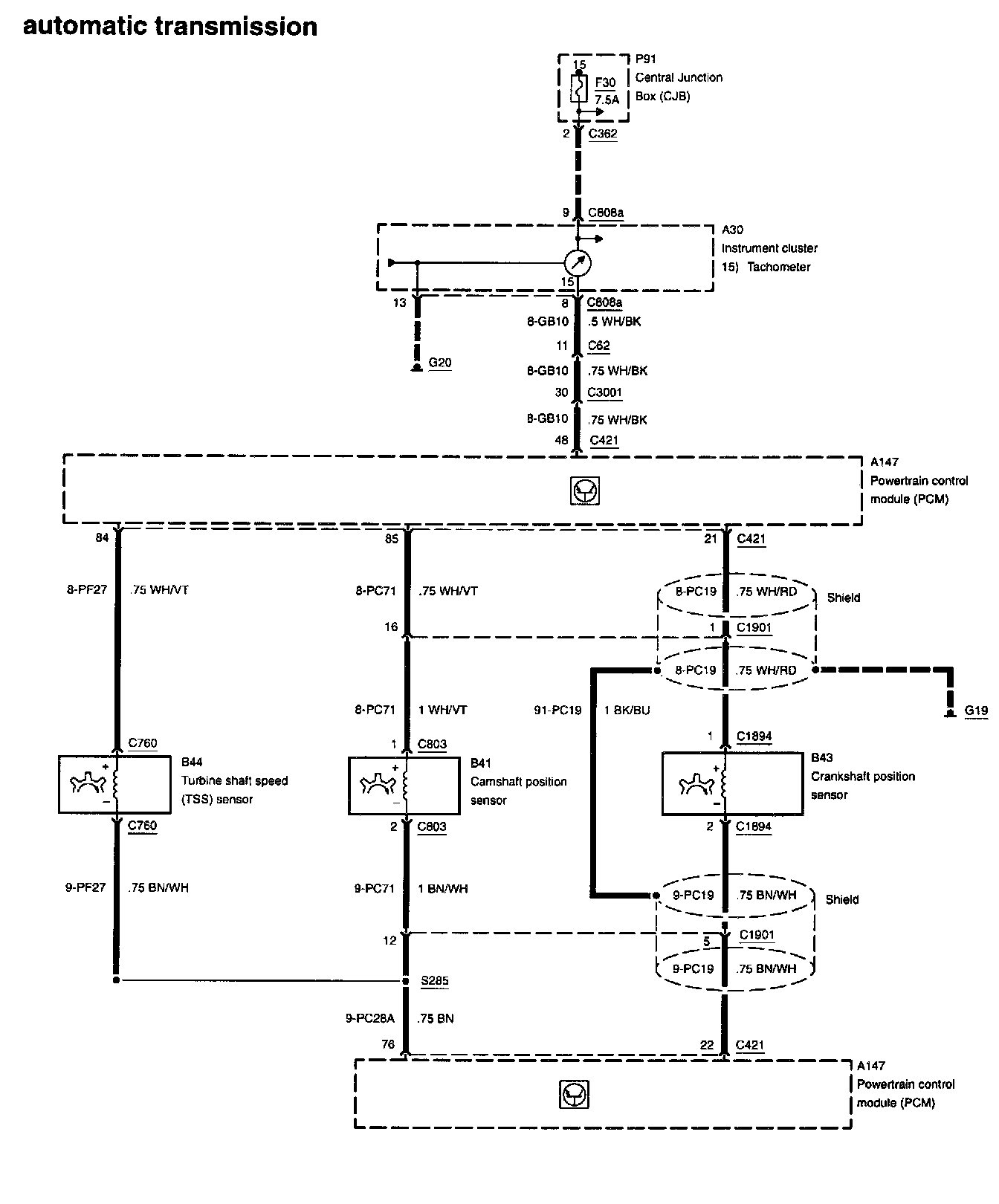

Diagram 303-14a-00-10:
Camshaft Position Sensor
Central Junction Box
Crankshaft Position Sensor
Crankshaft Position Sensor Shield
Fuse F30
Instrument Cluster
Powertrain Control Module
Tachometer
Turbine Shaft Speed Sensor
Diagram 303-14a-00-11:
A/C Wide Open Throttle Relay
Battery Junction Box
Data Link Connector
Dual Pressure Switch
Powertrain Control Module

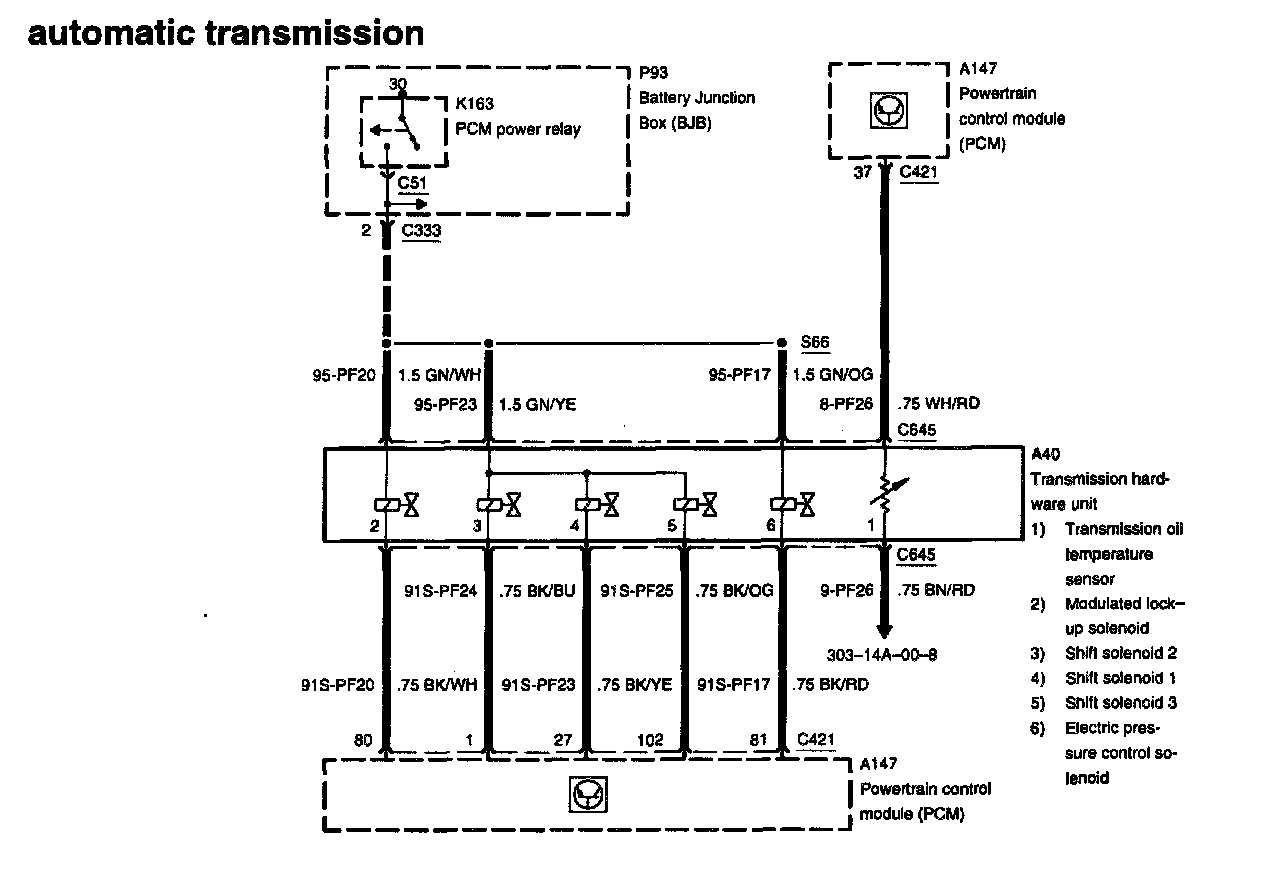

Diagram 303-14a-00-12:
Battery Junction Box
Electric Pressure Control Solenoid
Modulated Lockup Solenoid
Powertrain Control Module
Powertrain Control Module Power Relay
Shift Solenoid 1
Shift Solenoid 2
Shift Solenoid 3
Transmission Hardware Unit
Transmission Oil Temperature Sensor

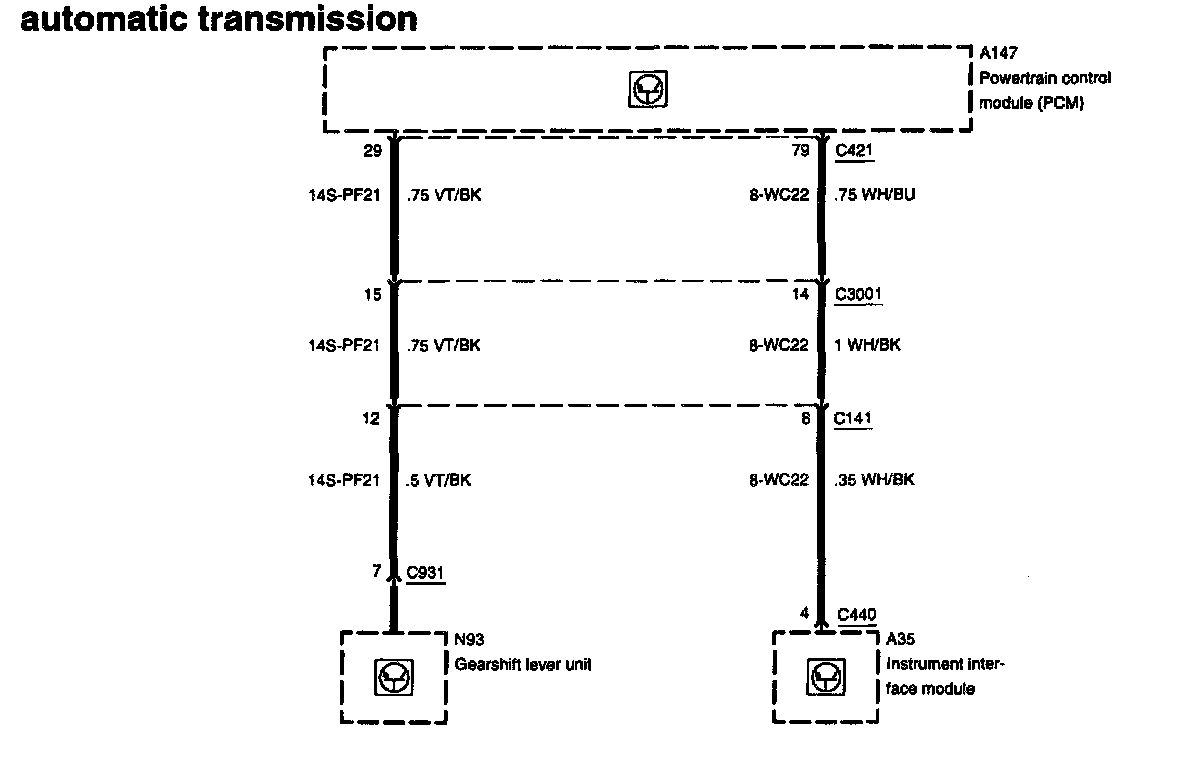

Diagram 303-14a-00-13:
Gearshift Lever Unit
Instrument Interface Module
Powertrain Control Module
Diagram 303-14a-00-14:
Central Junction Box
Fuse F24
Instrument Cluster
Powertrain Control Module
Stop Lamp Switch
