Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Fuel Delivery and Air Induction >> System Diagram >> Built Before May 3, 1999

Built Before May 3, 1999

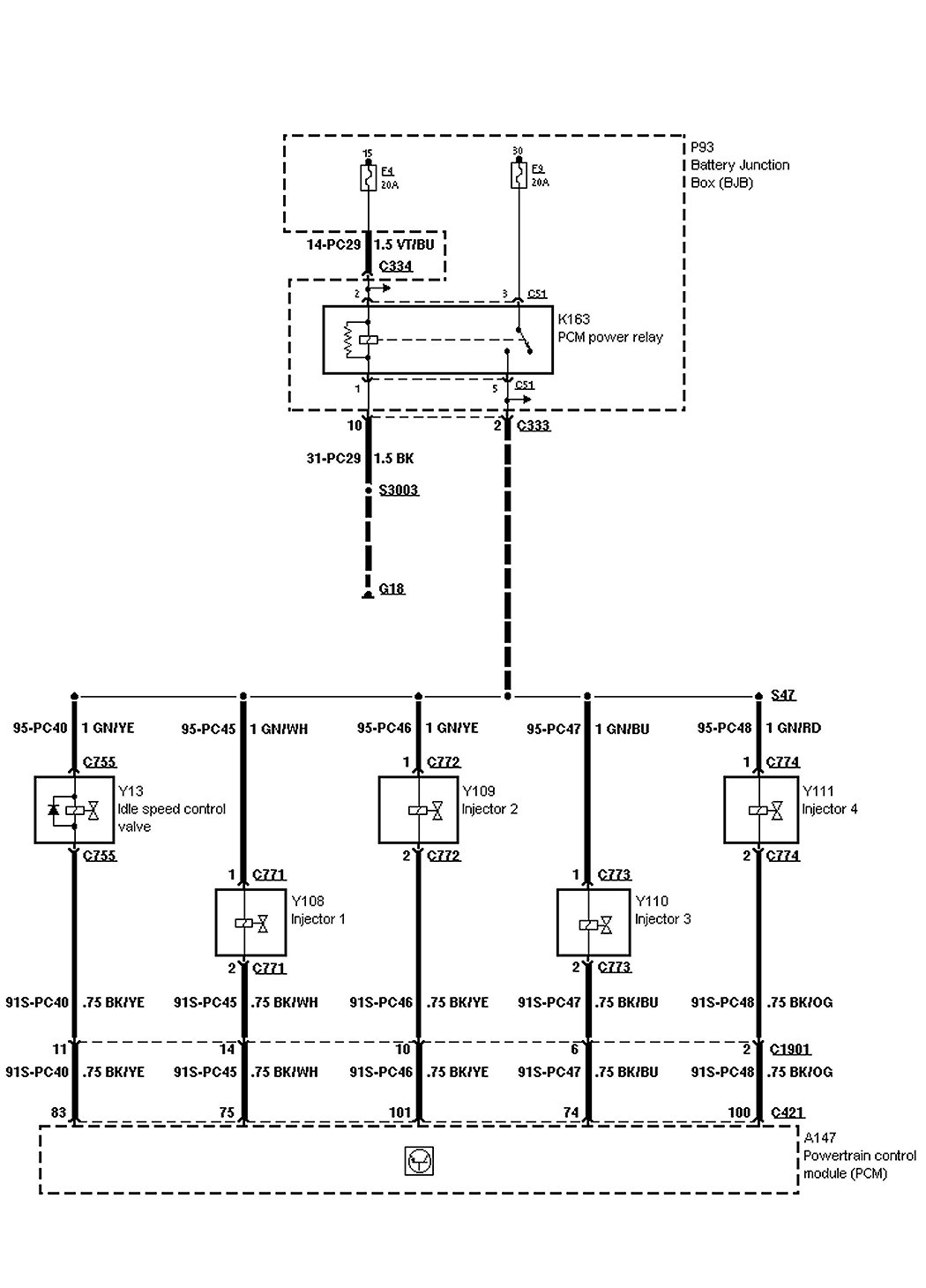

Fuel Charging And Control, ZETEC:
