Light Switch Circuits

Diagram 700-02-00-13:

Battery Junction Box
Central Junction Box
Central timer Module
Fuse F10
Fuse F31
Fuse F33
Fuse F35
Light Switch

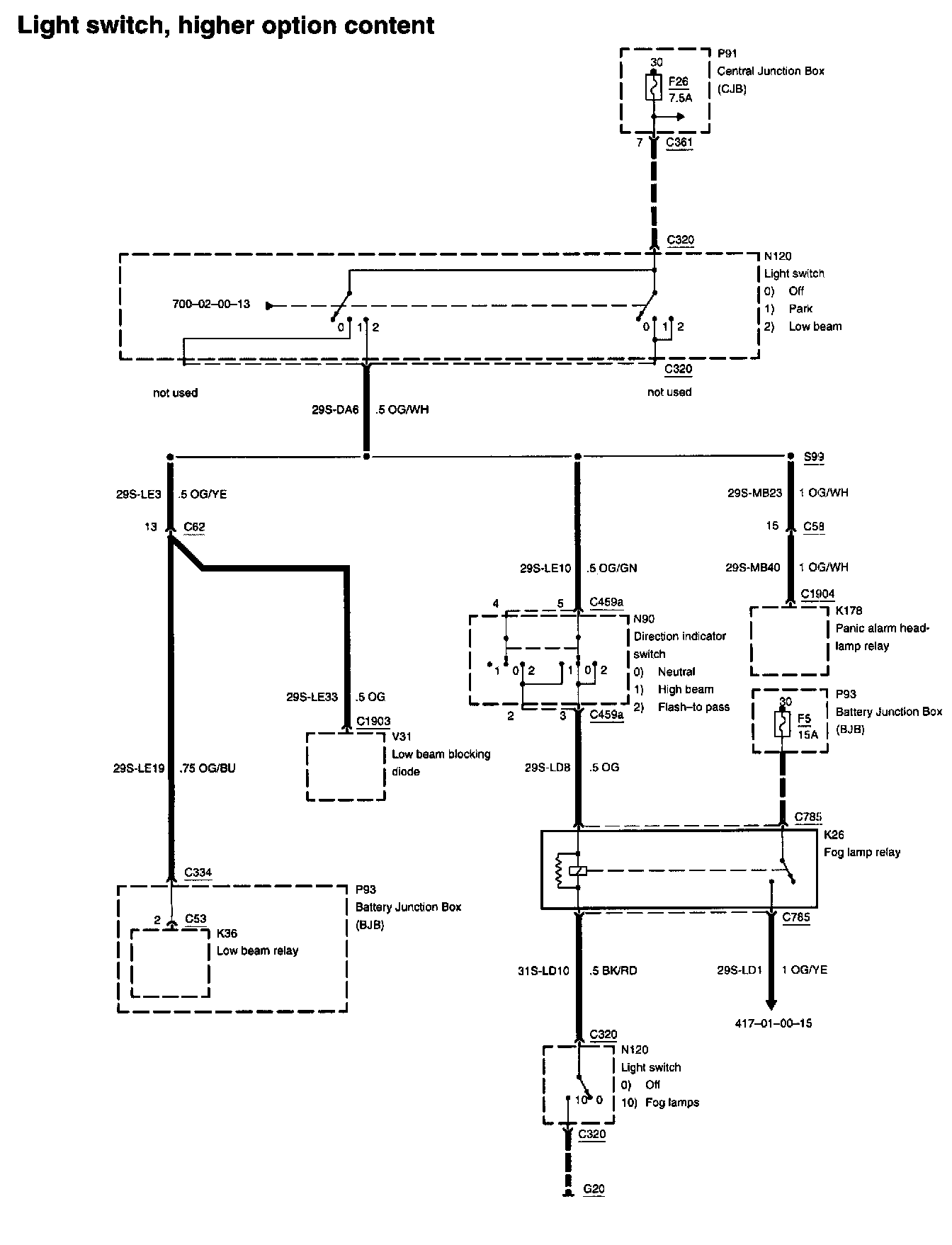

Diagram 700-02-00-14:

Battery Junction Box
Central Junction Box
Direction Indicator Switch
Fog Lamp Relay
Fuse F5
Fuse F26
Light Switch
Low Beam Blocking Diode
Panic Alarm Headlamp Relay

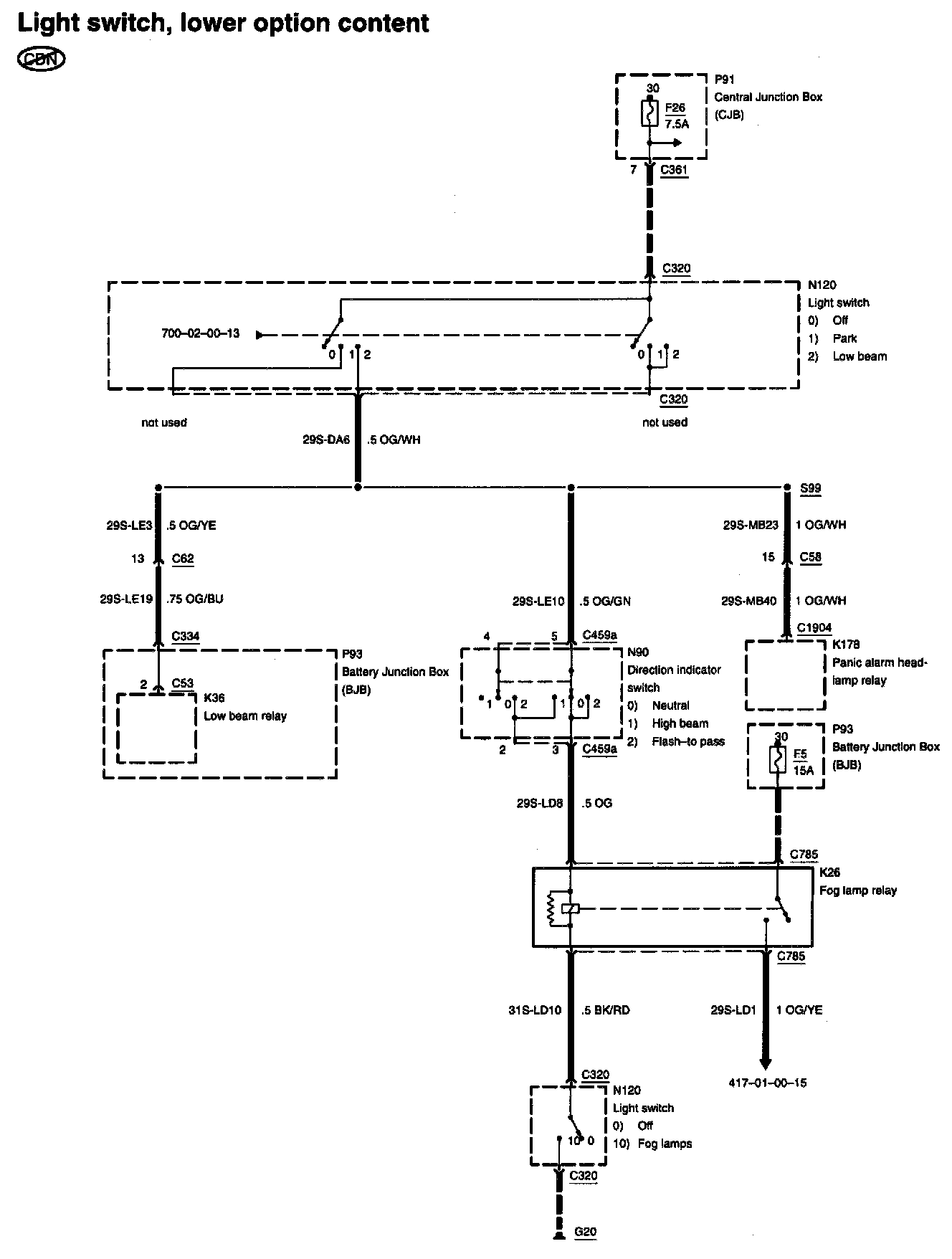

Diagram 700-02-00-15:

Battery Junction Box
Central Junction Box
Direction Indicator Switch
Fog Lamp Relay
Fuse F5
Fuse F26
Light Switch
Low Beam Relay
Panic Alarm Headlamp Relay
