Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution >> Fuse Circuits >> F34

F34

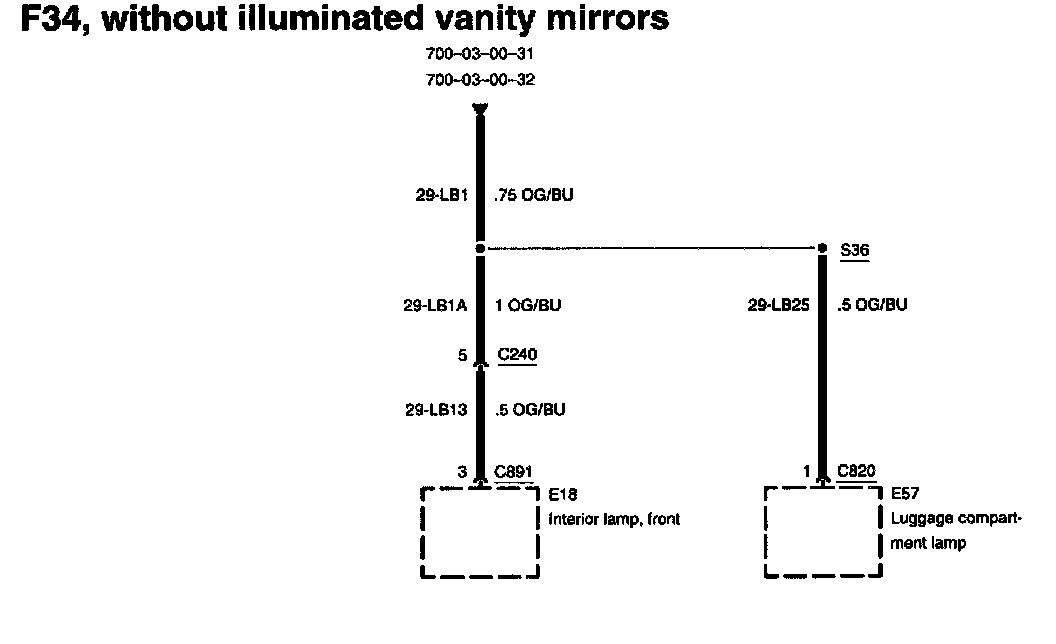

Diagram 700-03-00-31:

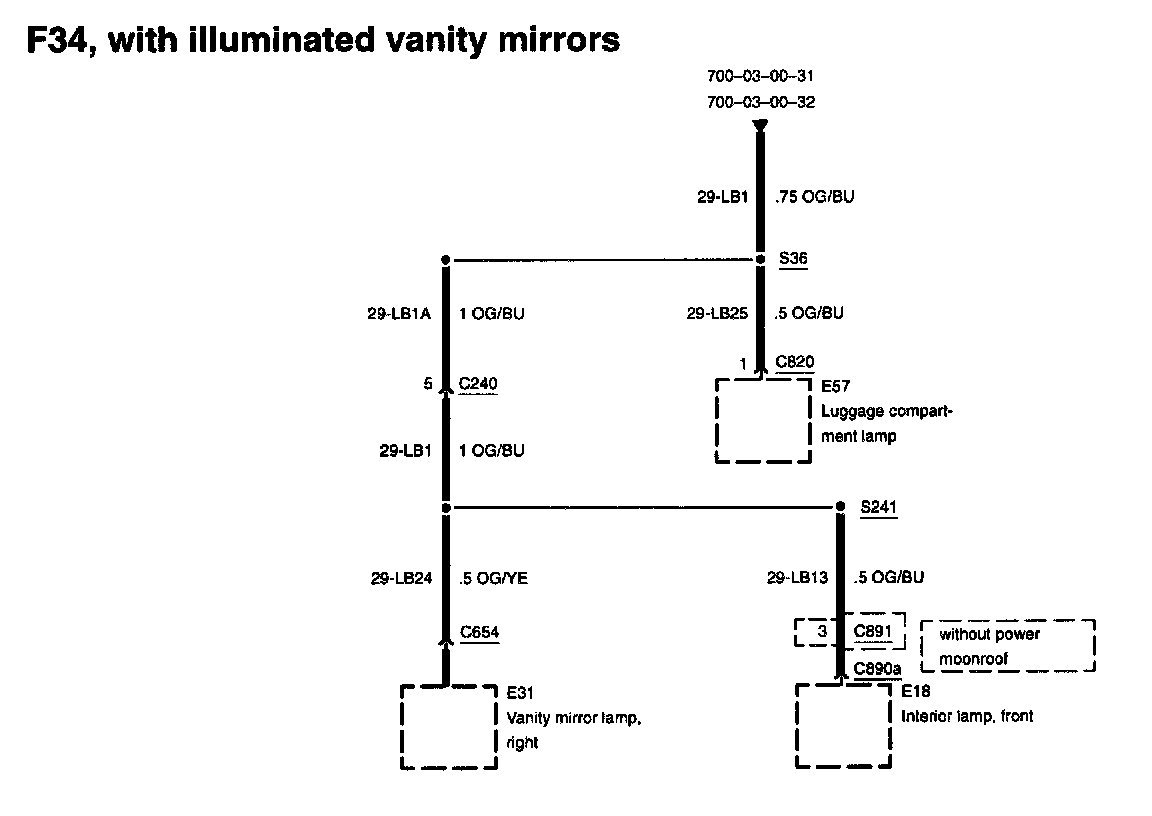

Diagram 700-03-00-32:

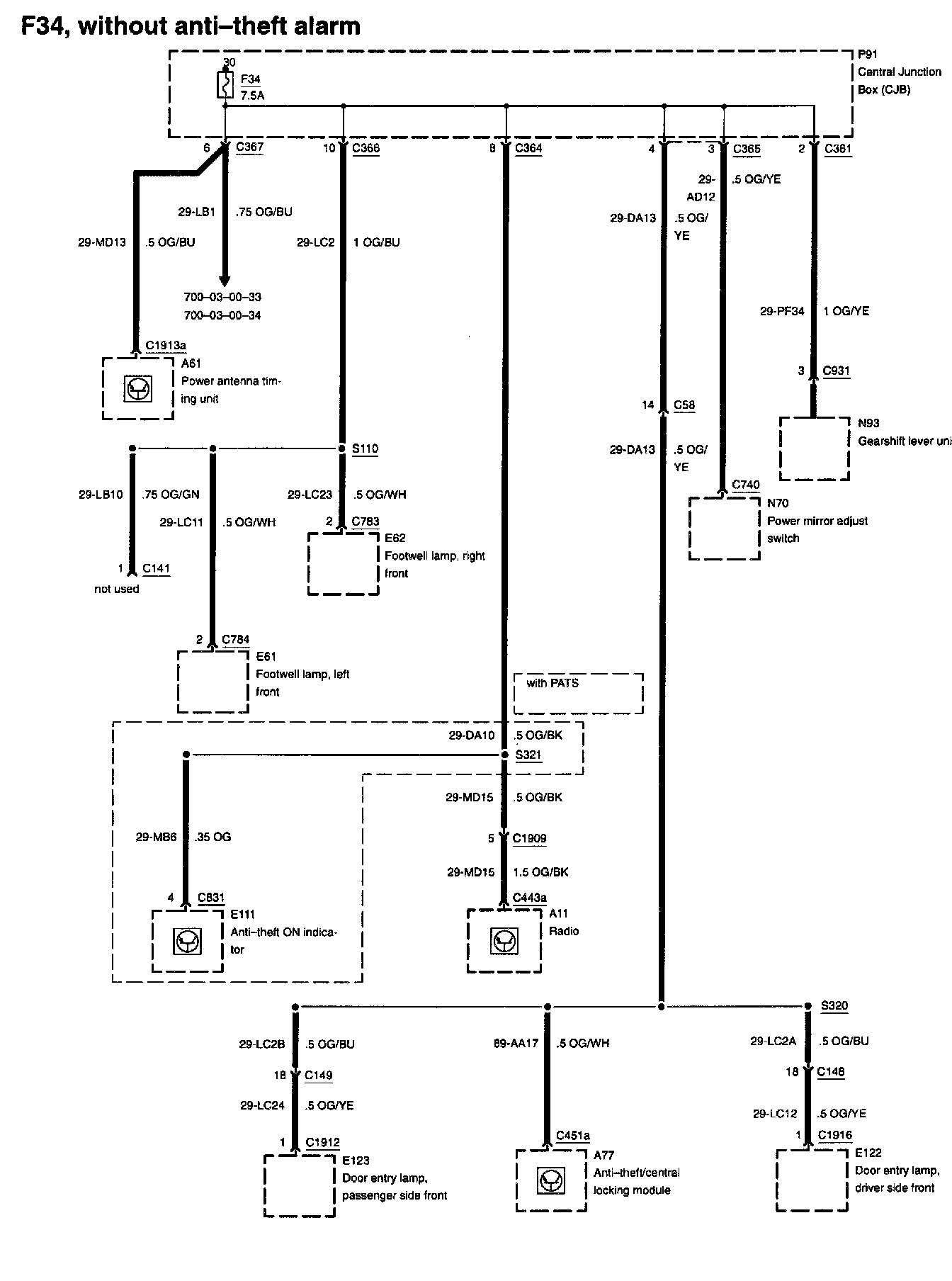

Diagram 700-03-00-33:






Diagram 700-03-00-34:






Diagram 700-02-00-1:






Diagram 700-02-00-4:
