Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution >> Fuse Circuits >> F25

F25

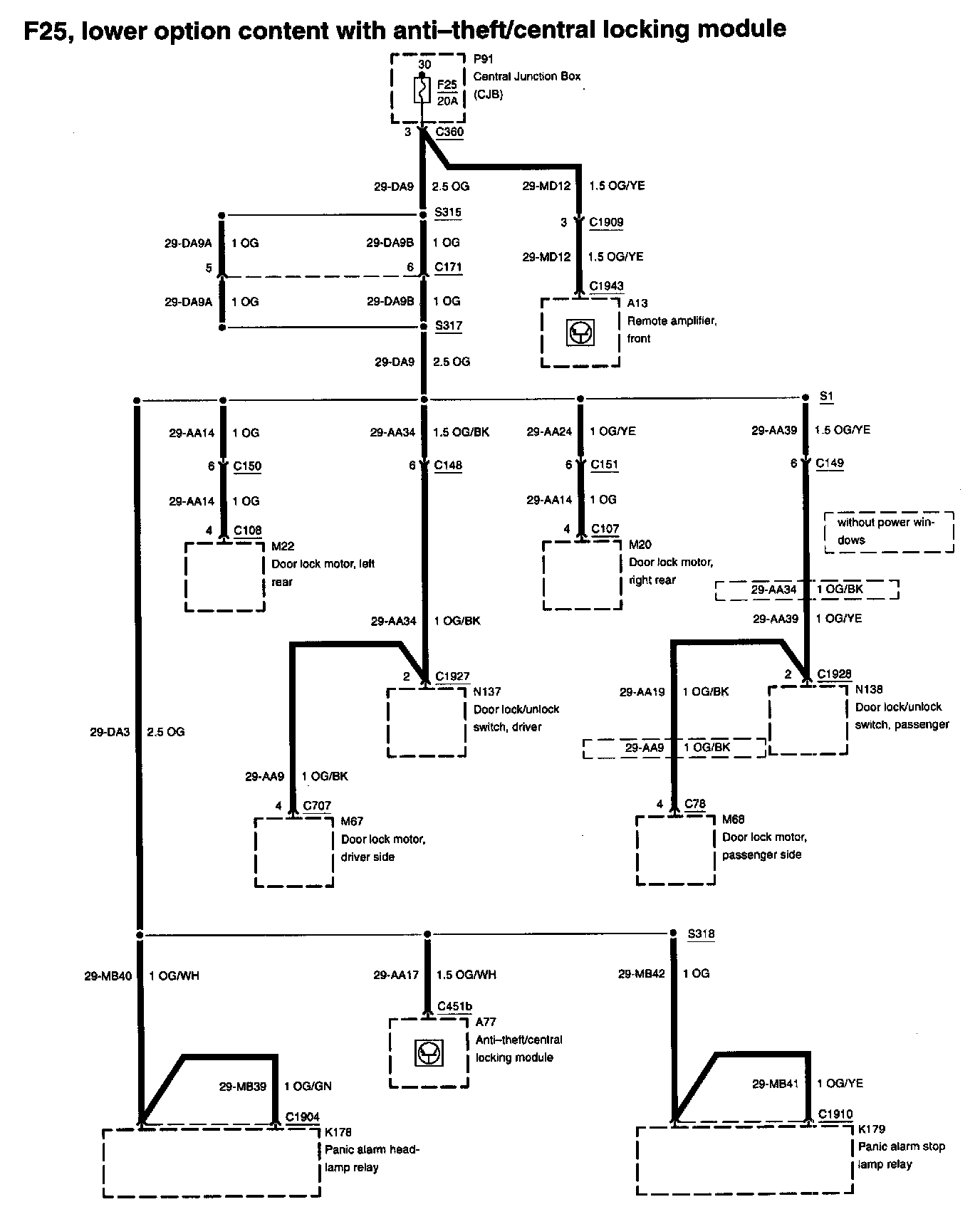

Diagram 700-03-00-21:

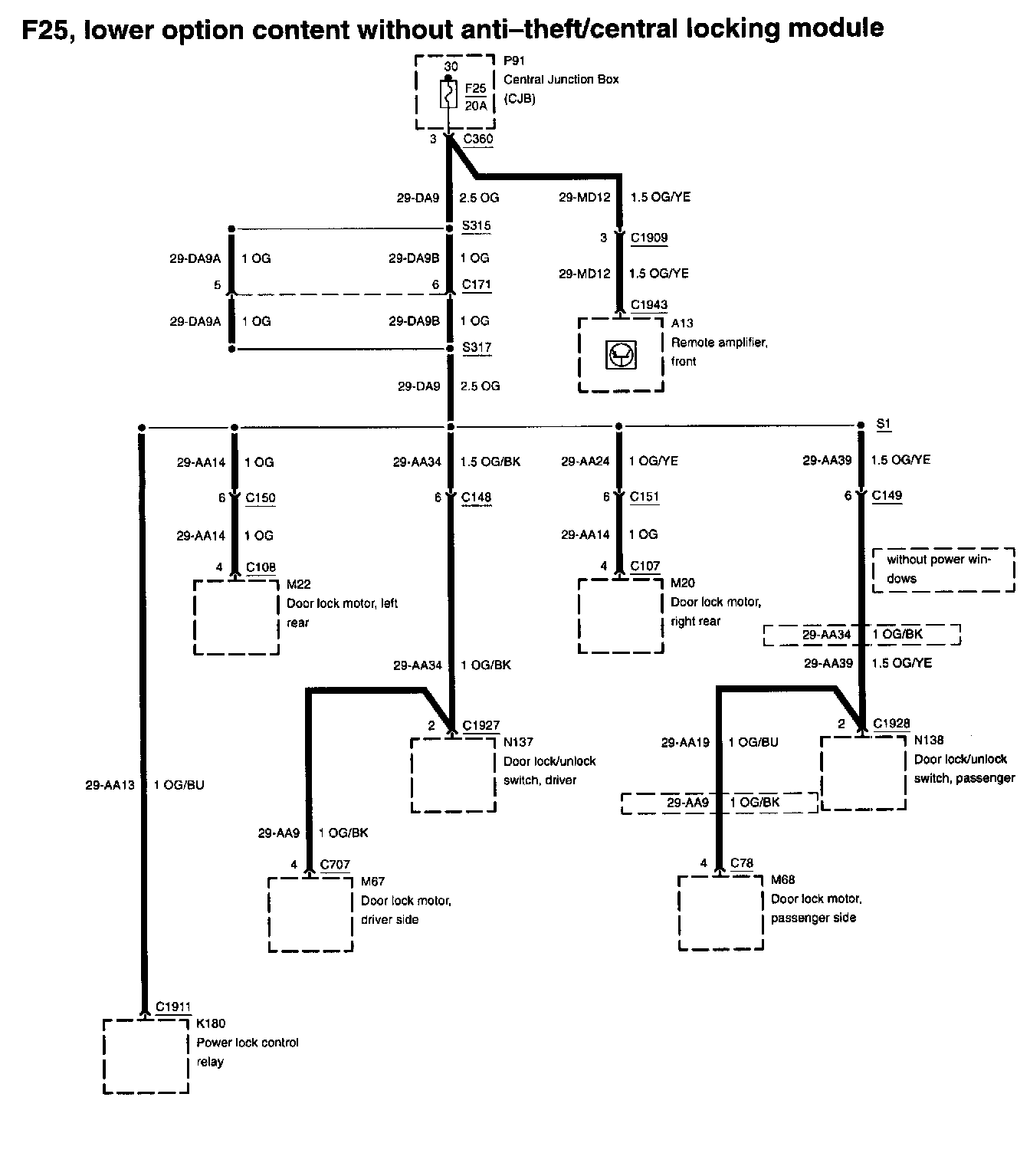

Diagram 700-03-00-22:

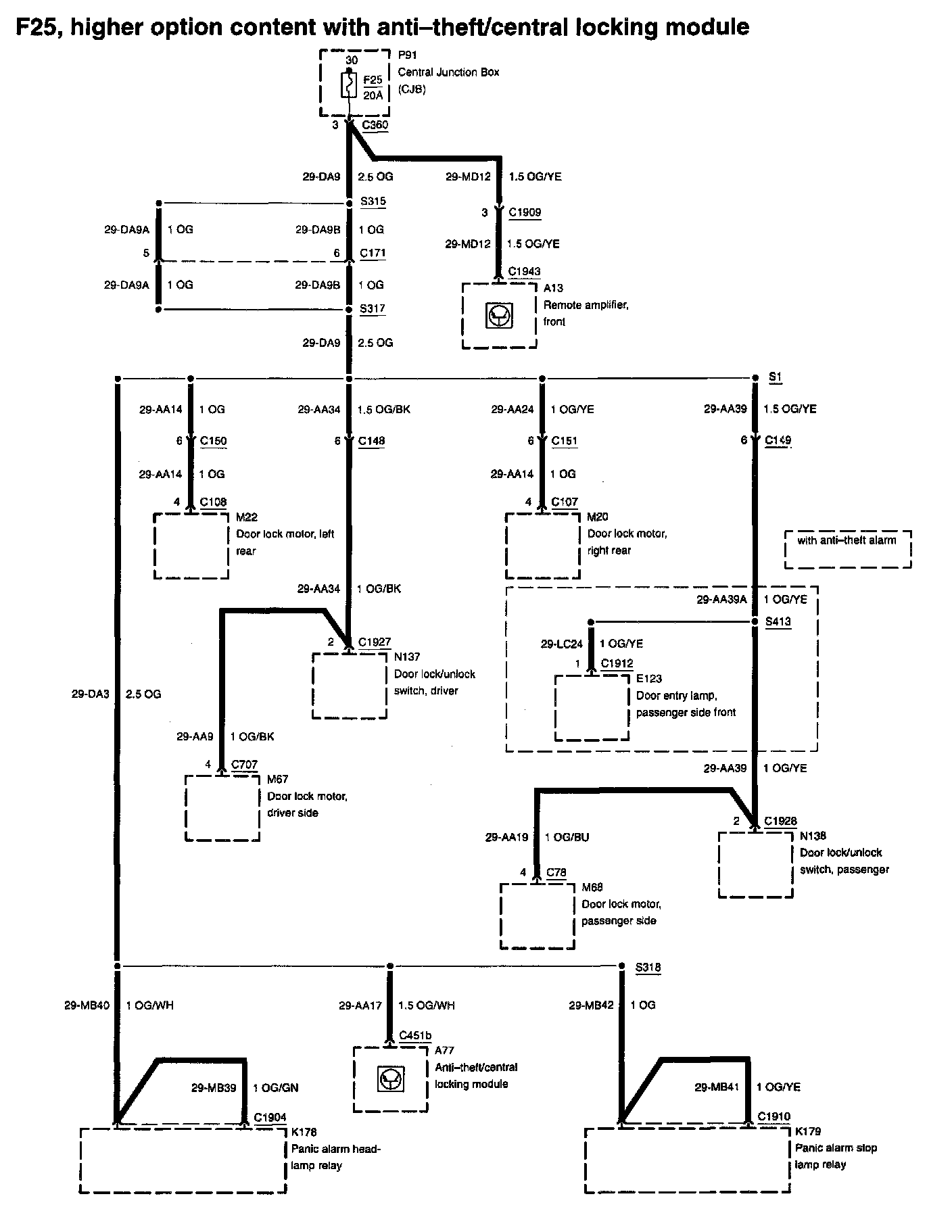

Diagram 700-03-00-23:

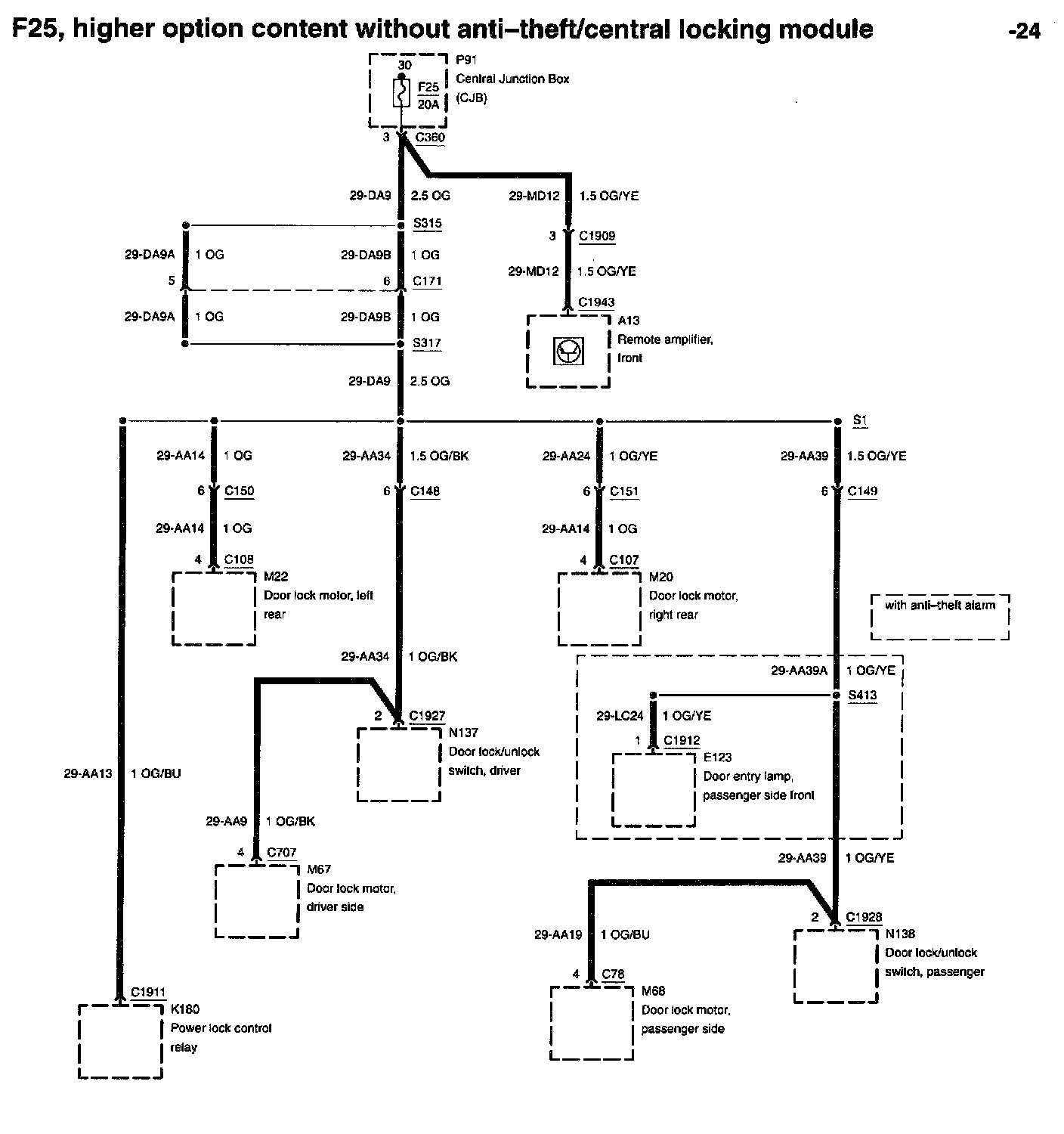

Diagram 700-03-00-24:






Diagram 700-02-00-1:






Diagram 700-02-00-4:
