G16

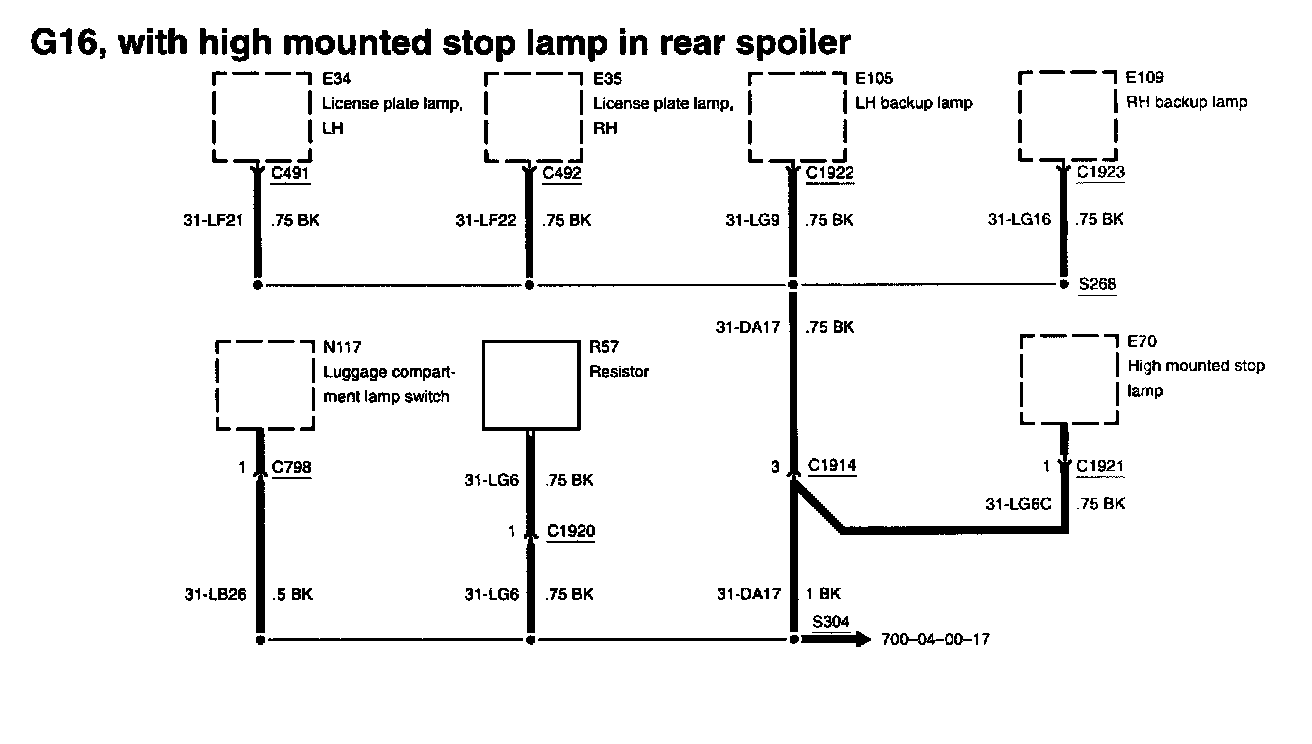

Diagram 700-04-00-15:





High Mounted Stop Lamp
LH Backup Lamp
License Plate Lamp, LH
License Plate Lamp, RH
Luggage Compartment Lamp Switch
Resistor
RH Backup Lamp


Diagram 700-04-00-16:





High Mounted Stop Lamp
LH Backup Lamp
License Plate Lamp, LH
License Plate Lamp, RH
Luggage Compartment Lamp Switch
RH Backup Lamp

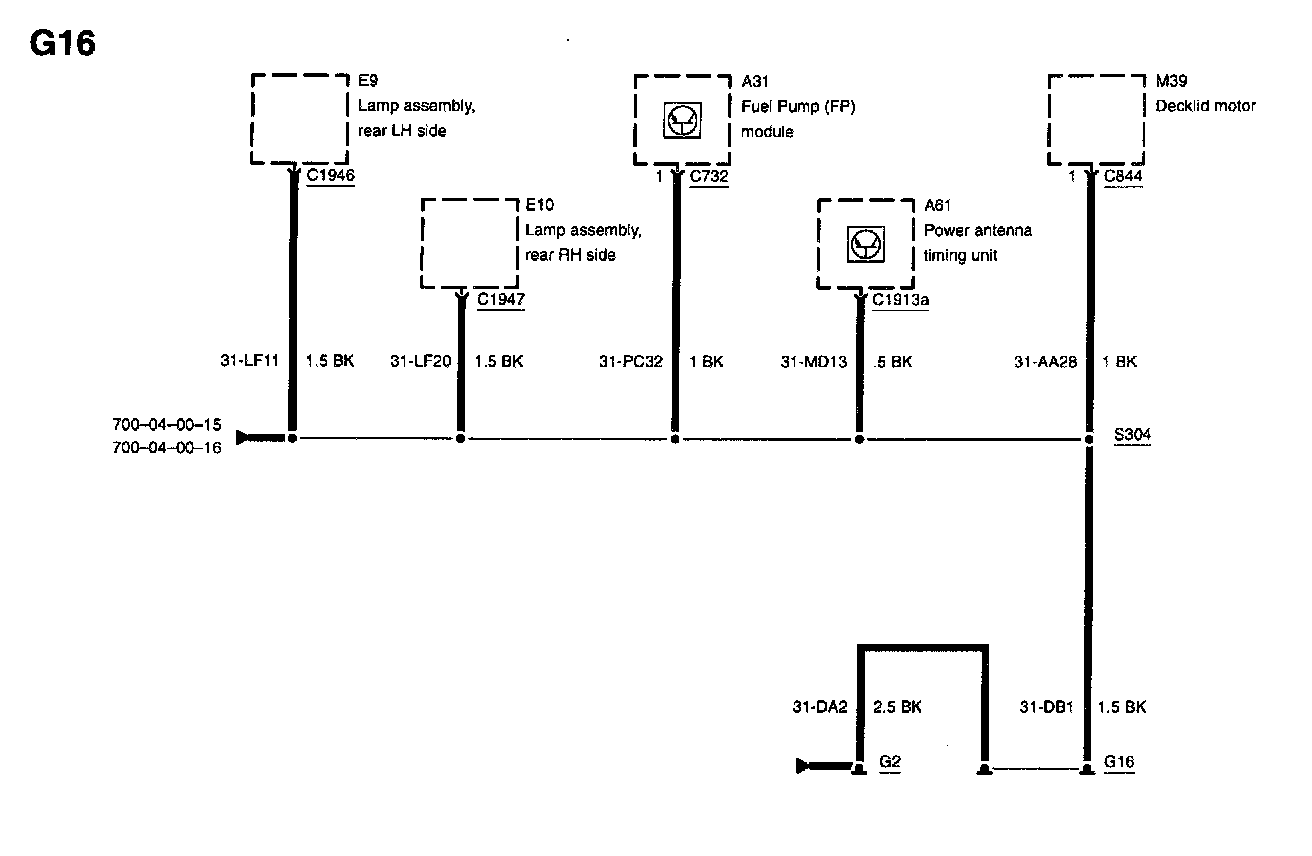

Diagram 700-04-00-17:





Decklid Motor
Fuel Pump Module
Lamp Assembly, Rear LH Side
Lamp Assembly, Rear RH Side
Power Antenna Timing Unit
