System Diagram

DETAILED DIAGRAMS

Diagram 417-01-00-1:

Battery
Battery Junction Box
Central Junction Box
Direction Indicator Switch
Fuse F15
Fuse F16
Fuse F17
Fuse F18
Fuse F26
Headlamp, LH
Headlamp, RH
High Beam Relay
Instrument Cluster
Low Beam Relay
Light Switch

Diagram 417-01-00-2:

Battery Junction Box
Central Junction Box
Direction Indicator Switch
Fuse F26
High Beam Blocking Diode
Instrument Cluster
Low Beam Blocking Diode
Light Switch
Non-Daytime Running Lamps Jumper

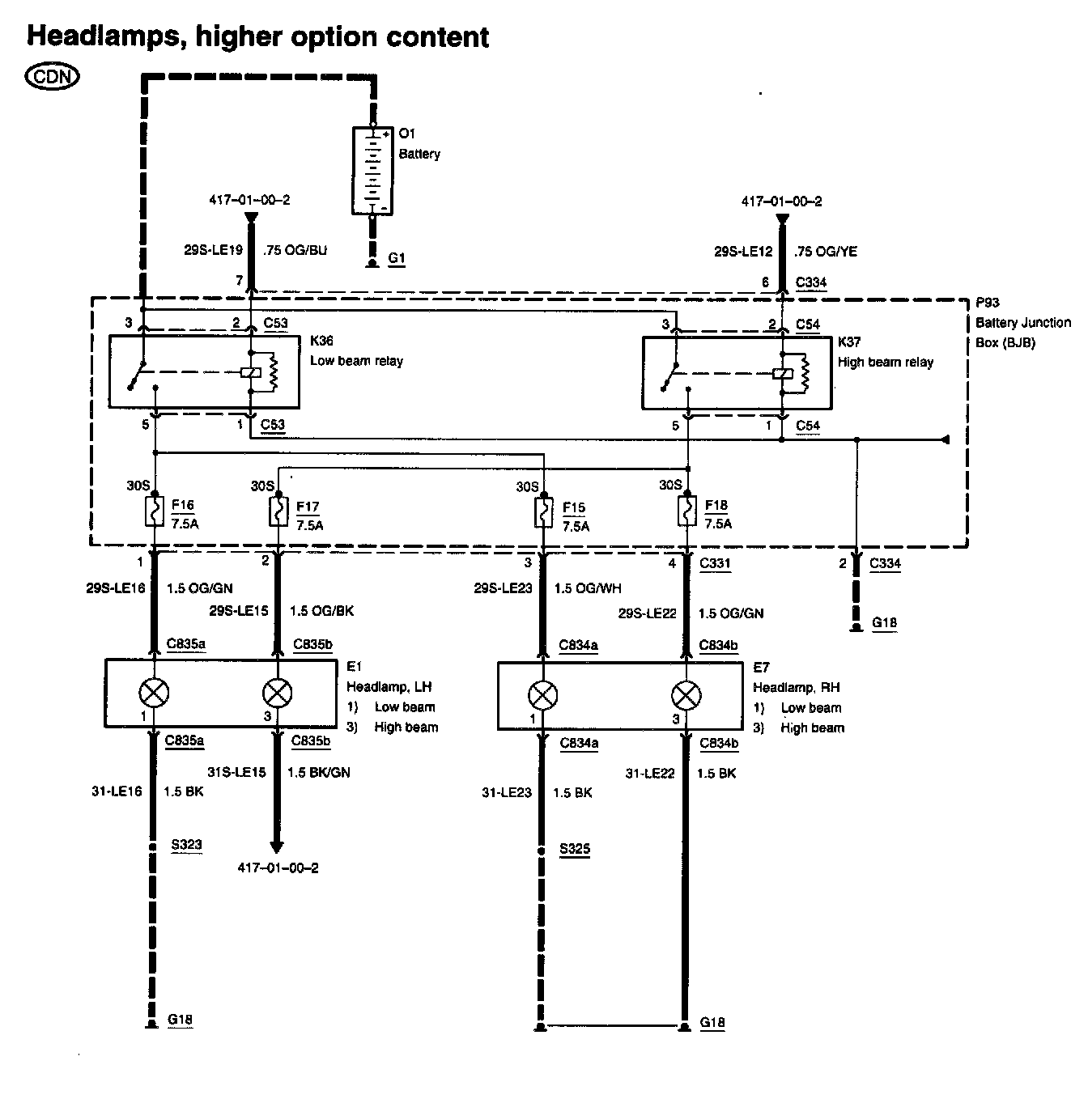

Diagram 417-01-00-3:

Battery
Battery Junction Box
Fuse F15
Fuse F16
Fuse F17
Fuse F18
Headlamp, LH
Headlamp, RH
High Beam Relay
Instrument Cluster
Low Beam Relay



RELATED DIAGRAMS

Diagram 419-01a-00-2:
