Mercury
>>
1999
>>
Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Backup Lamp
Backup Lamp
DETAILED DIAGRAM

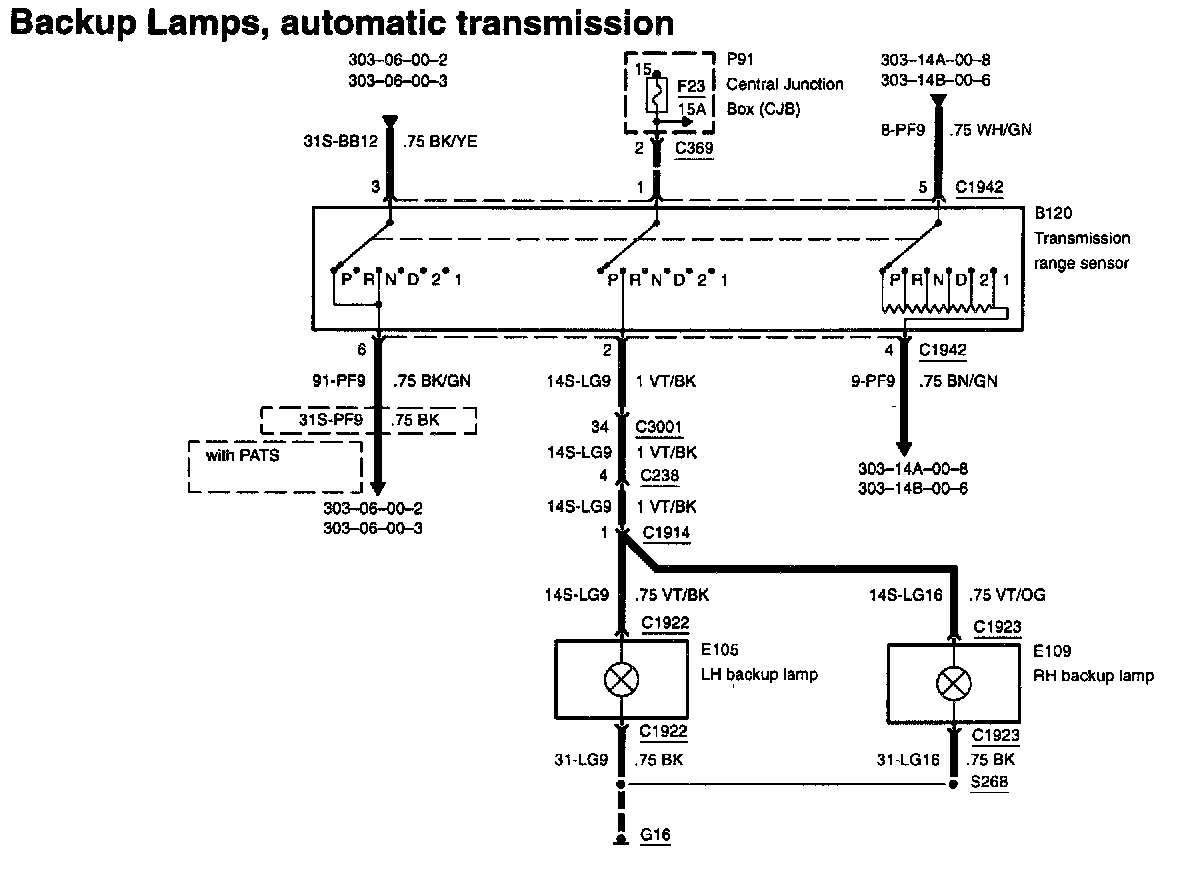

Diagram 417-01-00-13:

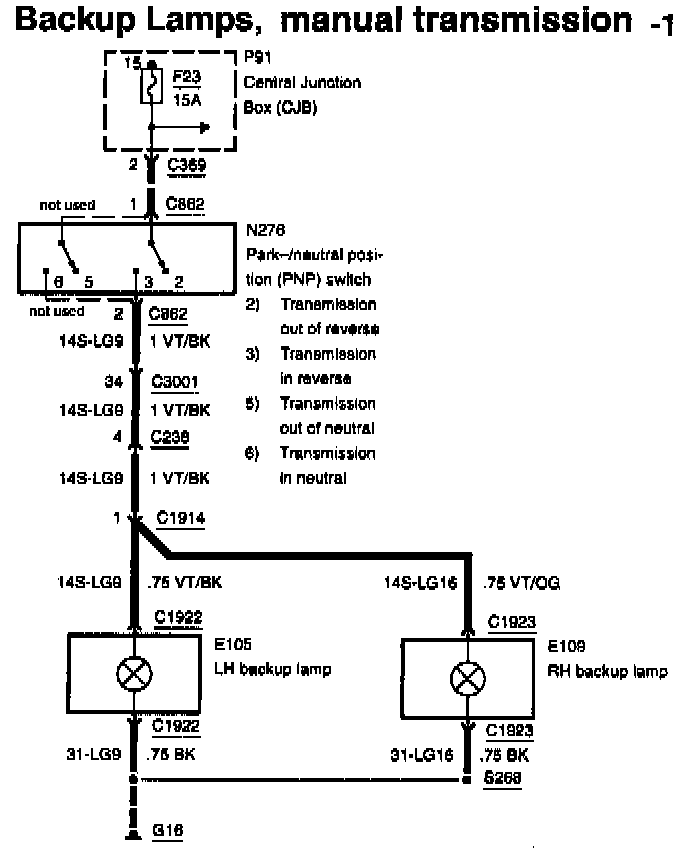

Diagram 417-01-00-14:
RELATED DIAGRAMS
Diagram 303-06-00-2:
Diagram 303-06-00-3:
Diagram 303-14a-00-8:
Diagram 303-14b-00-6:
