Instrument Cluster
DETAILED DIAGRAMS (Instrument Cluster Wiring)Diagram 413-01-00-1:

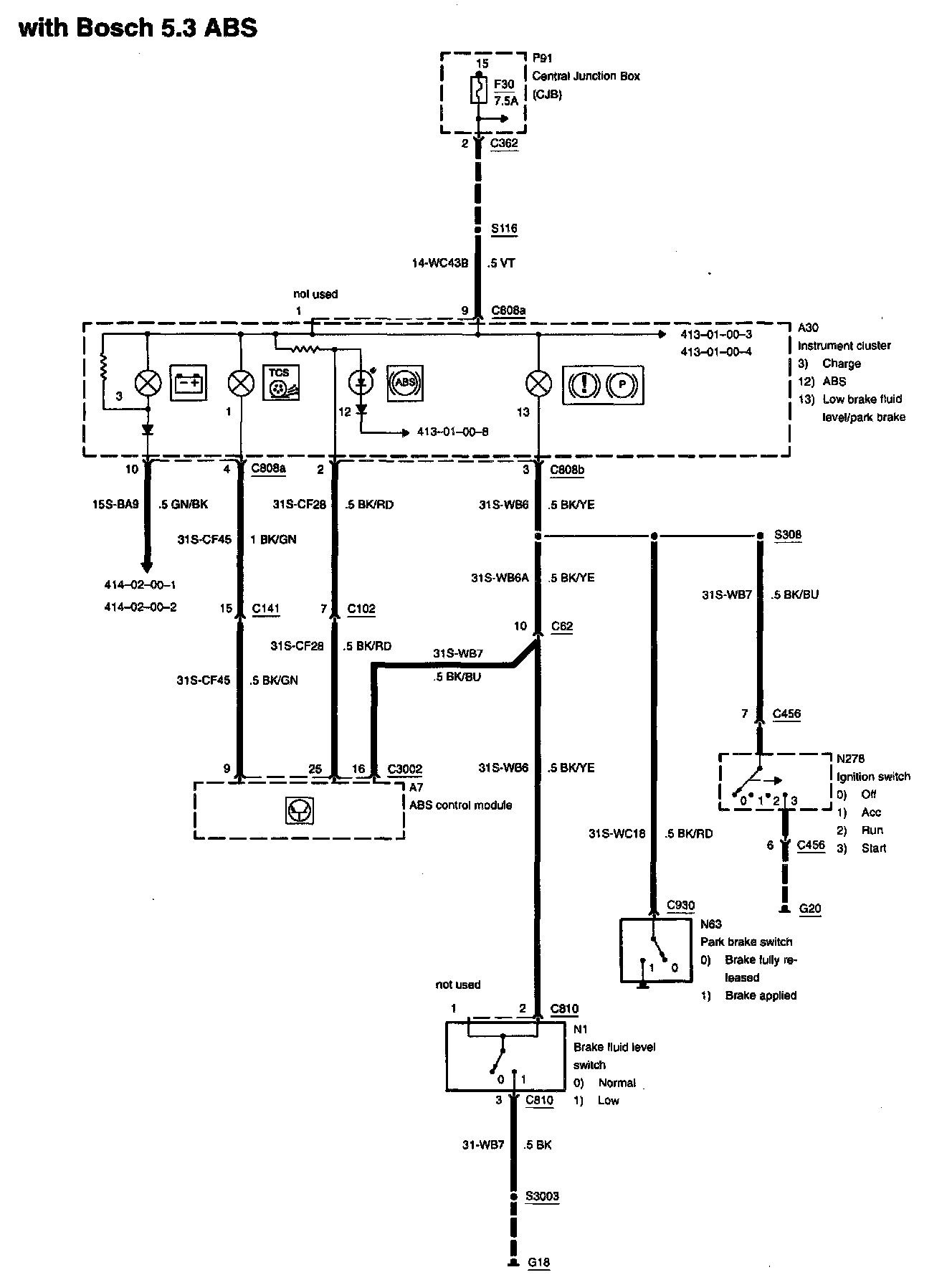

Anti-Lock Brake System
Anti-Lock Brake System Control Module
Brake Fluid Level Switch
Central Junction Box

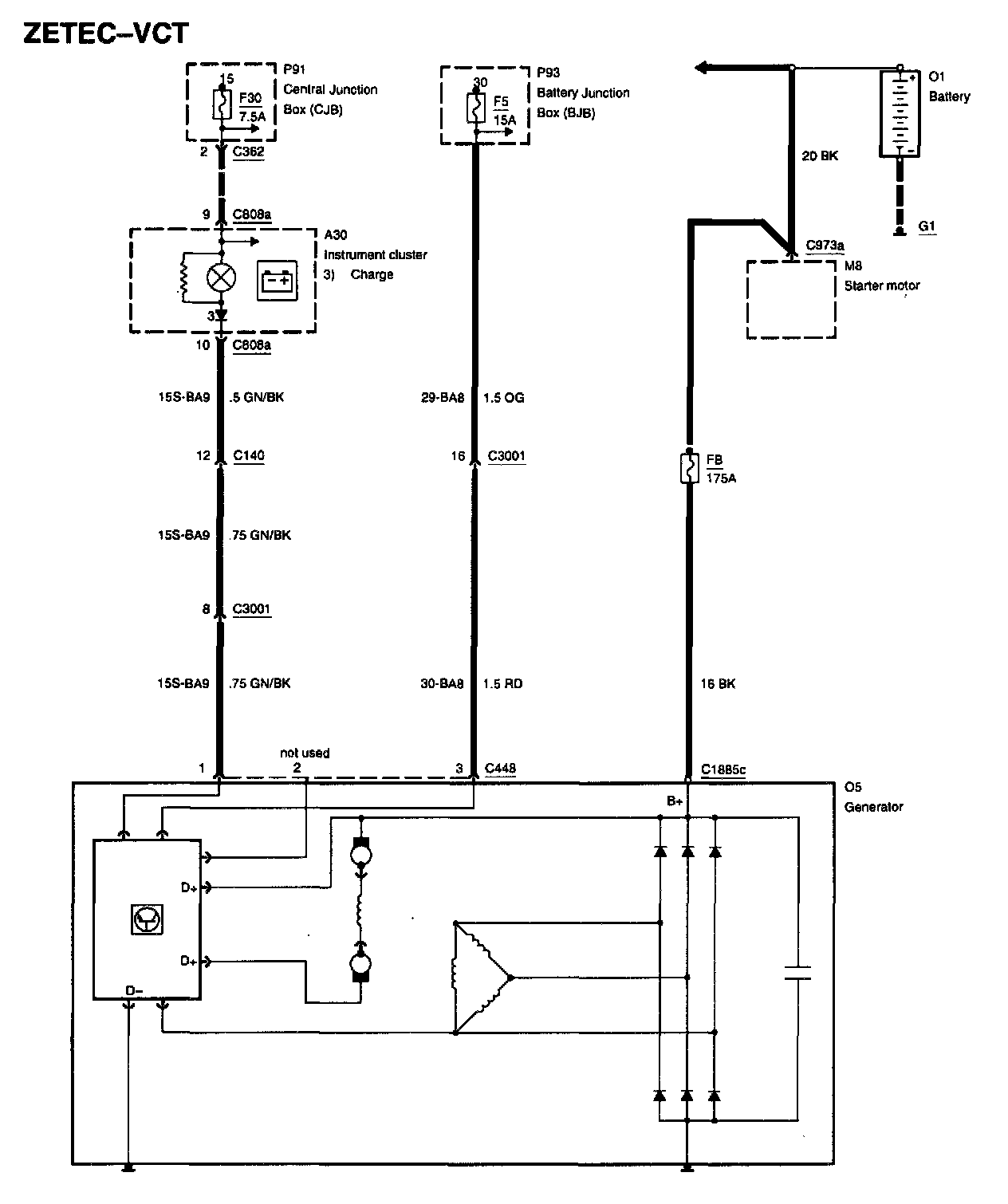

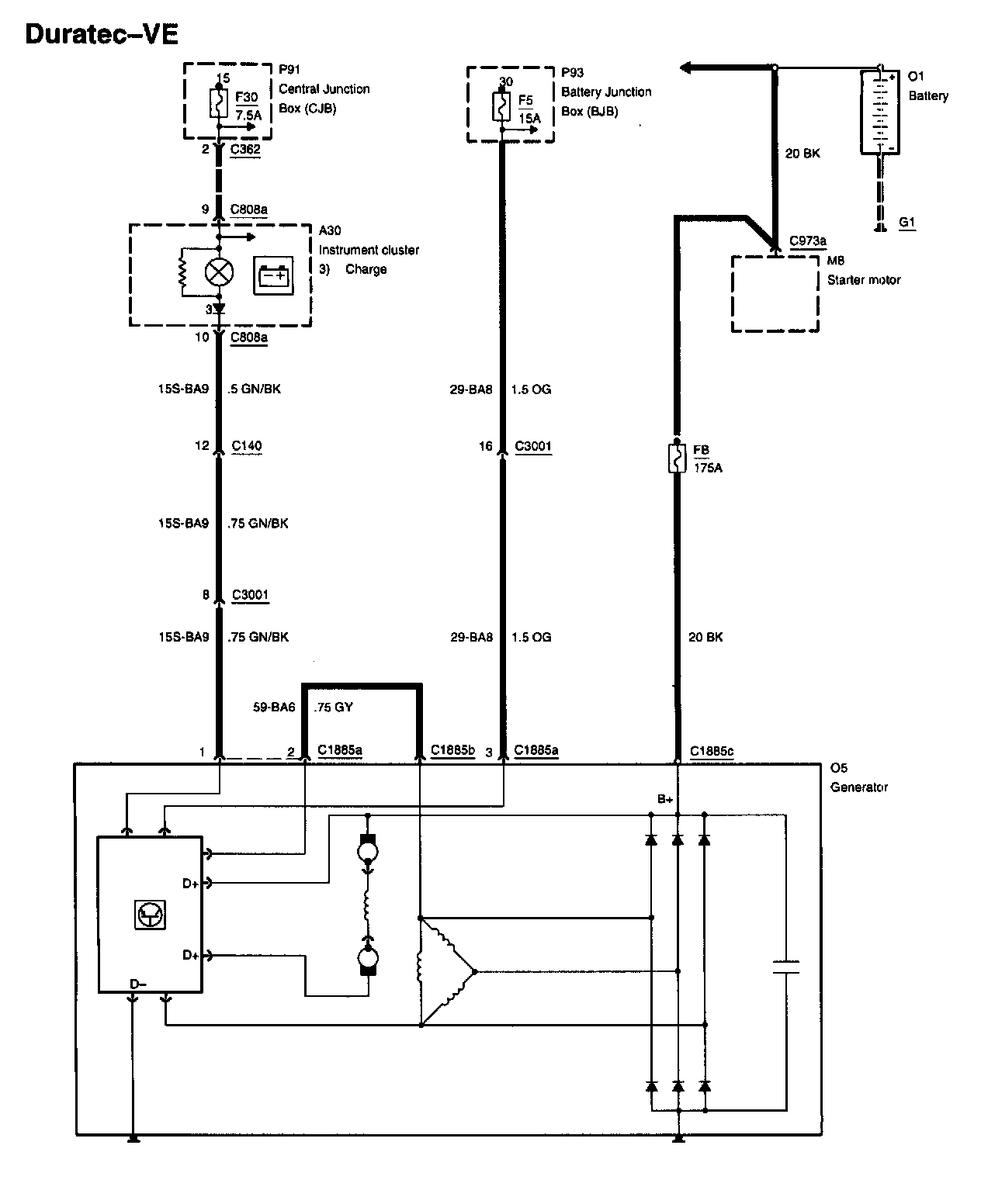

Charge
Fuse F30
Instrument Cluster
Ignition Switch
Low Brake Fluid Level/Park Brake
Park Brake Switch

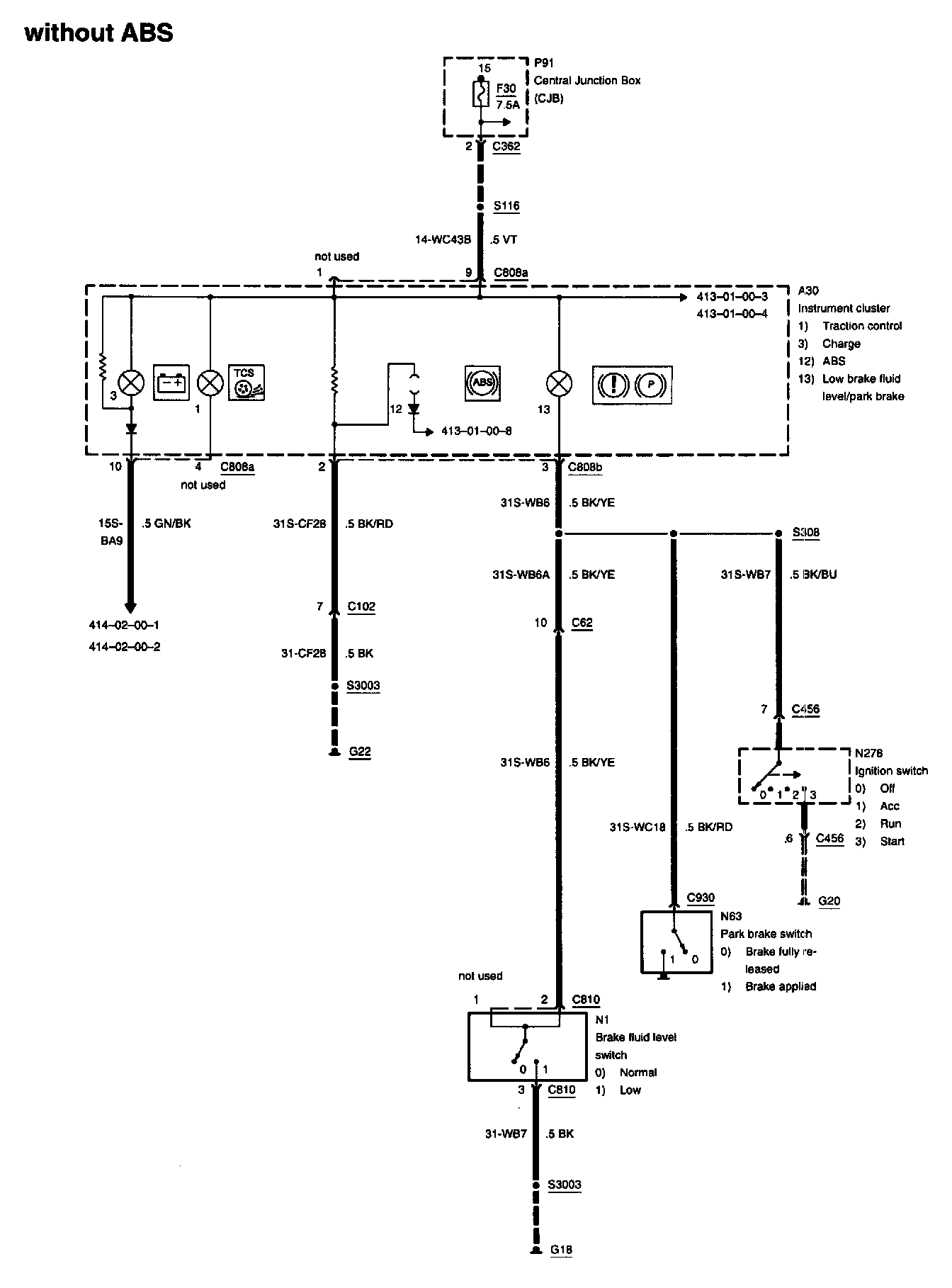

Diagram 413-01-00-2:
Anti-Lock Brake System
Brake Fluid Level Switch
Central Junction Box
Charge
Fuse F30
Instrument Cluster
Ignition Switch
Low Brake Fluid Level/Park Brake
Park Brake Switch
Traction Control

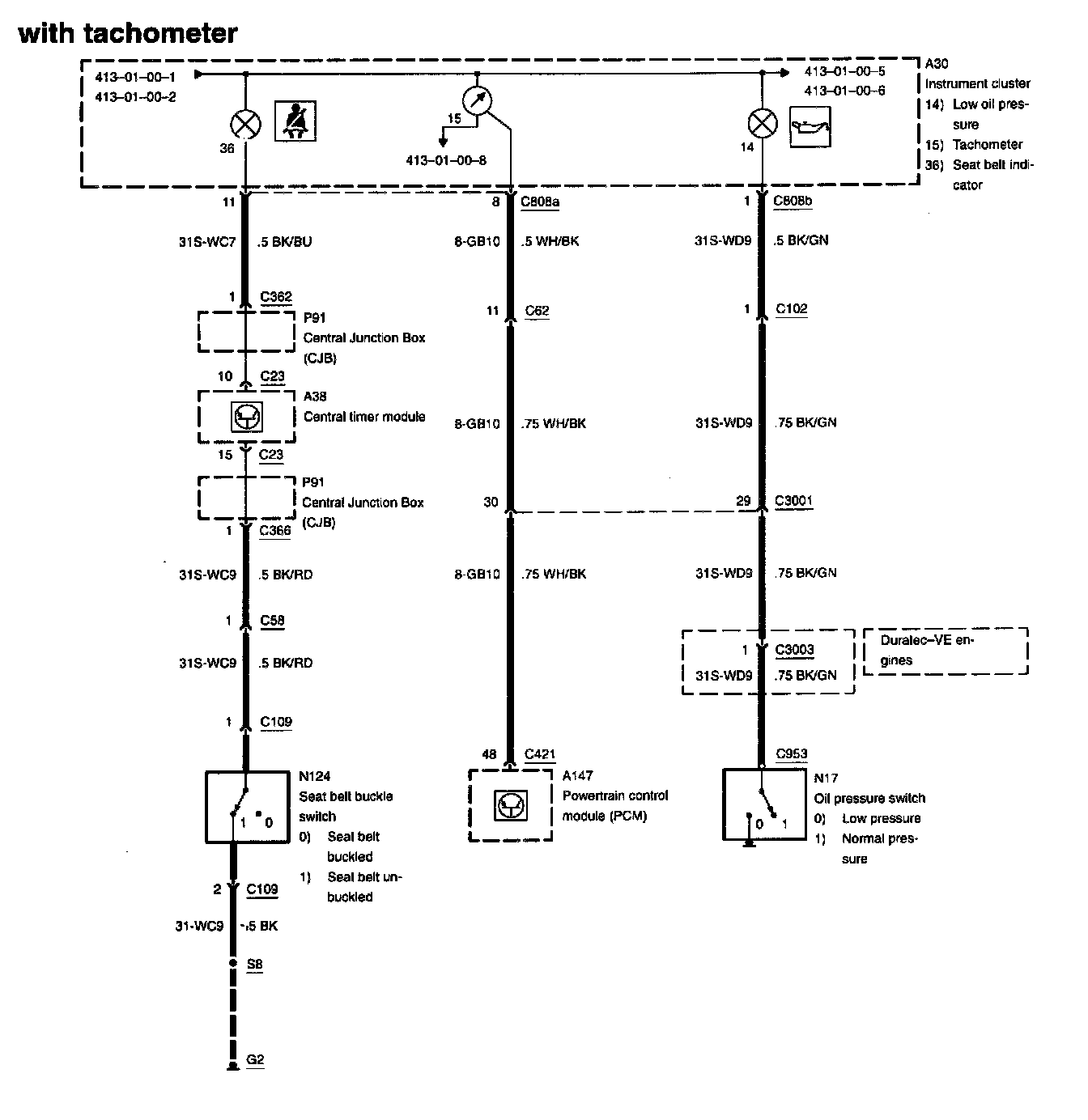

Diagram 413-01-00-3:
Central Junction Box
Central Timer Module
Instrument Cluster

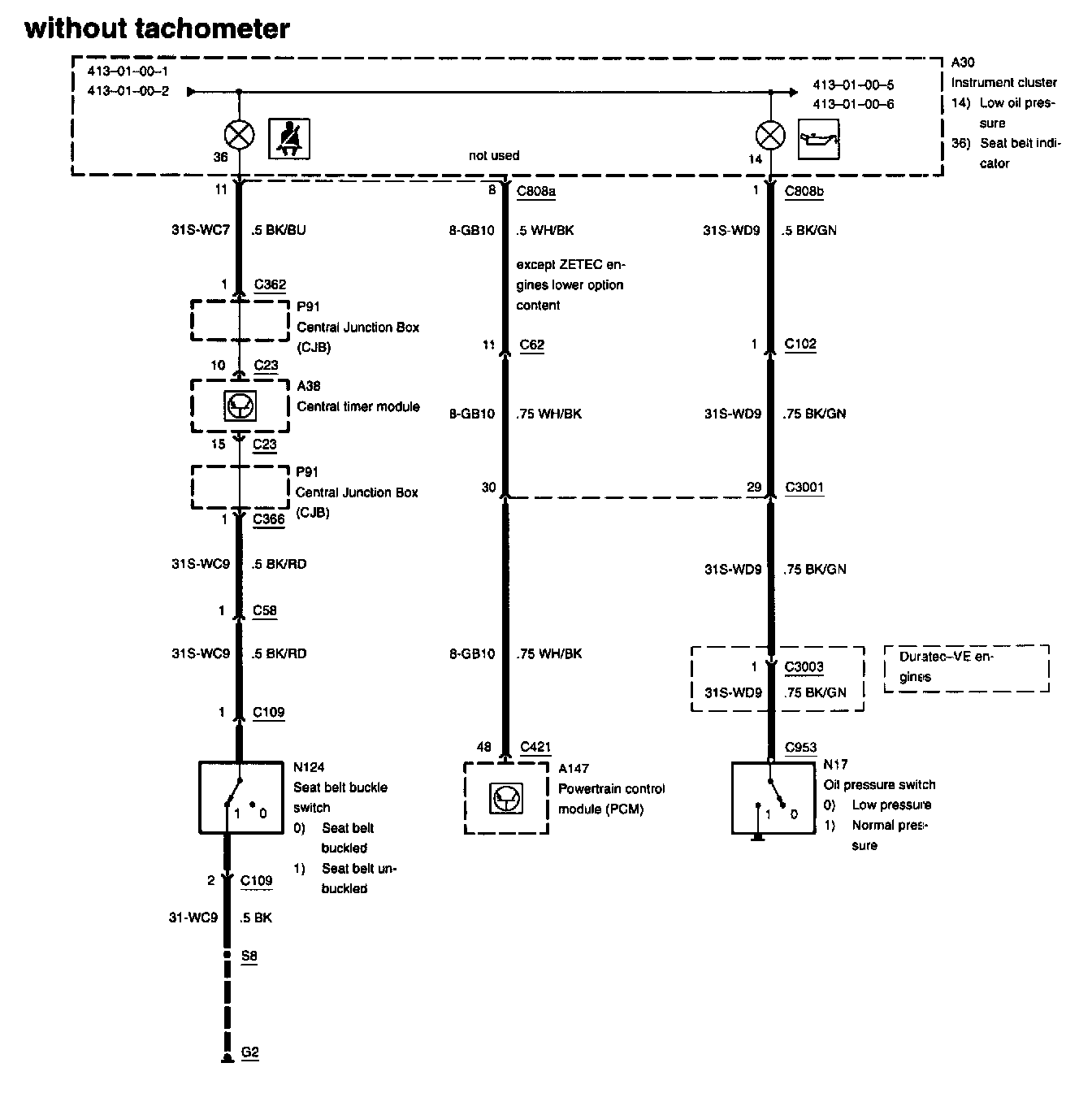

Low Oil Pressure
Oil Pressure Switch
Powertrain Control Module
Seat Belt Buckle Switch
Seat Belt Indicator
Tachometer
Diagram 413-01-00-4:
Central Junction Box
Central Timer Module
Instrument Cluster
Low Oil Pressure
Oil Pressure Switch
Powertrain Control Module
Seat Belt Indicator
Seat Belt Buckle Switch

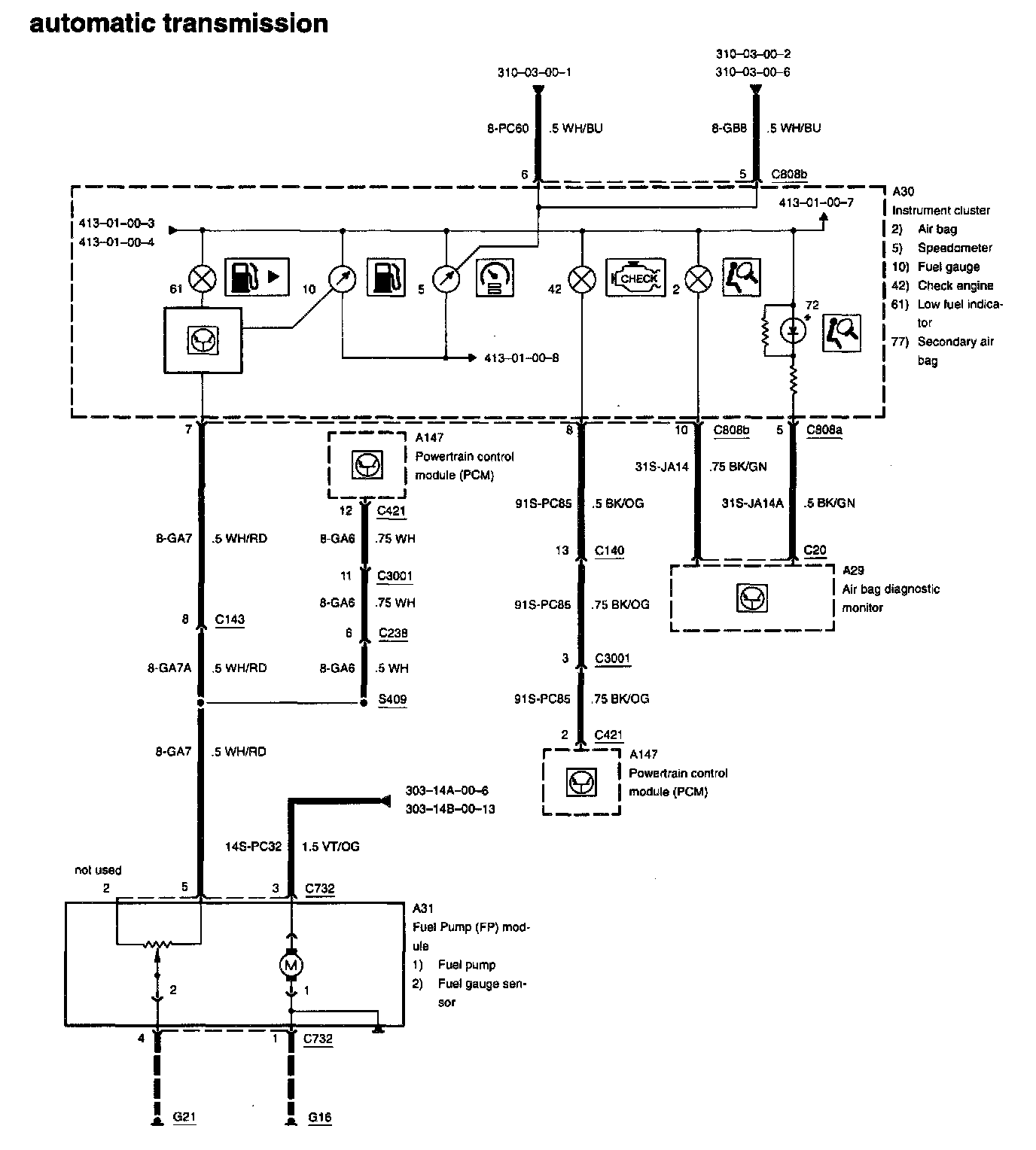

Diagram 413-01-00-5:
Air Bag
Air Bag Diagnostic Monitor

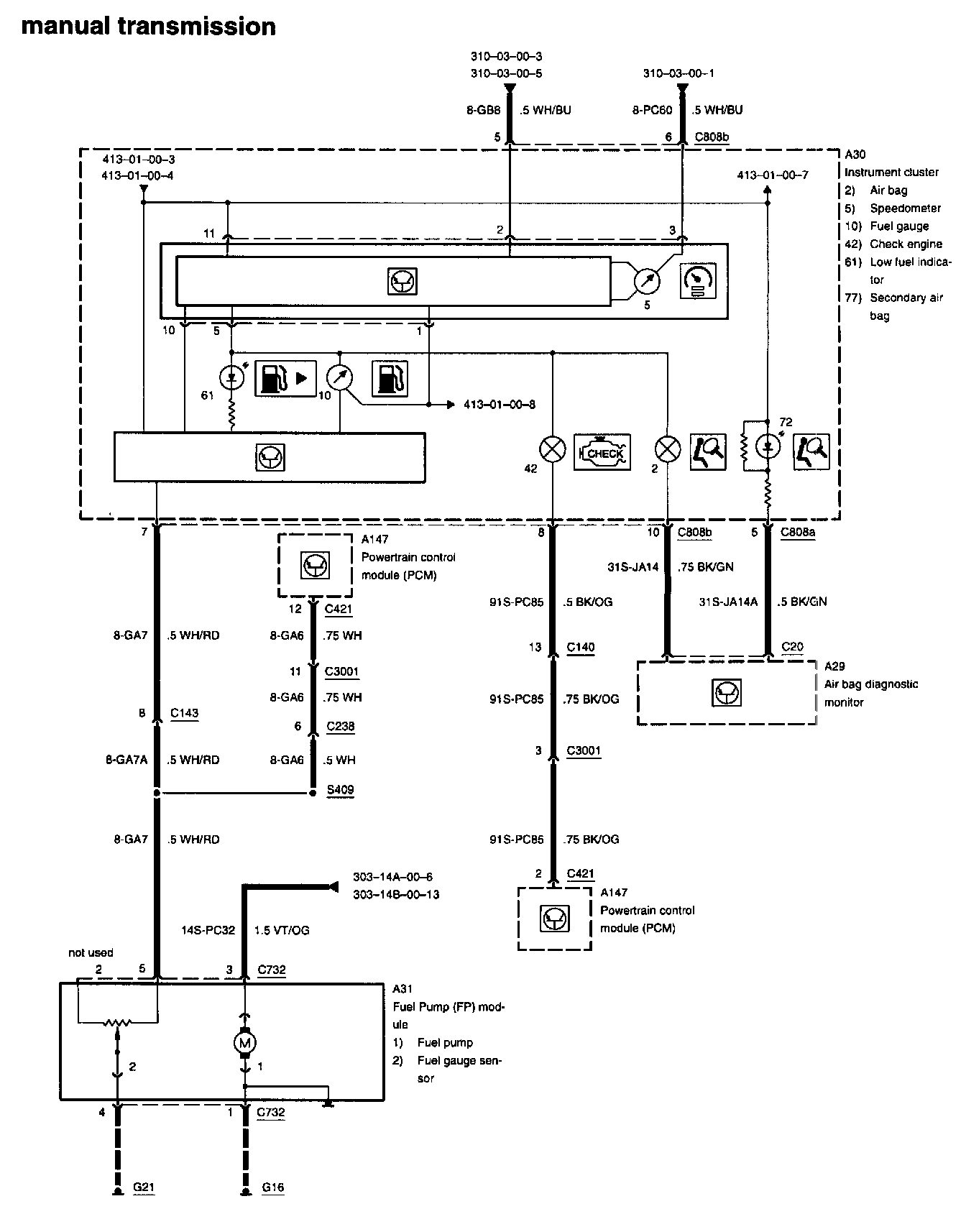

Fuel Gauge
Fuel Gauge Sensor
Fuel Pump
Fuel Pump Module
Instrument Cluster
Low Fuel Indicator
Powertrain Control Module
Secondary Air Bag

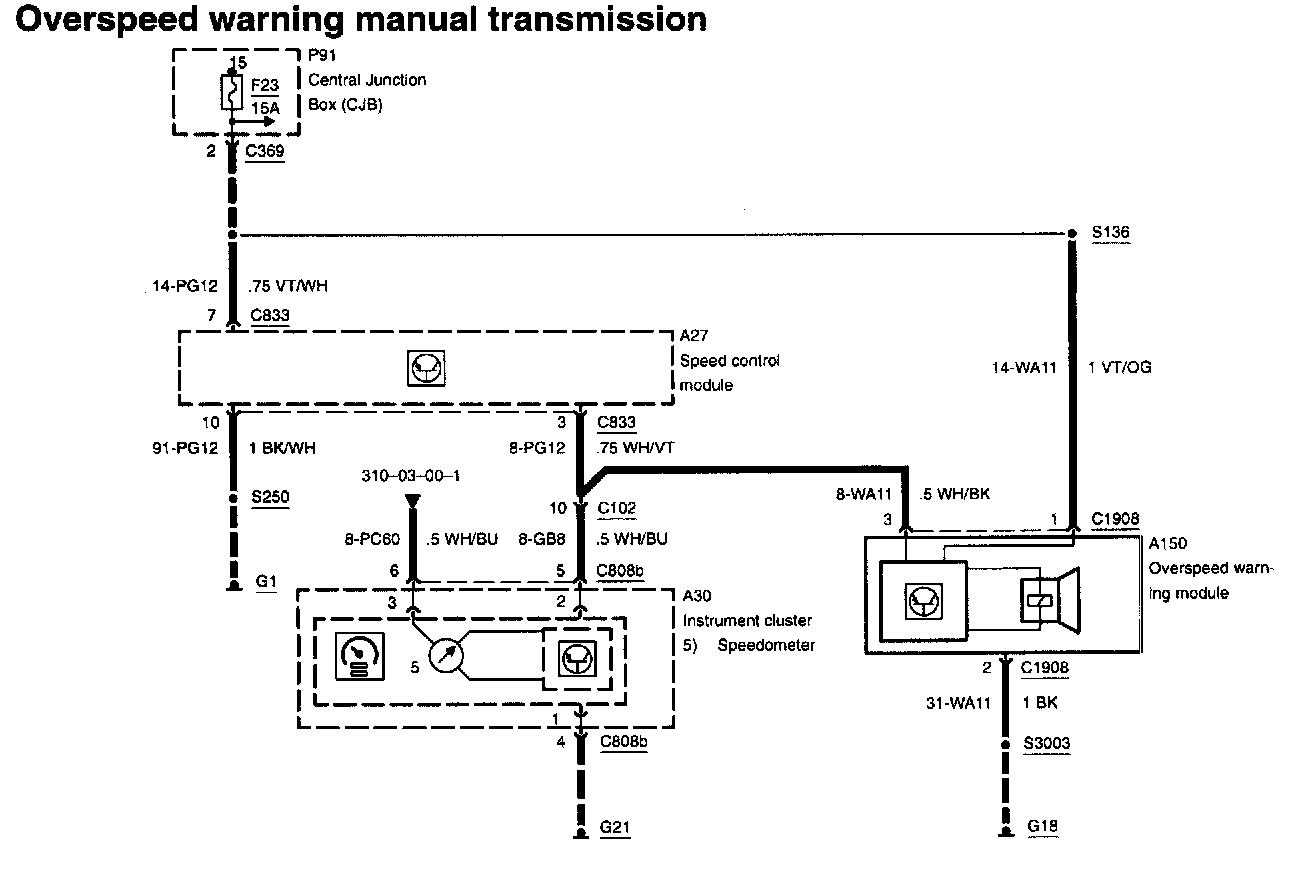

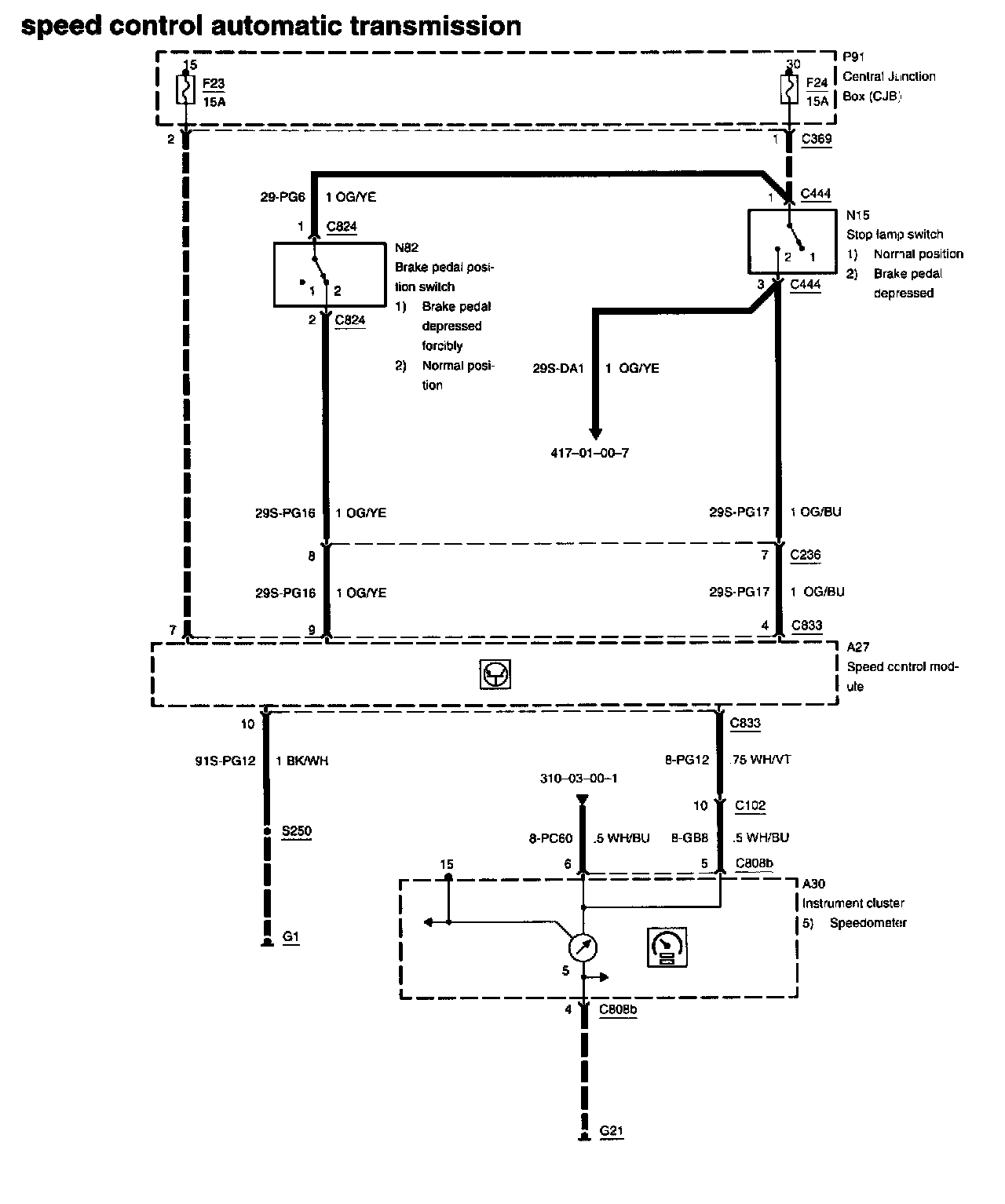

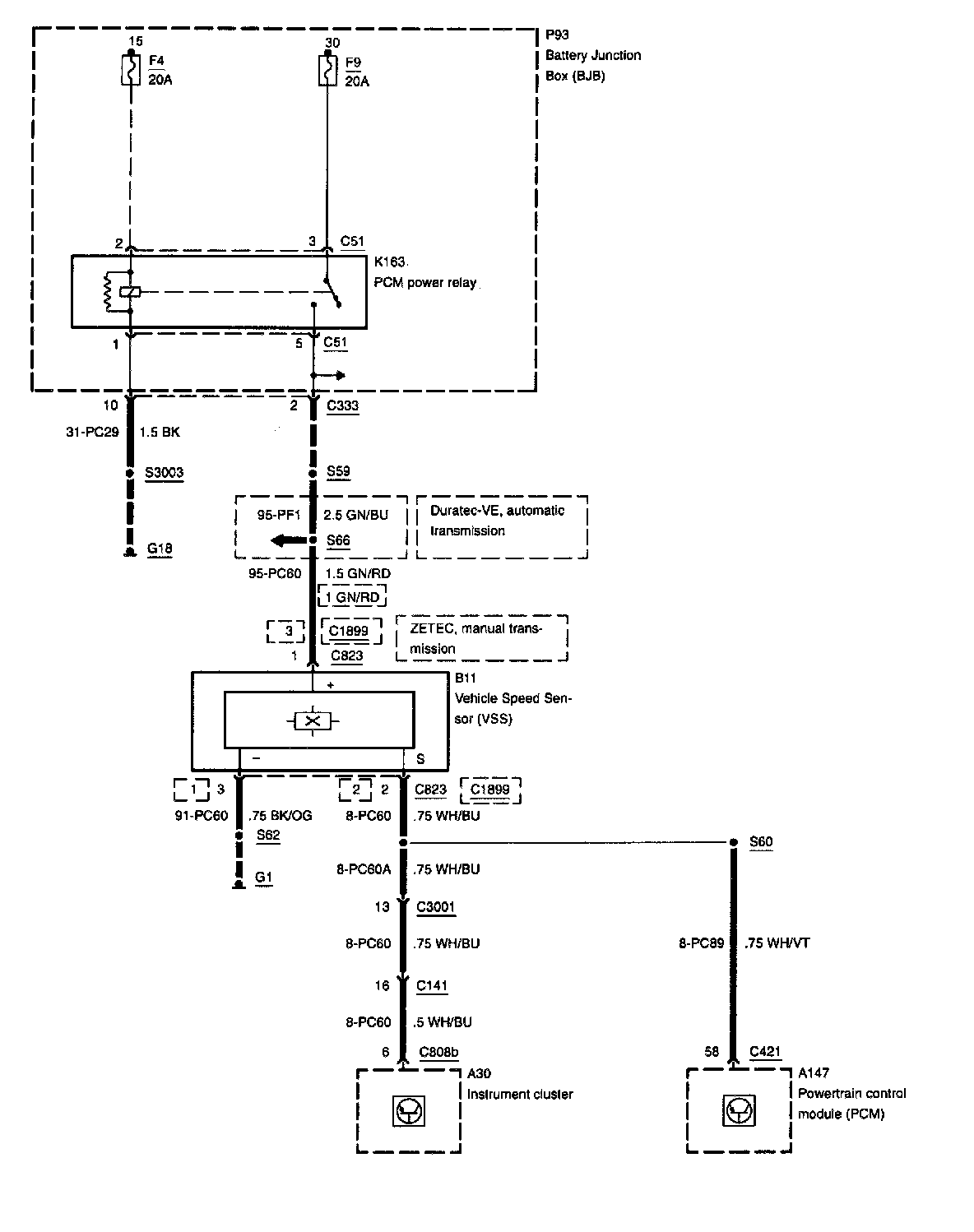

Speedometer
Diagram 413-01-00-6:
Air Bag
Air Bag Diagnostic Monitor
Fuel Gauge
Fuel Gauge Sensor
Fuel Pump
Fuel Pump Module
Instrument Cluster
Low Fuel Indicator
Powertrain Control Module
Secondary Air Bag

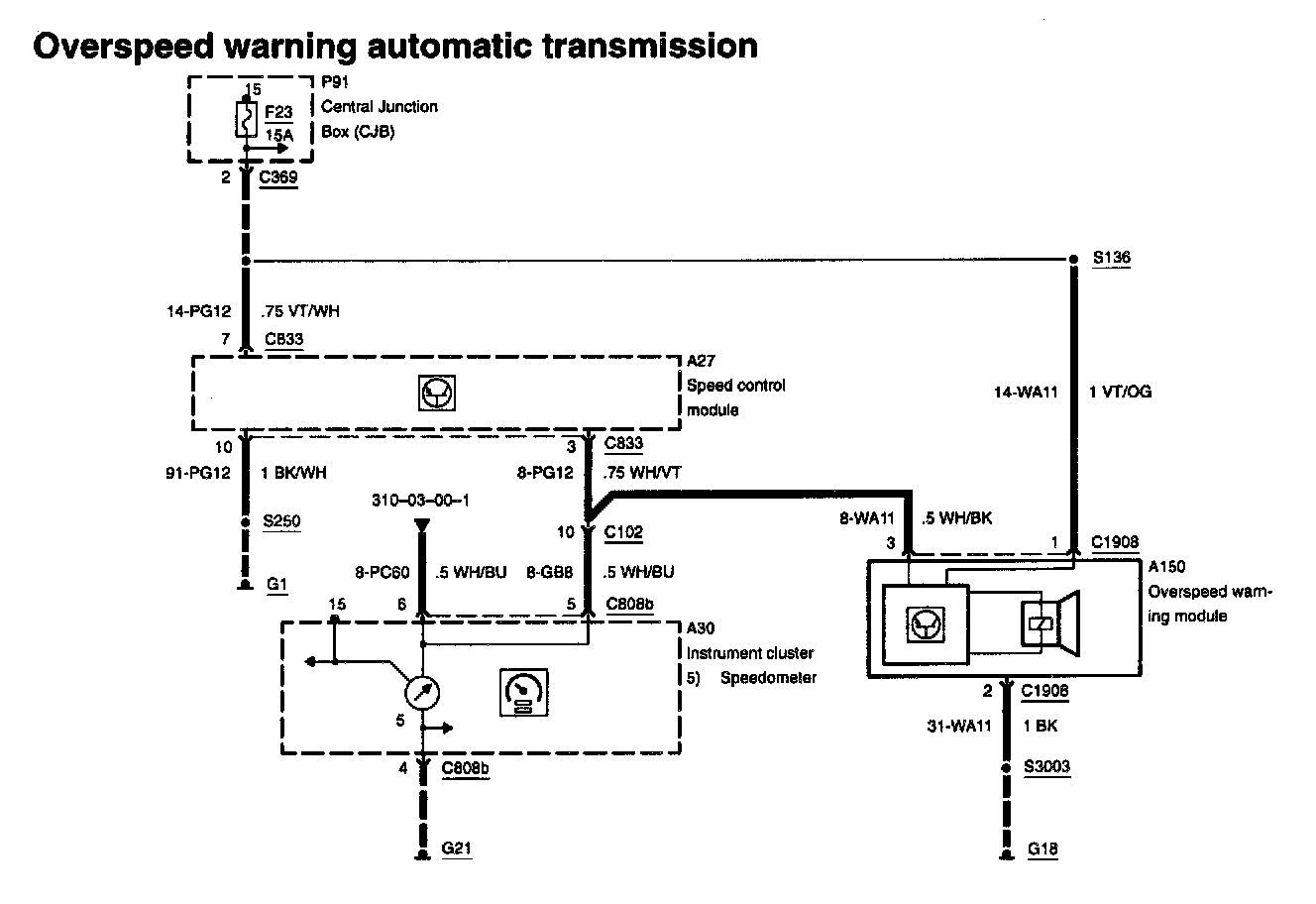

Speedometer
Diagram 413-01-00-7:
Coolant Temperature Sensor
Engine Coolant Temperature
Instrument Cluster
Instrument Interface Module
Low Coolant Level
Over Drive Off

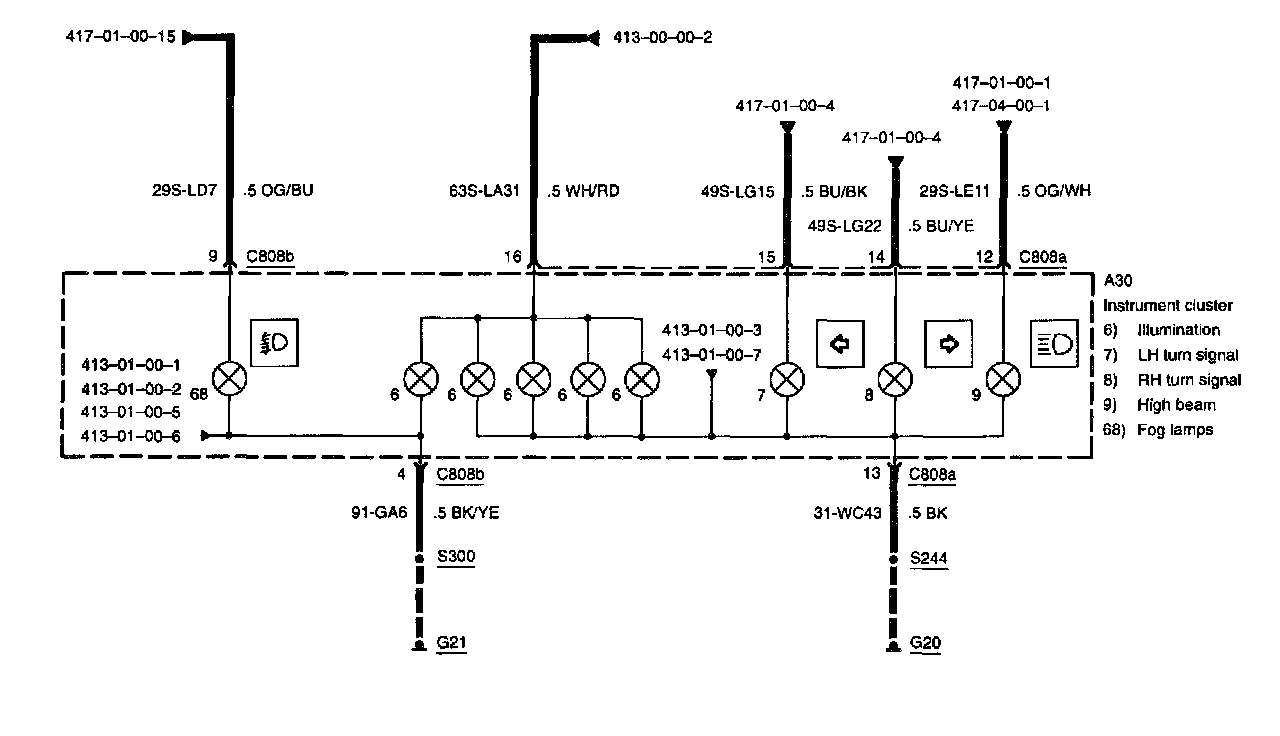

Diagram 413-01-00-8:

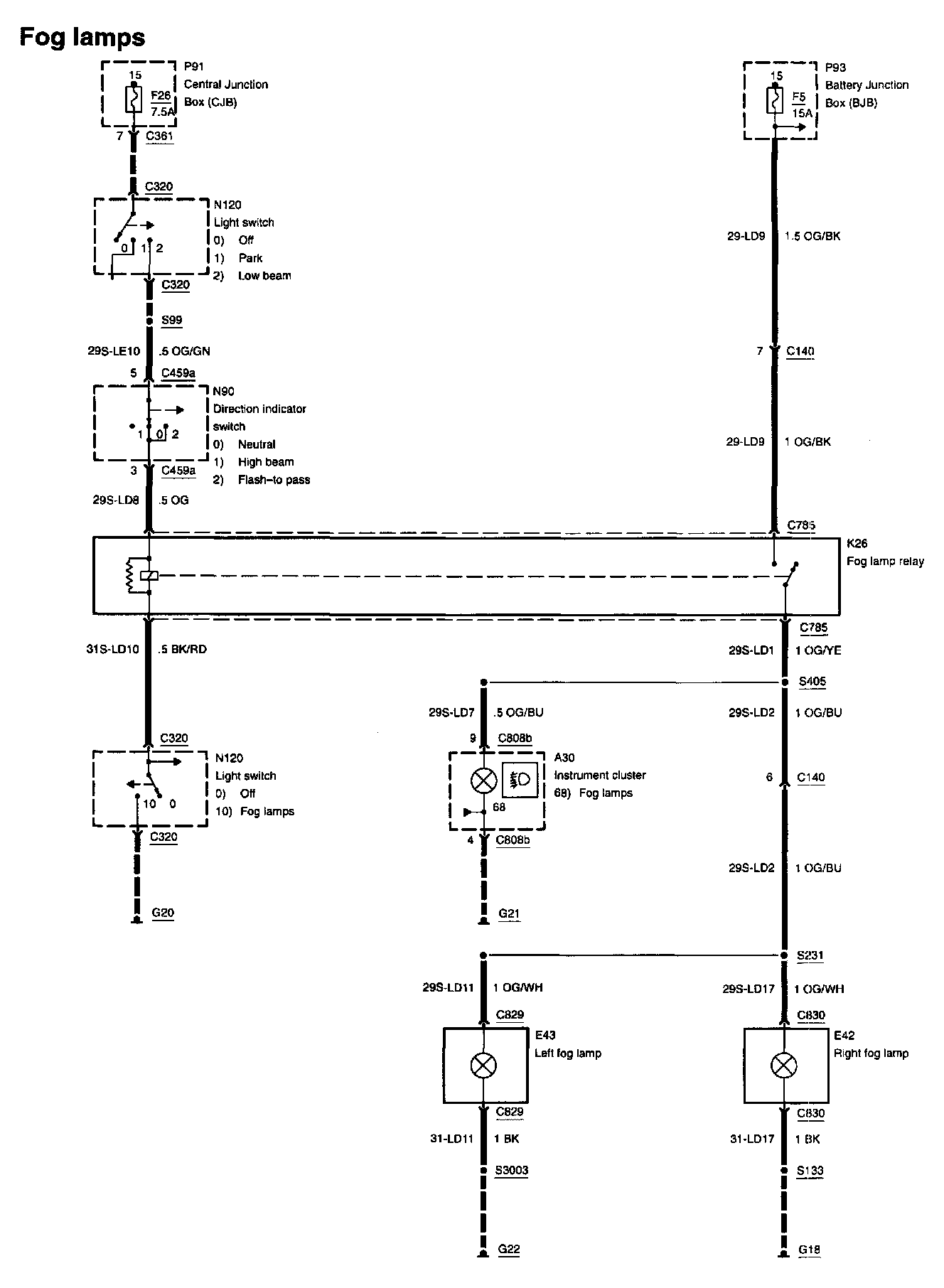

Fog Lamps
High Beam
Instrument Cluster
Illumination

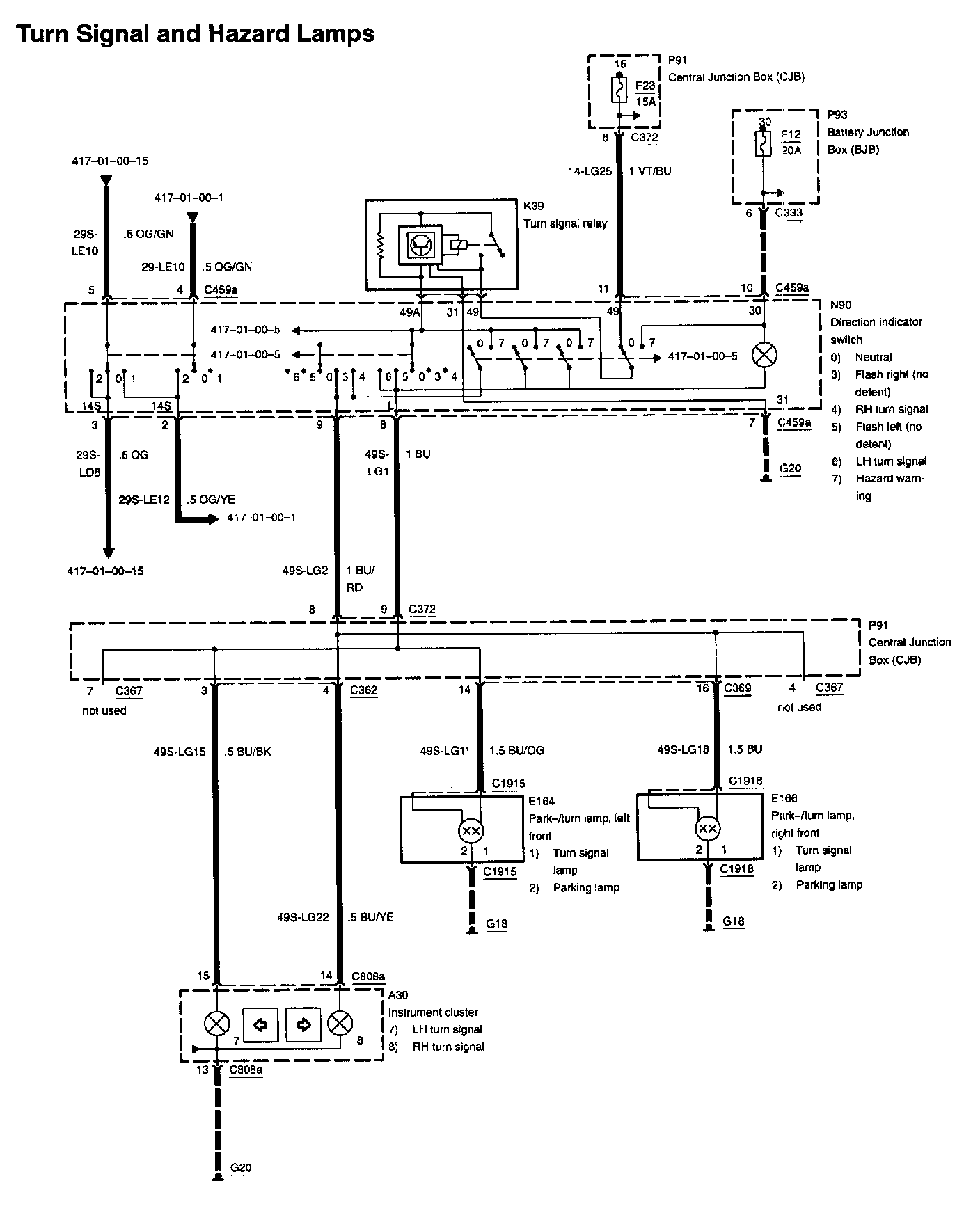

LH Turn Signal
RH Turn Signal
