Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

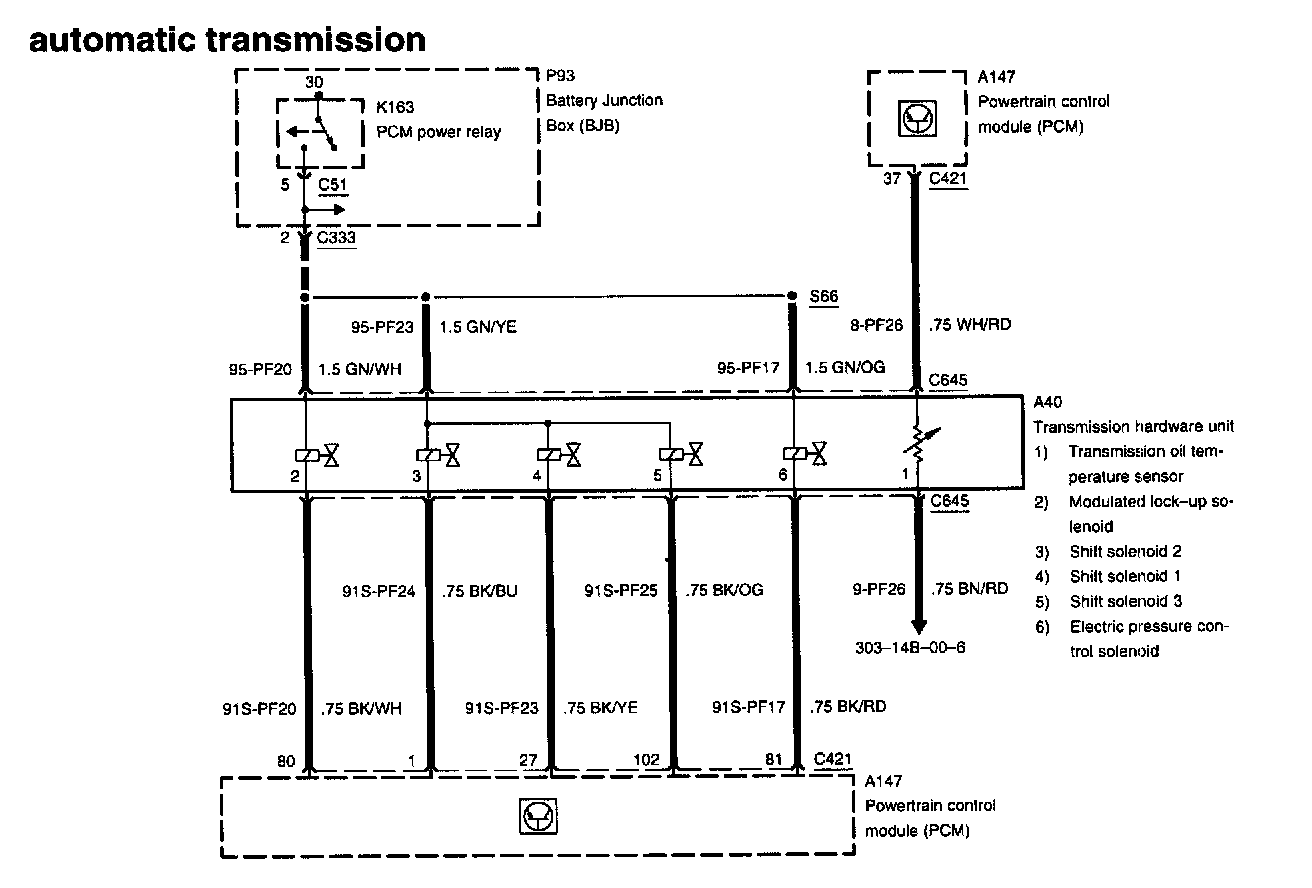

Transmission Hardware Unit
Transmission Hardware Unit
Diagram 303-14b-00-12:
