Antilock Brakes with Traction Control/Wheelspin (ABS/TC)

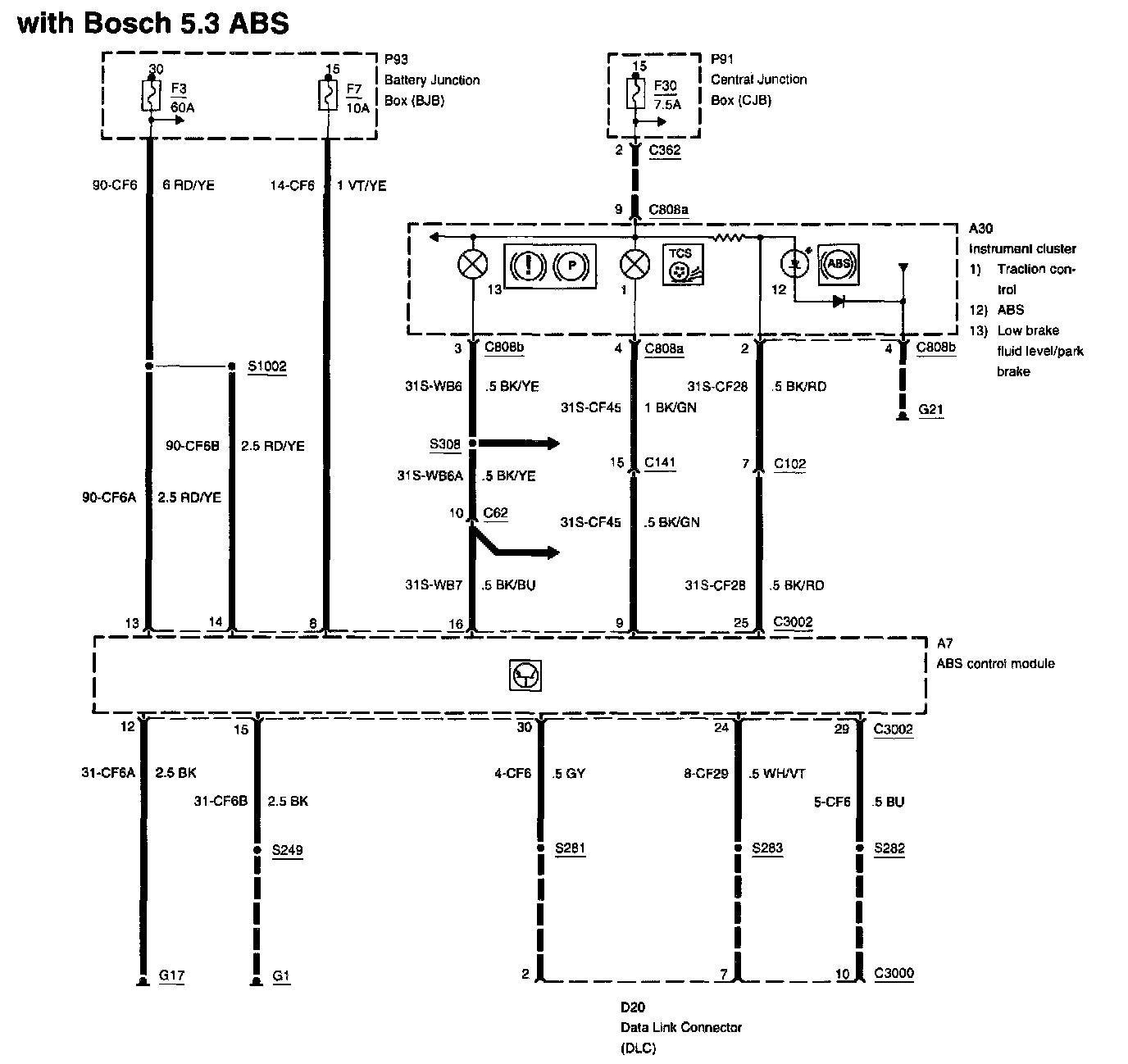

Diagram 206-09b-00-1:



Diagram 206-09b-00-2:
