Shift Interlock Components

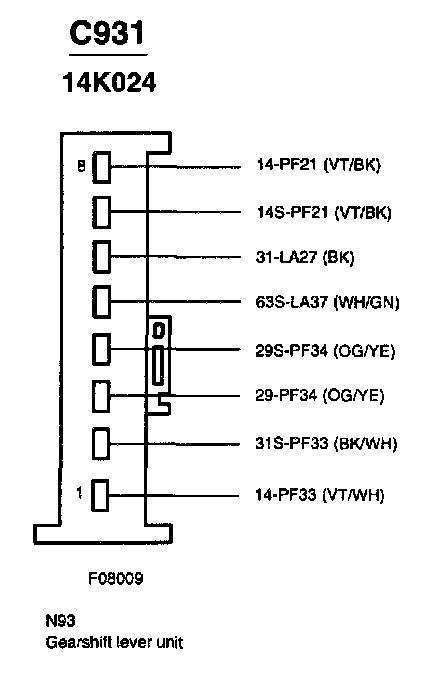

Connector 931 connects to component N93, The Gearshift Lever Unit.






Connector 440 connects to component A35, The Instrument Interface Module.
