Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Pinpoint Tests >> B

B

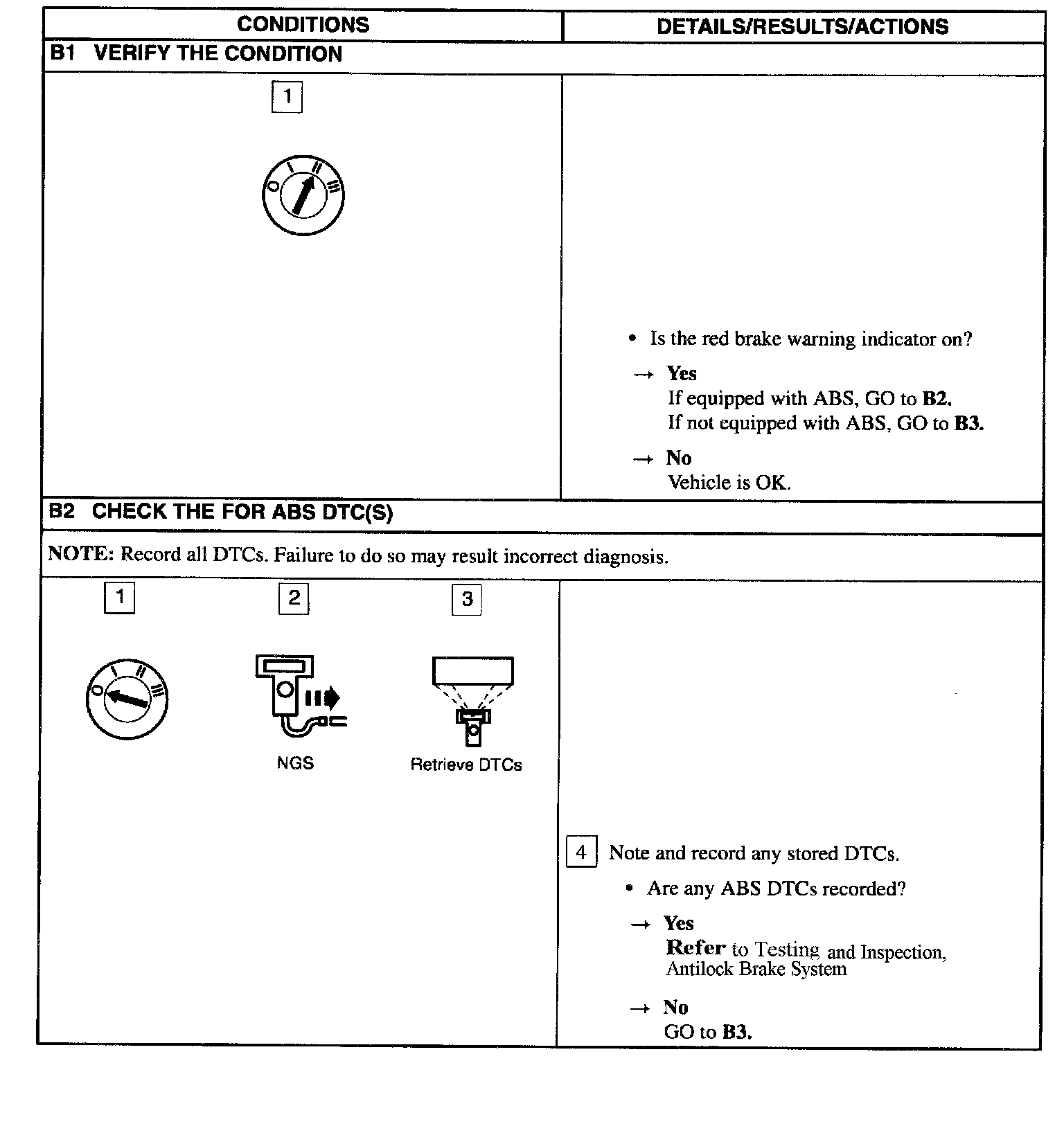

Test B1 - B2:

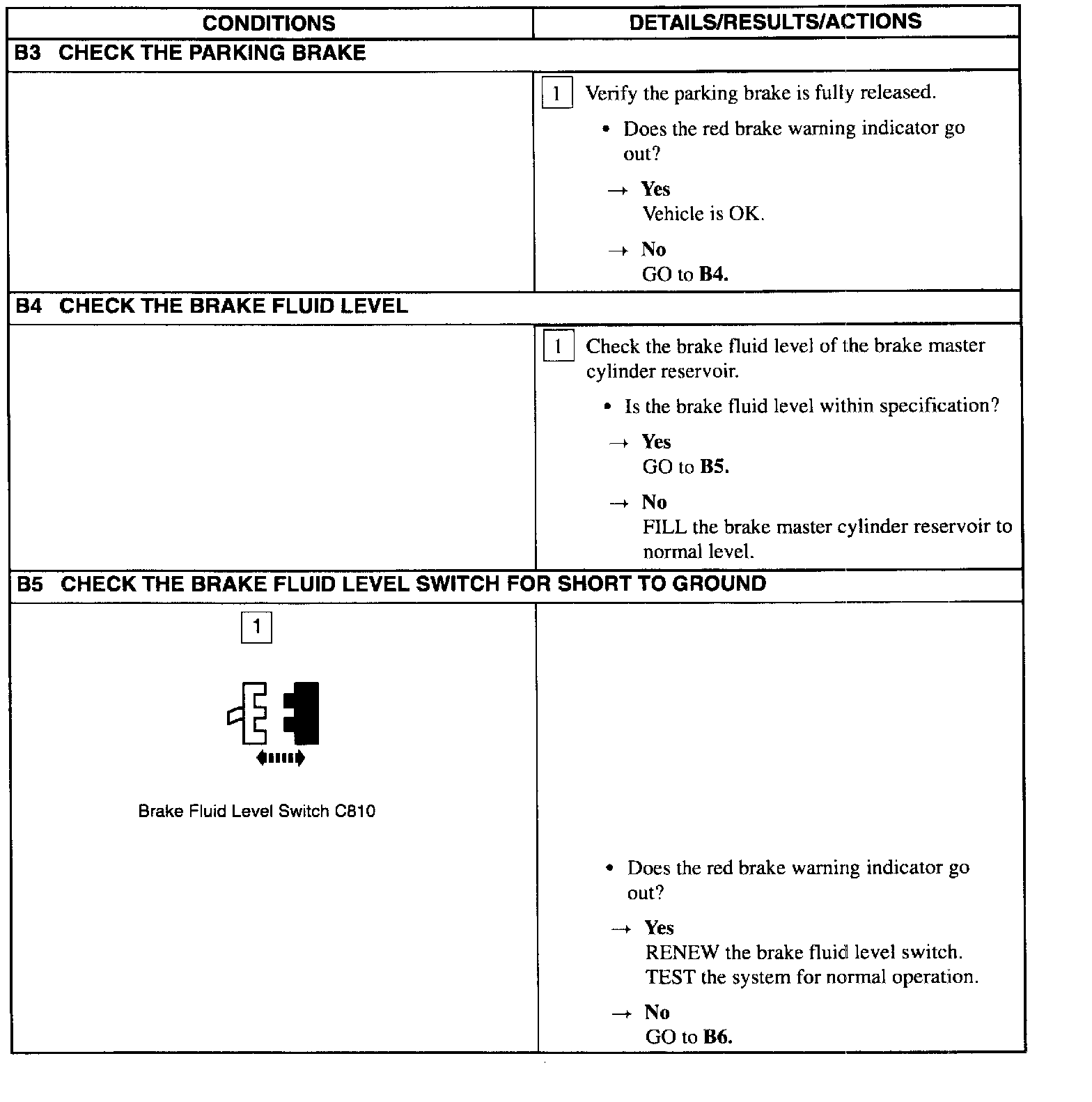

Test B3 - B5:

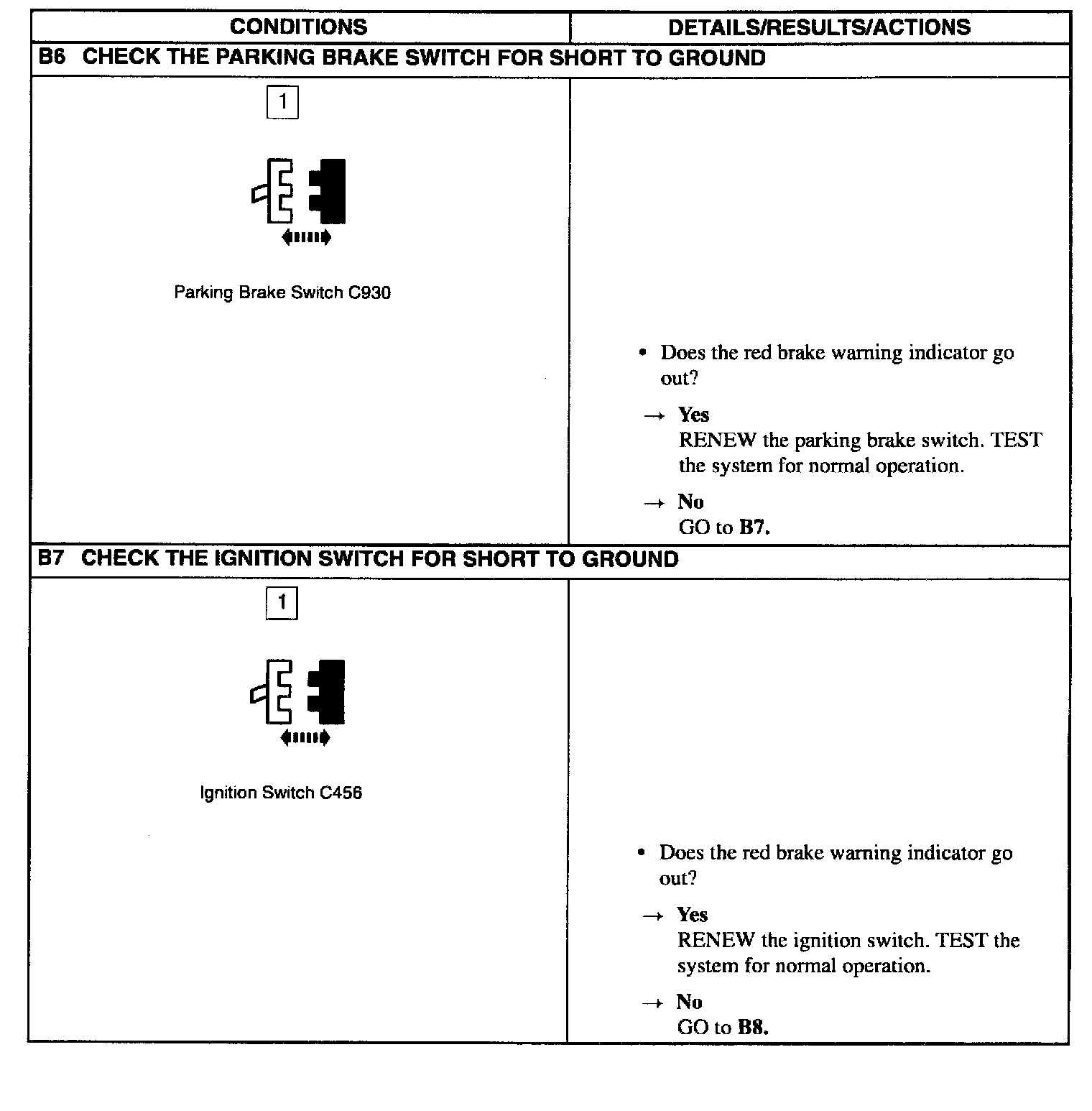

Test B6 - B7:




Test B8:
