Brake Fluid Reservoir

Removal
All Vehicles

CAUTION: If brake fluid is spilt on the paint, the affected area must be immediately washed down with cold water.





1. NOTE: Make sure the filler cap does not become contaminated.

Remove the reservoir filler cap.
1 Disconnect the low fluid level warning indicator switch electrical connector.
2 Remove the cap.





2. Using a suitable suction device drain the brake fluid reservoir.

Vehicles with manual transmission





3. Disconnect the clutch feed hose.

All vehicles

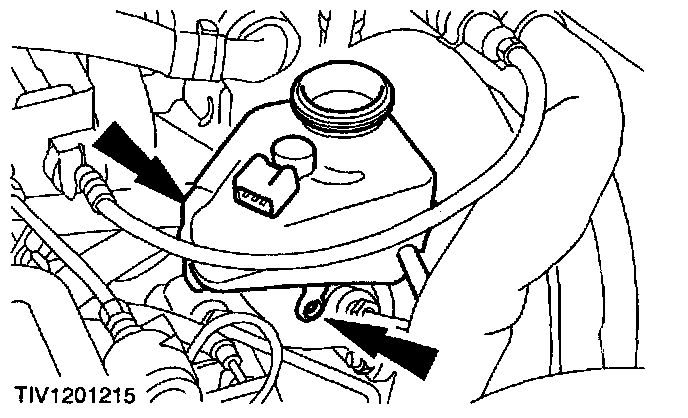

4. Remove the brake fluid reservoir.
- Detach the two clips.

5. Remove and discard the O-ring seals.

Installation
1. Install new O-ring seals.
2. To install, reverse the removal procedure.
3. Bleed the brake system.
