Front

Removal

1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.





4. CAUTION: Secure the caliper and anchor plate assembly out of the way to prevent damage to the flexible brake hose.

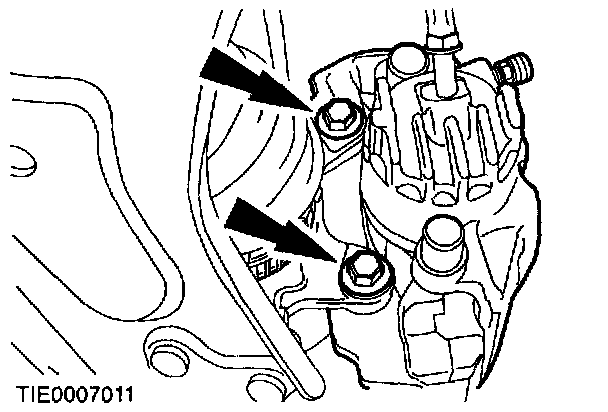

Detach the brake caliper and anchor plate.

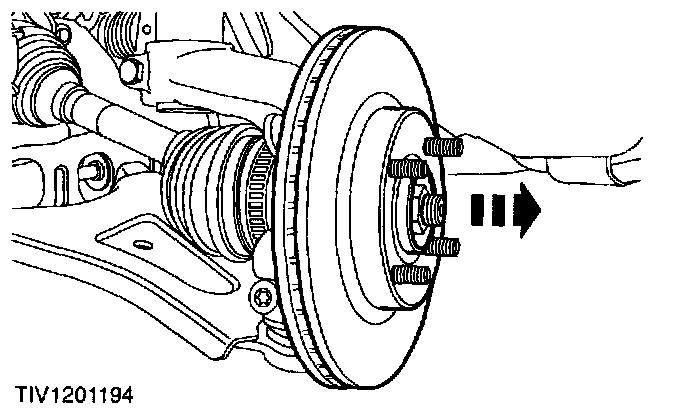

5. Remove the brake disc.
- Remove the retainers (if equipped).

Installation

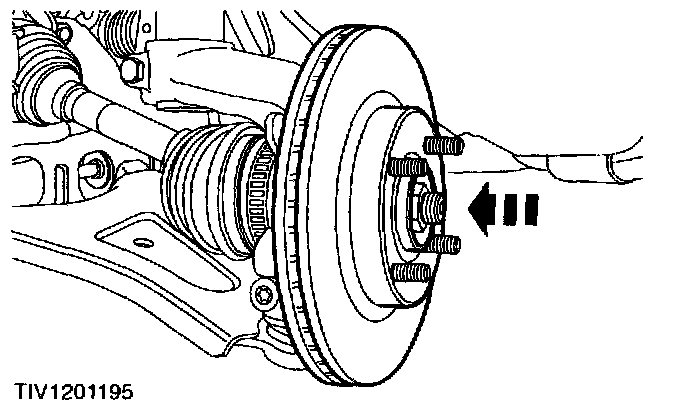

1. Install the brake disc.

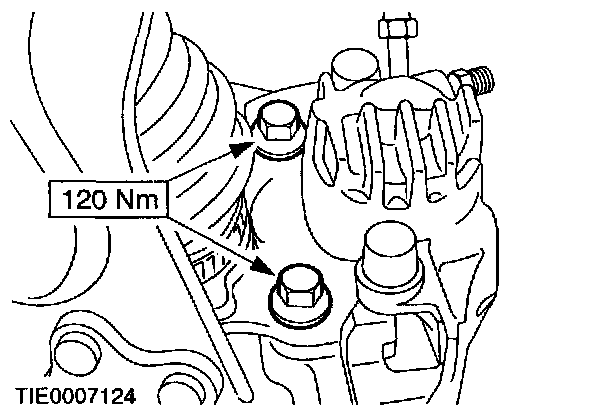

2. Install the caliper and anchor bracket.





3. Install the wheel.
