Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> M Check Traction Control Switch Circuit

M Check Traction Control Switch Circuit

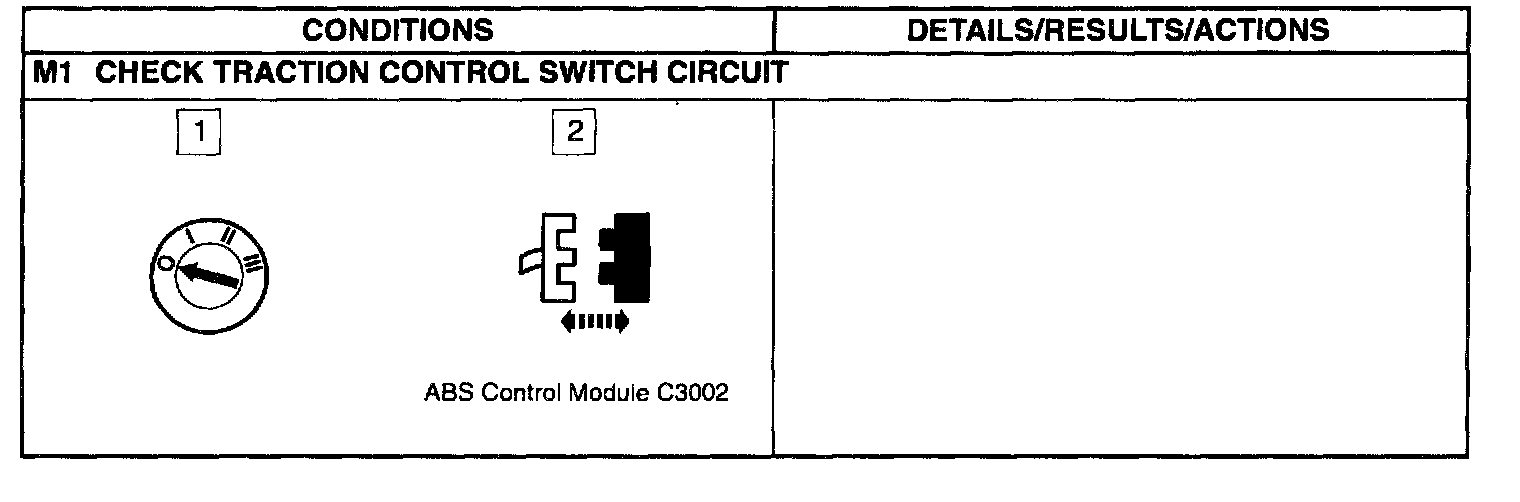

Test M1:

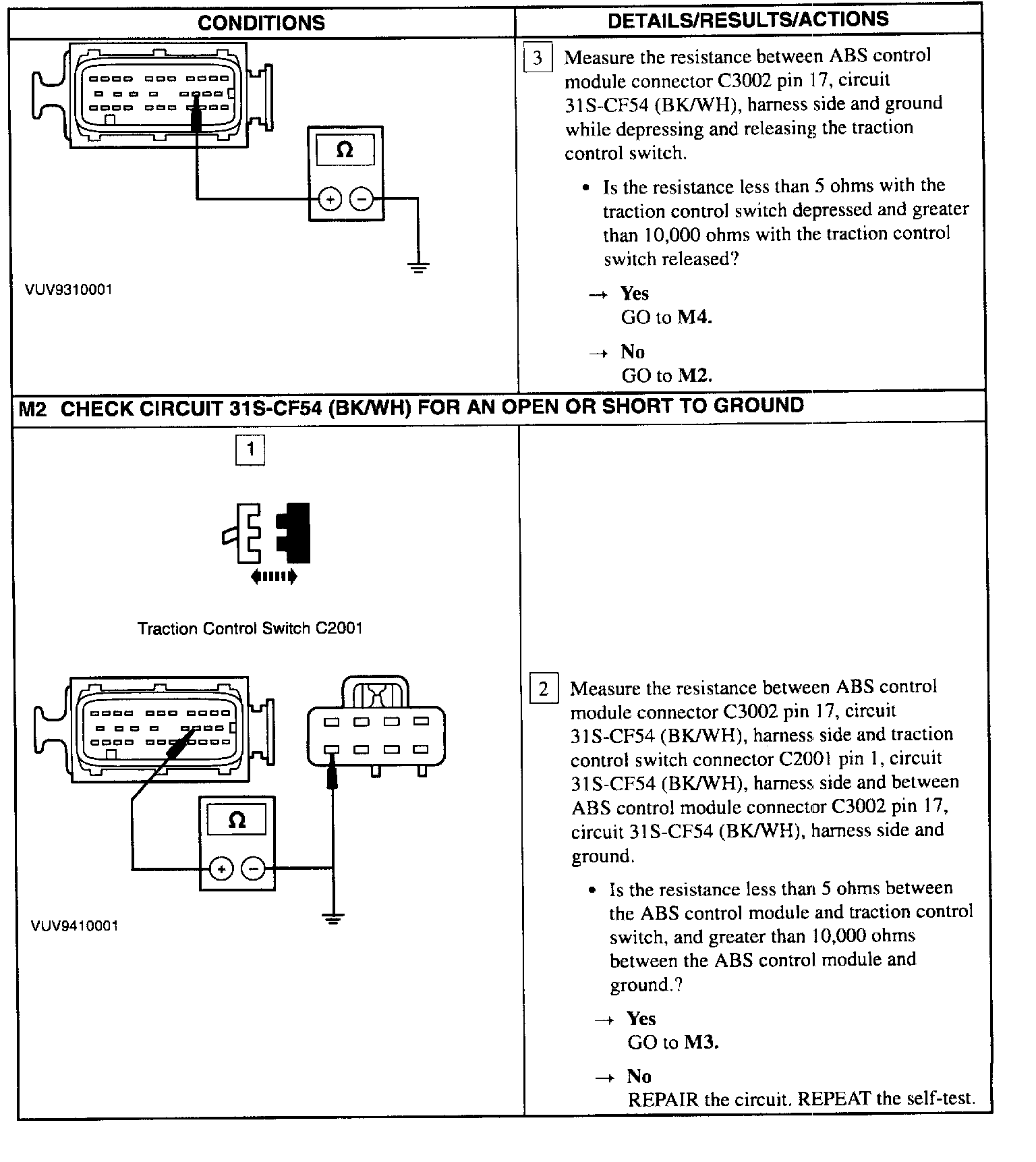

Test M1 - M2:

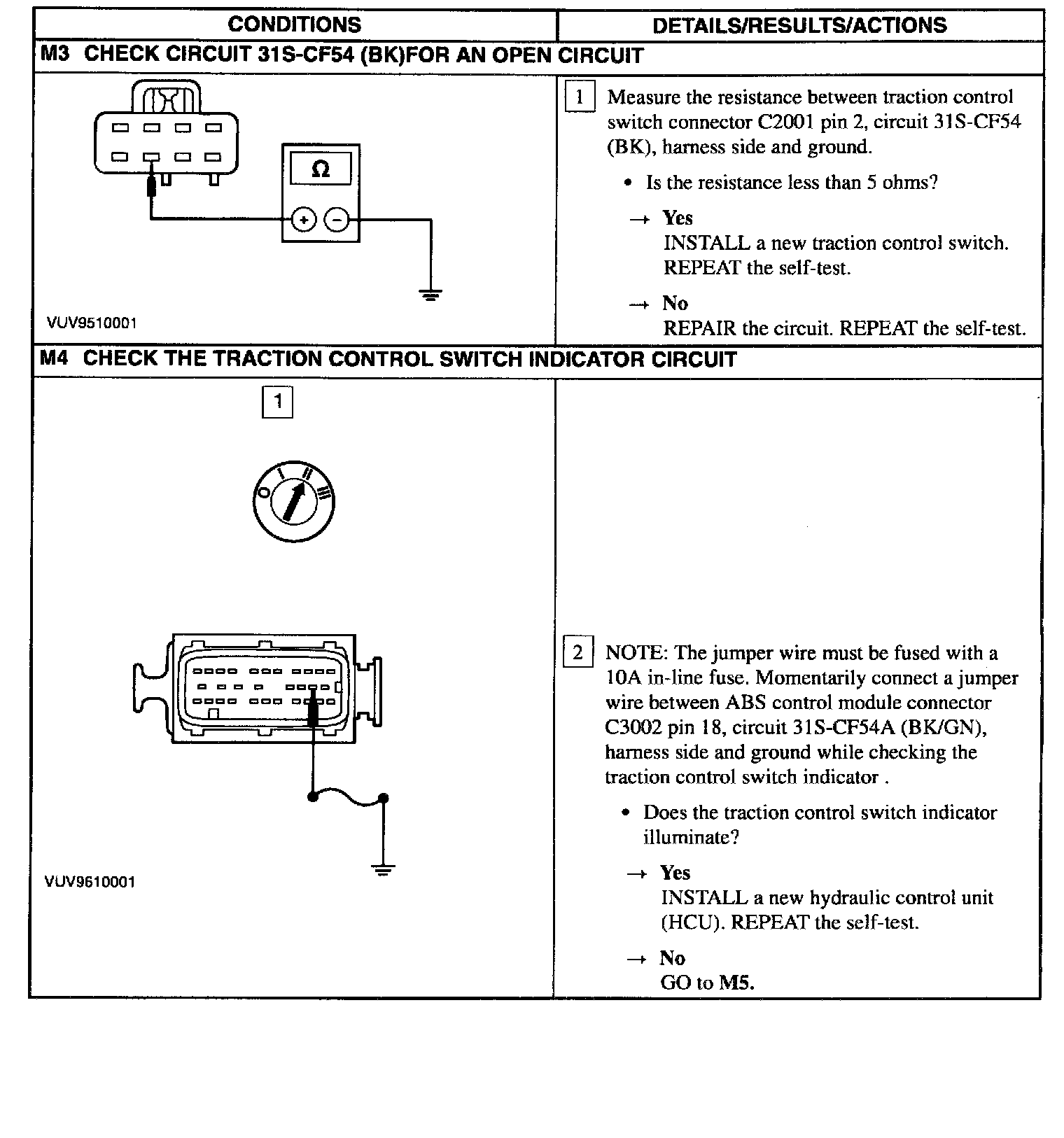

Test M3 - M4:

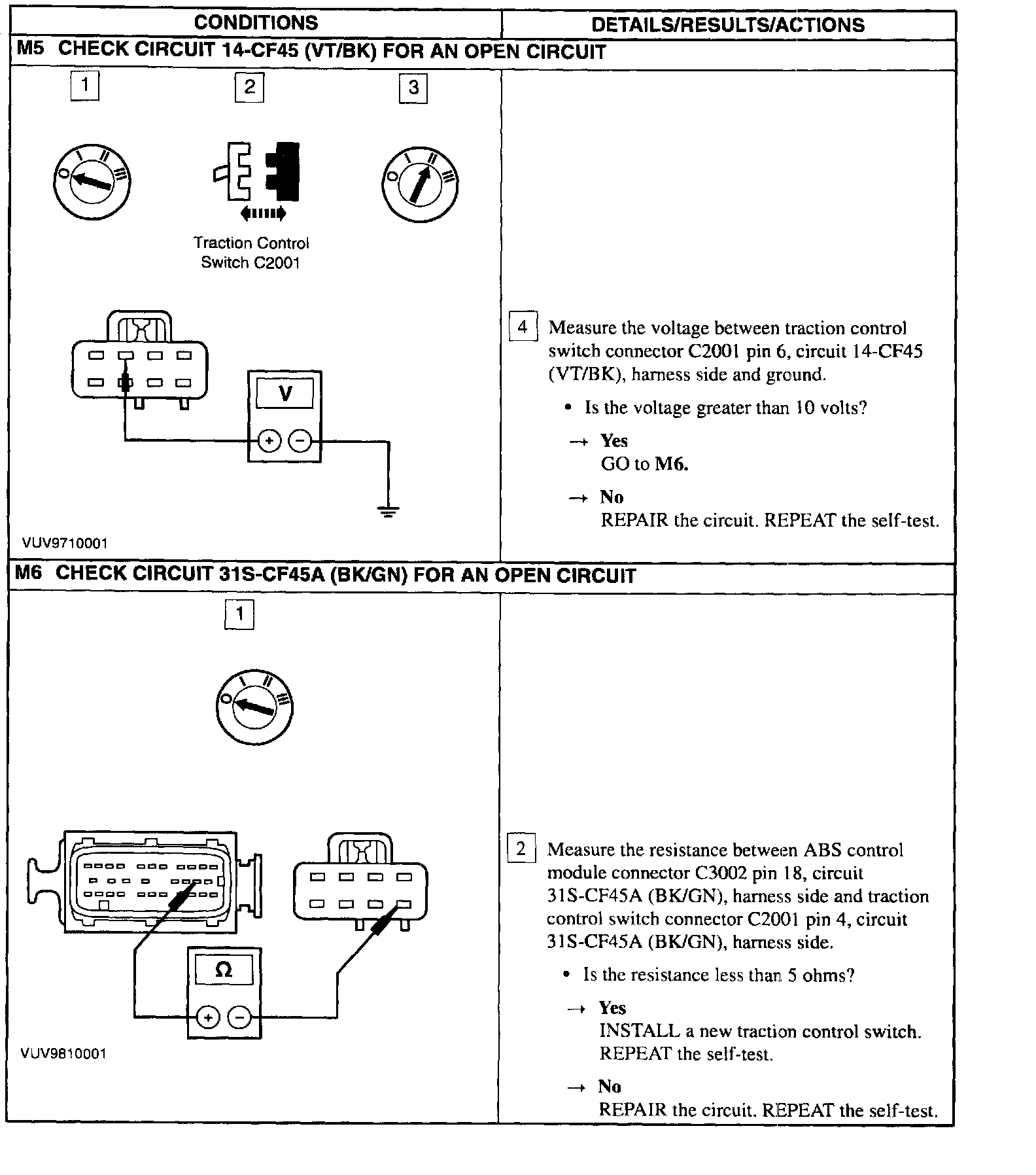

Test M5 - M6:
