Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> H DTC C1233, C1234, C1235, C1236, Wheel Speed Input Signal Missing >> With Traction Control

With Traction Control

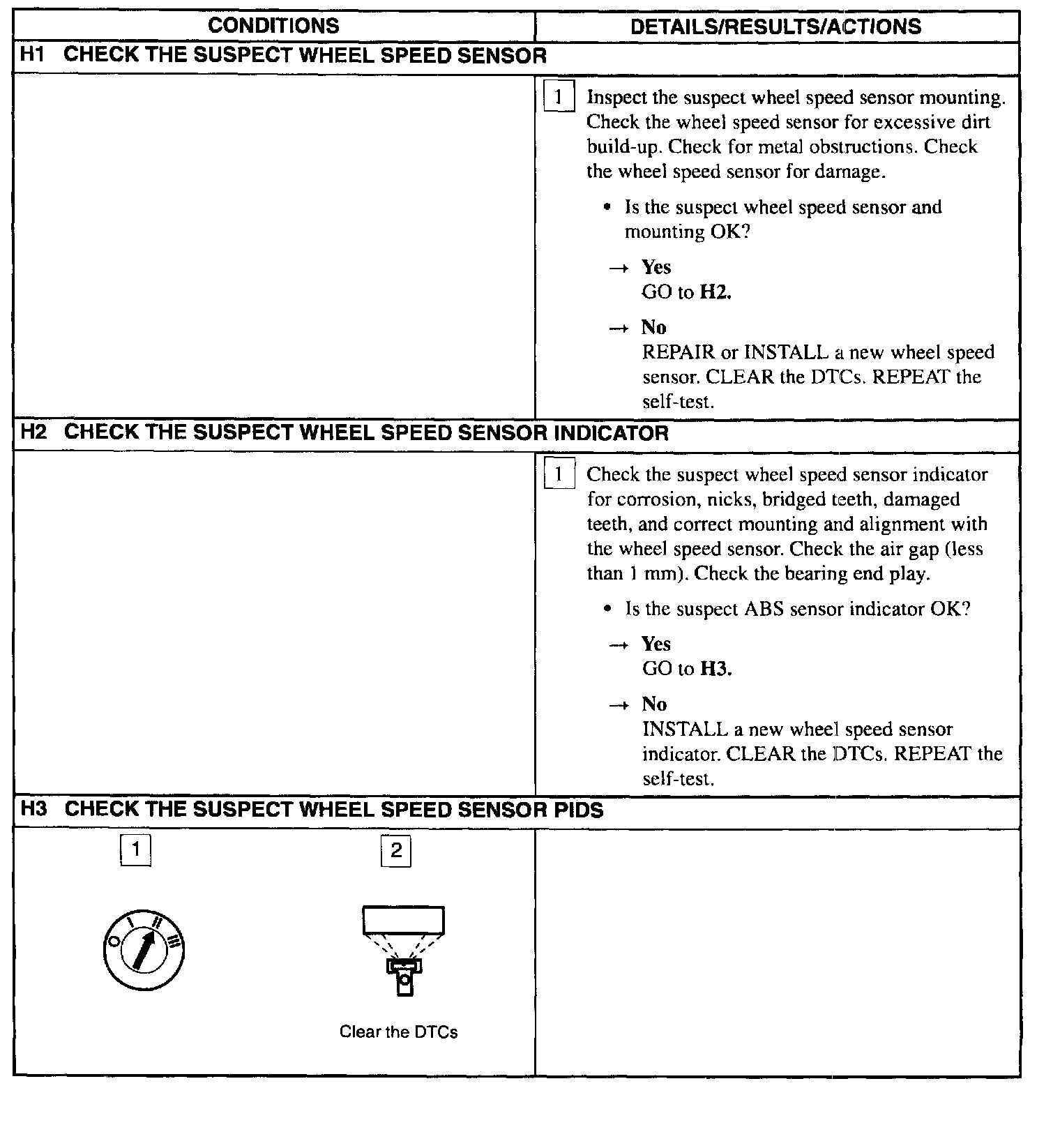

Test H1 - H3:

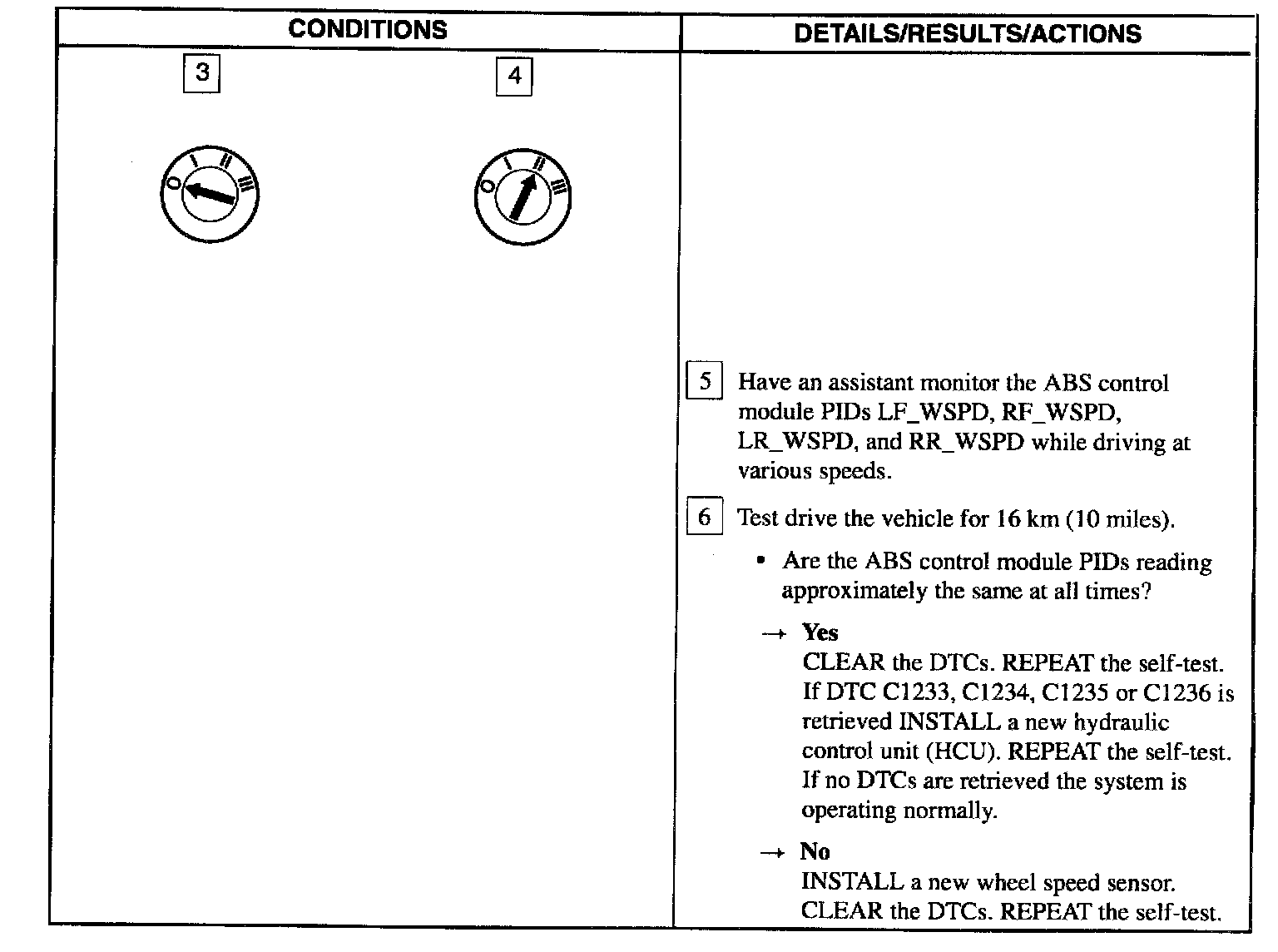

Test H3:
